Portable Hydraulic Rebar Cutter RC 16

Product Overview

Description

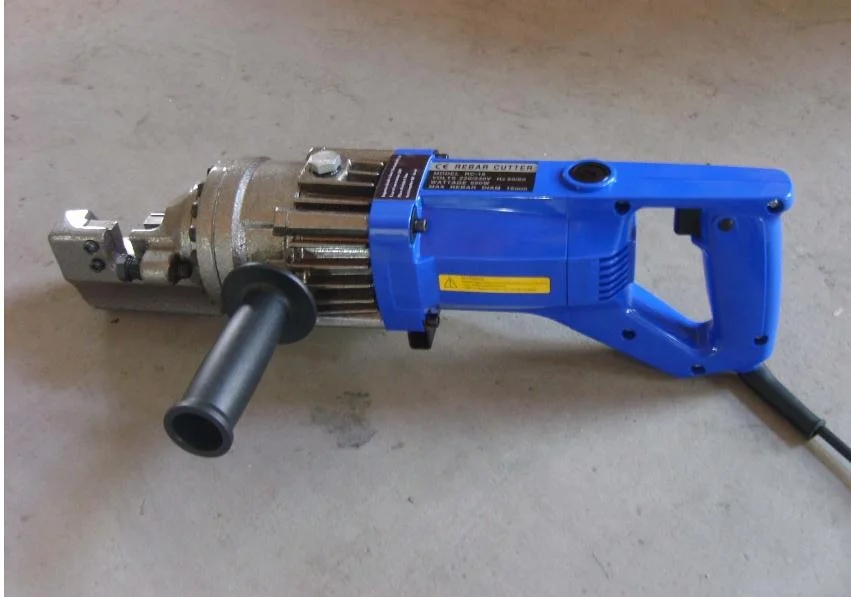

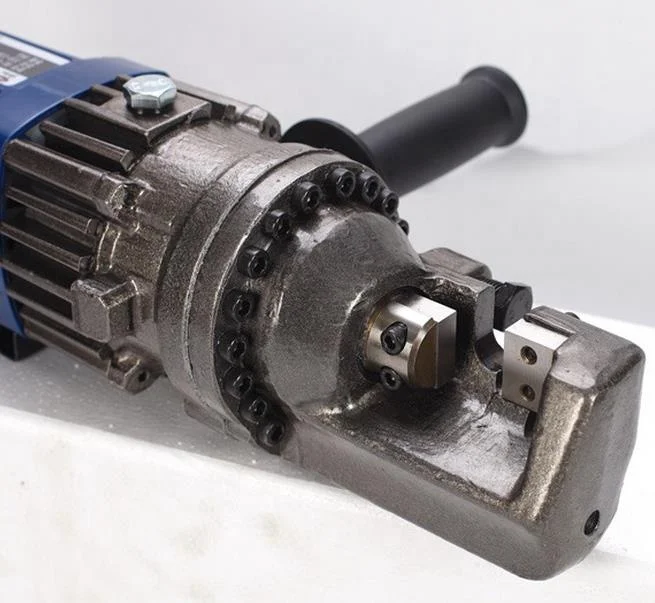

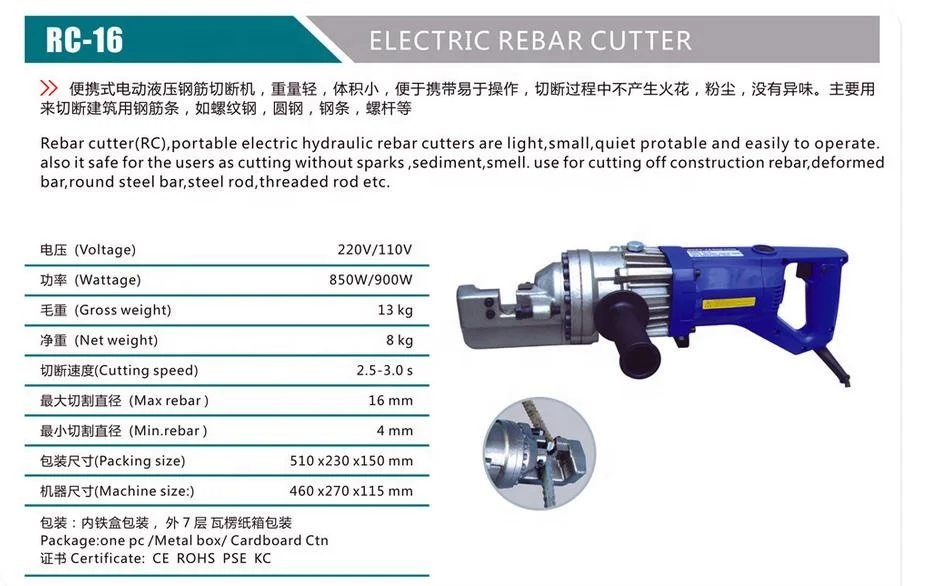

Portable Hydraulic Rebar Cutter RC-16





1. Available model: RC-16, RC-20, RC-22, RC-25, RC-16B, NRC-20

2. Available certificate: CE, RoHS

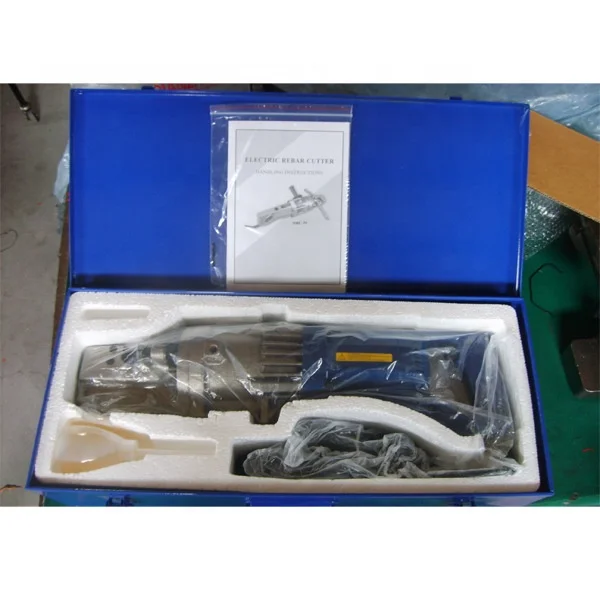

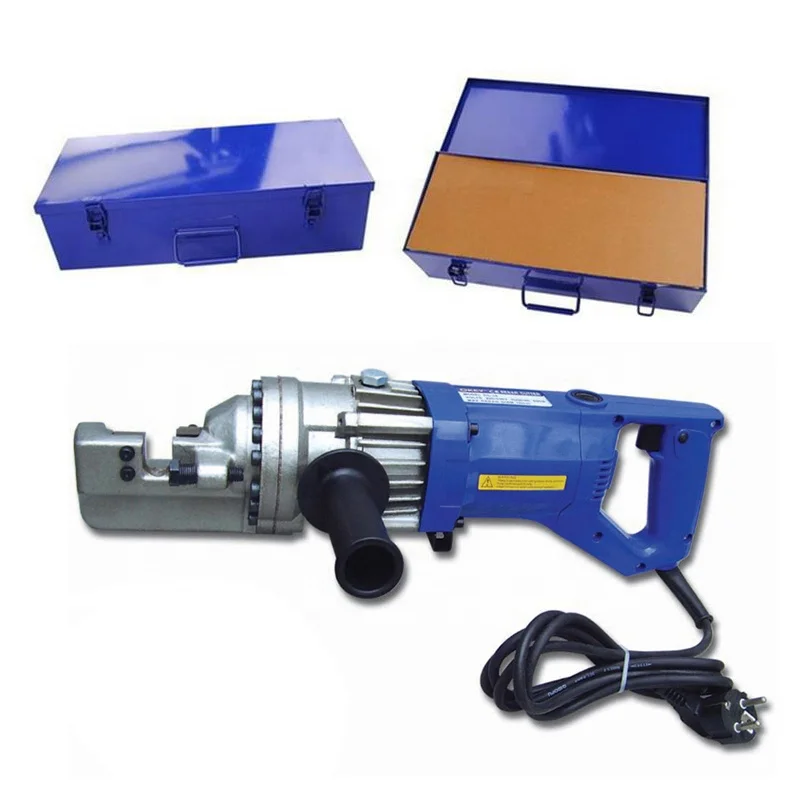

3. Packing: one set/metal box/carton

4. Detail description for CE approved portable hydraulic rebar cutter: Rebar cutter (RC),portable electric hydraulic rebar cutter is a kind of light, small, portable and quiet rebar cutter, it’s easy to operate and safe for users as cutting without sparks, sediment and smell. It’s widely used for cutting construction rears, deformed bars, round steel bars, steel rods and threaded rods etc.





Model	Voltage/Wattage	N.W. (kgs)	G.W. (kgs)	Max.Cutting Dia.	Min.Cutting Dia.	Cutting Force	Cutting Speed	Packing Size(cm)

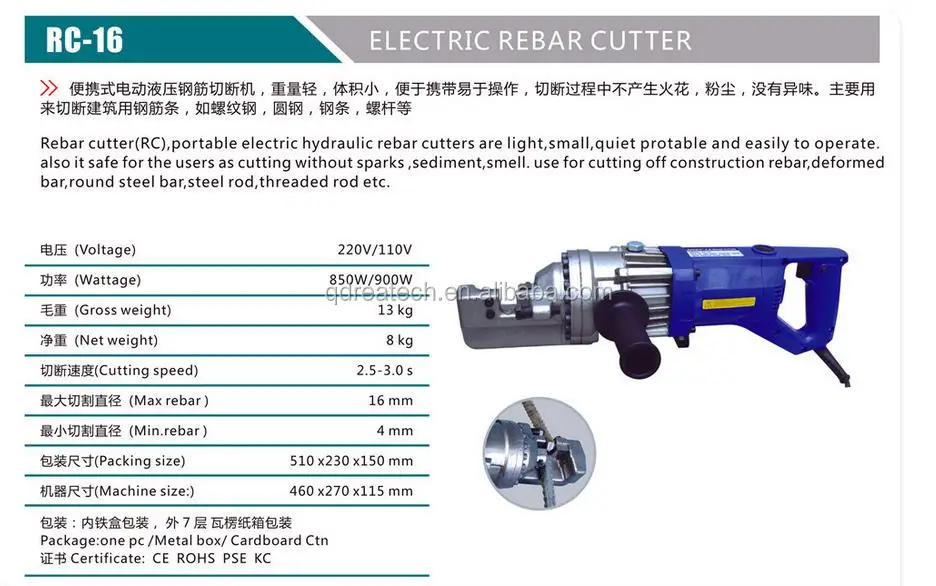

RC-16	230V/690W	8	13	16MM	4MM	13 tons	2.5~3.0 S	51×23×15
RC-16B	18V/140W	6.5	14	16MM	4MM	13 tons	4.0~5.0 S	43×41×15.5
RC-16B	DC18V	6	13	16MM	4MM	13 tons	4.0~5.0 S	54.5×41×18.5
RC-18	230V/830W	13.5	18.3	18MM	4MM	15 tons	3.0-3.5	57.5×28×16.5
RC-18(B)	DC18V	9	15	18MM	4MM	15 tons	3.0-3.5	54.5×41×18.5
RC-20	230V/830W	13	18.3	20MM	4MM	15 tons	3.0~3.5 s	48×19.5×28
NRC-20	230V/850W	11.5	17	20MM	4MM	15 tons	3.0~3.5 s	57.5×28×16.5
RC-20B	220V/110V	8.2	15	20MM	4MM	15 tons	5.0~6.0 S	54.5×41×18.5
RC-22	230V/850W	15	21.5	22MM	4MM	18 tons	3.5~4.5 s	48.5×19×33
RC-25	230V/1300W	24.5	32	25MM	4MM	30 tons	5 s	56.5×23×34.5
RC-32	230V/3000W	31	40	32MM	6MM	40 tons	6s	63x24x35
