| Model No. | Outer dimensions | LM block dimensions | H3 | |||||||||||||
Height M | Width W | Length L | B | C | S× | L1 | T | K | N | E | f0 | e0 | D0 | Greasenipple | ||

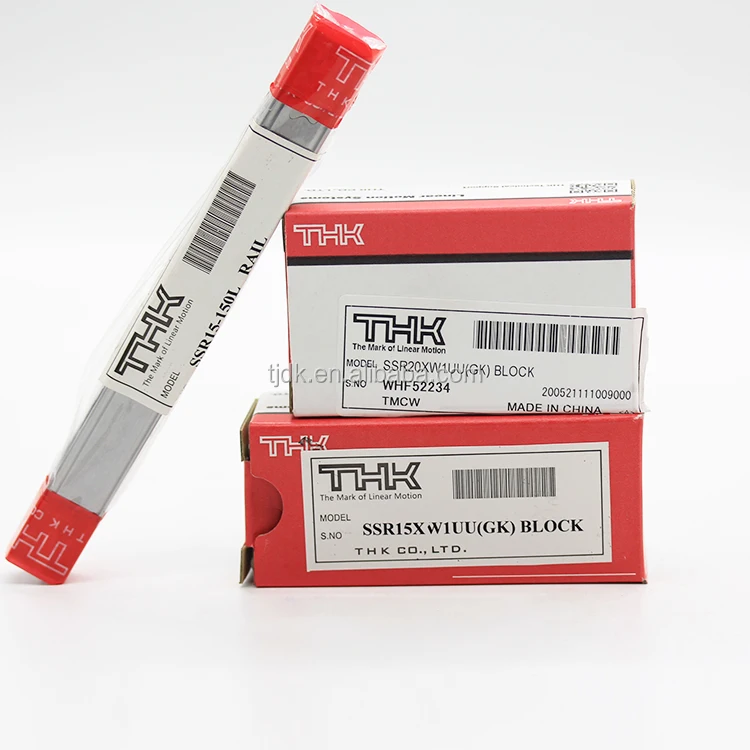

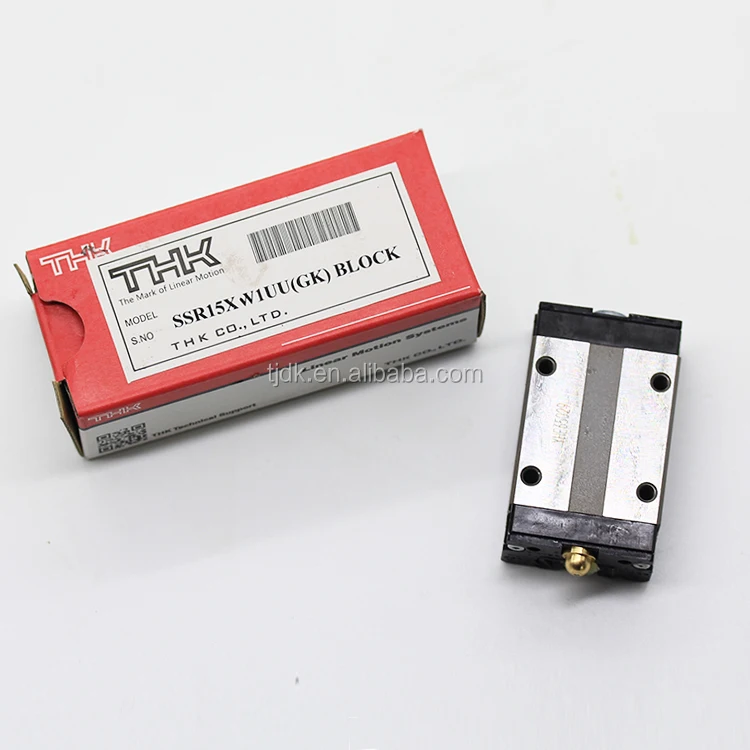

| SSR 15XWSSR 15XWM | 24 | 34 | 56.9 | 26 | 26 | M4×7 | 39.9 | 6.5 | 19.5 | 4.5 | 5.5 | 2.7 | 4.5 | 3 | PB1021B | 4.5 |
| SSR 20XWSSR 20XWM | 28 | 42 | 66.5 | 32 | 32 | M5×8 | 46.6 | 8.2 | 22 | 5.5 | 12 | 2.9 | 5.2 | 3 | B-M6F | 6 |
| SSR 25XWSSR 25XWM | 33 | 48 | 83 | 35 | 35 | M6×9 | 59.8 | 8.4 | 26.2 | 6 | 12 | 3.3 | 6.8 | 3 | B-M6F | 6.8 |
| SSR 30XWSSR 30XWM | 42 | 60 | 97 | 40 | 40 | M8×12 | 70.7 | 11.3 | 32.5 | 8 | 12 | 4.5 | 7.6 | 4 | B-M6F | 9.5 |
Price listed is just for your reference. It"s for linear block only. Please contact us to get accurate price for item you need. Thank you in advance.
We supply almost all kinds of THK linear motion products at competitive prices.
Production series as below.
LM guide: HSR, SHS, SSR, SHW, SRS, SCR, EPF, SVR/SVS, SRG, SRN, SRW,NR/NRS-X, HRW, SRS-G, RSR, HR, GSR, CSR, MX, JR, HCR, HMG, NSR-TBC
Warehouse Warehouse
Q: Are you trading company or manufacturer ?
A: Manufacture
Q: How long is your delivery time?
A: 2 days
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
