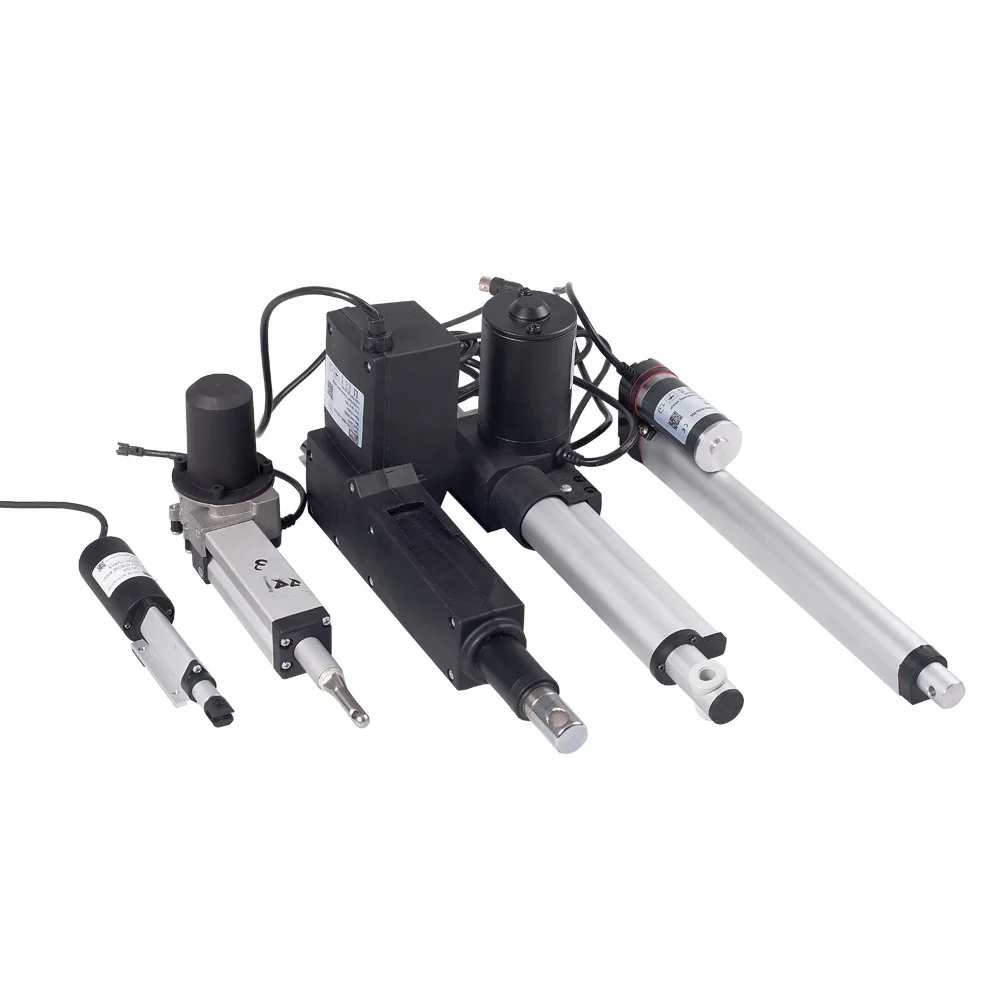

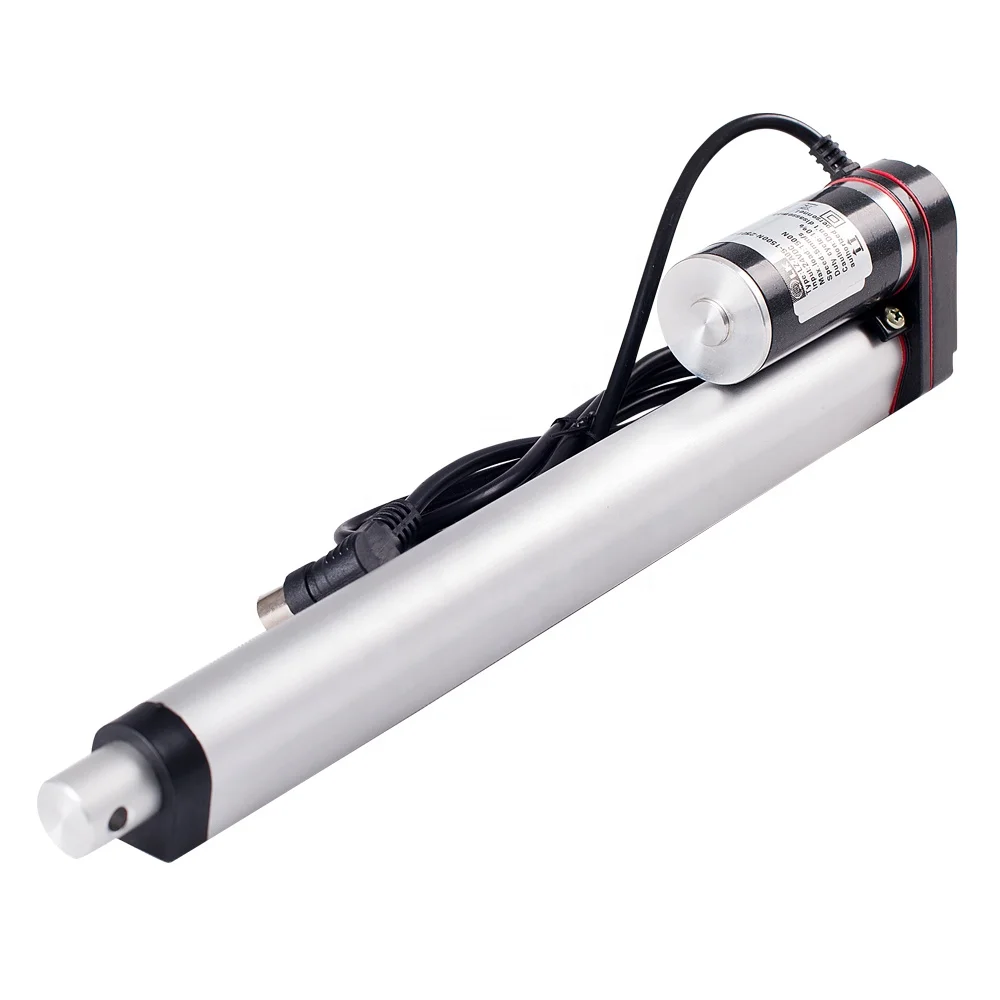

12V Medical Mini Linear Actuator

Product Overview

Description

12V Medical Mini Linear Actuator



Input Voltage: 24VDC

Load Capacity:800N

Max. Speed: 30mm/s

Standard stroke:: 100,150,200,250,300,350,400mm(optional)

Min. install dimension: S+175mm(optional)

Limit Switch: built-in

Duty cycle:10%, Max.2min on/18 min off

Operation Temperature: -26°C---65°C

Protection Class: IP66

Colour: Black or Gray
