Product Overview

Description

TY10S LED Single Low Intensity Solar Powered Obstruction Light (Type A)



Description:

The solar panel comes with TY10S provides power supply to the light, which makes TY10S a self-contained and care-free light unit. Also, with the solar function, the light is easy to deploy to almost any condition and any emergency case. Robust body built and surface coating provides good protection against harsh environments. TY10S is equipped with an 8Ah NiMH rechargeable battery which could power the light up to 20 days when the weather is cloudy & rainy. NiMH battery is also a clean power source with no pollution. The NiMH battery is also easy to find almost anywhere. TY10S is also available with an optional on/off switch for storing and protect battery from over-discharging.



Incorporated SBM (Smart Battery Management) program reduces energy consumption. By detecting ambient solar irradiance, TY10S can self-adjust LED outputs for extending autonomy. It also protects the NiMH battery pack from over-charging and over-discharging.

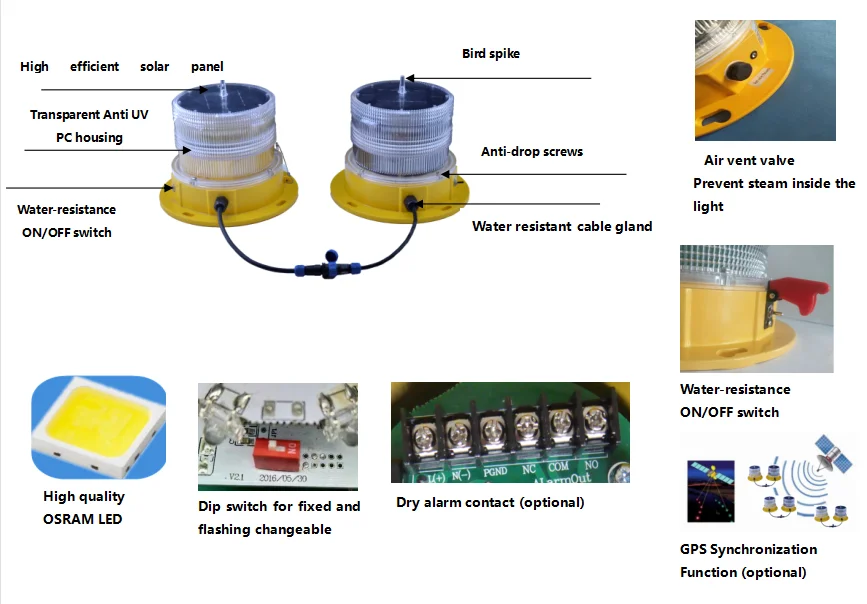

Major functions & features

• High quality optics for excellent beam spread control

• Ultra-light LEDs or Infrared led, energy saving

• Self-contained without outside power supply

• Maximum visibility distance 3.6KM

• Once fully charged, it can work for up to 200hrs

• Auto-off after being packed for 18 hours

• All hardware of obstruction lights are made of corrosion resistant metals.

• Use of quality components and sophisticated technology reduce chances of maintenance

and replacement.

• LED light source ensures long lifetime, maintenance free

• Shock and vibration resistant

• Corrosion resistant and UV stable polycarbonate housing

• Ease of mount, mount accessories available

• No wiring job, nice & easy installation

• Dip switch for fixed type to flashing changeable

• Dry contact alarm, it will give an alarm in case of light failure(optional)

• with GPS function, can work with other lights synchronously(optional).



Applications:

• High rise building marking

• Telecom tower marking

• Road obstruction marking

• Navigation aid

• Port, dock entrance&walkway

• Buoy marking

• Offshore gas&oil platform



Specifications:

Power Source	Solar module, mono-crystalline silicon
Solar Efficiency	14%
Max. Power Out-put	5V1.8 Watts
Battery Type	High-efficiency NiMH rechargeable battery
Battery Capacity	3.6V8AH
Battery Replacement	Yes, replaceable
MECHANICAL STRUCTURE
Lens	Polycarbonate, UV Stabilize
Body	Polycarbonate or Die-casting Aluminum
Water-proof	IP65
Weight	2 kg (Polycarbonate) or 3kg (Die-casting Aluminum)
Temperature Range	-30℃~+70℃
Dimensions	215.5mm H, 226mm Diameter
Suitable areas:	PSH=4
Warranty	5 years for light 2 years for NiMH battery 10 years for solar panel
