Product Overview

Description


Product Description

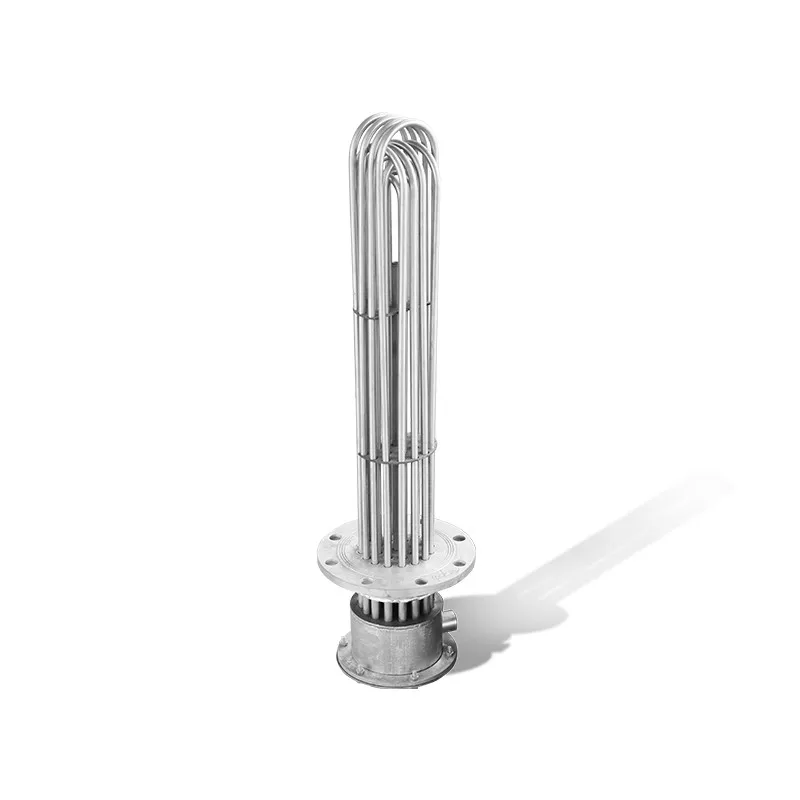

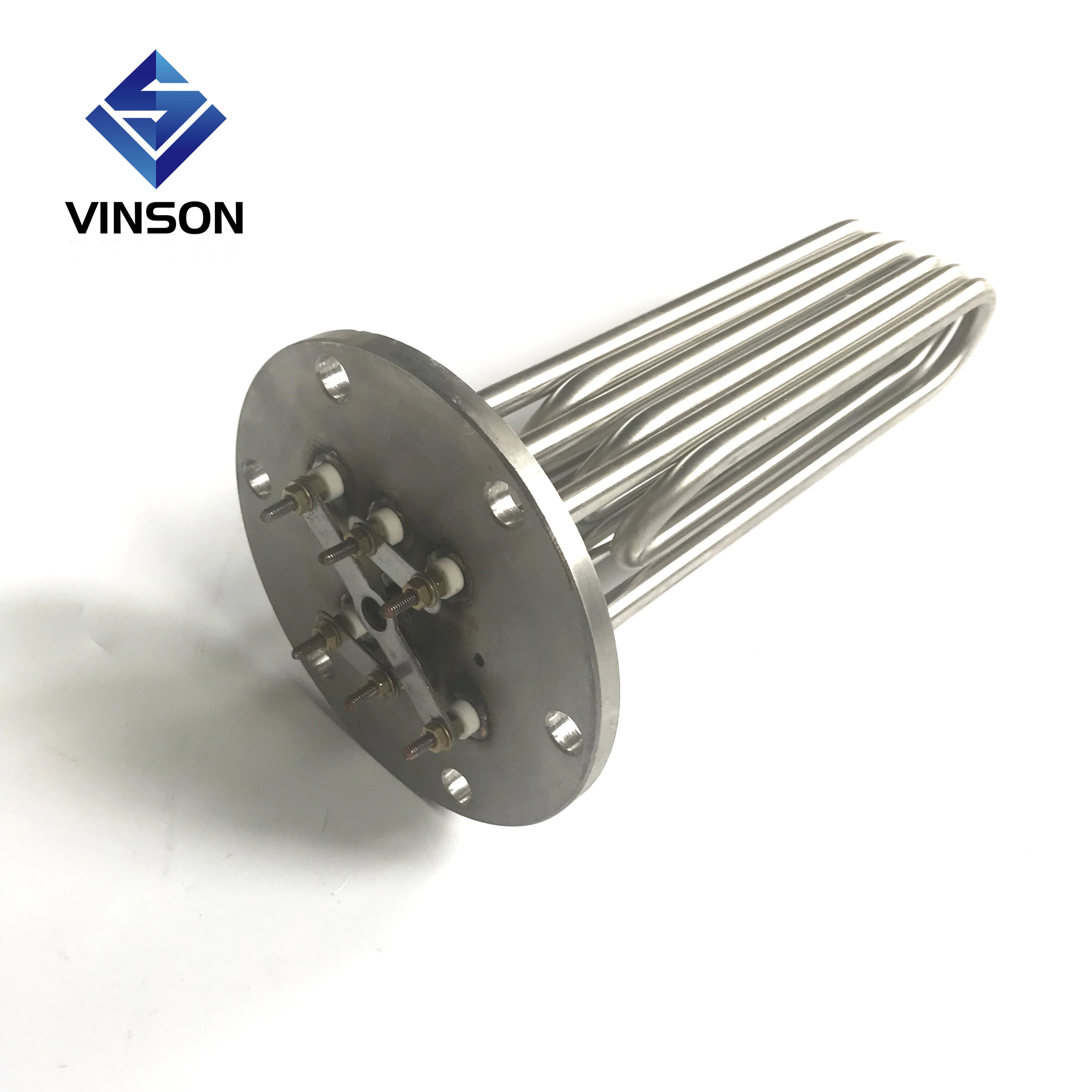

SS304 Square Flange Immersion Water Heater For Industrial Heating

Immersion flange heaters are designed primarily for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases.

immersion flange heaters are made with tubular elements brazed or welded to a flange. Stock flange immersion heaters are equipped with a general purpose terminal enclosure.

Main Features

\t
HI-POT Test
\t
1500V/S min cold condition
\t
Insulation resistance
\t
20M Ω min
\t
Leakage current
\t
0.75ma max
\t
Power tolerance
\t
+5%,-10%
\t
Voltage
\t
110V-440V
\t
Diameter range
\t
1mm to 40mm
\t
Heating resistance wire
\t
0Cr25Al5,Cr20Ni80 or as custom's requirement
\t
Air tubular heater wattage
\t
≥ 2w-4w/cm2
\t
Water tubular heater wattage
\t
≥ 6w-10w/cm2
\t
Dies and fin tubular heater
\t
≥ 8W-12w/cm2
Certifications
Detailed Image

Characteristics & Properties Of immersion heater

*Tube diameter: Φ8mm-Φ16mm

*Tube Material: SS201, SS304, SS316, SS321, INCOLOY800

*Insulation Material: MgO
*Conductor Material: Nichrome Resistance Wire
*Wattage Density: High/Middle/Low (5-25w/cm2)
*Lead Connection Option: Threaded Stud Terminal or Lead Wire
*Lead Wire Type: 300mm Standard (Teflon/Silicone High Temperature Fiberglass are available for immersion flange heater)

Features of flange immersion heater

1.Quick hot
2.Extremely good&insulation
3.High quality
4.Easy installation
5.High safety
6.Low cost & long life

\t
Application of flange immersion heater
\t
Water and oil heating appliances
\t
Plastic processing machinery
\t
Dies and Tools
\t
Labeling
\t
Medical Equipment
\t
Ovens and Dryers
\t
Packaging Equipment
\t
Hot Stamping
\t
Sealing
\t
Injection Molding
Order Guidance

The key questions which need to be answered before selecting a tubular heating element are:

1.What wattage and voltage will be used?
2.What is the diameter and heated length required?
3.What's the heating medium? Water or Oil heating?
4.What is thread flange size?

Packing & Delivery
\t
Packaging
\t
Size
\t
40(L) * 28 (W) * 28 (D)
\t
Weight
\t
20KG of flange immersion heater
\t
Packaging Details
\t
The normal package is Carton(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
