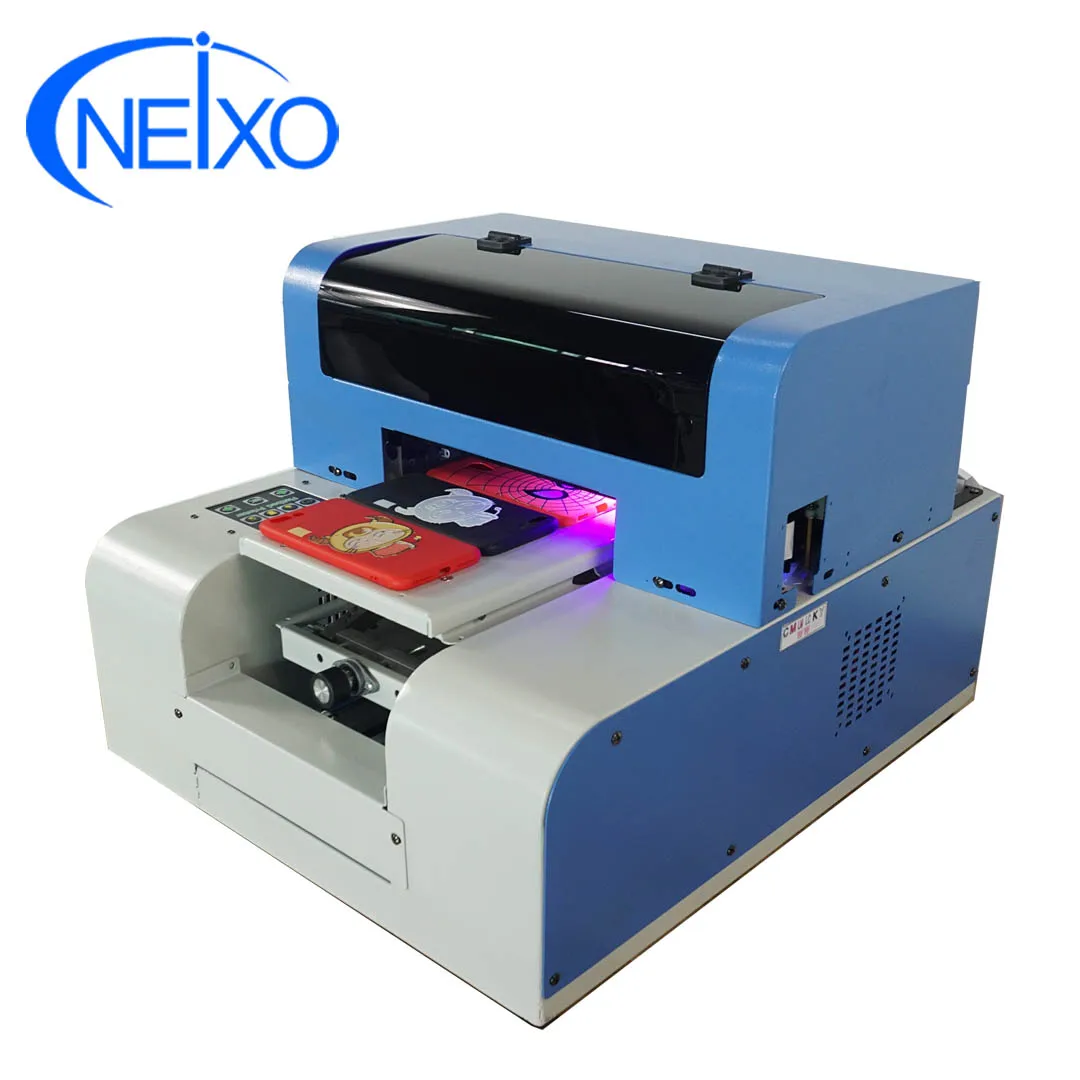

Silicone tpu phone case printing with Small a4 size uv priner
Advantages
Printable Products
3D Printing & Non Off-Set Printing
Non-offset repeated printing satify different kinds of Special printing requirement like 3D effect.
Special Gradient white ink printing mode will create the different Embossed Effect (3D Effect).

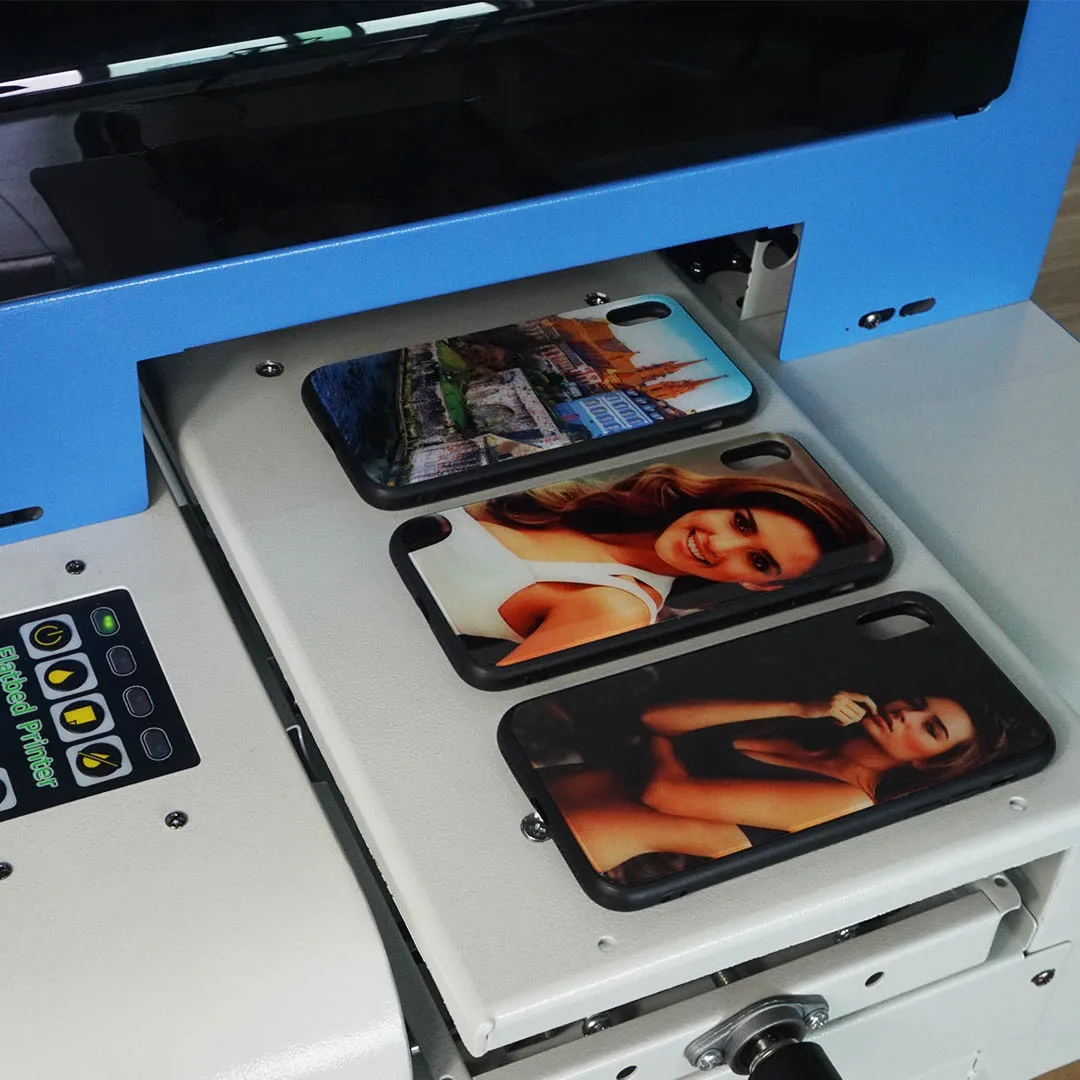

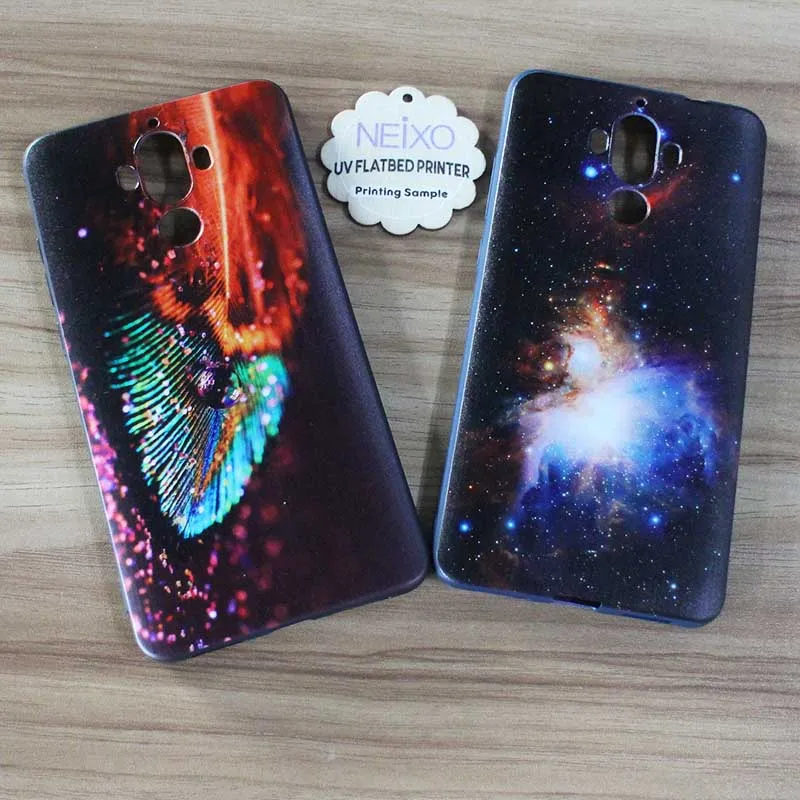

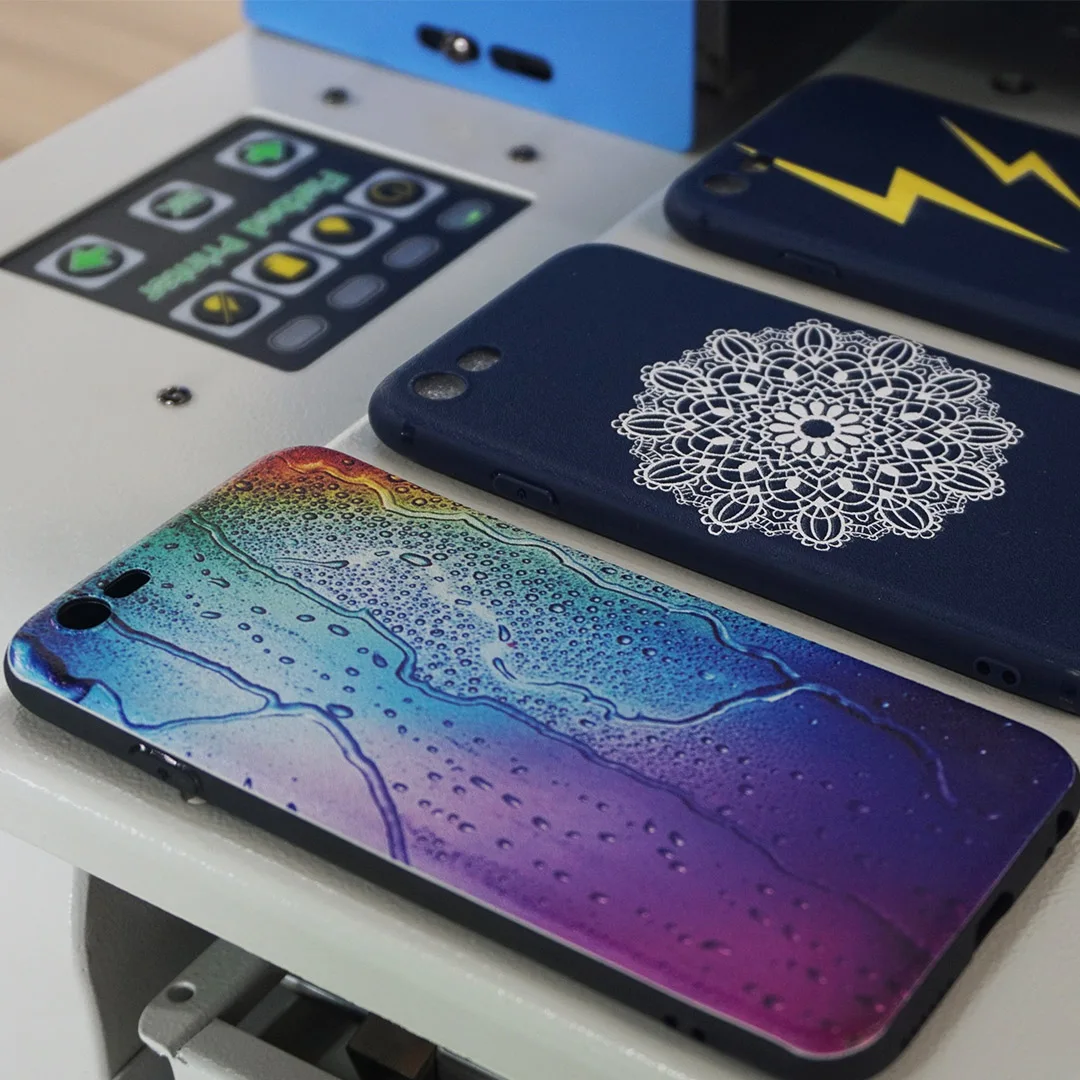

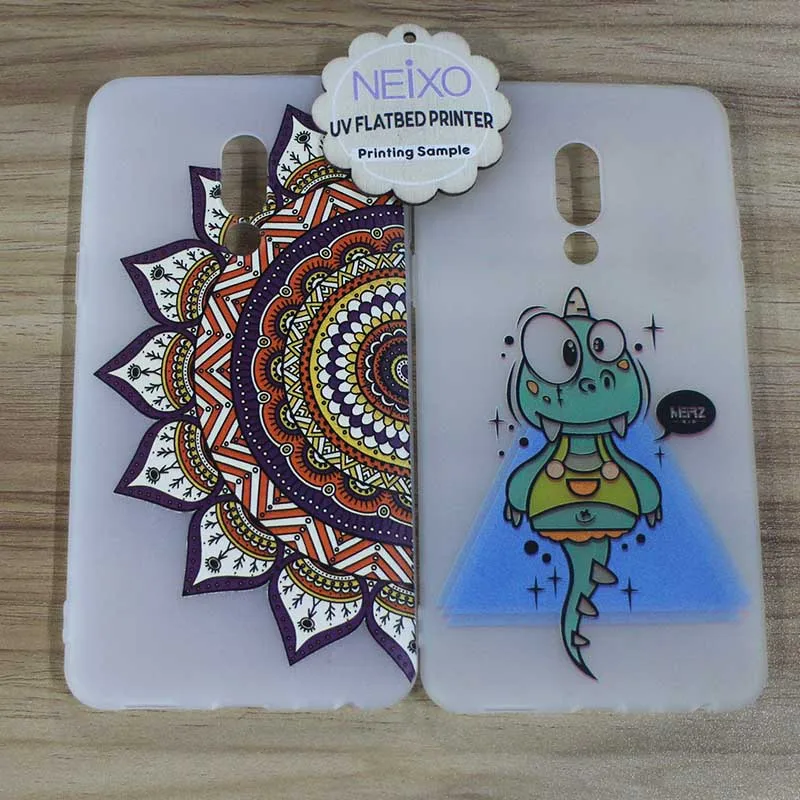

Printing Samples
Epson Printhead -
Max Printing Resolution: 5740x1440 DPI;
Reliable Original Epson printhead which cost lowest ink to gain best printing effect.
High Quality Anti-Corrosion & Pre Moun-in Damper System -To keep the UV ink flow smoothly from ink bottle to printhead.All the dampers including inside-filter to filtrate the impurity of ink to protect the printhead during printing.
Automatic Build-in UV LED Lamp - InstallingNX-Automatic Overheating protection system and Automatic On/Off system, most effectively to last the working lifttime of the UV LED Lamp.
Specification of NX4320UV Printer
Model
NX4320UV
Print head technology
Micro Piezo Technology
UV lamp system
Automatic On/Off
UV Power
60W
UV lamp life time
50000 hours
UV light wavelength
390-400nm
Cooling system
Dual-Cooling System
(Water circulating and Fan cooling)
Control software
RIP software
Ink system
UV damper CISS ink refilling system
Max. printing size
175mm*330mm
Print head
Epson L805
Print color
CMYK+WW
Print speed
8 min for Full A4 size @1440 x720 dpi
Max. media thickness
7CM
Ink consumption
15 ML/SQM (Appr. 1250-1500 A4 for 500ml set ink)
Printing resolution
RIP(1440*720 ; 1440*1440dpi)
Ink type
UV Environmentally ink
Working power
110-220V;50-60HZ;100W
For PC socket
USB2.0
System require
Windows XP/Vista/ Win7/WIN8/WIN10
Working enviroment
25-30 Celsius Degree, 50% Humidity, Dust free
Net weight/Gross weight
26KG/38KGS
Printer size
56.5*48*40CM
Packing size
64.5x58x47CM
Related Produts
NX3230UV X3131UV NX3220UV
Packaging & Shipping
Packing inStrengthed wooden box, with buffer material inside for preventing the machine from any damage during delivery.
