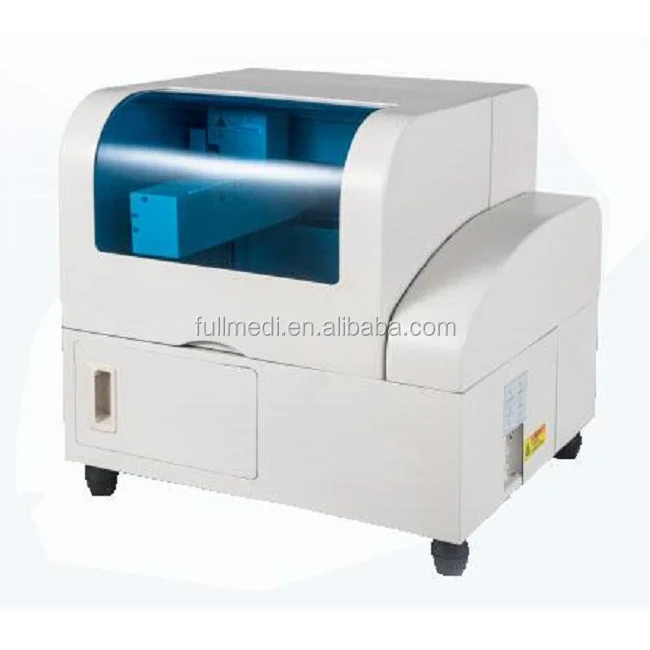

Lab Equipment Fully Automated Clinical Blood Chemistry Analyzer, Fully Automatic Biochemistry Analyzer

Feature

Economic:

Lower test cost, 1/ 10 test costs of dry chemistry analyzer

Min, reaction volume: 180ul

Min. Sample volume: 3ul

Fewer consumables cost

Smart:

Single test, more test items

STAT priority

User-defined animal types

72 samples/ reagent position

Simple

Fully automatic, real-walk-away operation

Friendly software makes for ease of use

Small:

Smallest automated veterinary chemistry analyzer

CBM<0.1m³, weight<39KG

Professional

High accuracy, stable performance

Durable material

Specification

Throughput: 100T/H-120T/H (single/ double reagent)

Analysis method: two-point, end-point, kinetic

Sample/ reagent position: 72 positions

Sample volume: 3ul-100ul, 0.1ul stepping

Sample & reagent probe: 1 independent probe with stirring function

Sample & reagent probe technology: liquid level detection, X+Y+Z dispensing system

Reaction cuvette cleaning: automatic washing/ without washing system

Light source: 10W/ 6V halogen lamp

Wavelength: 8 wavelengths, 340nm, 405nm, 450nm, 510nm, 546nm, 578nm, 630nm, 700nm

Absorption range: 0~3.5Abs

Calibration method: 1-point linear, 2-point linear, multi-point linear, non-linear

QC Method: Real-time QC, Day QC

Control rule: westgard multi-rule, L-J plot

Operating system: Windows XP, Windows 7

Interface: standard RS-232

Language: multi-language, Polish, English, Chinese, Russian, Spanish etc

Power supply: AC 110/220V, 50/60Hz, 300W

Temperature: 15℃~30℃

Humidity: 35%~80%

Water consumption: 3L/Hour

Dimensions: 500mm×440mm×470mm

Weight: 37KG

Packaging

The Biochemistry Analyzer  was strong export package & suitable for deliver by air, express or sea

Shipping

1. Express: Ship  Biochemistry Analyzer  UPS/ DHL/ FEDEX/ TXT express which is door to door, you just receive it at office (3~5 days)

2. Air: Ship Biochemistry Analyzer by air cargo which you need go to air port to take it (2~7 days)

3. Sea: if goods are large quantity and you are not in hurry, we can ship Biochemistry Analyzer by sea to save freigth cost (about one month)

Channel Digital Electrocardiograph ECG-100      Tabletop Pulse Oximeter FM-6530           Pulmonary Function Analyzer

Delivery time: within 3 to 7 days upon receipt of payment
