Product Overview
Description
Product Description
| ||||
Article | MT9043H | MT9043 (50)KH | MT9070KH | |

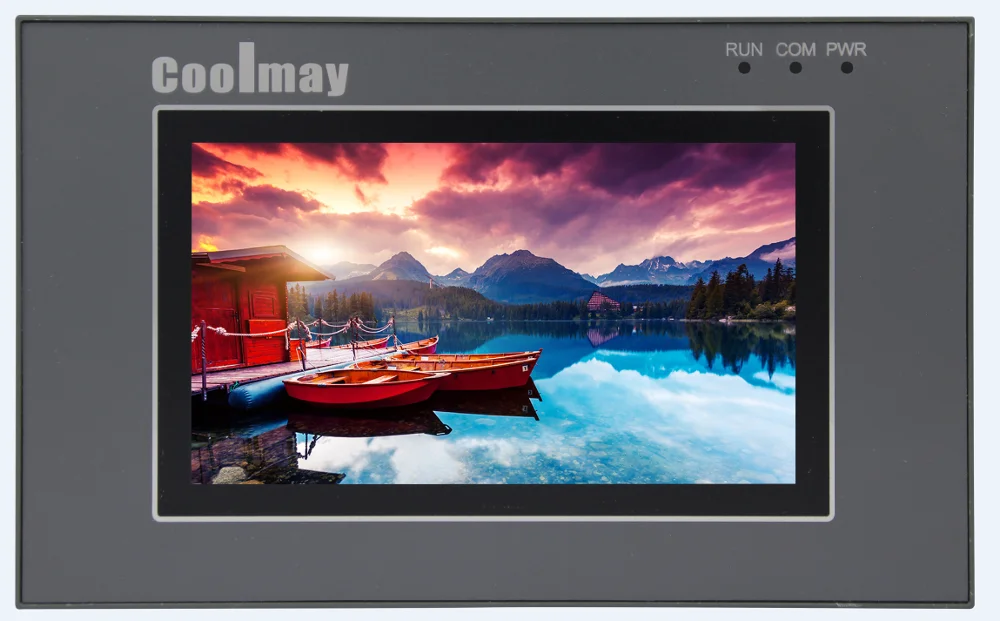

Images | The front panal | | | |

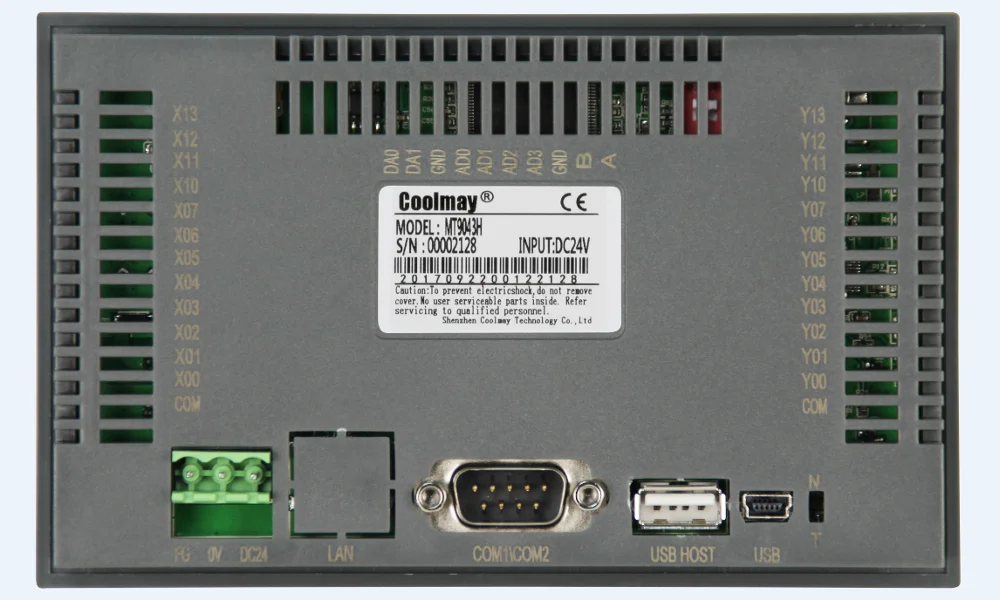

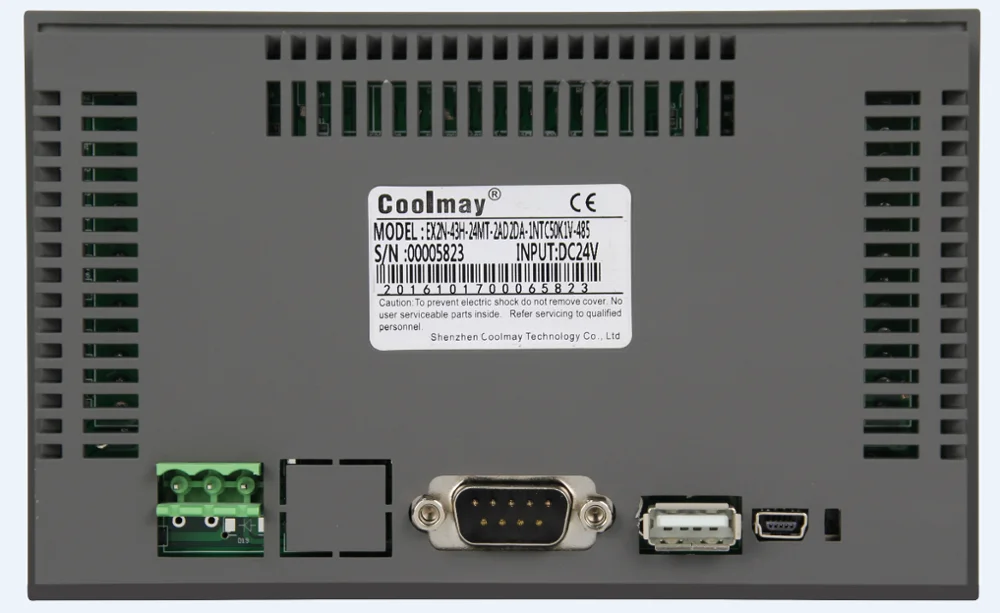

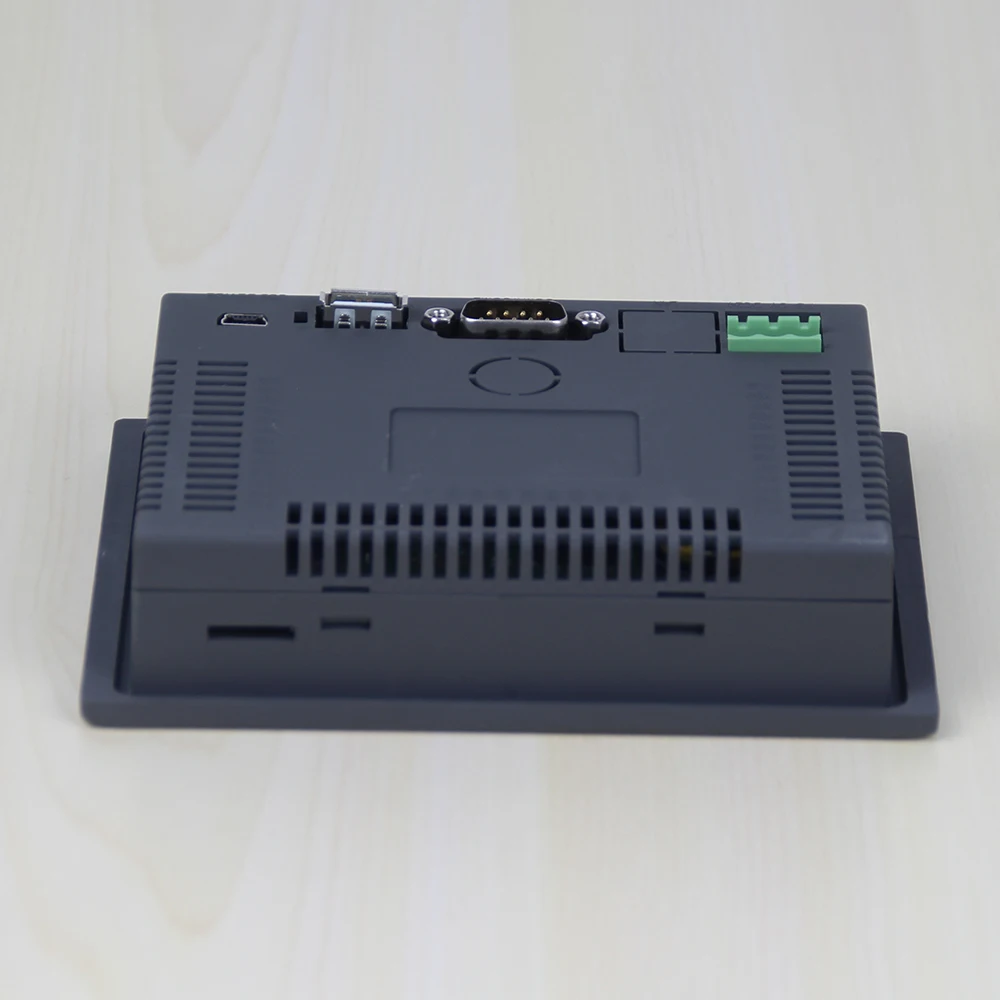

The back side | |
| | |
Regulation | Dimension | 134*102*30mm | 150*93*32mm | 226*163*35.6mm |
Cutout Size | 119*93mm | 143*86mm | 218*153mm | |
Display size | 97*56mm | 97*56mm | 154*87mm | |
Weight (kg) | About 0.33 kg | About 0.33 kg | About 0.7 kg | |
Display | Display | 4.3”TFT | MT9043KH:4.3”TFT MT9050KH:5.0''TFT | 7.0''TFT |
Resolution (pixels) | 480*272 | MT9043KH:480*272 MT9050KH:800*480 | 800*480 | |
Brightness | 300cd/m² | |||
Contrast Ratio | 400:1 | |||
Backlight | LED | |||
Backlight life | 60,000 h | |||
Display color | 65536 true colors | |||
Touch type | 4-wire precision resistance network | |||
Storage | ROM | 128MB | ||
RAM | 32MB | 32MB | 64MB | |
CPU | ARM9 core 216MHZ | ARM9 core 216MHZ | ARM9 core 288MHZ | |
Operation system | / | |||
Interface | USB Host | Yes | ||
USB Client | USB 2.0×1 | |||
Ethernet | Optional | |||

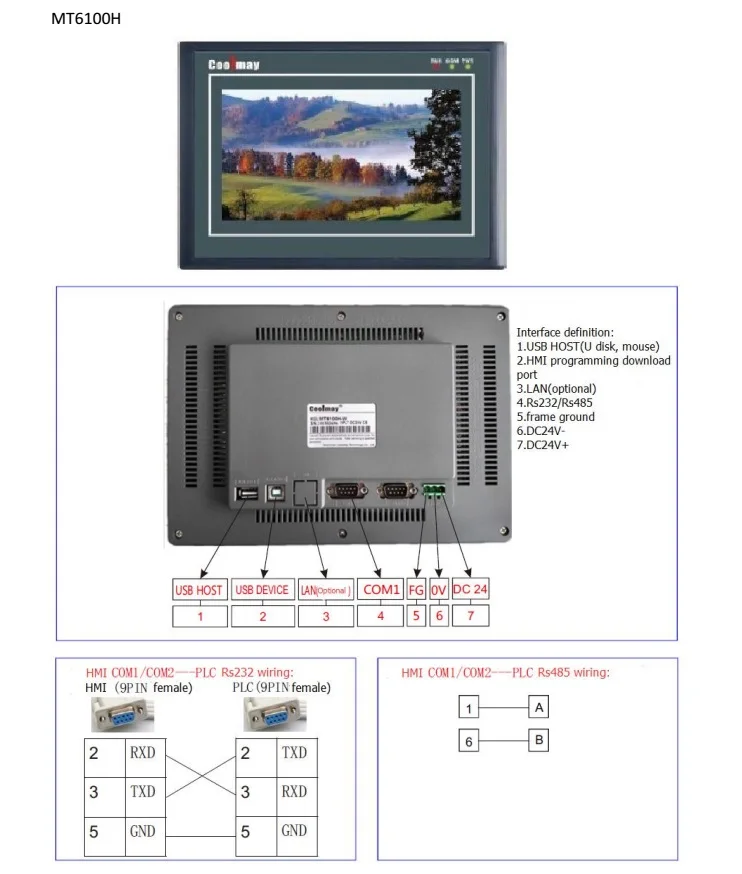

COM port | RS232/RS485 (MT9043KH,MT9050KH could connect CAN) | |||
Protocol | Support MODBUS,free port and normal PLC communication Protocol | |||
| Calendar | Yes | ||
Power supply | Input Voltage | DC5V ~ DC24V | ||
Consumption | 3W | 3W | 8W | |
Protection Class | IP65 (the front panel) | |||
Temperature | Working environment 0~50℃;Storage environment-20~70℃ | |||
Humidity | 20%~90%RH | |||
| Certification | CE | ||
Software | <CoolMay HMI Programming Software>; detailed info. refer to <CoolMay HMI User Manual> | |||
Features

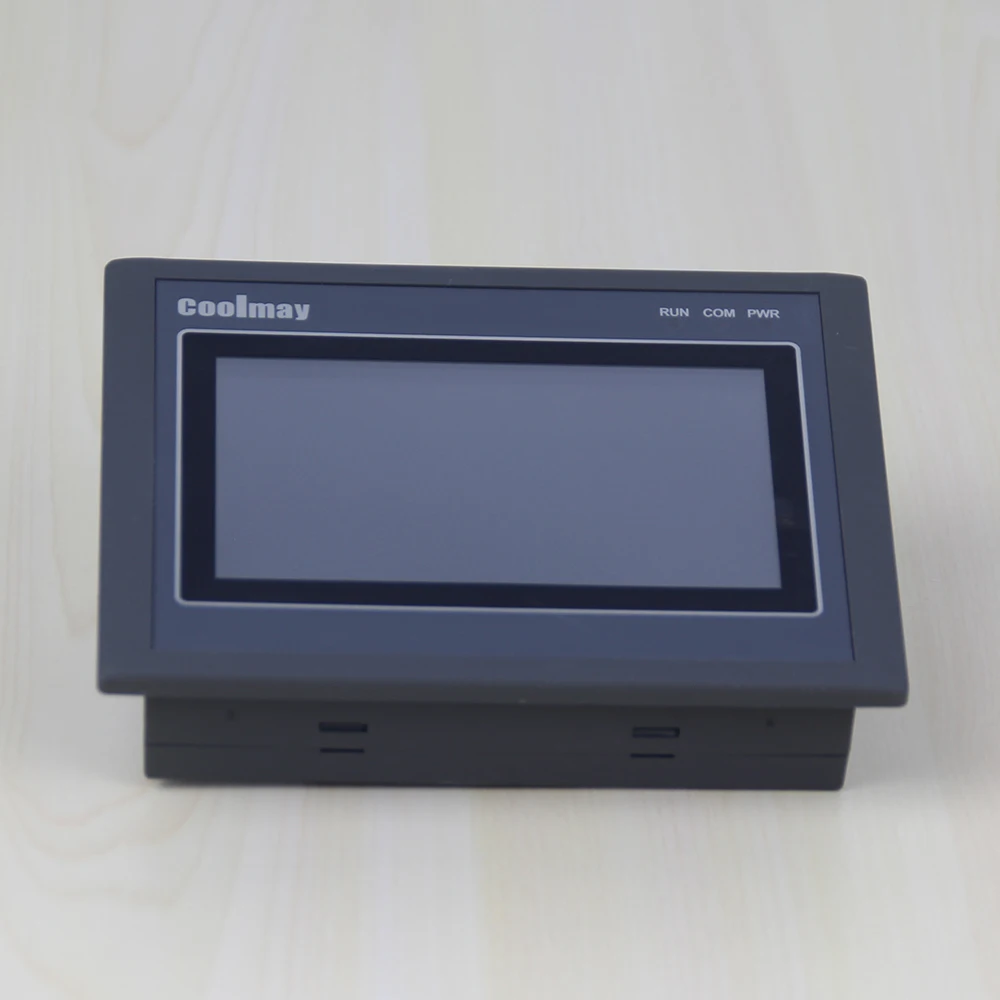

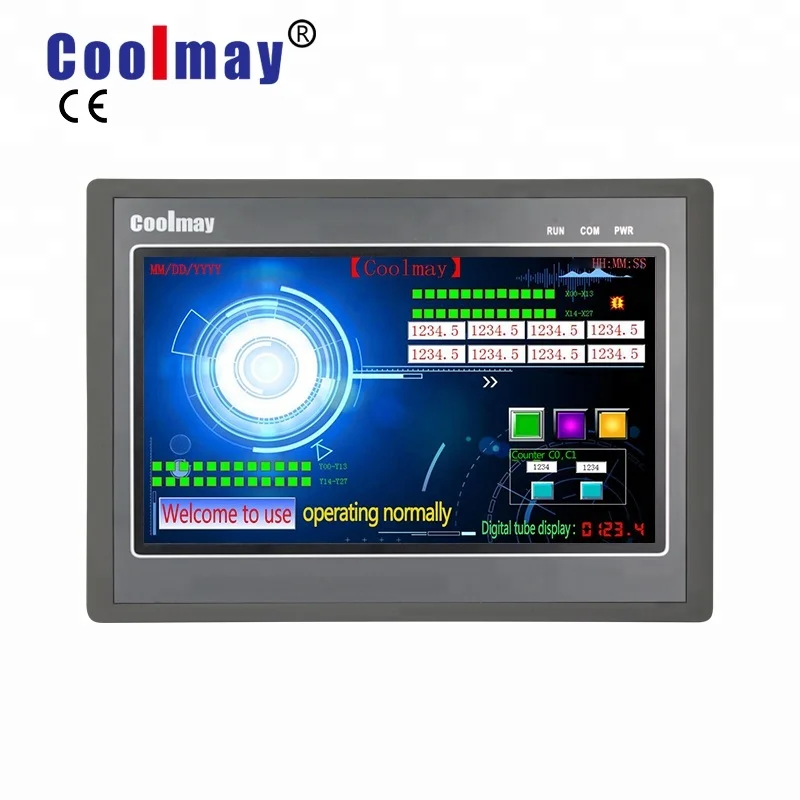

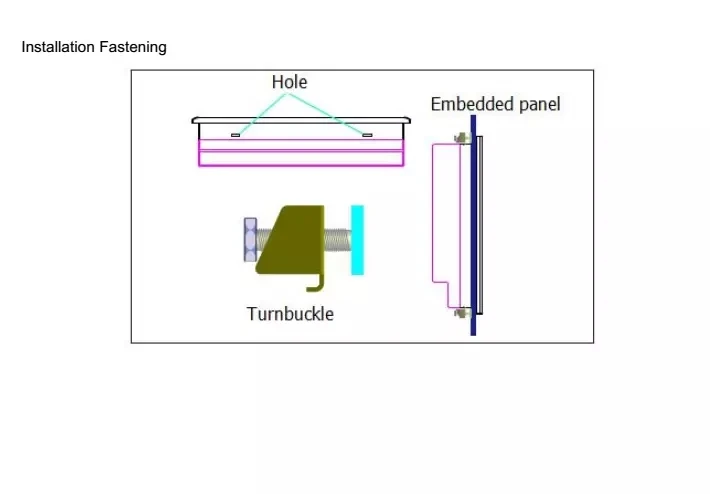

COOLMAY MT9070KH 7 inch true color touch screen, latest product, two installation methods, can be used for machinery and smart home and other occasions, comes with 232/485 ports, optional network port, support MODBUS protocol, Can communicate with a variety of PLCs.
Note: H series and KH series is little different.
Advantages
1. High-precision, high-reliability resistive touch panel
60,000 TFT color display
H series vertical display
2. Strong software features
Provide a large number of vector library, support self-built gallery
Supports various formats of static images and supports animated GIFs
Supports all fonts provided by windows
U disk support for storage of data, recipes, history curves, history list, (real-time, history, alarm bar) alarm display function,and so on.
3. can integrate multiple functions
Comes with RS232 and RS485
Optional network port or audio
H-series basic and HA(S) upgrades are optional (internal system and CPU are different),etc.

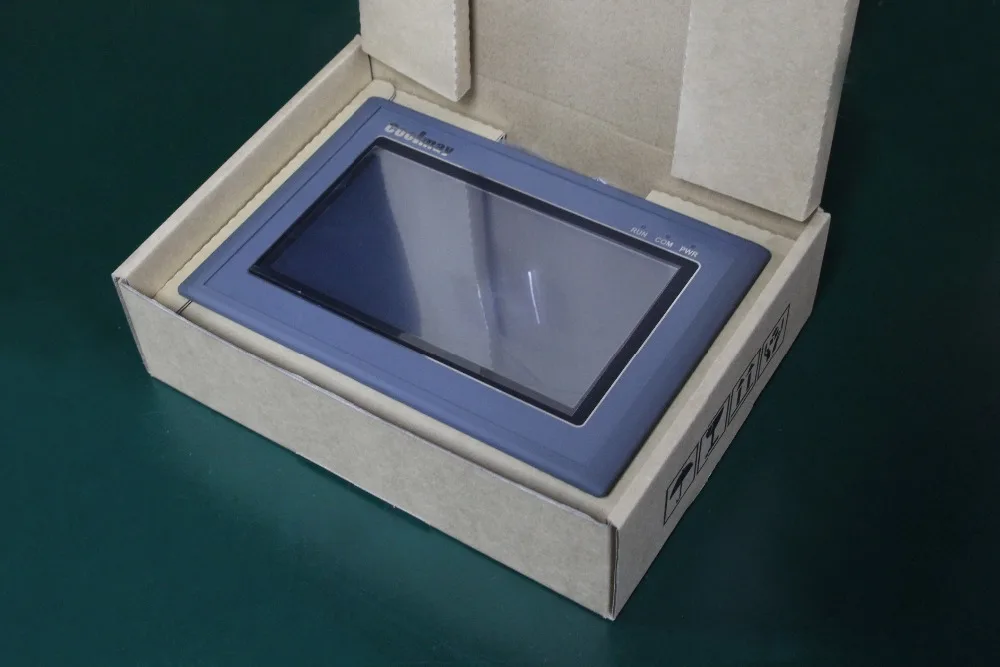

Packaging & Shipping
