Новый 3 понитный мини трактор, экскаватор погрузчик на продажу
- Category: Towable Backhoe >>>
- Supplier: Changzhou Kafurter Machinery Co. Ltd.
Share on (60810405030):
Product Overview
Description
ONE

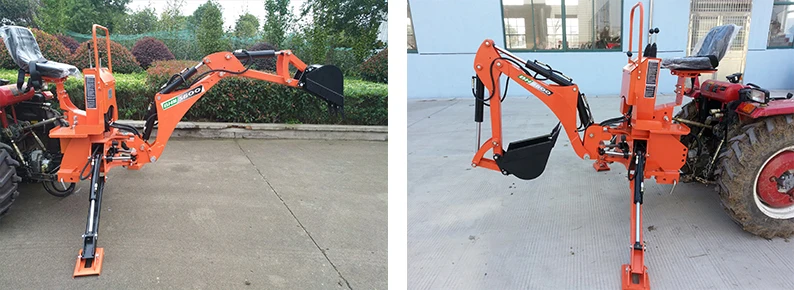

1.BHM5600 Light Backhoe
1. Suited to compact tractor
2. Smallest weight 230KGS
3. Multiple Bucket Sizes
4. Thumb and Ripper Available
5. Designed for maximum strength and durability
Model | BH4600 |
Overall Reach | 90" |
Stabilizer Width Up | 52" |
Stabilizer Width Down | 88” |
Dumping Height | 61" |
Operating Height | 99" |
Suggested HP | 16hp+ |
Pry Power | 4,000lbs. (Most Powerful In Class) |
Joystick | 4-Way Controls and 2 Joystick w/ 2-Way Controls |
Bucket Rotation | 180 degrees |
Bucket Size | 12" w/three bolted teeth |
Tractor Hitch | Category 1 or 2 |
Weight | 230kgs |

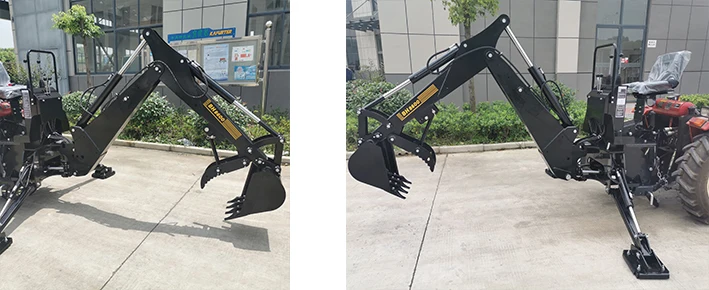

2.BH Series Backhoe
1. Multiple Bucket Sizes from 9 to 18 inches
2. Thumb and Ripper Available
3. Built with high-quality steel with considerable digging forces
4. Equipped with sturdy booms in order to give operator greater visibility, swing arc to facilitate movement
Model | BH5600 | BH6600 | BH7600 | BH8600 |
Maximum Digging Depth | 1830mm | 2133mm | 2438mm | 2745mm |
Digging Depth (two foot flat bottom) | 1676mm | 1980mm | 2286mm | 2590mm |
Swing Arc | 180 ° | 180 ° | 180 ° | 180 |
Loading Height (bucket at 60 ° ) | 1270mm | 1524mm | 1778mm | 2032mm |
Reach from Center Line of Swing Pivot | 2286mm | 2590mm | 2895mm | 3200mm |
Transport Height (maximum) | 1245mm | 1498mm | 1752mm | 2032mm |
Bucket Rotation | 180 | 180 ° | 180 ° | 180 |
Loading Reach (bucket at 60 ° ) | 865mm | 965mm | 1092mm | 1220mm |
Transport Overhang | 1016mm | 1042mm | 1066mm | 1092mm |
Undercut | 660mm | 712mm | 762mm | 812mm |
Stabilizer Spread, down position | 1700mm | 1980mm | 2260mm | 2565mm |
Stabilizer Spread, up position | 1066mm | 1194mm | 1550mm | 1828mm |
Bucket Cylinder Digging Force | 930kgs | 1112kgs | 1288kgs | 1360kgs |
Dipper stick Cylinder Digging Force | 476kgs | 566kgs | 910kgs | 1135kgs |
Shipping Weight (less bucket) | 252kgs | 296kgs | 356kgs | 498kgs |
Hydraulic Volume 3'4" Requirements | 3 to 4 GPM | 3 to 4 GPM | 4 to 5 GPM | 5 to 6 GPM |
Hydraulic Pressure Requirements | 2000psi | 2000 psi | 2000 psi | 2000 psi |
Recommended Tractor HP | 18-25HP | 20 - 35 HP | 25 - 45 HP | 35 - 65 HP |
