BOPP Adhesive Tape Coating Machine Automatic Coating Machine

Product Overview

Description

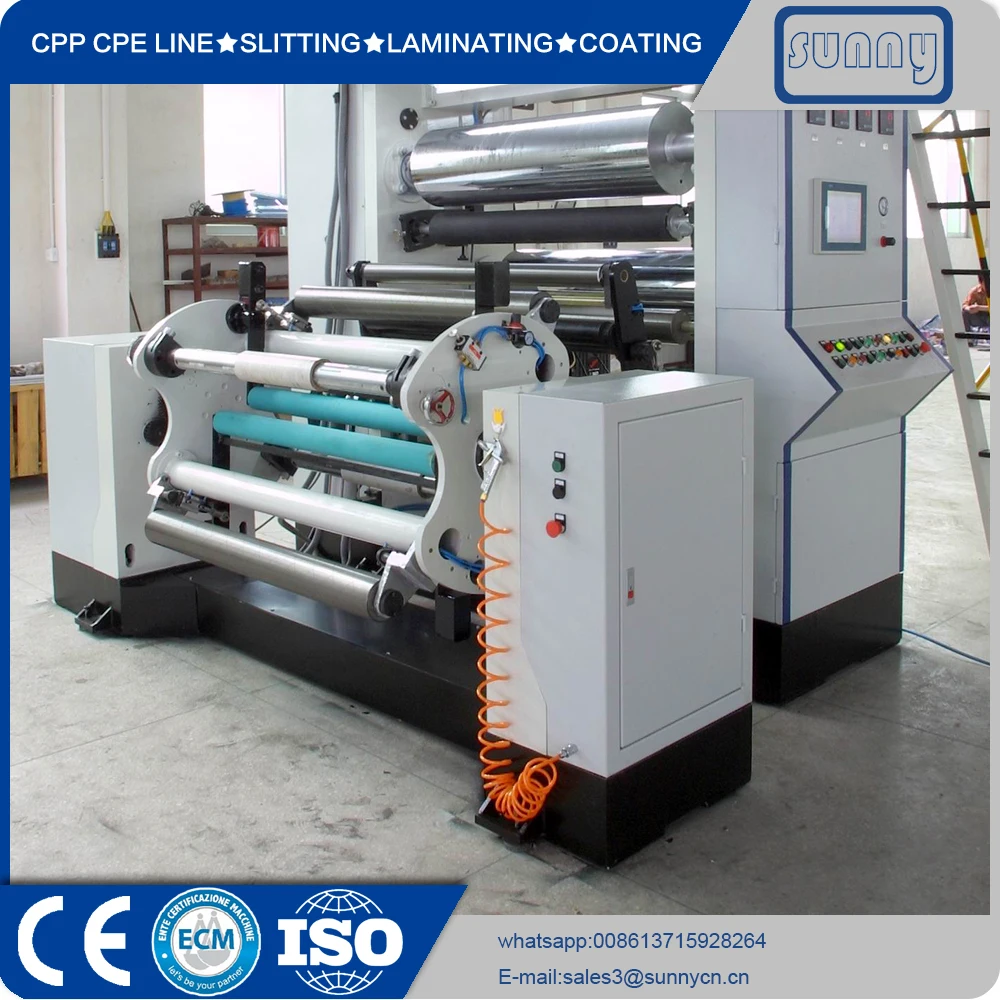

BOPP Adhesive Tape   Coating Machine Automatic Coating Machine





Application:

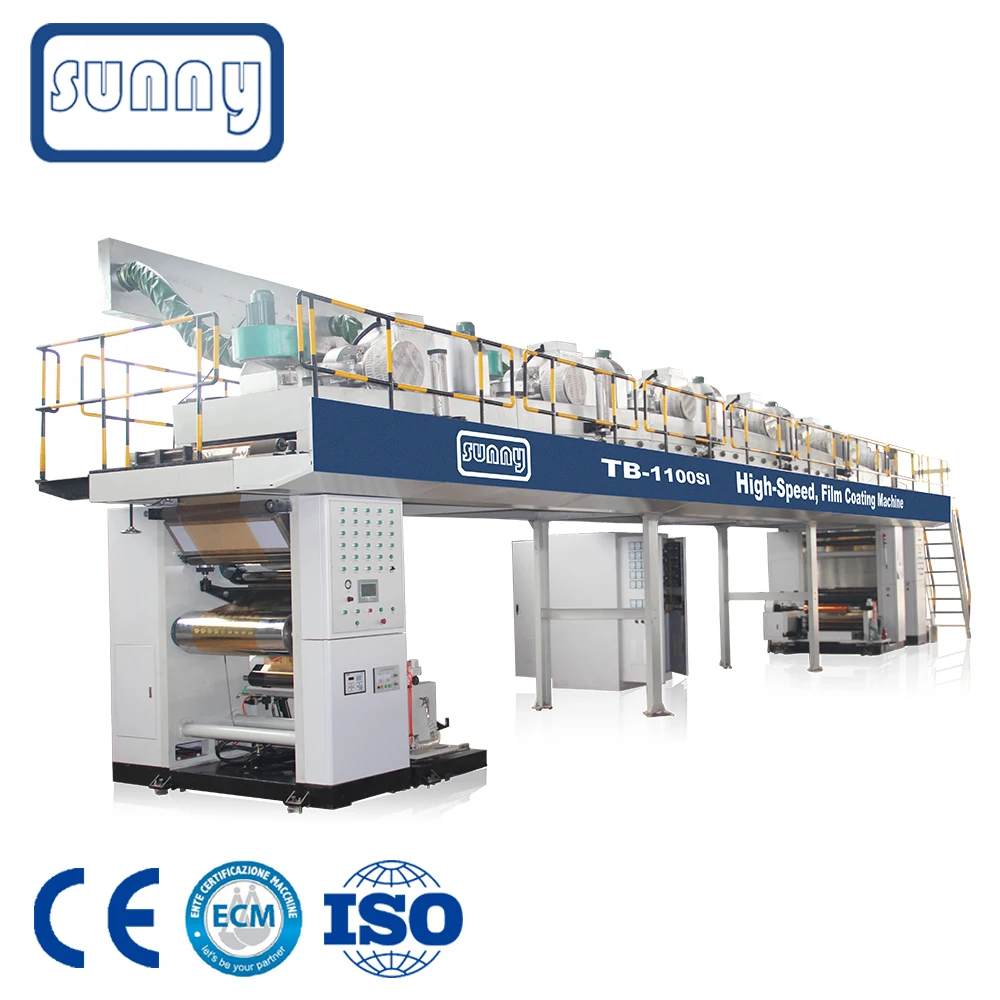

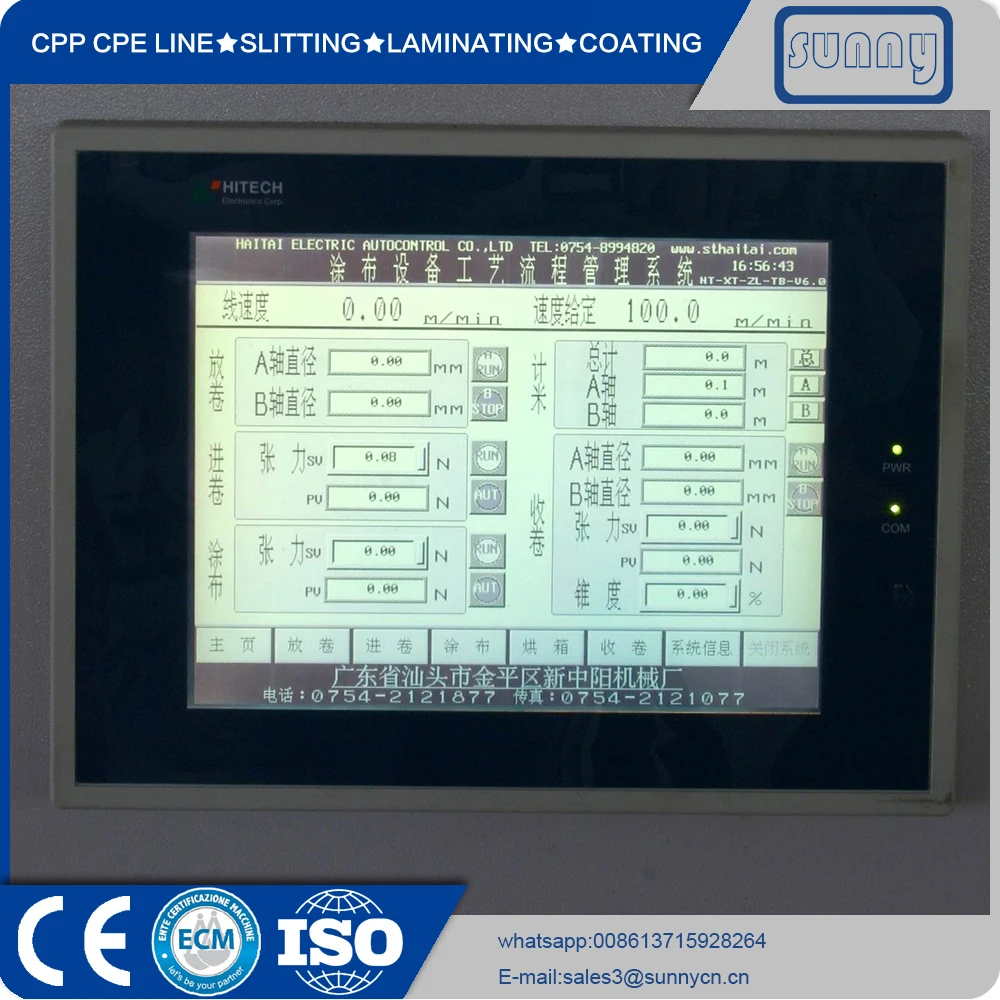

TB-1100S Film Coating Machine (Single Unwind and Single Wind) is the elaborately manufactured product we referring to the advanced technology and experiences at domestic and abroad. Whole machine structure is reasonable, high- working accuracy, It can adapt to high-speed production, meanwhile, there are some complete functions in the whole machine control system, high-automation degree. PLC programmable controller, AC Variable Frequency Driver etc electric components are all adopting the first-class high quality products of abroad, which ensured the quality stabilization of equipment. Compared with the similarity products of abroad, and machine performance has achieved the advanced level.

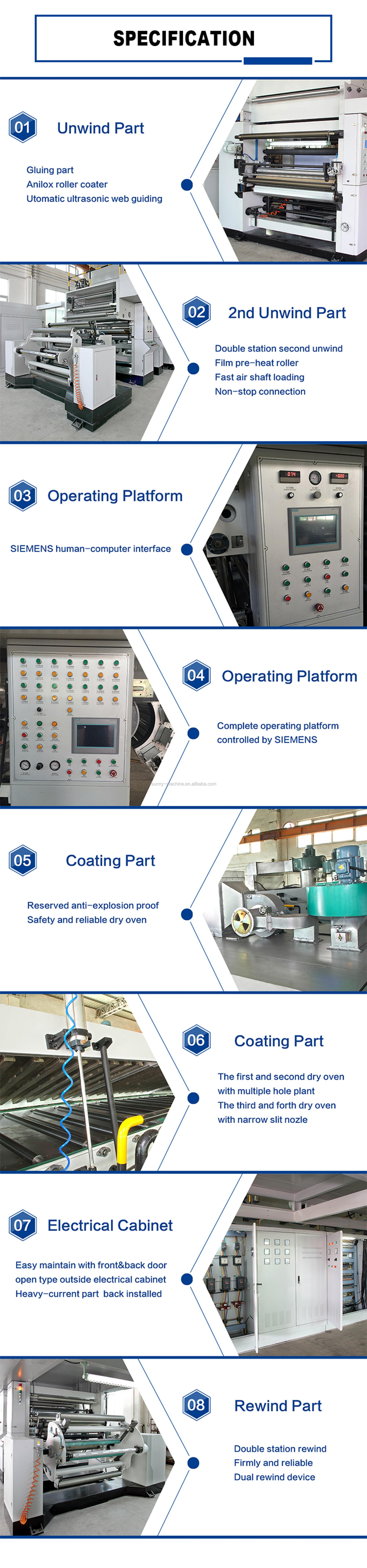

Main Techinical Parameters



Effective width: 1100mm

Suitable Base Material: PET, BOPP film 0.012-0.050mm

Maximum Machine Speed: 135m/min

Maximum Running Speed: 120m/min

Maximum Unwind Diameter: φ600mm

Maximum Wind Diameter: φ600mm

Heating method: electric-heating, Hot-wind impact drying

Maximum Drying Temperature: 80℃

Reel Core Diameter:  3″

Reel up end face flatness: ≤±1mm

Tension Control accuracy: ≤±2N

Tension distinguish accuracy: 1 N

Film surface temperature difference: ≤±1.5℃

Web roller bounce: ≤±0.02mm

Power Supply: 380V±10%, 50HZ, 3 Phase 5 Line

Whole Machine Power: About 320kw (Drying Oven heating power: 290kw)

Air-Source: 0.7MPa,0.3m³/min  Drying compressed air

 External Dimension: 163800 mm (L) x 4300 mm (W) x4200 mm (H)









Company Information:

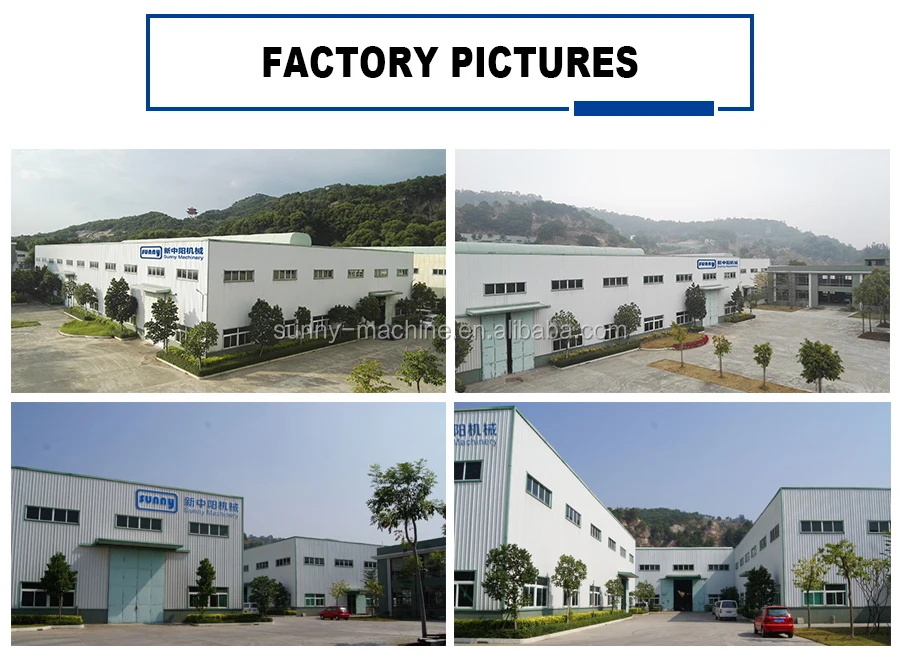

Sunny Machinery Factory is an integrated professional manufacturer to produce, design and sell Slitting, Rewinding, Laminating, Coating, and CPP or CPE 3 or multiple layers Cast Film machinery facilities with more than 20 years of experiences.
