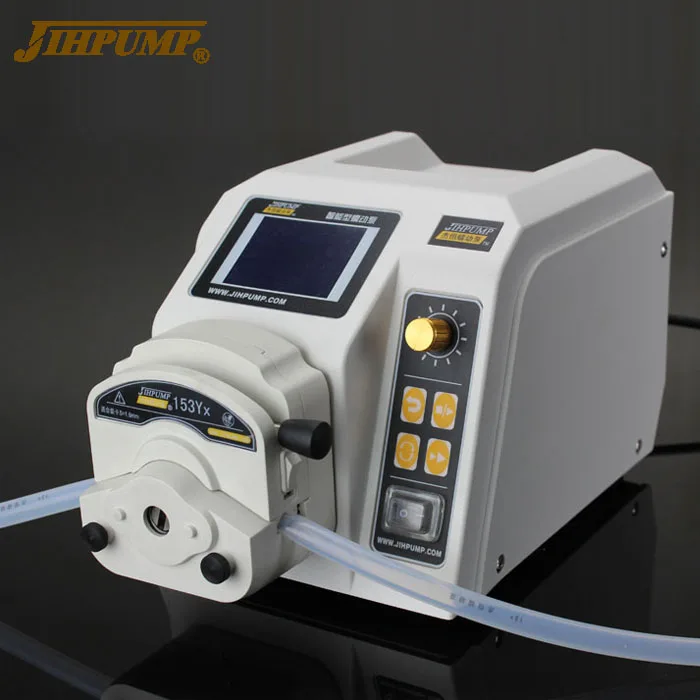

JIHPUMP Small Industrial Peristaltic Pump Multichannel Large Volume Flow Rate Water Liquid Dispensing Dosing Hose Pumps Price

Product Overview

Description

Intelligent Flow Rate Filling Peristaltic Pump With Low Price for Liquid Dispensing

Instructions of BT-100CA

 1.Large-screen color LCD graphic display, the basic and relative information are displayed on the same screen;



 2.Basic functions: full-speed emptying, sucking-back angle setting, flow correcting, timing, working temperature detecting.



3.Menu: Flow Rate Mode, Timing Mode and Filling/Package/Dispensing Mode;



3.Operation instructions: panel operation, foot switch (automatic identification), external control (analog signal and communication protocol) running;







4.Optional configuration: Foot switch, spare tubes, filling needle, tube connector, and anti-floating head.Note: The footswitch controller methods is jogging and continuing, and the pump automatically identifies the external foot switch.

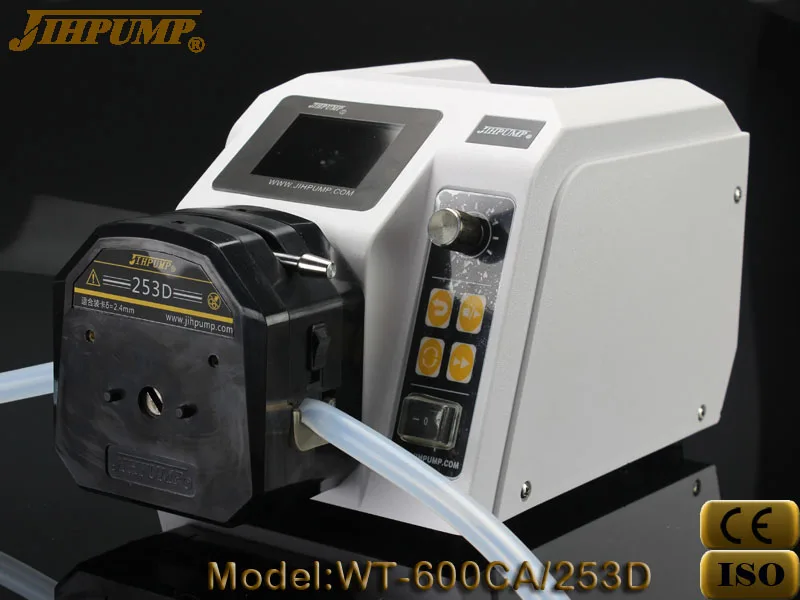

Specification of WT-600CA



Speed adjustment	Rotary code switch
Function	Adjusting flow rate,timing,filling
Basic functions	full-speed emptying, sucking-back angle setting, flow correcting, timing, working temperature detecting.
Footswitch	Identify foot switch automatically(the pump can be set as jogging or continuing condition)
Filling	The pump can be set to run automatically or infrared sensor running (no container, no filling)
Working environment	0-60°C,relative humidity less than 85%
External control	Starting/stopping,CW/CCW,speed controlling:0.5-5V/10V,4-20mA,0-10KHz;RS485communication fits with MODBUS agreement.





LCD Display Instruction



3 Modes Display Description







Our Pump Heads for WT-600CA



Pump Head Series	Pictures	Tube(ID*wall,mm)	Flow rate(ml/min)  (Single channel)
DGx		14#(1.6*1.6)	0-150
		16#(3.1*1.6)	0-450
		25#(4.8*1.6)	0-593
153Yx		14#(1.6*1.6)	0.03~125
		16#(3.1*1.6)	0.08~470
		25#(4.8*1.6)	0.17~1120
		17#(6.4*1.6)	0.3~1780
		18#(7.9*1.6)	0.4~2200
253Yx		15#(4.8*2.4)	0.2~900
		24#(6.4*2.4)	0.3~1620
		35#(7.9*2.4)	0.4~2340
		36#(9.6×2.4)	0.5~3000
253D		35#(7.9*2.4)	260-5176
		36#(9.6×2.4)	300-6000
