Product Overview

Description


We are a leading ISO9001:2015 manufacturer/exporter for Bi-metallic wear blocks/plates, Chocky bars, Wear Buttons(white iron+mild steel, 63HRC), Sugar Cane Shredder hammer tips/knife edges, Overlay wear plates(6+4, 8+6, 10+10 etc. hardness 55-65HRC), cast iron wear parts & Ni-hard wear parts etc.

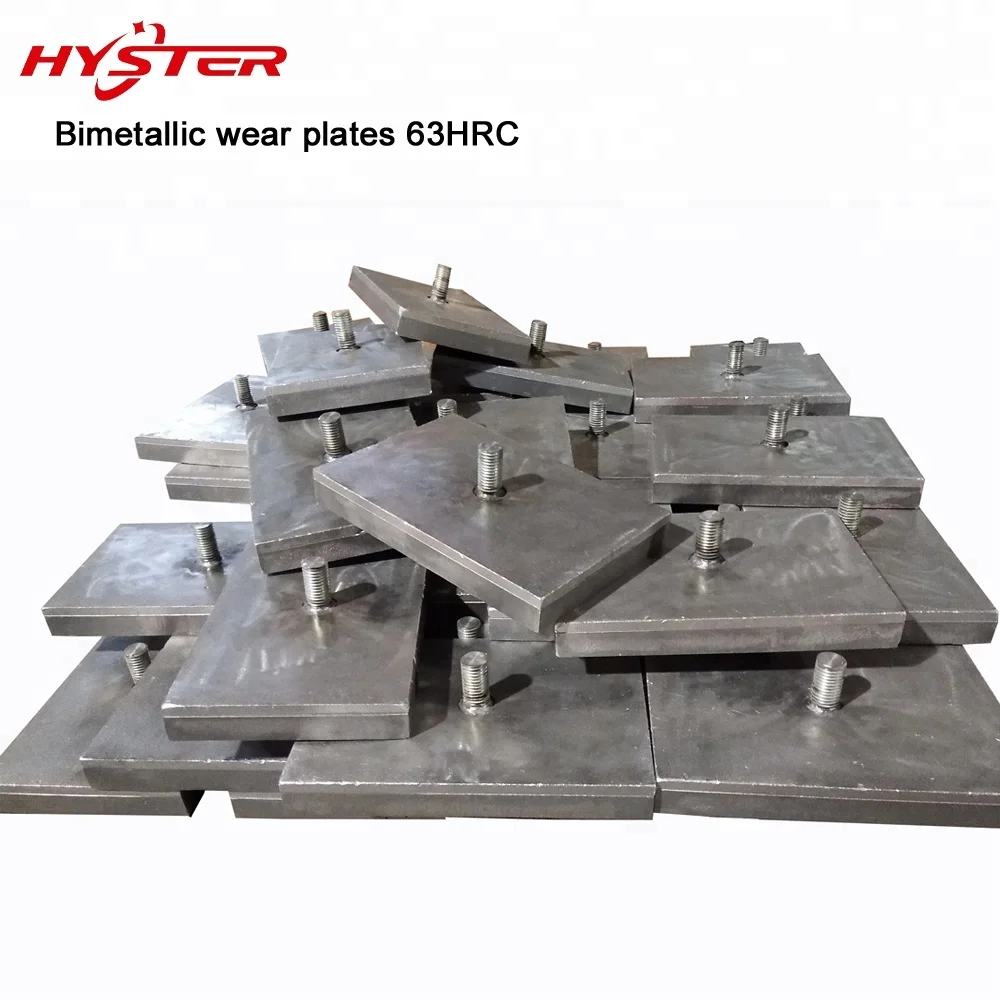

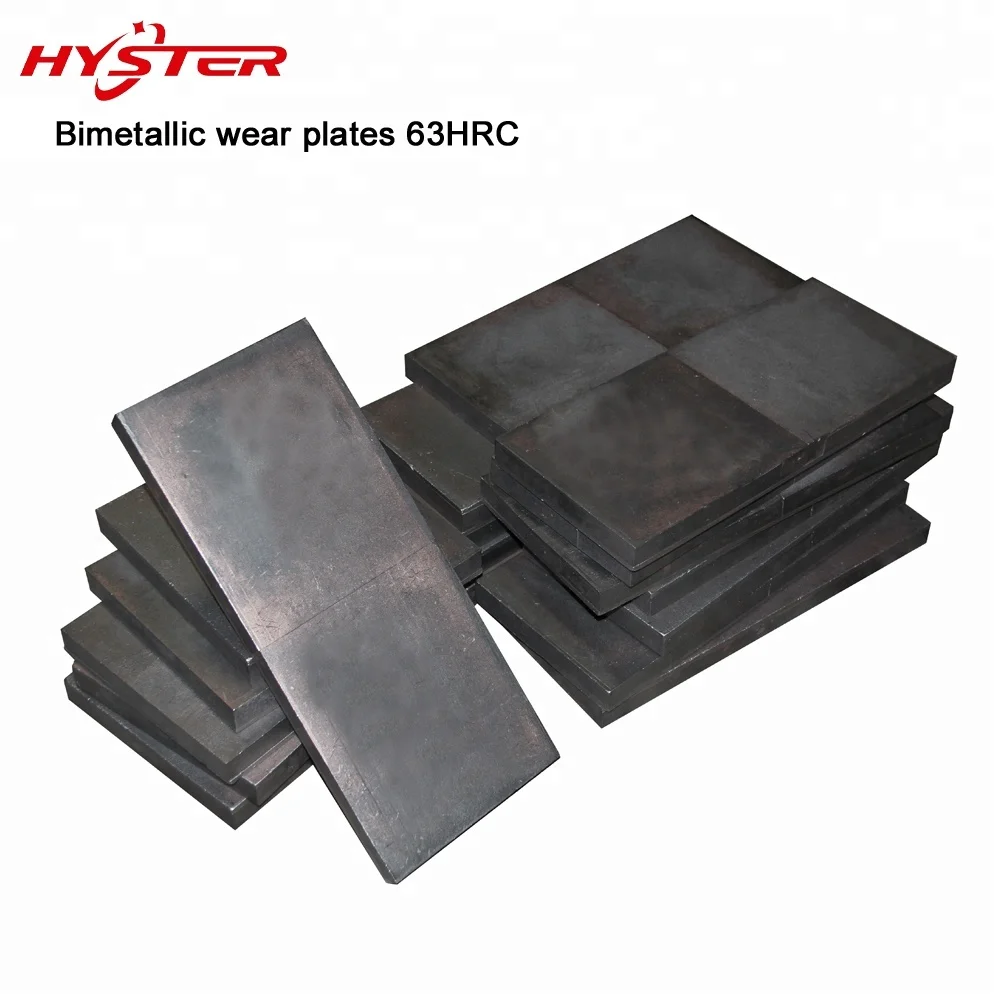

Bi-metallic wear plates


Laminated wear plate





White iron Laminated Wear Plates, white iron wear plates, notched wear plates


 >  Mainly for Bucket, Chute, Hopper liner protection!


 >  Wear , impact, corrossion resistant!







Bottom and Runner Protection for Shovels and Buckets. The Skid Bar is available in various lengths, widths and sizes, wherein the surface of the bar is smoothly shaped.



























































































































































Type



Item No.



Size


(mm)



Dimension(mm)



N.W.


(kg)



A



B



C



D



E



1



SB1-214



214x101x34



214



101



22



12



34



5.1



SB1-302



302x101x34



302



101



22



12



34



7.3



SB1-154



154x101x34



154



101



22



12



34



3.7



SB1-279



279x75x34



297



75



22



12



34



6.1



2



SB2-214



214x101x34



214



101



22



12



34



5.9



SB2-214R



214x101x34



214



101



22



12



34



5.9



SB2-302



302x101x34



302



101



22



12



34



8.4



SB2-302R



302x75x34



302



75



22



12



34



8.4



SB2-154



154x101x34



154



101



22



12



34



4.2



SB2-154R



154x75x34



154



75



22



12



34



4.2



3



SB3-250A



250x150x45



250



150



20



25



45



13.1



SB3-200



200x150x45



200



150



20



25



45



10.5



SB3-250B



250x250x45



250



250



20



25



45



21.9

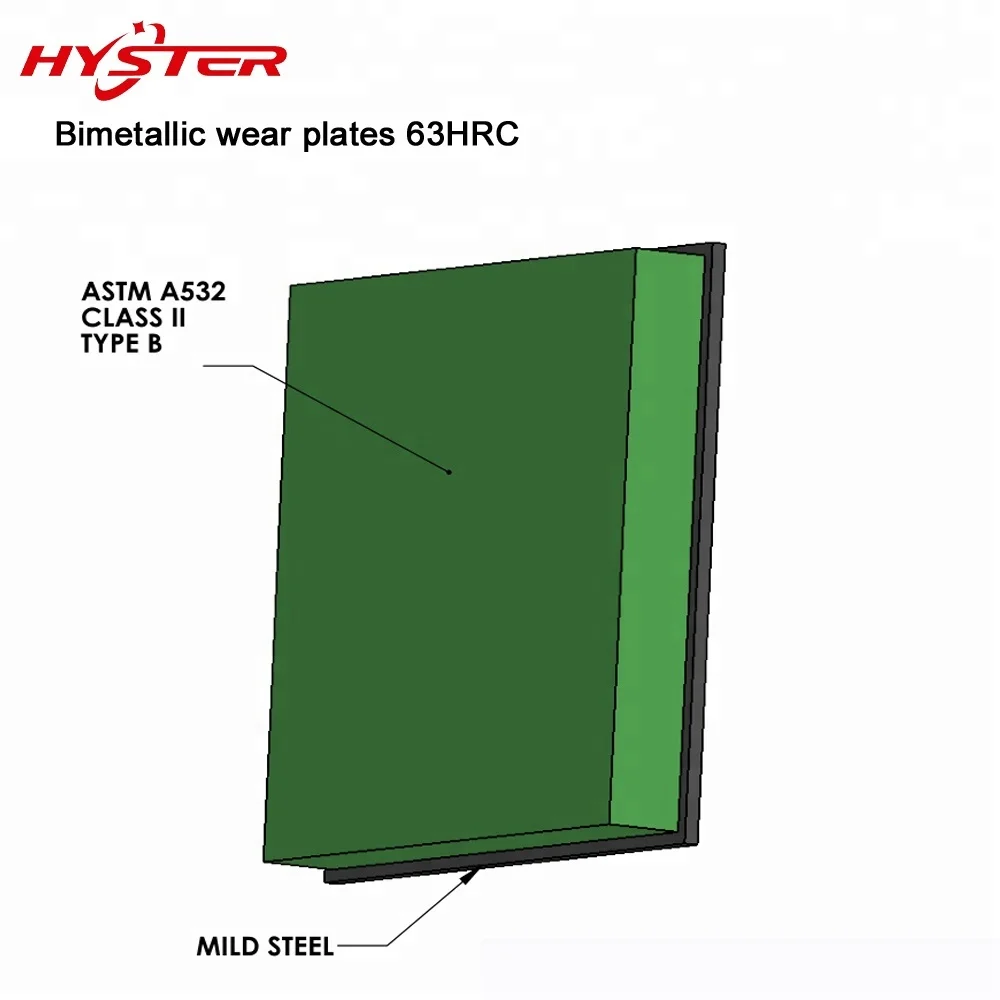

A. Material:


Wear portion is white iron(high chrome carbide). ASTM A532 15/3CrMo.


Impact portion is Q235 mild steel or Equivalent.





B. Chemical Composition




























C



Cr



Mn



Mo



Cu



P



Si



S



B.V.Nb



2.5-3.5



15-18



0.5-1.0



0.5-2.5



0.5-1.0



0.02max



0.5-1.0



0.02max



0.1-0.5















C. Mechanical Property:


1) Tensile Strength                    630Mpa Min.


2) Shearing Strength                 250Mpa Min.


3) Hardness                               63 HRC





D. Microstructure


Micro structure w






Company Information


Hunan Hyster Material Technology Co., LTD., founded in 1995, we are a professional manufacturer & exporter of Bi-metallic wear blocks/plates, Bimetallic wear pipes, Chocky bars, Wear buttons(white iron vacuum brazed onto mild steel, 63HRC/700BHN), Chromium carbide overlay wear plates, Ni-hard castings/plates, Tungsten carbide castings for Mining, Quarrying, and other heavy industries. We are located in New and High-Tech Development Zones of Changsha city, capital of Hunan province, middle of China.





The company has passed the ISO9001:2008 certificate, quality is very important to the development of Hyster. The company strictly operate according to the ‘Integrity, Dedication, Innovation, Efficiency’ business philosophy. Over 95% products have been sold to Australia, Canada, Brazil, America, Chile, Argentina, South Africa, Indonesia, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.





Our Services


Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.

Some of our products and services:
  --Wear plates, wear liners-Nihard wear liners, white iron wear liners, bimetallic wear liners

  --Chocky bars and wear buttons

  --Wear blocks, wear bars

  --Custom made wear liners

  --Bucket repair and protection

  --Full Fabrication services

  --Sugar mill hammer tips

  --Drilling, milling or machining

  --Casting/Investment casting

  --Fast service and timely delivery





Following are our laminated wear blocks:


Laminated wear blocks---the most common types are:
  1)
 Chocky bars (CB 25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. CB150)
  2)
 Standard wear bars (DLP201A, DLP 125, DLP184, DLP528, DLP619, DLP451, DLP450, DLP2230, DLP2017, DLP4, DLP919, DLP1191, DLP515, DLP200, DLP271, DLP270, DLP508, DLP115, DLP337, DLP1101, DLP343 )
  3)
 Shaped wear bars
  4)
 Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196)
  5)
 Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm)
  6)
 Bi-metallic wear plates
  7)
 Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm)
  8)
 Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm)
  9) Wafer strips, WS25, WS40, WS50, WS65;
 10) Elbow wear blocks
 11) Other sizes and shapes
 12) Multi-function gradient cutter tooth
 13) Rockbox liners
 14) Micro-ledges





We also produce Chromium Carbide Overlay wear plates:


 1) Standard sheet size 1500x3000mm / 1200x2400mm / 1480x3050mm


 2) Thickness available: 4+4(8mm), 6+4(10mm), 6+6(12mm), 8+5(13mm), 8+6(14mm), 10+5(15mm), 10+9(19mm), 10+10(20mm), 12+12(24mm), 12+17(29mm), 20+10(30mm)


 3) Hardness: 58-62HRC and 62-65HRC





Packaging & Shipping


Packing Material:


 Option 1. Poly-wood crates, Poly-wood pallets and Oil film, fastening belt.


 Option 2. Carton, PVC, fastening belt.





Packing Photos:


wear bar-2.jpg  packing-1.jpg








Delivery term:


 1) FOB Shanghai/Ningbo/Shenzhen/Guangdong, China. Other ocean port is also available.


 2) CFR/CIF ocean delivery to destination port.


 3) Express delivery such as DHL, UPS, TNT, FedEx.


 4) Ex-Work Changsha warehouse.









FAQ


Q: Are you a trade company or a manufacturer?
A: We are ISO9001:2015 Certificated factory with more than 25 years of production experience. .





Q: Where is your factory located ?


We are located in Changsha city, Hunan province. where is 2 hour flight away from Shanghai/Guangzhou.





Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or 15 days if the goods are not in stock. For customized products, it will take about 25 days.





Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free(usually 5KG maximum), but we will not undertake the cost of freight.





Q: What is your terms of payment?
A: 30% in advance, balance against copy of BL, payable via TT. Or Negotiable.





Q: Is the price Competitive?


We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.





Q: Are the products High Quality?


Yes. All products will be checked before bulk production, and we will submit a Quality Report which include: the chemical composition, hardness, microstructure, dimension, UT ahead of delivery, this can be considered as our quality gaurantee.





Q: How to place an order?


 1. Please contact our salesperson by E-mail / Skype / Whats App below.


 2. We will make a feedback to you ASAP after receive your order list.





Q: How we can trust your company ?


We support Aliababa trade insurance , 100% products quality protection, 100% on -time


shipment protection, 100% payment protection for your covered amount.











HYSTER MARKET


Over 95% products have been sold to nearly 300 customers in more than 40 countries and regions, such as Australia, Canada, Brazil, America, Chile, Argentina, South Africa, Indonesia, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.





The main industries we serve:


  -Mining & Quarrying


  -Construction


  -Crushing


  -Dredging


  -Cement


  -Sugar Mill


  -Steel plant


  -Oil & Gas








Hyster Markets





Quality Guarantee


Quality Guarantee





Quality Report to be submit ahead of delivery: include Metallographic Analysis & Hardness & Chemical Composition Analysis & Welding Quality(UT) & Dimensions & G65 Dry Sand/Rubber Wheel Abrasion Test. 12 month warranty on quality.





The company is certified with ISO9001:2015. We have a dedicated R&D team that can tailor various products with special requirements (such as wear resistance, corrosion resistance, impact resistance, heat resistance, etc.) and provide professional wear resistance solutions. Since its establishment, the company has carried out a lot of experiments on improving the wear resistance and composite bonding strength, various heat treatment technology on different products, and the selection of wear-resistant alloys under different working conditions. The production process and product performance are continuously optimized.
