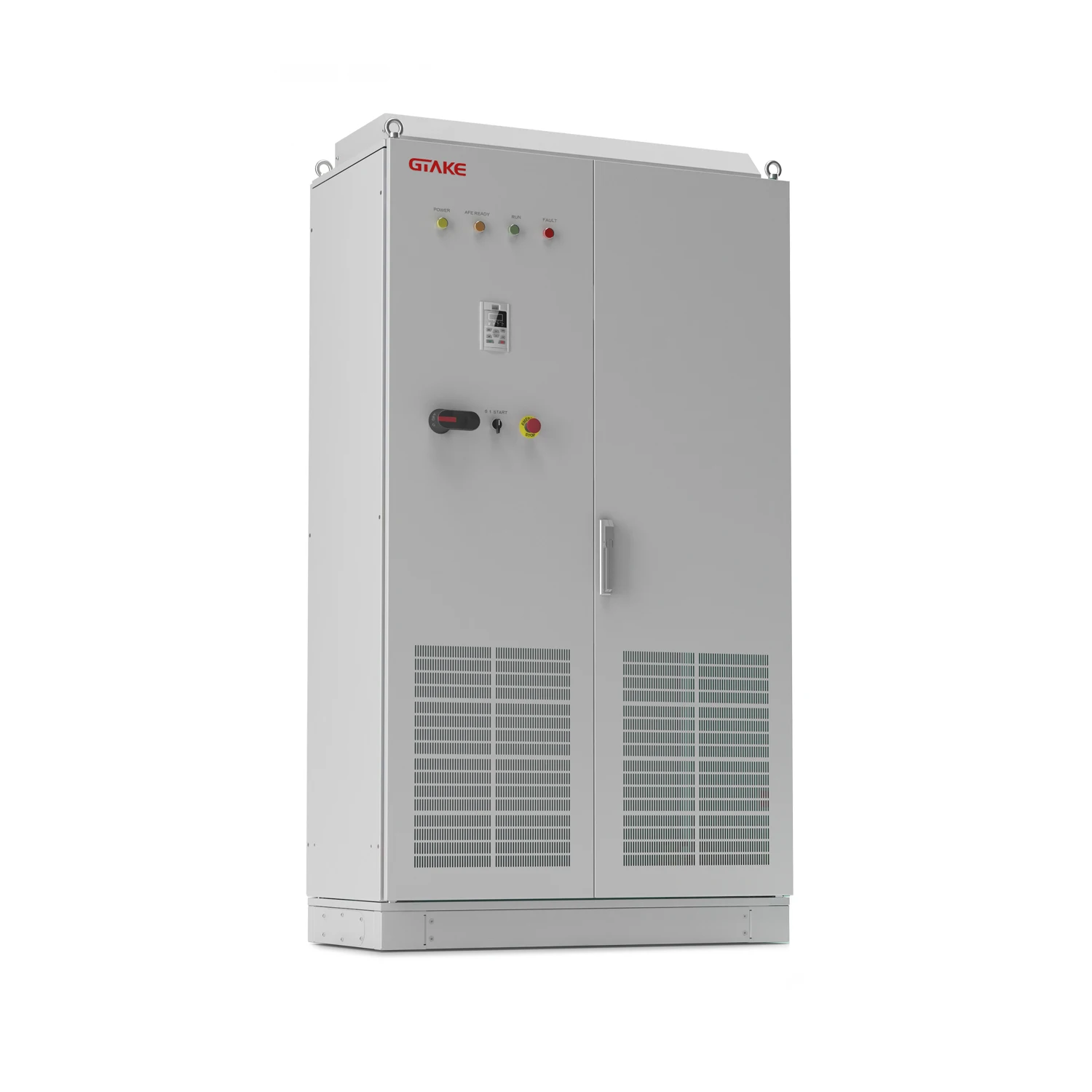

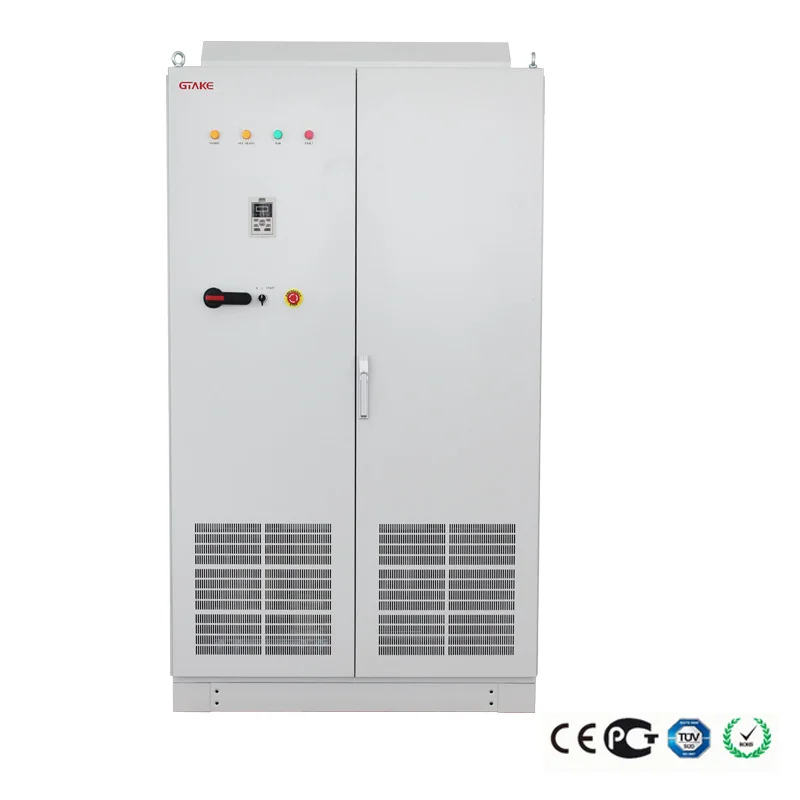

280kW Electrical Frequency Converter
GK1000 Sensorless Vector Control Variable Frequency Drive Inverter
Brand: GTAKE
Certificate: CE, RoHS
| VFDs Model | Power Rating | Input Voltage | Output FREQ | Type |
| GK1000 series | 30kW-630kW | 380V~480V, ±10% | 0.00-600.00Hz | DC/AC to AC inverters |
Advantages
Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, GTAKE frequency inverters are equipped with advanced features, some of which are listed as below:

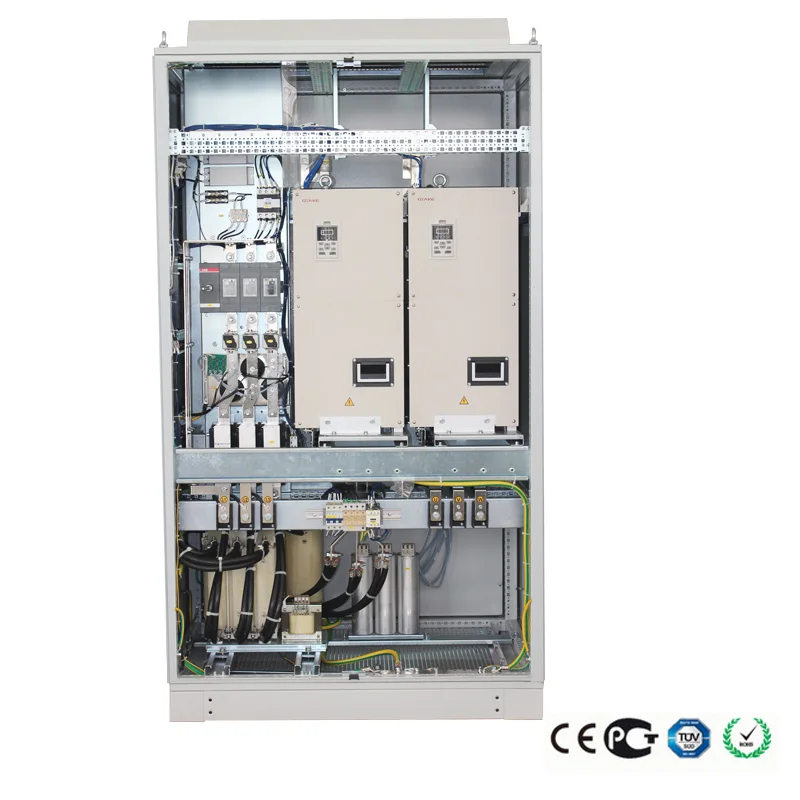

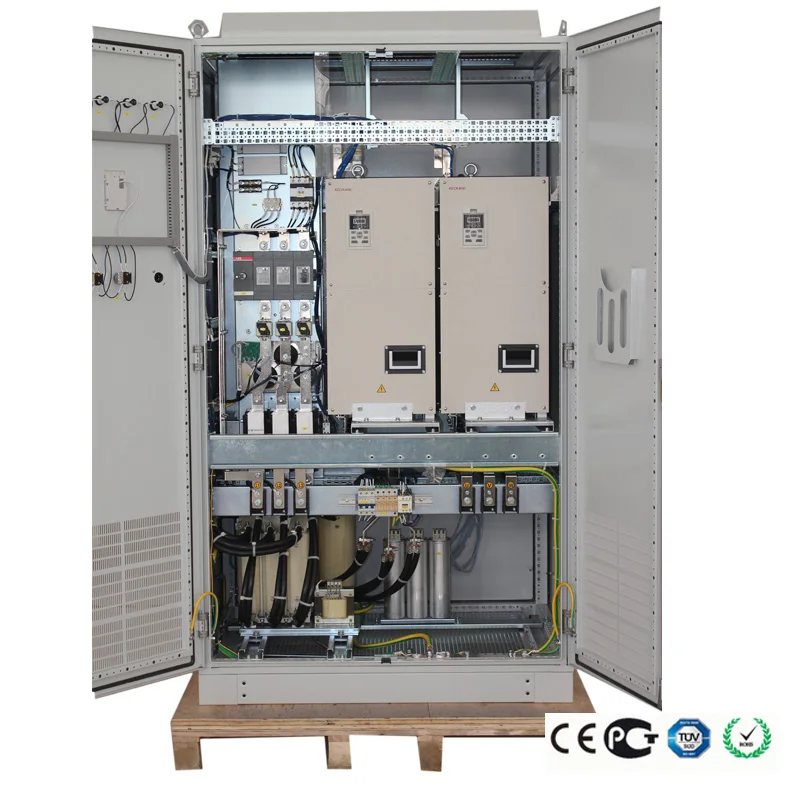

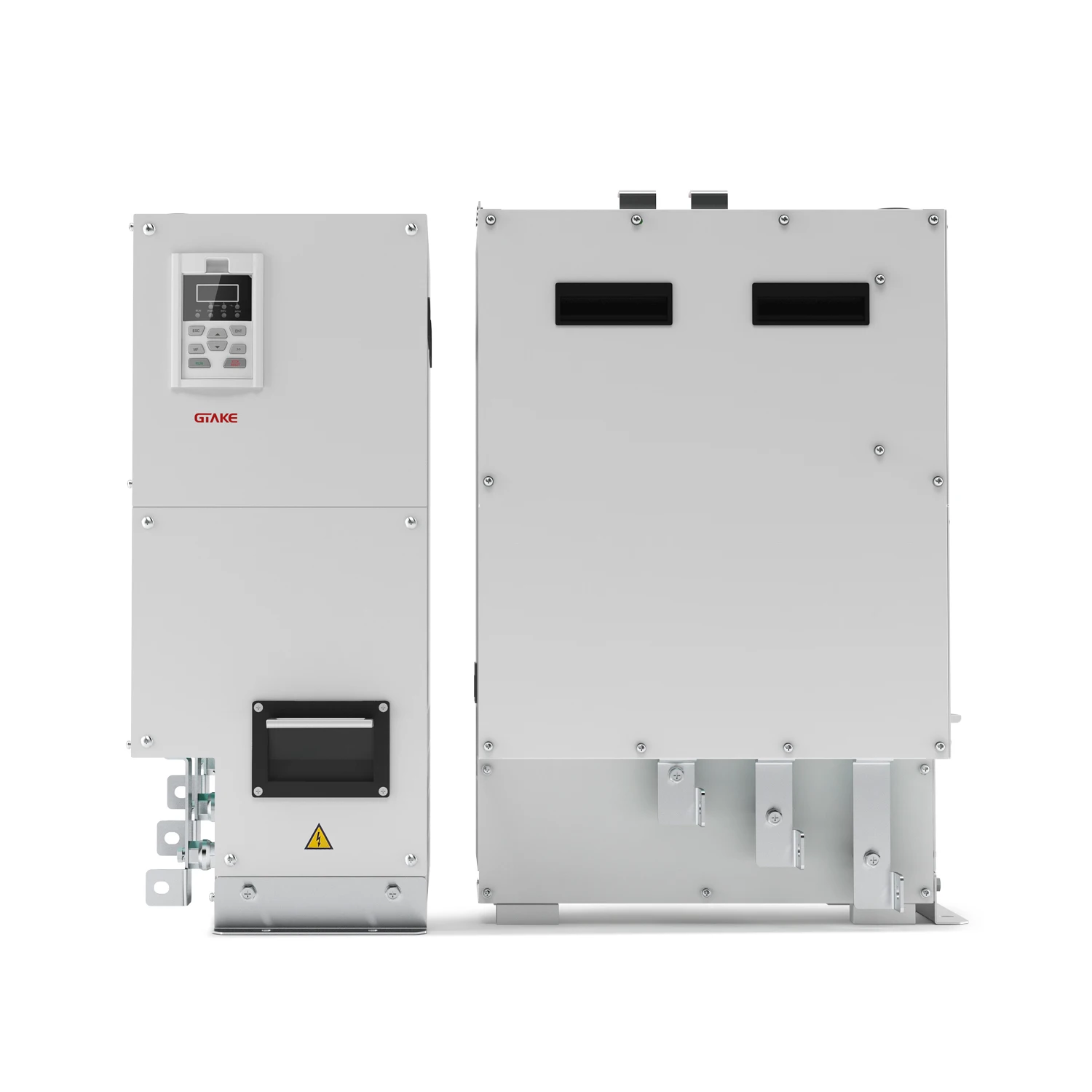

01 | GK1000 consists of an active front end (AFE) and an inverter, which operate in four quadrants. The AFE and the drive are separately deployed in the cabinet, extremely convenient for operation and maintenance; |
02 | Abundant options: equipped with basic platform plus extensional function modules, achieving not only the basic function of AFE plus AC drives, but also abundant selection of dedicated functions. Numerous options are available for port expansion, function combination and system upgrade; |
03 | GK1000 AFE drives can auto adjust bus voltage, which ensures the stability of drive output current and motor rotary speed. Even if there is a big fluctuation on power supply voltage for short time, or sudden change on the load, GK1000 bus voltage self-adaption can make sure of the system operation without trip, reducing motor temperature rise and prolonging the load lifespan; |
04 | GK1000 AFE drives have quick and marvelous dynamic response to load change, no matter load is added or lessened. The drive can output suited torque simultaneously to a sharp change load; |
05 | Active Front End allows real-time regeneration of energy back into the power line. The active front end also provides power factor control for power quality management and greatly reduces unwanted power harmonics; |
06 | GK1000 are much greener than general drives since they are equipped with function of active power factor adjustment. The output current THD is less than 2.5%, no pollution to grid power supply according to standard GB14549, GB/Z 17625.6-2003; |
07 | Four control modes: V/f, SVC1, SVC2 and VC, for the purpose of fulfilling a wide variety of industrial applications with optimized control algorithm. SVC1 is the robust open-loop vector control mode accepting static auto-tune1, SVC2, the precise open-loop vector control, requires rotary auto-tune, while VC is the high performance closed-loop vector control with PG; |
Features
| Mains Supply (R/L1,S/L2,T/L3) | |
| Supply voltage | 380-480V ±10% 525-690V ±10% |
| Power source frequency | 50/60Hz ± 5% |
| Displacement power factor (cos φ) | (> 0.98) |
| Switching on input supply | Maximum 2 times/min |
| True Power Factor | 1 (nominal at rated load) |
| Output Data (U, V, W) | |
| Output voltage / frequency | 0-100% of supply voltage / 0.00-600.00 Hz or customized |
| Ramp time | 0.01-60000 S |
Note: | 150% current can be provided for 1 minute, 180% for 10 seconds. Higher overload rating is achieved by oversizing the drive. |
| Digital Input | |
| Programmable digital inputs | 7 (local), 9 (extensible) |
| Logic | NPN or PNP |
| Voltage level | 10 - 30V |
| Frequency range | 0-200Hz |
| Input | 24VDC, 5mA |
| Analog Input | |
| Analog inputs | 3 (4) |
| Modes | Voltage or current |
| Level | 0 to +10V, -10V to +10V, 0/4 to 20 mA (scalable) |
| Automatic correction | YES |
| Digital Output | |
| Programmable digital outputs | 2 |
| Voltage level at digital output | 0 - 24 V |
| Current level | 0-50mA |
| Pulse output max. output frequency | 50.0 kHz |
| Analog Output | |
| Programmable analog outputs | 2 (local), 4 (extensible) |
| Voltage range / current range | 0 - 10 V / 0 - 20 mA |
| Relay Output | |
| Programmable relay outputs | 2 (4) |
| Pulse Input | |
| Pulse input | 1 (programmable) |
| Frequency range | 0.1Hz–50KHz |
| Voltage level | 10-30V |
| AFE DC-side | |
| Voltage setting range | 450V-750V |
| Leakage current | <50mA |
| Fieldbus Communication | |
| Allowable voltage range | 304-506V |
| THD | <4%3 |
| Power factor | >0.994 |
Applications
GK1000 drives, in addition to low harmonics, offer remarkable energy saving in applications with frequent braking, such as cranes, centrifuges, milling machine, mutual-towing test system and wind tunnel test system. They provide smooth and precise control, and allow interrupted power flow to and from the mains supply.
 |  |  | ||
| AFE Solution for Draw-work | Wind Tunnel Test System | Milling Machines |
 |  |  | ||
| Crane | Dynamometer | More … |
Why choose GTAKE variable frequency drive?
In the trend of advocating smart and simple industrial automation, environmentally friendly products, value-added solutions, Gtake, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.
Production
In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.
GTAKE VS Other brands
| Performance | Common brands | GTAKE |
| Applicable motors | Asynchronous motors | Asynchronous /synchronous motors |
| Starting torque | 2.0Hz, 150% (sensor-less vector control) 0Hz, 180% (closed-loop vector control) | 0.5Hz, 180% (sensor-less vector control) 0Hz, 200% (closed-loop vector control) |
| Speed adjustable range | 1:100 (SVC), 1:1000 (VC) | 1:200 (SVC), 1:1000 (VC) |
| Ambient temperature (no derating required) | -10-40ºC | -10-50ºC (for most of the models) |
| Rated input voltage | 208VAC-400VAC | 208VAC-480VAC |
| Communication | Modbus RTU//ASCII | Modbus RTU//ASCII Profibus-DP, CANopen, etc. |
| Position control (fixed length, or angular positioning) | × | √ |
| Field weakening control | × | √ |
| Autotune online | Online | Online & Offline |
| Short-time ramp-up | Trip | No trip |
| Customized features (software and/or hardware) | Unprocurable or no experience | Procurable with rich experience |
Packaging and logistics
All drives are well packed before shipment, fit for air shipment, sea transportation, and express delivery. Customers are able to call its own nominated forwarder or consult GTAKE logistics department for worldwide shipment services.
* Low-power inverters are packed in cardboard box , and others are in plywood cases.
* Plenty of transportation procurable globally in accordance with customer demand or GTAKE expertise.
GTAKE AC motor drives are able to replace AC drives and inverters of the following brands: , LS, Toshiba, Siemens, Lenze, Yaskawa, Mitsubishi, Delta, Hitachi, WEG and etc.
