Stone Diamond Core Granite Marble Drill Bit

Product Overview

Description

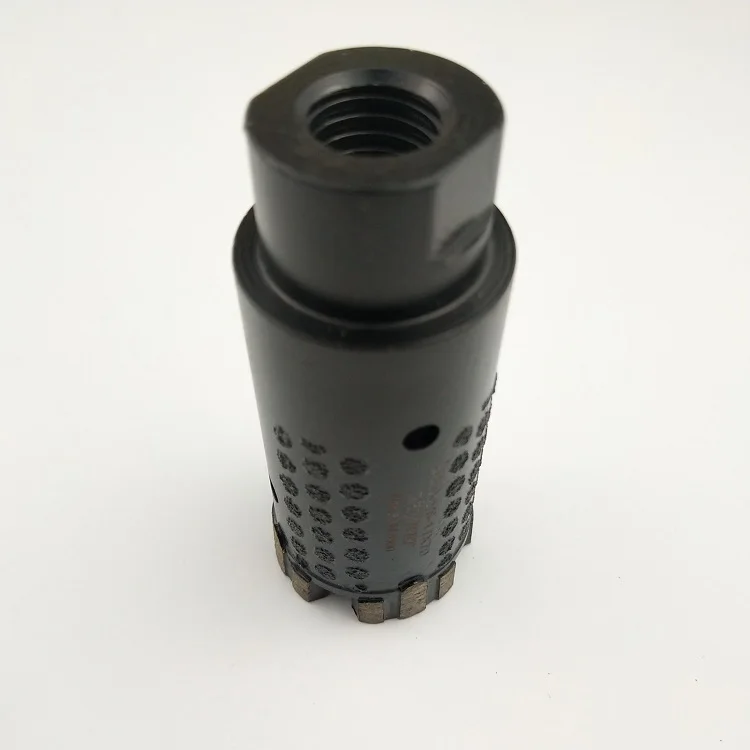

Stone Diamond Core Drill Bit

Features: Barrel vents allow easy removal of cutting debris. Crowned type is available up to 2'' bits.

Applications: Stones.

Specification:

Item No.	Diameter (mm)	SEGMENT QUANTITY  (pcs)	SEGMENT DIMENSION (mm)	Application
SCDB603	6	1	U*8	Stone
SCDB803	8	1	U*8
SCDB1003	10	1	U*8
SCDB1203	12	1	U*8
SCDB1403	14	1	U*8
SCDB1603	16	2	HALF ROUND*2.0*8
SCDB1803	18	2	HALF ROUND*2.0*8
SCDB2003	20	2	HALF ROUND*2.0*8
SCDB2203	22	2	HALF ROUND*2.0*8
SCDB2503	25	2	HALF ROUND*2.0*8
SCDB2803	28	3	19*2.2*8
SCDB3003	30	3	19*2.2*8
SCDB3203	32	3	19*2.2*8
SCDB3503	35	4	19*2.2*8
SCDB3803	38	4	19*2.2*8
SCDB4003	40	4	19*2.2*8
SCDB4503	45	4	24*2.5*8
SCDB5003	50	5	24*2.5*8
SCDB5603	56	5	24*2.5*8
SCDB6303	63	6	24*2.5*8
SCDB7103	71	6	24*2.5*8
SCDB7603	76	6	24*2.5*8
SCDB8303	83	7	24*2.5*8
SCDB8903	89	8	24*2.5*8
SCDB9503	95	8	24*2.5*8
SCDB10203	102	9	24*2.5*8
SCDB10803	108	9	24*2.5*8
SCDB11403	114	9	24*2.5*8
SCDB12003	120	10	24*2.5*8
SCDB12703	127	10	24*2.5*8
SCDB13203	132	10	24*2.5*8
SCDB14203	142	10	24*2.5*8
SCDB15203	152	11	24*2.5*8
SCDB16003	160	11	24*2.5*8
SCDB16803	158	12	24*2.5*8
SCDB18003	180	13	24*2.5*8
SCDB20003	200	14	24*2.5*8
