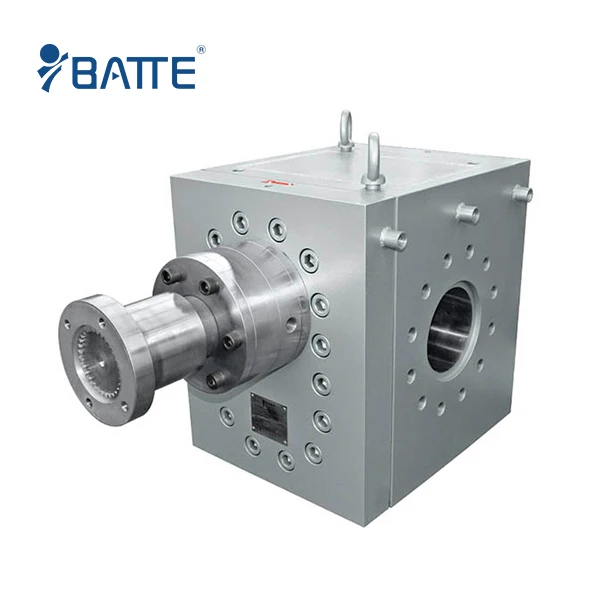

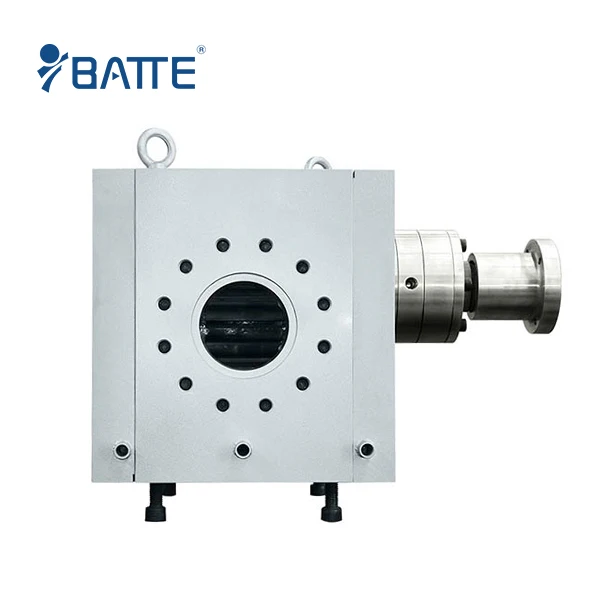

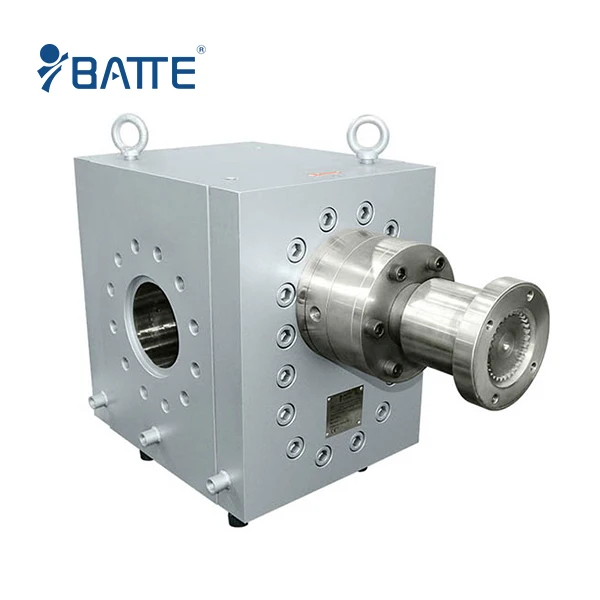

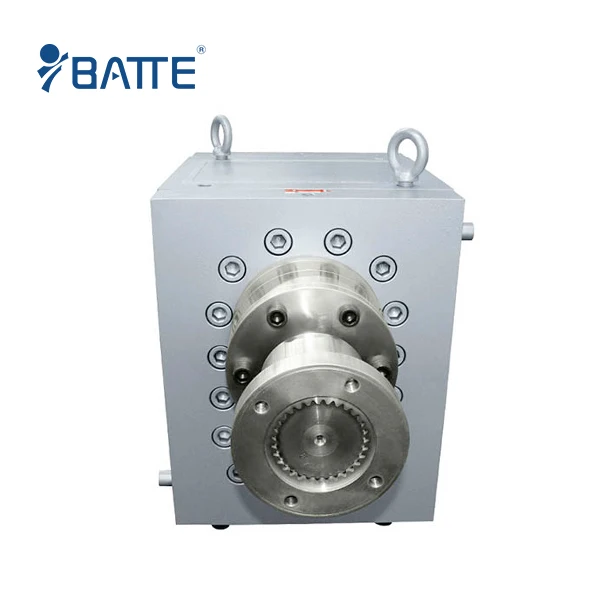

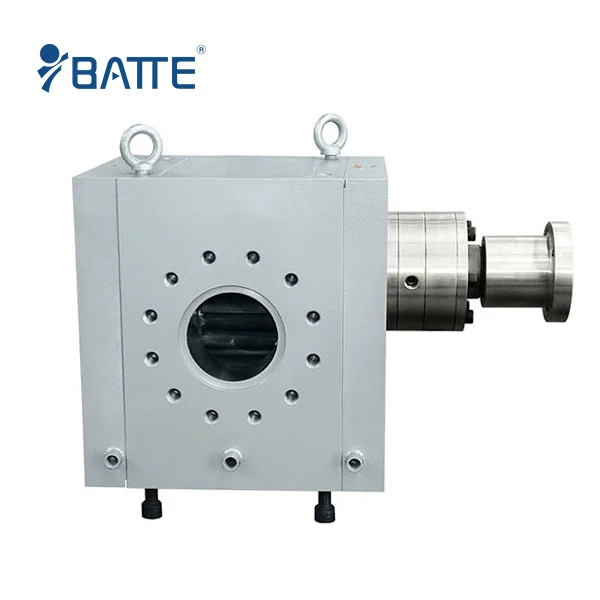

High Pressure Micro Metering Gear Pump
High Pressure Micro Metering Gear Pump
High Pressure Micro Metering Gear Pump
High Pressure Micro Metering Gear Pump
High Pressure Micro Metering Gear Pump
High Pressure Micro Metering Gear Pump
High Pressure Micro Metering Gear Pump

High Pressure Micro Metering Gear Pump

Share on (60810828546):


Price:$3,800.00

Quantity:


Product Overview

Description



Products Description




ZB-D Series Pipeline PumpIntroduction of Standard melt pump
ZB-Dseries pipeline pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer. This series of melt pump adopts conduction oil heating, and applies to PET、PBT、PA、PC、PS、SAN、ABS、HIPS、PP、PE、POM, etc.


Technical Parameter
Material for Melt Pump Body: Stainless Steel
Material for Gear: M2 Steel (Optional)
Material for Sliding Bearing: High Temperature Tool Steel or Stainless Steel.
Shaft Sealing: Spiral Sealing or Packing Sealing
Heating System: Heating Medium or Conduction Oil Heating
Model/Volume Range: 0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev

Operating Parameter
Viscosity: ≤40000 Pas
Working Temperature: ≤400℃
Cleaning Temperature: ≤450℃
Inlet Pressure: ≤12MPa
Differential Pressure: ≤25MPa


Product Applications


◆Polymer extrusion molding, such as granulation, film, pipe, plate, sheet, etc;
◆High-viscosity materials such as PC, PMMA, ABS, HIPS, PET, PVB, PS, PP, PA, PE, PVA .etc;
◆Rubber, asphalt, paint, adhesives, coatings, lubricants, polyalcohol, non-particulate impurities;
◆Polyester for cotton-fiber, polypropylene and other chemical fiber melt.


Certifications




Product Paramenters


Type
CC/Rev
Capacity (L/H)
Heating power (kw)
Dirven system (kw)
Pressure
Temperature
ZB-0.2
0.2
0.2-0.6
0.5
0.37
Inlet pressure:≥0Mpa
Exit pressure: ≤35Mpa
Operating temperature:≤350℃
Clearing temperature:≤450℃
ZB-1
1
1-3
1
0.5
ZB-2
2
2-6
1
0.75
ZB-5
5
5-15
1
1.1
ZB-10
10
10-30
1
1.5
ZB-20
20
20-60
2
2.2
ZB-31.5
31.5
30-90
2
3
ZB-50
50
50-150
2
4
ZB-100
100
100-300
3
5.5
ZB-150
150
150-450
4
7.5
ZB-200
200
200-600
4
11
ZB-250
250
250-750
5
15
ZB-315
315
300-900
6
18.5
ZB-400
400
400-1200
8
22
ZB-500
500
500-1500
10
30
ZB-630
630
600-1800
12
37
ZB-800
800
800-2400
15
45
ZB-1000
1000
1000-3000
18
55
ZB-1500
1500
1200-4500
20
75


Exhibition




Our Value-added Service Package


1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.

2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.

3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.


Company Profile




Batte Melt Pump Zhengzhou Co., Ltd is one of the biggest manufacturer for melt pump, gear pump or metering pump products in China. Being a professional supplier for melt pump products, we have been accumulating adequate experience on the application-specific technique. In addition to providing services and spare parts for our own pumps, we also provide comprehensive service packages for melt pump produced by other manufacturers.


Installation of Our Melt Pump


1.Installation Method: Motor+Reducer+Universal Coupling+Melt Pump

2.You can use control or direct current governor for the motor, and can adjust the flow to your demands optionally. Please well check our installation method below:
