Factory provide good quality wheel alignment equipment and wheel alignment machine price
Product Description

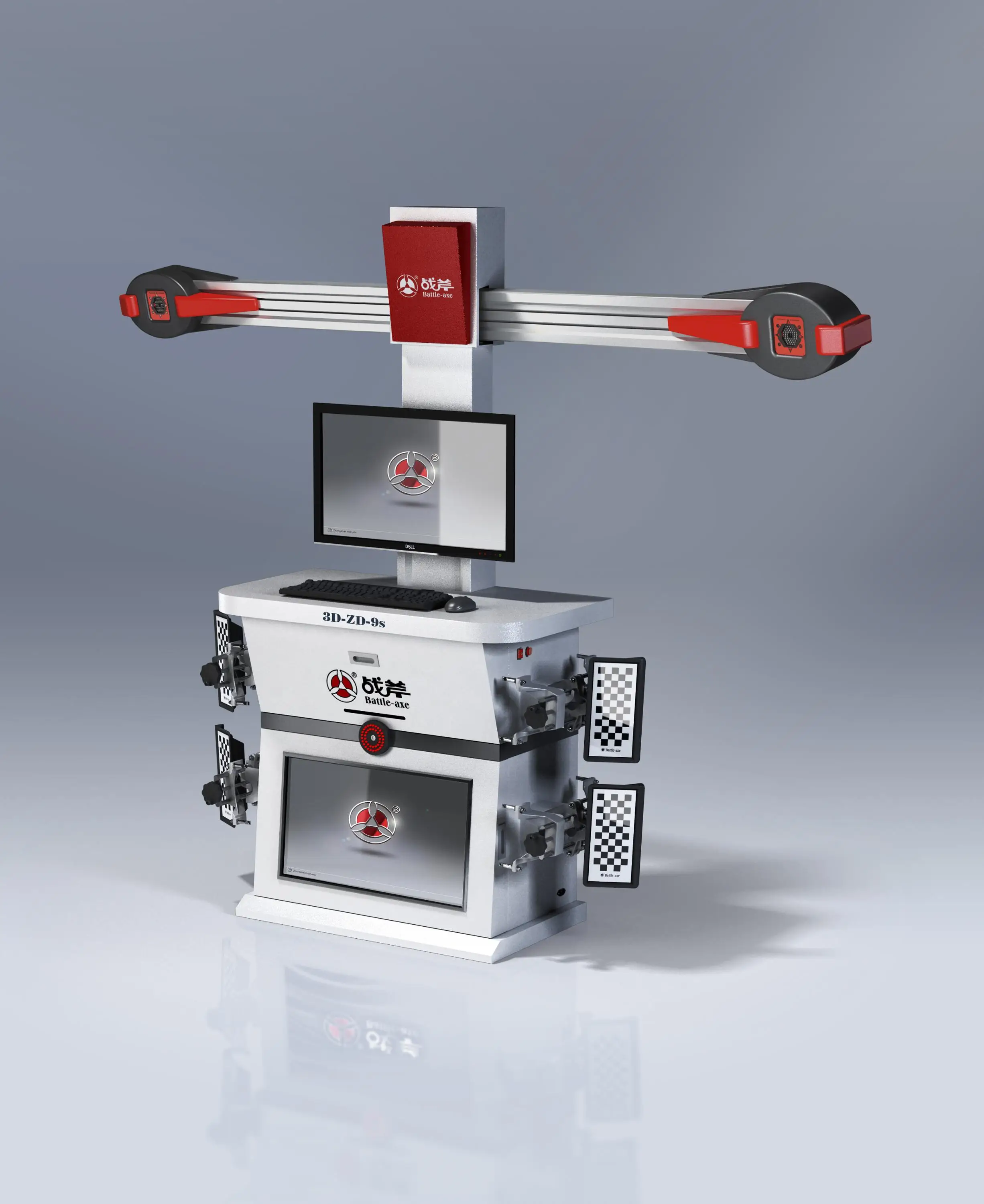

Automatic Tracking Target and Electronic remote controller, Camera beam Length:2782mm
Column lift height: 1450-2110
2pcs 32''TV show Measuring data & Parking Turntable Function
with static measuring,Turn Wheels & Static Alignment measuring function
2pcs 5 Mega pixel camera
One interface show all parameters of front wheel and rear wheel(Toe,Camber,castor etc)
with Track width and Wheelbase measuring interface also
Calibration data Saved inside of Camera instead of Software
No need to Re-calibartion even Exchange Camera Inside Processor
With Parking Camera Function
Camera Beam Length2782mm,With 2pcs Mega Pixel Industrial Cameras
Camera Beam Automatic tracking function(Sames as 3D-ZD-6S,following image only for reference)

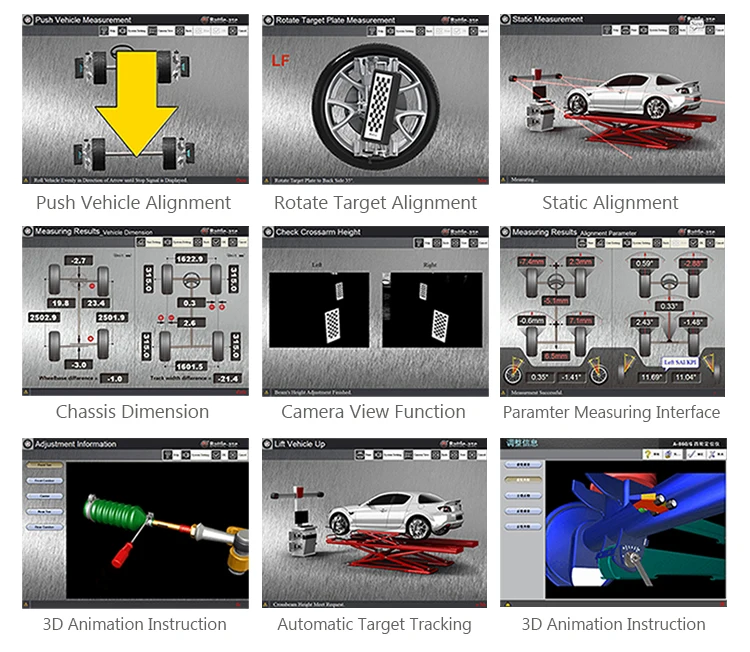

With 3 Alignment Mode:Push Vehicle Alignment, Static alignment and Turn Target Plate Alignment

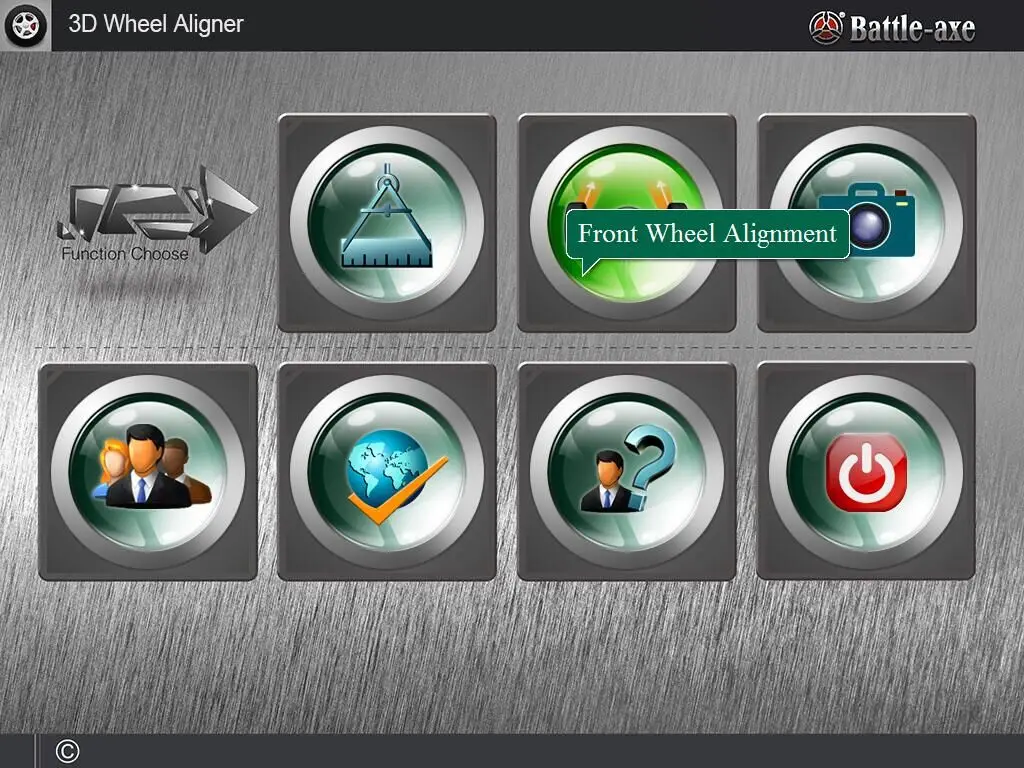

3D-ZD-9S Wheel Alignment Software -With Vehicle Diameter Measuring Function including Track Width and Wheelbase Measuring 3D-ZD-9S Wheel Alignment Software -All Parameters showed in one Interface including toe, camber, caster etc..
3D-ZD-9S Wheel Alignment Target Plate: made by Korea ABS Material,Durable and Tensile .Visit Battle-Axe homepage the Vedio
3D-ZD-9S Wheel Alignment With Parking Camera Function
3D-ZD-9S Wheel Alignment Technique Data
Parameter
Precise
Resolution
Test Range
Total testing Range
Total toe
±2′(±0.03º)
0.6′( 0.01º)
±20º
±30º
Individual toe
±2′(±0.03º)
0.6′( 0.01º)
±10º
±20º
Camber
±2′(±0.03º)
0.6′( 0.01º)
±10º
±10º
Castor
±4′(±0.06º)
0.6′(0.01º)
±20º
±30º
SAI / KPI
±4′(±0.06º)
0.6′(0.01º)
±20º
±30º
Setback
±2′(±0.03º)
0.6′(0.01º)
±10º
±20º
Thrust angle
±2′(±0.03º)
0.6′( 0.01º)
±10º
±20º
Wheelbase difference
±2′(±0.03º)
0.6′(0.01º)
±10º
±20º
Track width difference
±2′(±0.03º)
0.6′(0.01º)
±10º
±20º
Wheel size working range
13-24
Packaging & Shipping
Our Services
-Warranty : within 12 months From Bill of loading date not including PC Unit including computer hard disk, LCD and Printer
-Easy spare parts like USB power line, insurance tube we will sent together with whole machine for future replacement, for other spare parts belongs to chargeble Range if replacement, Express cost beared by Buyer -Generally Clear customs Documents we only supply Bill of loading, packing list and Commercial Invoice, if any special documents need like CO kindly Inform us in advance, otherwise we will not responsible for loose during clear customs
Company Information
BATTLE-AXE is the leading manufacturer of tyre service equipment in China, specializing in Dynamic 3D Wheel Alignment System, CCD wheel alignment, Scissor Tyre Lifting Equipment, and Pneumatic Car Jack Since 2002, Located in Zhongshan City Guangdong Province China Not Far From Hongkong & Macau..Nearest Sea Port is Guangzhou and Shenzhen
Milestones
CCD wheel Wheel alignment production in 2003
Gained wheel Remote Control for CCD Alignment Patent in 2004
Massive production of Lift Equipment in 2005
Invention of the Real Dynamic Scanning 3D Alignment Technology in 2006
Invention of Pneumatic Car Jack in 2008
Be the First and Only Chinese Brand being OEM Equipment Provider for Continental Tyre Group China in 2012
New 3000 SQM modern factory set up in Zhongshan, Canton in 2013
Be the First and Only Chinese Brand Being OEM Supplier For Tech China since 2014
Through Automechanika Exhibition Show We Supplied Airbag Jack to Johnbean & Hofmann South Africa Dealer Since 2015, Also Developed Rotary Lift Germany 2016
Batttle-Axe Garage equipment Factory-Service
The Reason We exist is to Satisfy all the customers,all demand
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of our products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.
Battle-Axe Wheel Alignment Factory For Reference

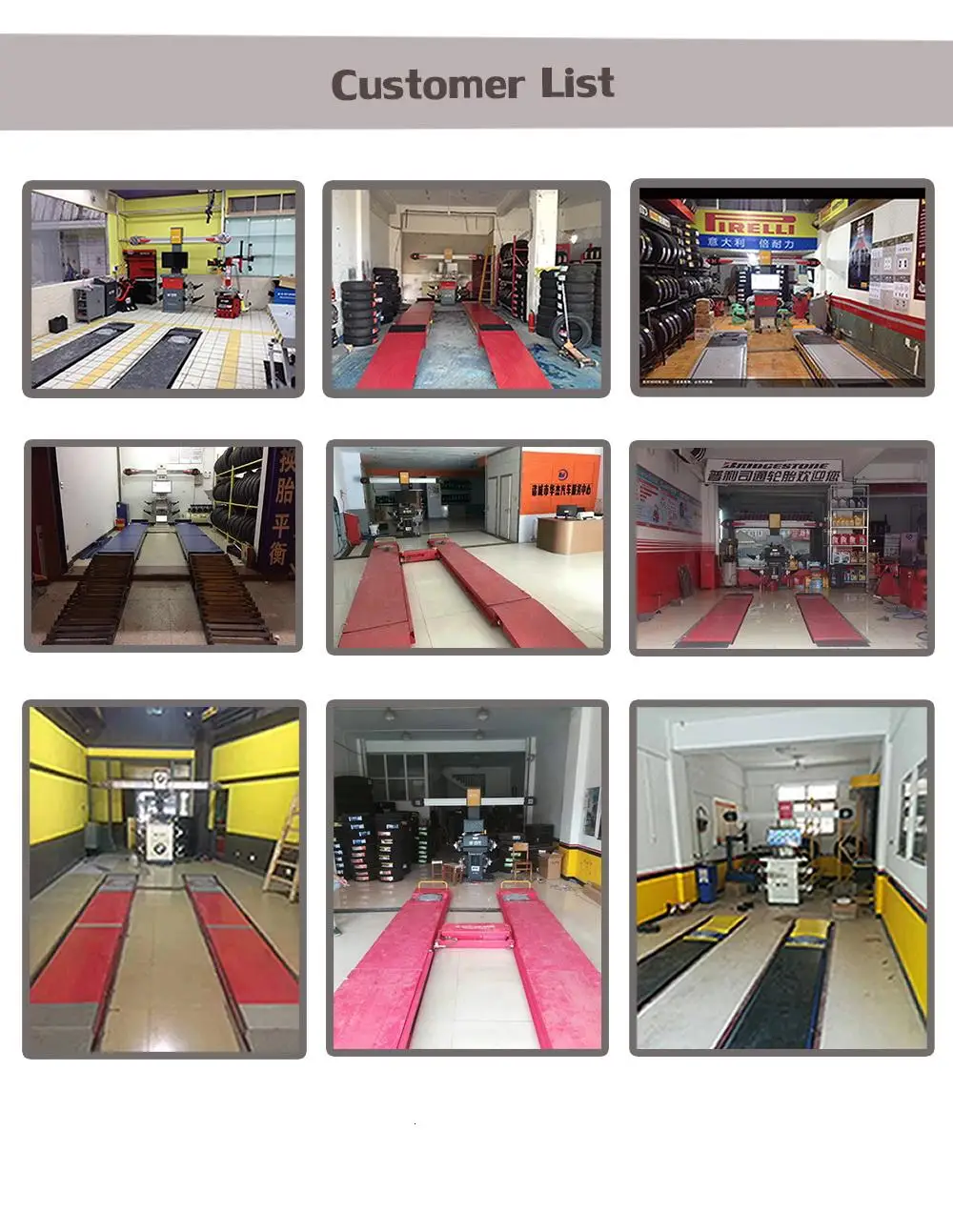

Battle-Axe Wheel Alignment Customer Show
FAQ
or Want to order Alignment scissor lift together to get more Precision Measuring data? click here
How to Contact us ? Send your Inquiry Details in the Below, Click "Sent" Now.
3D-ZD-9S Wheel Alignment Software -All Parameters showed in one Interface including toe, camber, caster etc..
