China golden supplier black soldier fly sieve shaker machine

Product Overview

Description

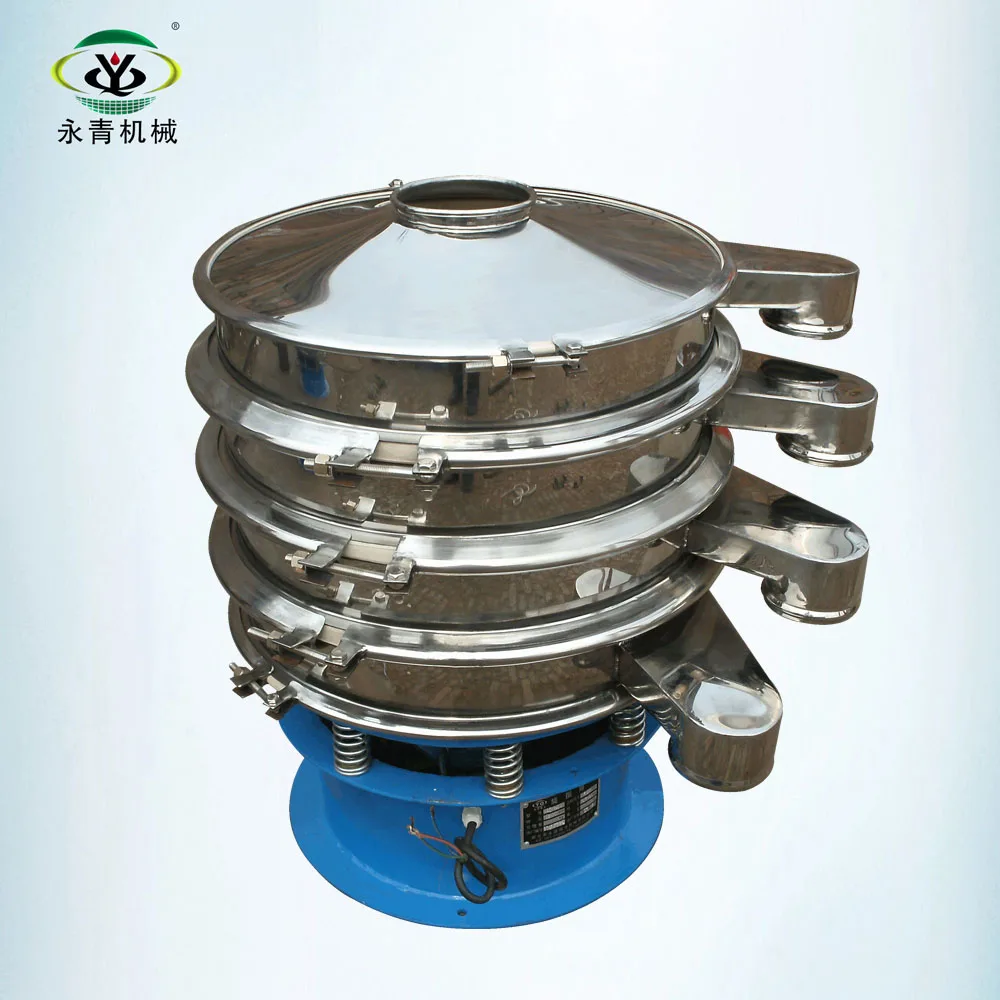

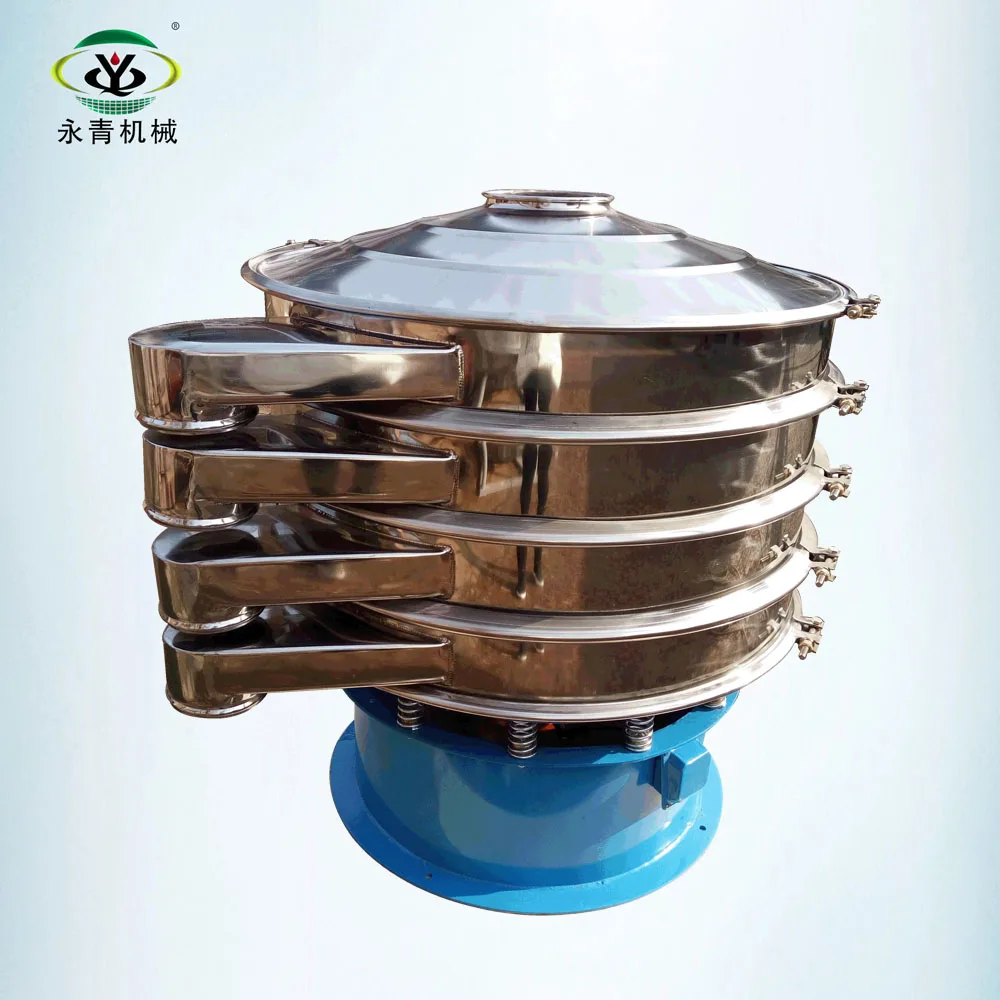

China golden supplier black soldier fly sieve shaker machine



Introduction

XZS series circular vibrating screen is a high efficiency screening machine manufactured with advanced technologies and designs. The XZS vibrating screen features eco-friendliness, conveninent sifter changing process, low working noise, enclosed structure, high safety and efficiency. It can be used for screening and filtering granular, powdery and serous materials.





Applications

A. Dry separation

- Separation of different materials on the basis of their particle shape

- Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains

B. Dry classification

- Separation of solid particles into precise sized fractions

- Food, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives.

C. Solid/Liquid separation

- Dewatering of solids and clarification of liquids

- Foods, chemicals, pulp

D. Solids classification in liquid medium

- Separation of solids into sized fraction in a liquid medium

- Chemicals, minerals, pulp and paper, ceramics, waste disposal

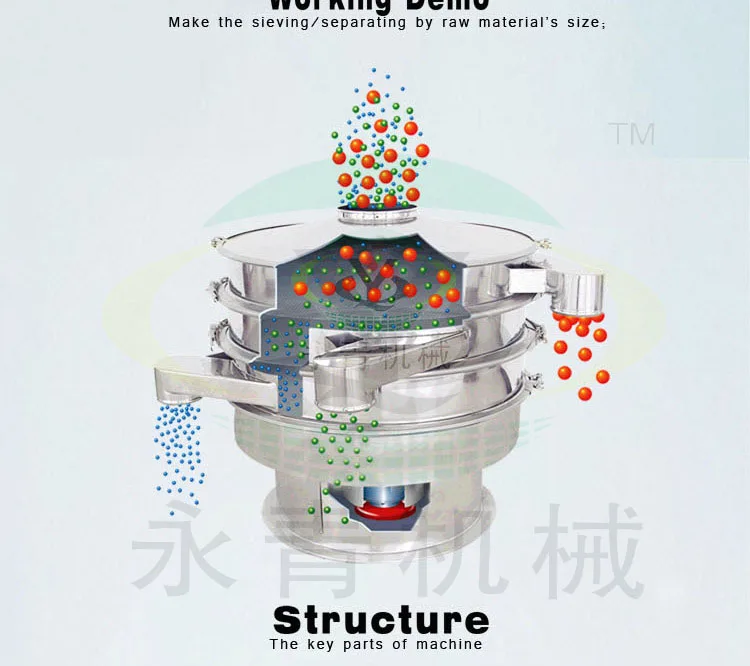

Working Principle

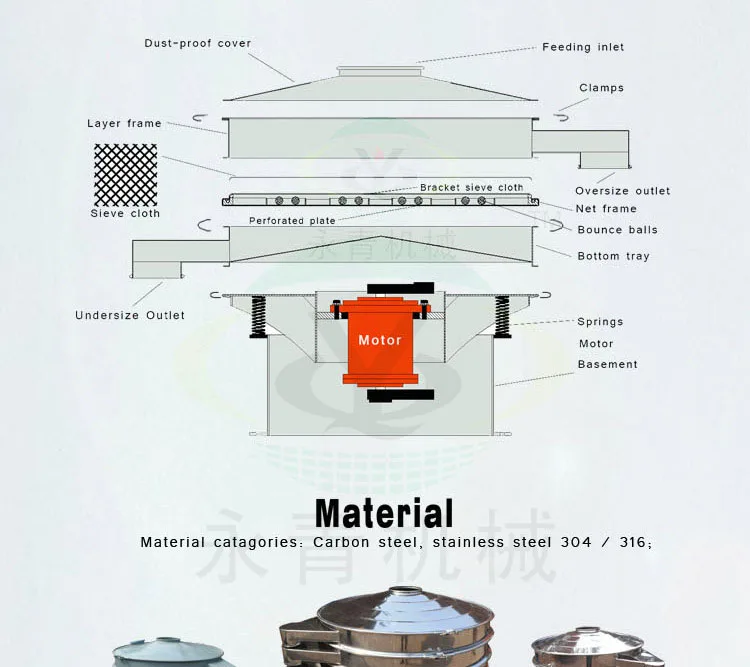

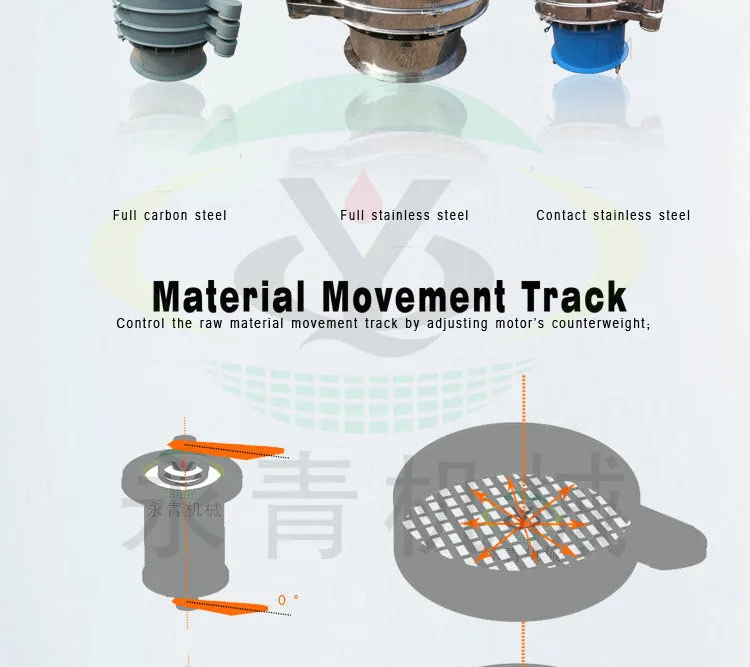

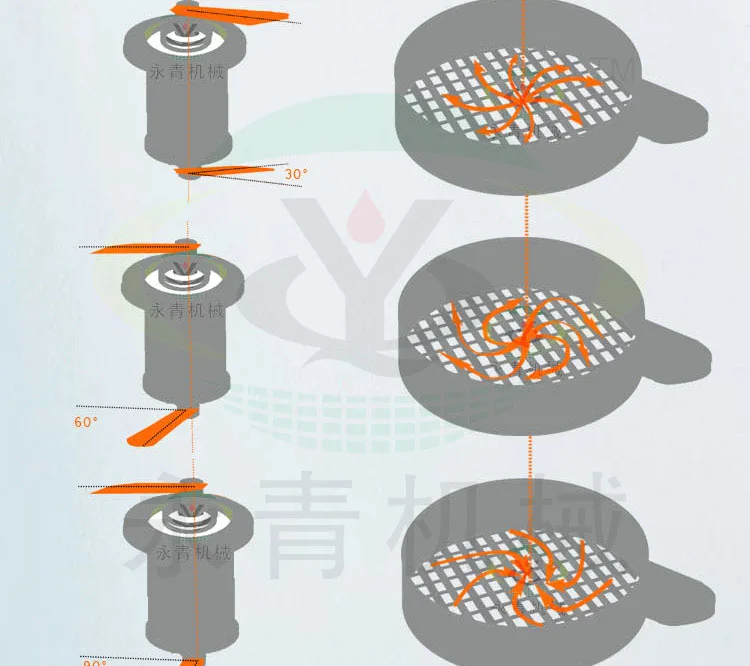

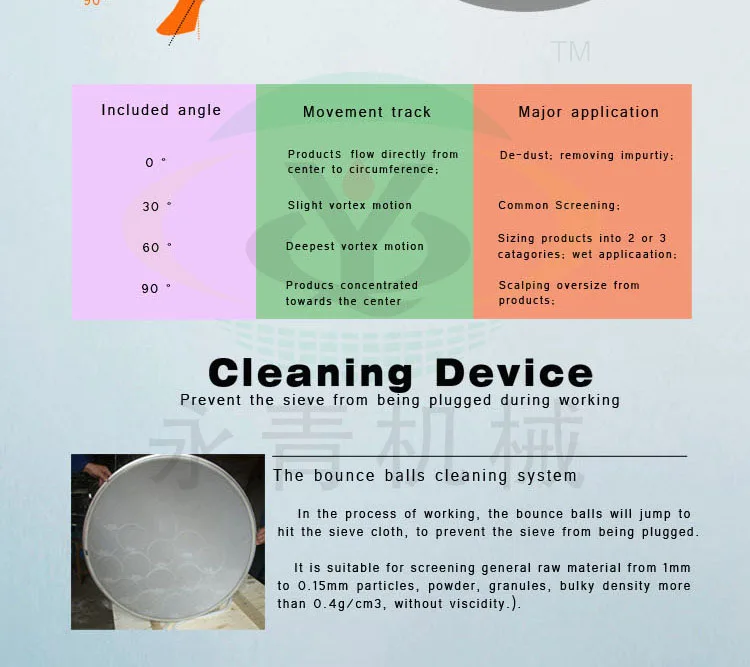

Our circular vibrating screen, as a piece of powdery material screening equipment, uses vertical vibration motor or special vibration exciter as its vibration source. The vibration motor and vibration exciter have an eccentric block at the both upper and lower sides. The eccentric blocks can generate a three-dimensional movement in horizontal, vertical and inclined direction. By adjusting the phase angles of the upper and lower eccentric blocks, the material on the screen can change the movement locus, achieving suitable screening performance.

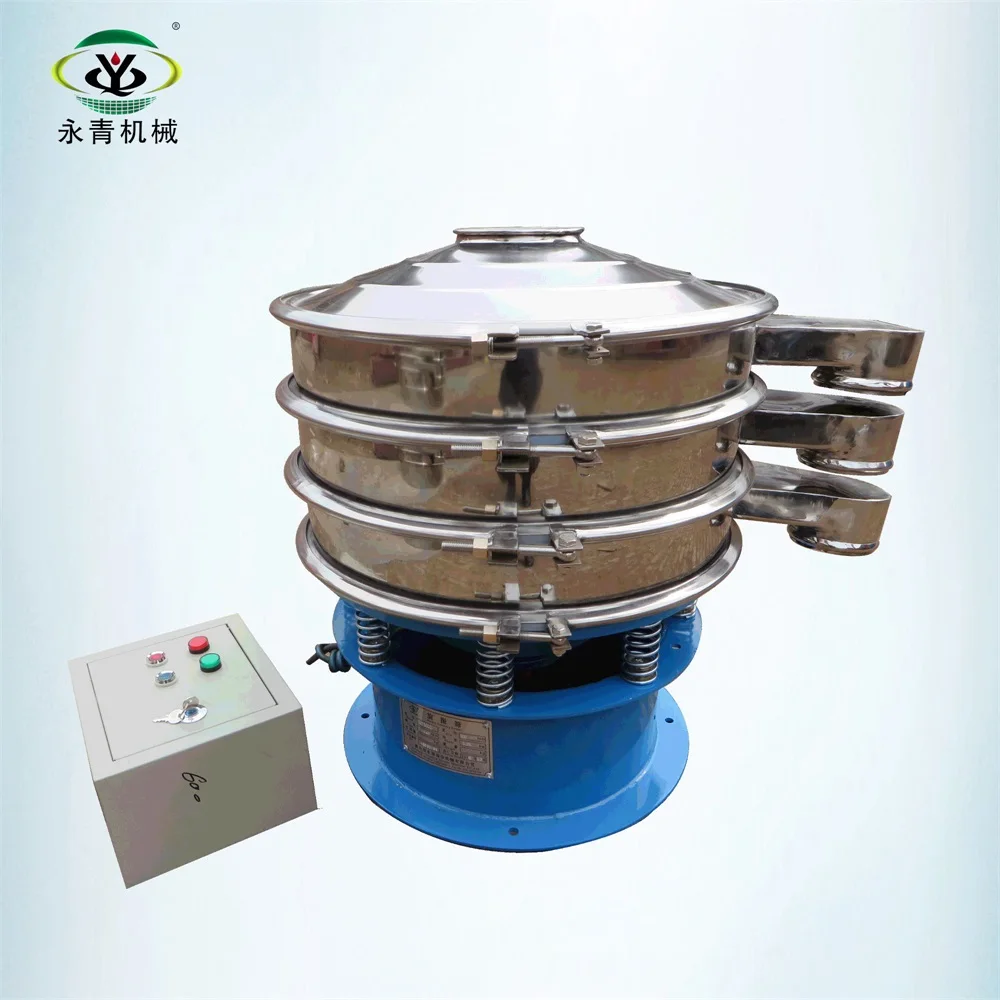

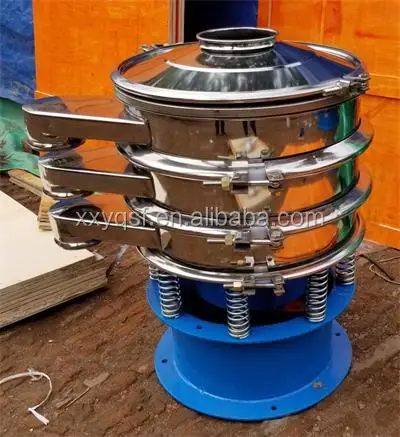

Product name: rotary sieve shaker Application: black soilder fly larvae Model: XZS-500-2 (2 layers) Diameter: 500mm Mesh size: 3mm, 2mm, 1mm Material: contact part stainless steel Capacity: 100-150kg/h Motor: 0.25kw (vertical vibration motor) Voltage: 380V, 50Hz, 3 phase, 1460rpm Package: 650*650*840mm Gross weight: 115KG Delivery time: 7 days after deposit



Parameters

Model	XZS-500	XZS-600	XZS-800	XZS-1000	XZS-1200	XZS-1500	XZS-1800	XZS-2000
Diameter (mm)	500	600	800	970	1170	1470	1770	1970
Screen Dia(mm)	φ430	φ530	φ730	φ900	φ1100	φ1400	φ1700	φ1900
Layer	1-5
Mesh(mm)	0.025-20
RPM	1460
Feeding size(mm)	<20	<20	<30	<30	<50	<50	<50	<50
Power (kw)	0.25	0.25	0.55	0.75	1.1	1.5	2.2	3.0



Note: 450mm diameter is also available.

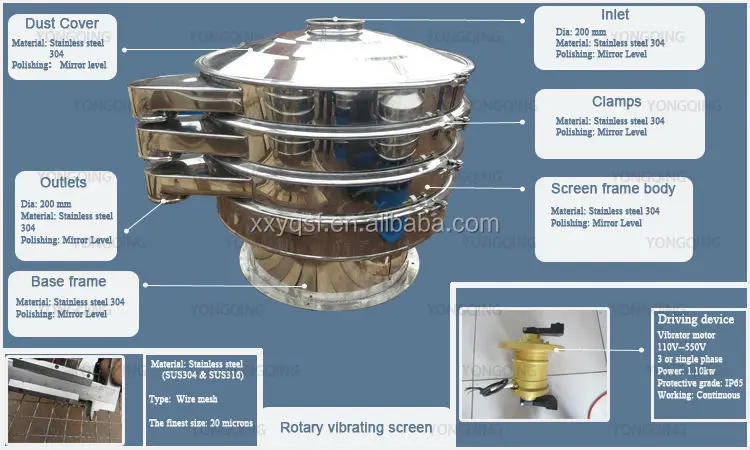

Details
