Brine system clear ice block making machine transparent ice for bars hotels
- Category: >>>
- Supplier: Guangzhou Kingwell Heat Transfer Technology Co. Ltd.
Share on (60810902226):
Product Overview
Description
Product Description
Clear ice block making machine
Crystal and transparent block ice , mostly used for human consumption or ice sculpture.
We have standard sizes for your choice, or if you need other size, we can made as per your demand!
SPECIFICATIONS FOR 300KGS/48H CLEAR BLOCK ICE PLANT | ||||||
Compressor | Brand | Copland | ||||
Horse Power | 12HP | |||||
Type | Semi-hermetic compressor | |||||
Technical specification | Supply Power | 380V, 50Hz, 3Phase / Customized | ||||
Input Water Temp. | 21℃ | |||||
Condensing Temp. | 40℃ | |||||
Measurement | Compressor machinery unit | 1780mm(L)*880mm(W)*1730mm(H) | ||||
Salt water tank | 3600mm(L)*1450mm(W)*1200mm(H) | |||||
Water cooling tower | 1700mm(L)*1700mm(W)*1700mm(H) | |||||
Main Features
1). The block ice it created is strong and hard, do not melt easily, which is suitable for long-term and long-distance storage.
2). Energy saving: Using salt water as secondary refrigerant, which can help the ice freezing quicker, consumes less electricity.
Why choose us
1, Improved working system Unsurpassed in the industry, Most efficient in electrical and water consumption.
2, Easy to Maintenance, Save time and without worry
3, Professional, Experience, Faithful & Fast reply
4, Multi-purpose models available to suit all of your needs
Application
Widely application of block ice
Stainless ice cans
Stainless steel ice cans

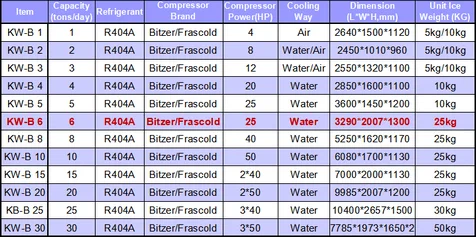

Technical Parameter
Notes:
* Power supply: 380V~420V, 60hz; 3P; 220V~240V, 60hz, 3P; 380V, 50HZ, 3P; 440~480V, 60HZ, 3P.
* Above capacity based on makeup water temperature of 21℃, evaporating temperature of -15℃
and condensing temp. 40℃. The actual capacity will be changed by different ambient temp. and make-up water temp.
* The daily capacity can be ranged from 1ton to 120 tons or we can design as per your requirements.
Detailed Images
Compressor
Name: Bitzer
Brand: Germany brand
The compressor is the only engine of the refrigeration system, it's just as the heart for a human being, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.
High/Low Pressure Controller
Name: Danfoss
Brand: Denmark brand
The high/low pressure controller is used as pressure controller and pressure protector, when the pressure of system reaches the setting point, it turns on or off automatically to keep the compressor refrigeration unit from damage.
Electrical components
Name: LS
Brand: South Korea brand
The electrical components like power switch, contactor, thermal relay are all protector for other refrigeration components.
Expansion Valve
Name: Danfoss
Brand: Denmark brand
World famous brand, with stable performance and low failure.
