Ruide RQS types of total station with temperature and pressure auto sensor
- Category: >>>
- Supplier: Shanghai,Newdi,Navigation,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Description:
The all-new RQS Series, developed from RTS-822 series, now delivers longger range and longger operation time, and ease-of-use like always.
Key features:
1. Non-prism measuring distance range up to 600m, Ruide RIS can be up to 800m
2. Guide light helps move to the right position quickly, useful for point survey and stake out.
3. 20,000 points storage ability, and extensibale extenal memory up to 2GB
4, Temperature and Pressure auto-sensor, help to calculate precise PPM value and correct the final positioning result.
Technical specification:
| Ruide Total Station | ||
| Model | R2 | |
| TELESCOPE | ||
| Length | 154mm | |
| Objective Lens Diameter | Telescope:45mm Distance Meter: 50mm | |
| Magnification | 30X | |
| Image | Erect | |
| Field of View | 1°30’ | |
| Resolving Power | 3" | |
| Min. Focus | 1.0m | |
| DISTANCE MEASUREMENT | ||
| Single Prism | 5000m*1 | |
| Non-prism | 600m*2 | |
| Accury -Prism Mode | ±(2mm+2ppm x D) m.s.e*3 | |
| -Non-prism Mode | ±(3mm+2ppm x D) m.s.e*3 | |
| Measuring Time | Fine:0.6s,Normal: 0.5s | Fine: 0.3s, Normal: 0.2s |
| Meteorologic Correction | ATMOSense (Auto Sensing) | |
| Prism Constant | Manuual Input | |
| ANGLE MEASUREMENT | ||
| Method | Absolute Encoding | |
| Detecting System | H: 2 sides,V:2 sides | |
| Min. Reading | 1"/5" | |
| Accuracy | 2" | |
| Diamater of Circle | 79mm | |
| Vertical Angle 0° | Zenith 0°/ Horizontal: 0° | |
| Unit | 360°/400gon/6400mil | |
| DISPLAY | ||
| Display Unit | Graphic LCD 160 x 90 Dots with White Backlight | |
| No. of Unit | 2 sides | |
| Keyboard | Alphanumeric Key | |
| TILT CORRECTION | ||
| Tilt Sensor | Dual Axis | |
| Method | Liquid Electric | |
| Range | ±4' | |
| Setting Unit | 1″ | |
| LEVEL SENSITIVITY | ||
| Plate Level | 30″/2mm | |
| Circular Level | 8'/2mm | |
| OPTICAL PLUMMET (OPTIONAL:INTERNAL LASER PLUMMET) | ||
| Image | Erect | |
| Magnification | 3X | |
| Focusing Range | 0.3m~∞ | |
| Field of View | 5° | |
| DATA STORAGE & INTERFACE | ||
| Internal Memory | >10,000 points or >20,000 coordinates | |
| Data Interface | RS 232/SD-card/Mini-USB | |
| GENERAL | ||
| Guide Light | No | Yes |
| Weight & Dimension | 5.4kg,340mm(H) x 160mm(W) x 150mm(L) | |
| Working Temperature | -20℃~+50℃ | |
| Batter Type | Rechargeable Li-on Battery 3000mAh | |
| Batter Voltage | DC 7.4V | |
| Working Time | 16h | |

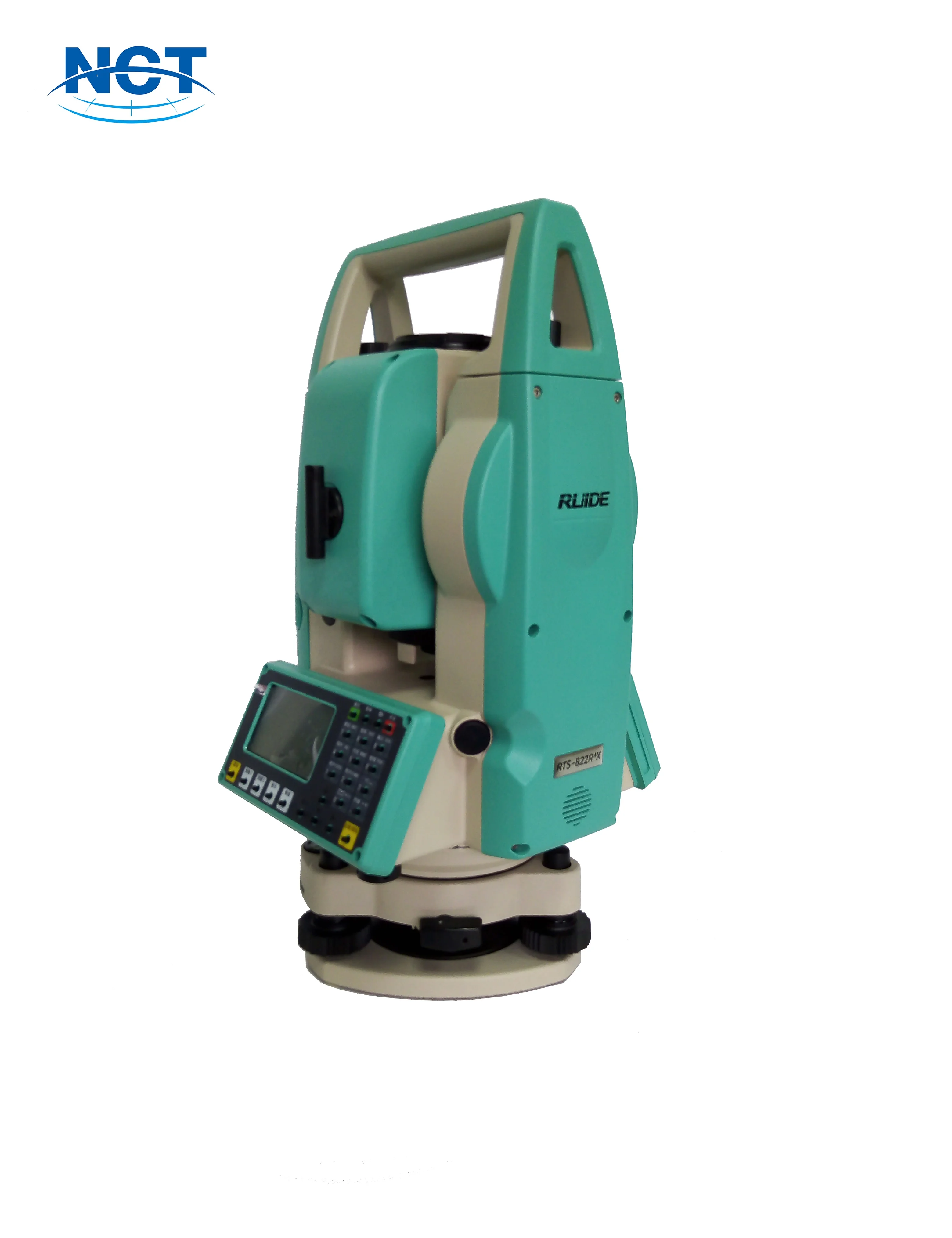

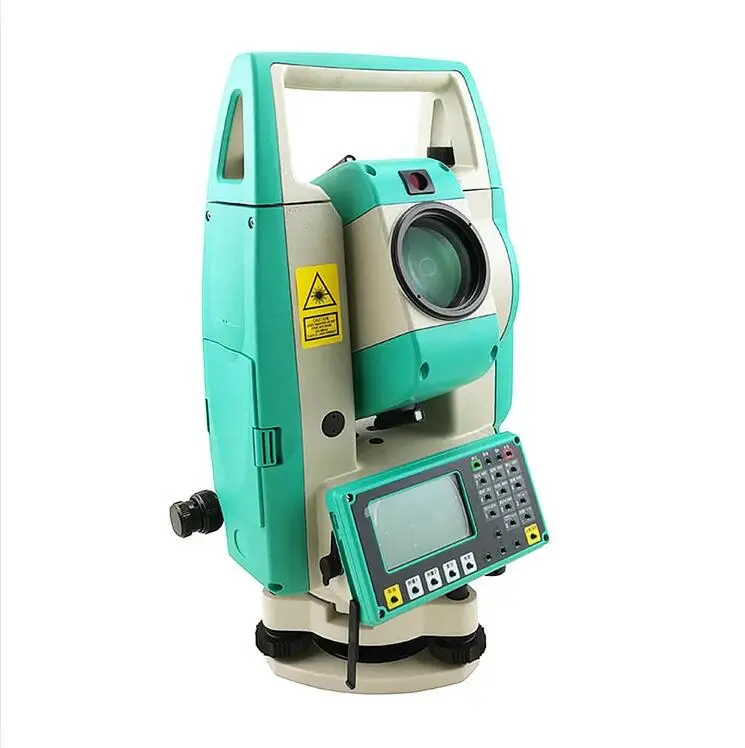

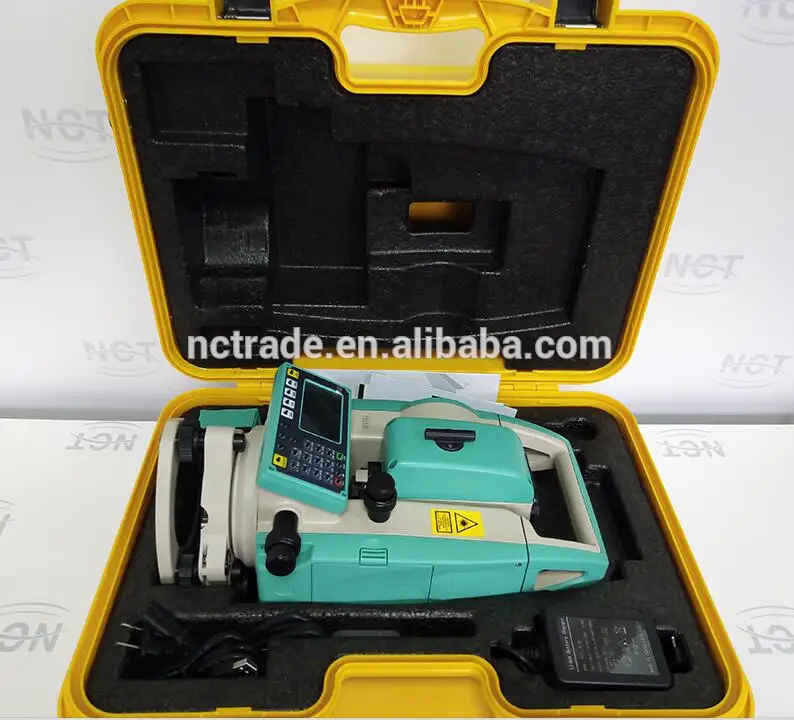

Product Show
