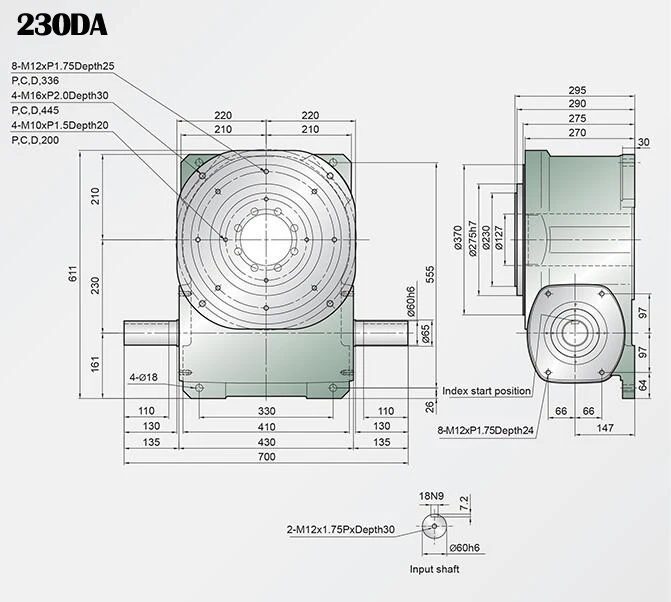

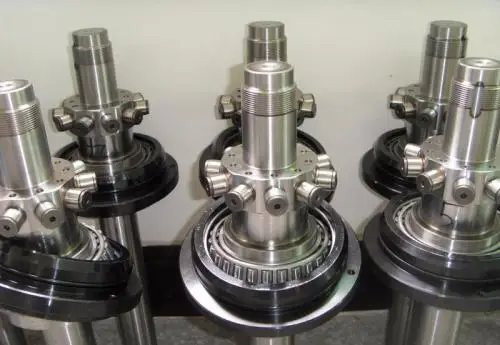

230DA Series High Precision Cam Indexer, cam indexing,Rotary indexing tables For assembly automation

Brand:chengchang

Product certification:ISO9001

Processing customization:Yes

Disk diameter:800-1800mm

Bearing weight:0-400KG

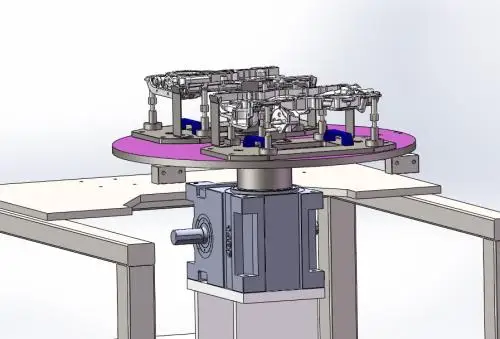

Mainly applied to: Automaic assembly machine, printing press

Location and segmentation of equal parts:2,3,4,5,6,8,10,12,16,20,24,30,32,36,40,48

Driving angle:90°,120°,150°‘180°,210°,240°,270°,300°

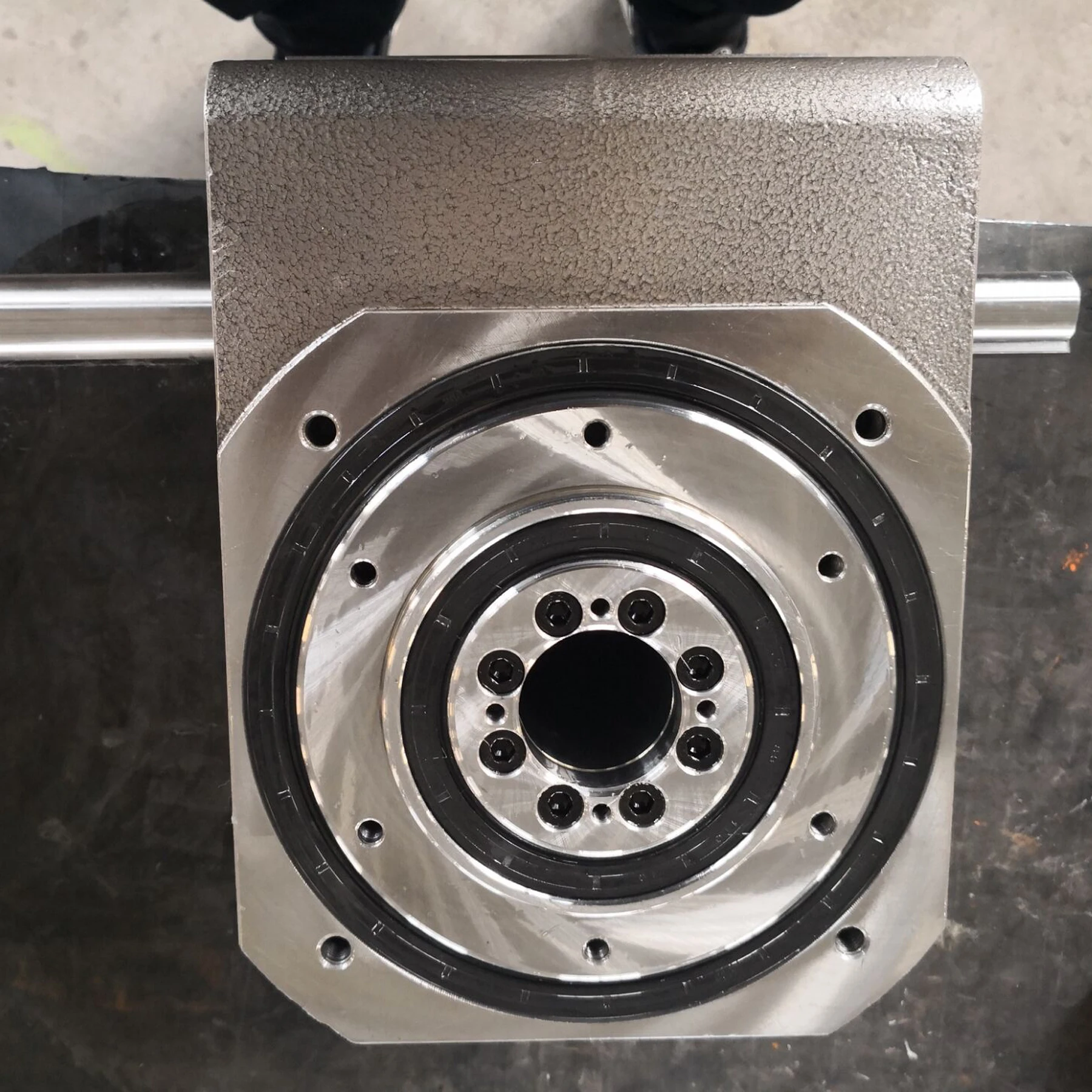

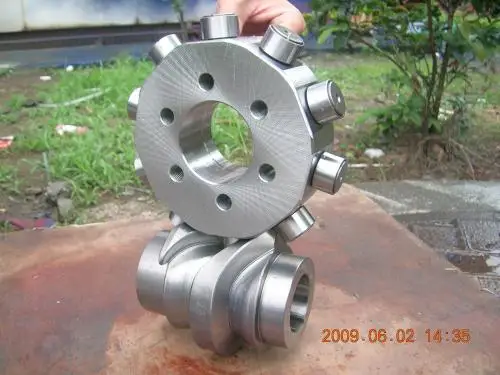

Cam curve: deformation curve, deformation sine curve and deformation velocity curve.

Rotation direction of cam: left and right.

All    Allowable radial load of output shaft (C1):     2800kgf

Max.repetitive torque on input shaft(C5): 80kgf-m

All     Allowable axial load of output shaft (C2):       1300kgf

CD² on input shaft(Note1): 0.136kgf-m²

All     Allowable torque of output shaft (Ts): Reference torque table

Indexing accuracy: ±30 Sec.

All     Allowable  radial load of intake shaft (C3):      650 kgf

Weight:285 kg

Ma    Max.repetitive bending force on input shaft (C4): 650 kgf
