OUORO 12mm G3/8 DGJ Circlip self secured union zinc alloy connector joint fitting for flexible conduit
- Category: >>>
- Supplier: Yueqing City Ouoro Electric Co. Ltd.
Share on (60810980958):
Product Overview
Description

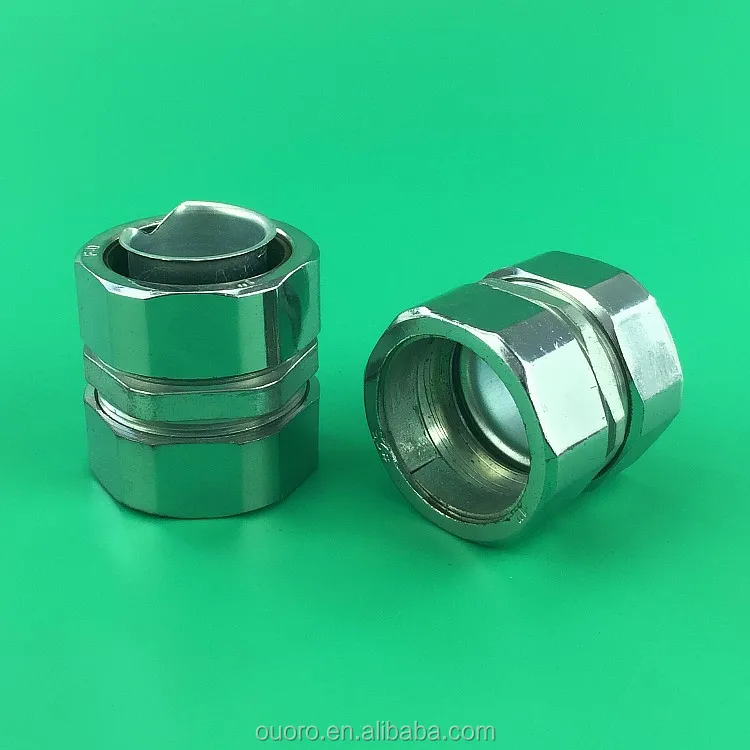

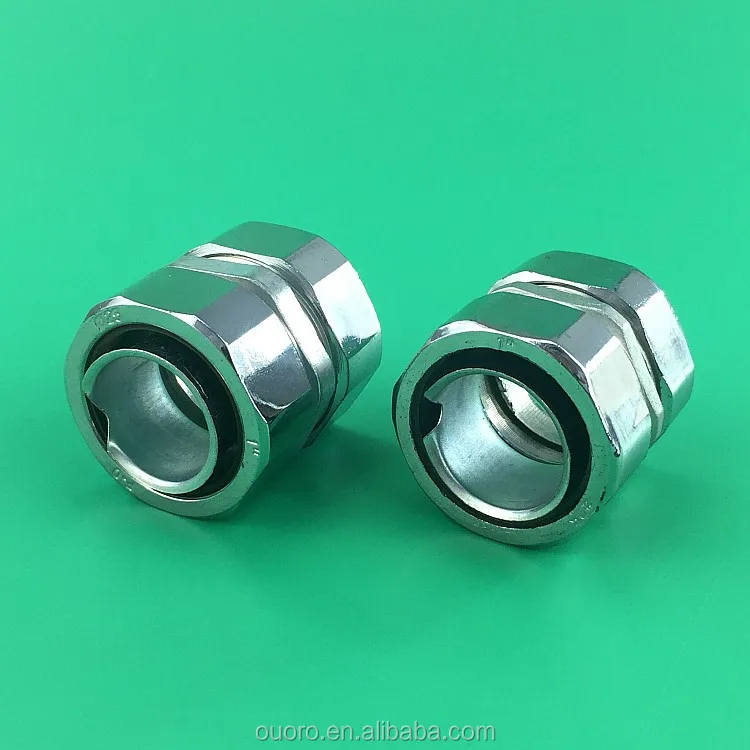

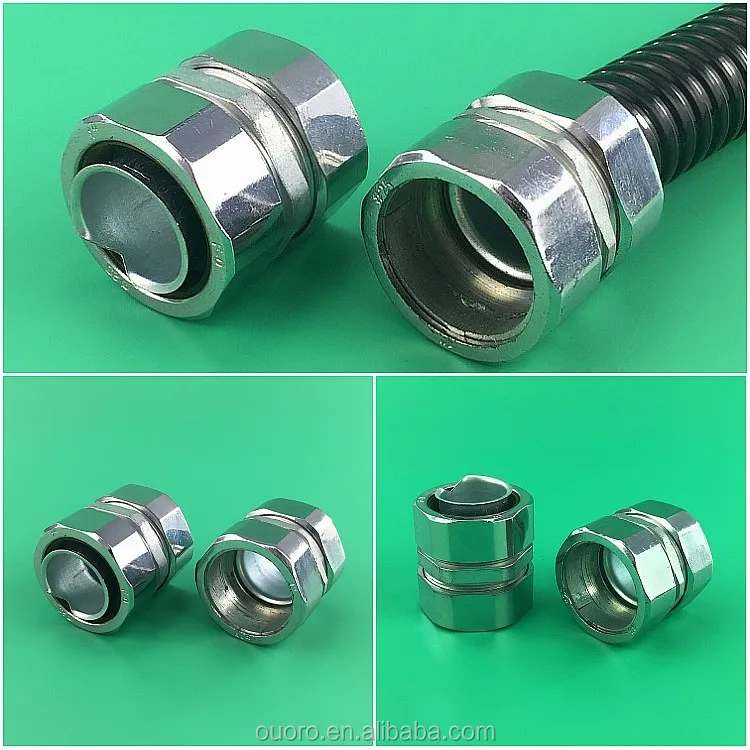

OUORO 12mm G3/8 DGJ Circlip self secured union zinc alloy connector joint fitting for flexible conduit

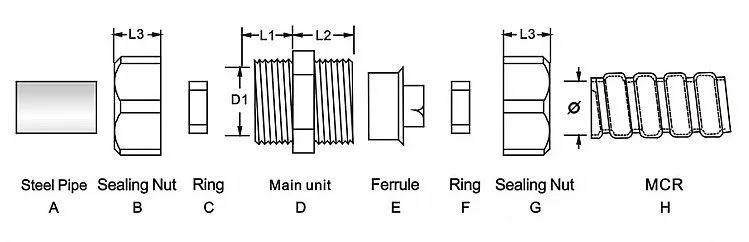

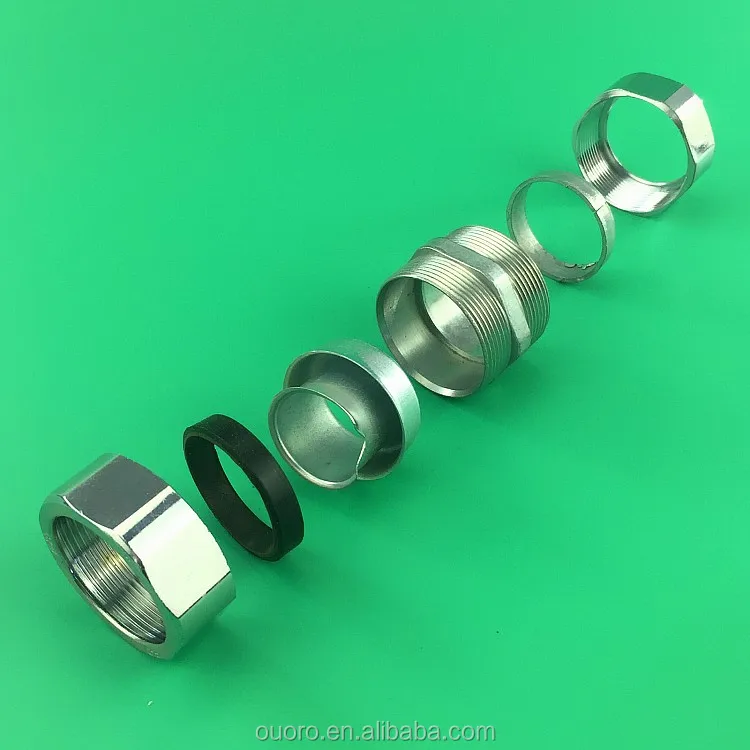

material: Location A, C and F are made of high-quality thickened zinc alloy, B, E made of chemigums and D is made of iron sheet.
Specification of thread: G, Metric and PG
Color: Metal color (White)
Temperature: -40℃ ~ +100℃, , instantaneously can be +120℃ Protection
classification: Ip65
Property: Thickened zinc alloy or chromium plated; beautiful outlook, compact structure and high strength. Flexible pipe sleeve design and flexible pipe buckle design making assembly easy and time-saving, promising strong pull resistance. Water resistant, dust resistant, inactive with salts, acids, alkalis, alcohols, oils and greases as well as general dissolvent. Besides the following specifications, the size and thread standard can be varied at your discretion as per requirements.
| DGJ Circlip self secured union zinc alloy connector joint fitting for flexible conduit | ||||||||
| Metal vlexible hose | Threaded thick steel tube(water,gas,steam tubes) | Thin steel tube(electric wire tube) | Packing | |||||
| Metric | G system | Nominal | British system | Outer diameter* wall thickness | Nominal | British system | Outer diameter* wall thickness | |
| Φ10 | 5/16" | #10 | 5/16" | #12 | 1/2" | 12.76x1.60 | 100 | |
| Φ12(13) | 3/8" | #12 | 3/8" | 17.00x2.25 | #15 | 5/8" | 15.87x1.60 | 100 |
| Φ15(16) | 1/2" | #15 | 1/2" | 21.25x2.75 | #20 | 3/4" | 19.05x1.80 | 50 |
| Φ20(19) | 3/4" | #20 | 3/4" | 26.75x2.75 | #25 | 1" | 25.40x1.80 | 50 |
| Φ25 | 1" | #25 | 1" | 33.50x3.25 | #32 | 1-1/4" | 31.75x1.80 | 50 |
| Φ32 | 1-1/4" | #32 | 1-1/4" | 42.25x3.25 | #40 | 1-1/2" | 38.10x1.80 | 20 |
| Φ38(40) | 1-1/2" | #40 | 1-1/2" | 48.00x3.50 | #50 | 2" | 50.80x2.00 | 20 |
| Φ51(50) | 2" | #50 | 2" | 60.00x3.50 | #70 | 2-1/2" | 63.50x2.50 | 20 |
| Φ64(70) | 2-1/2" | #70 | 2-1/2" | 75.50x3.75 | #80 | 3" | 76.20x3.20 | 10 |
| Φ75(80) | 3" | #80 | 3" | 88.50x4.00 | 5 | |||
| Φ100 | 4" | #100 | 4" | 114x4.00 | 5 | |||
| Φ125 | 5" | #125 | 5" | 140x4.5 | 5 | |||
| Φ150 | 6" | #150 | 6" | 165.00x4.50 | 5 | |||
1.Q:Do you have your own factory?

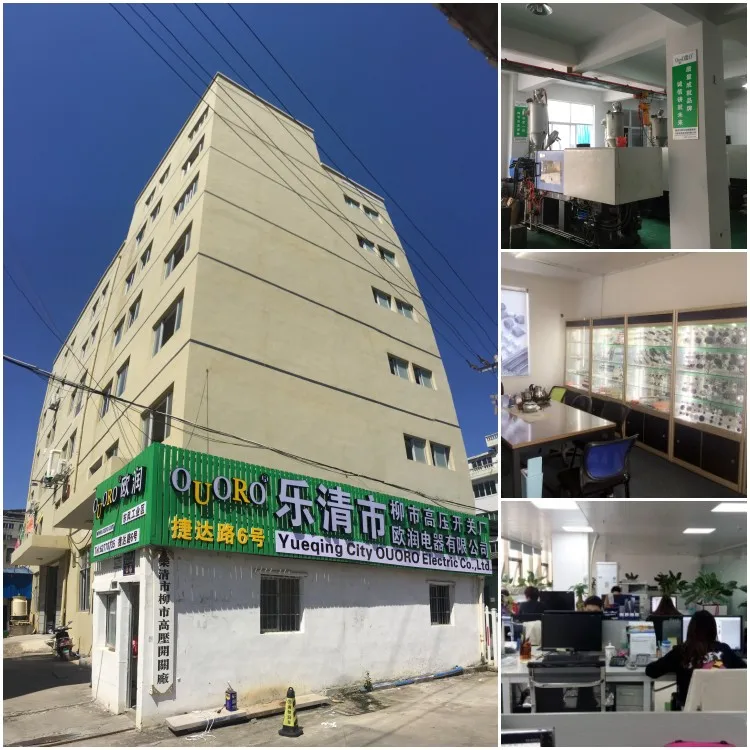

A:Yes,H-V-S Company is manufacturer in china for over 30 years, located in Yueqing City, capital of china electric.
2:Q: What is the Relation about OUORO & Yueqing City Liushi High Voltage Switch Factory(H-V-S)?
A: All wiring accessories been made by H-V-S, will be sell by OUORO. H-V-S & OUORO in the same Building. Their chairmans relation is father and son. The OUORO chairman is largest shareholder for H-V-S company.
3.Q:How can I visit your factory?
A:Before visit, please let us know your trip in advance. We will show you the way, or arrange time to pick up you if possible.
4.Q:Do you provide free sample?
A:Yes, we always do, but first time you'd better pay the delivery charge.
5.Q:Could you print our company logo on nameplate and package?
A:Yes,we can do that.
6.Q:Do you accept custom design on size?
A:Yes, if the size is reasonable.
7.Q:What's your delivery time?
A:H-V-S is factory, so we can efficiently control the production time.
