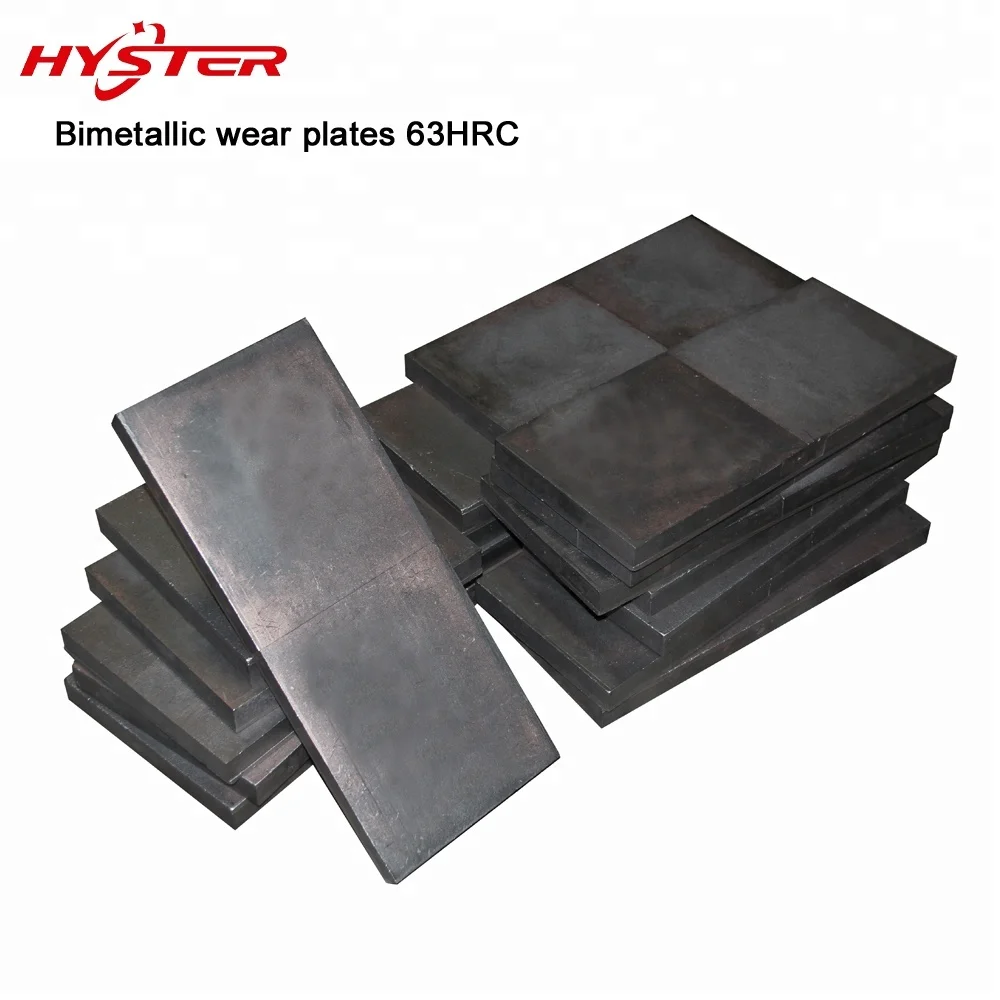

63HRC white iron wear plates for Chute and Hopper Liner Protection(700HB)

Typical applications of Wear Plates include Discharge Chutes, Hoppers, Rock Boxes, Excavator Buckets, Loader Buckets, Dragline Buckets, Face Shovel Buckets, Spider Arm Guards on Crushers.

\\

Hyster produce three kinds of wear plates to the mining and quarry market:

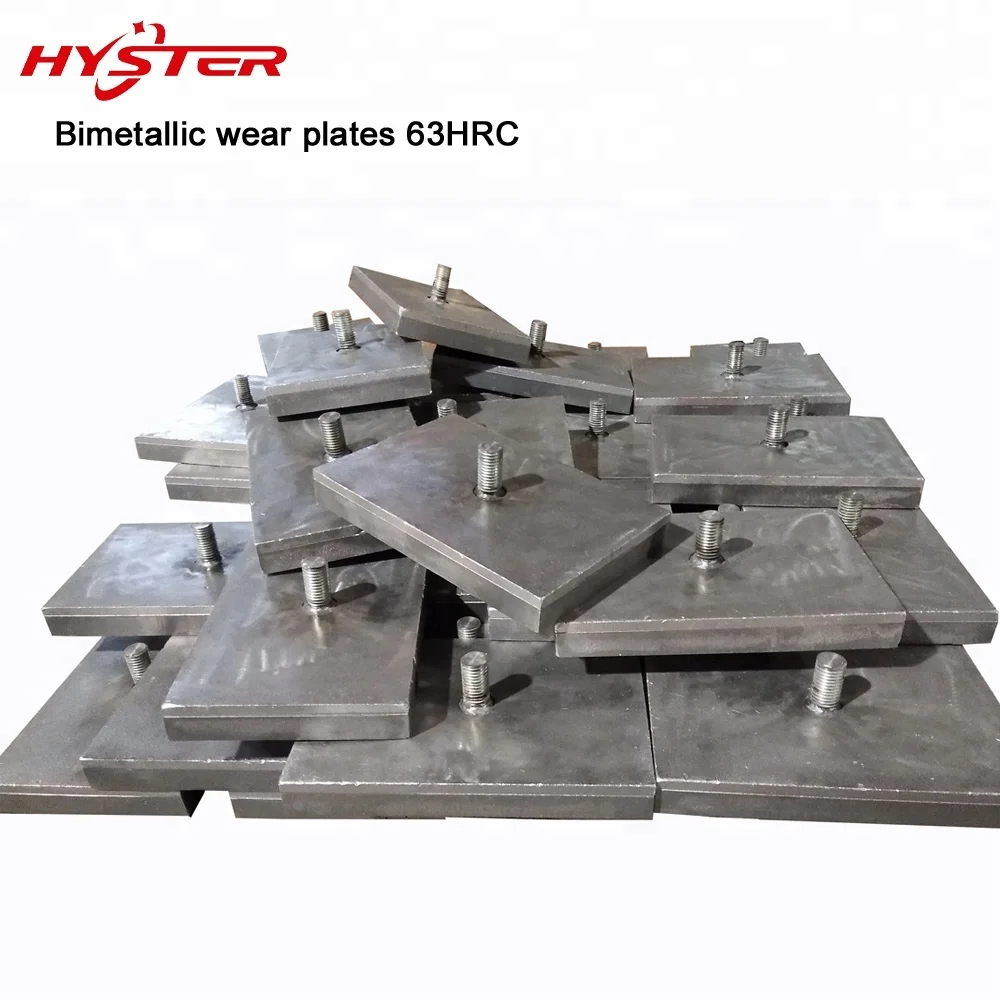

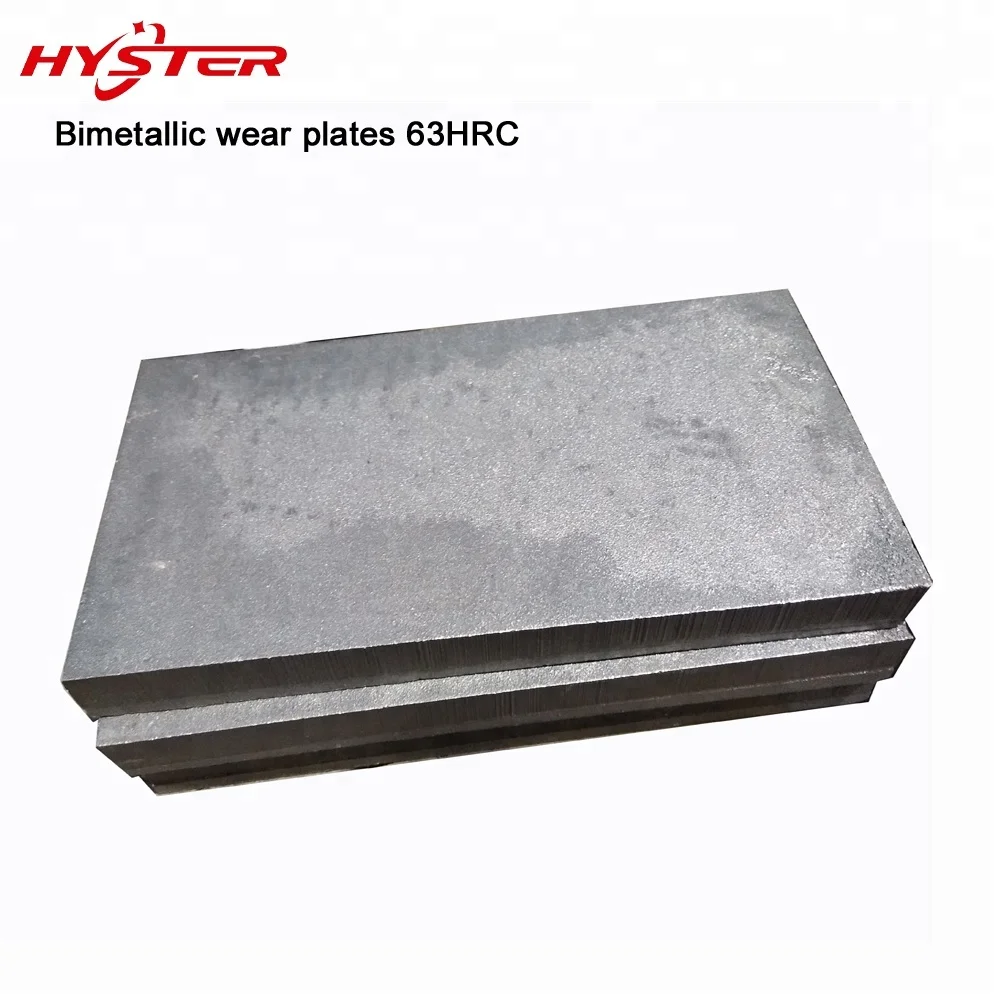

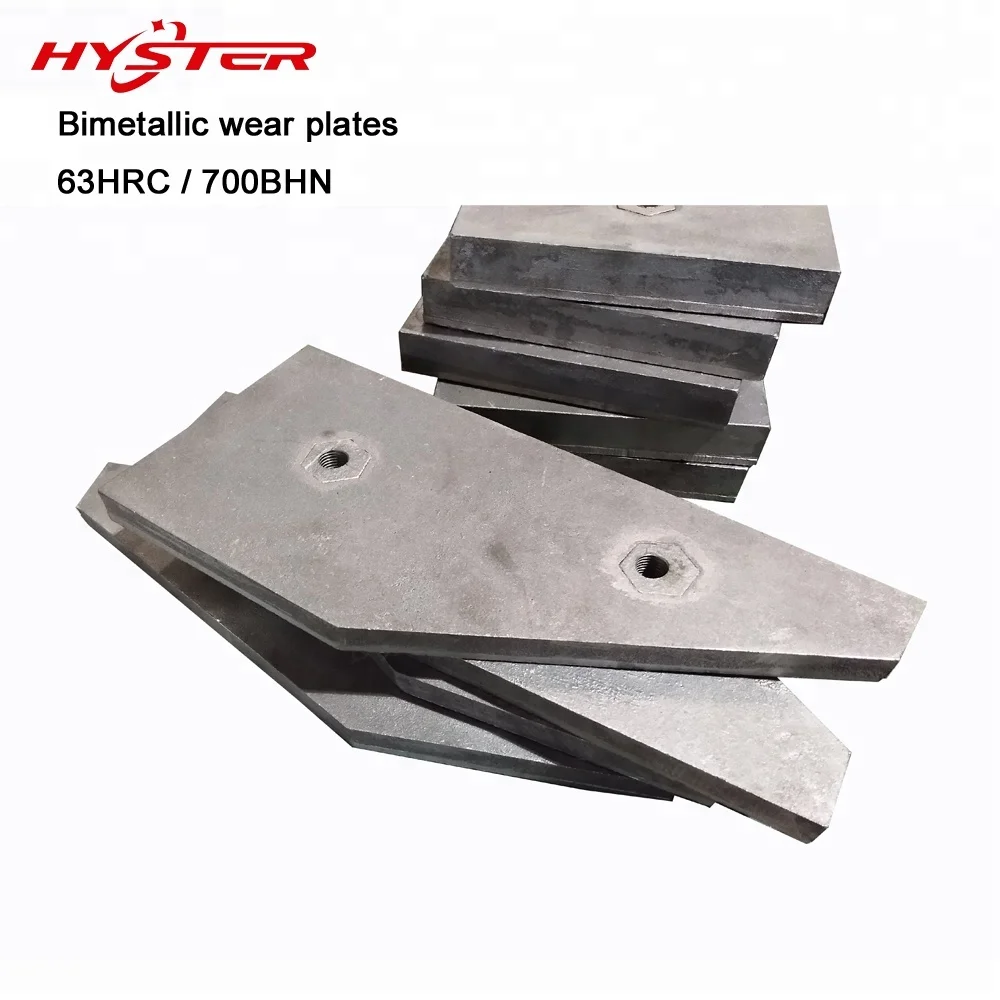

>> White iron laminated wear plates/Domite wear plates

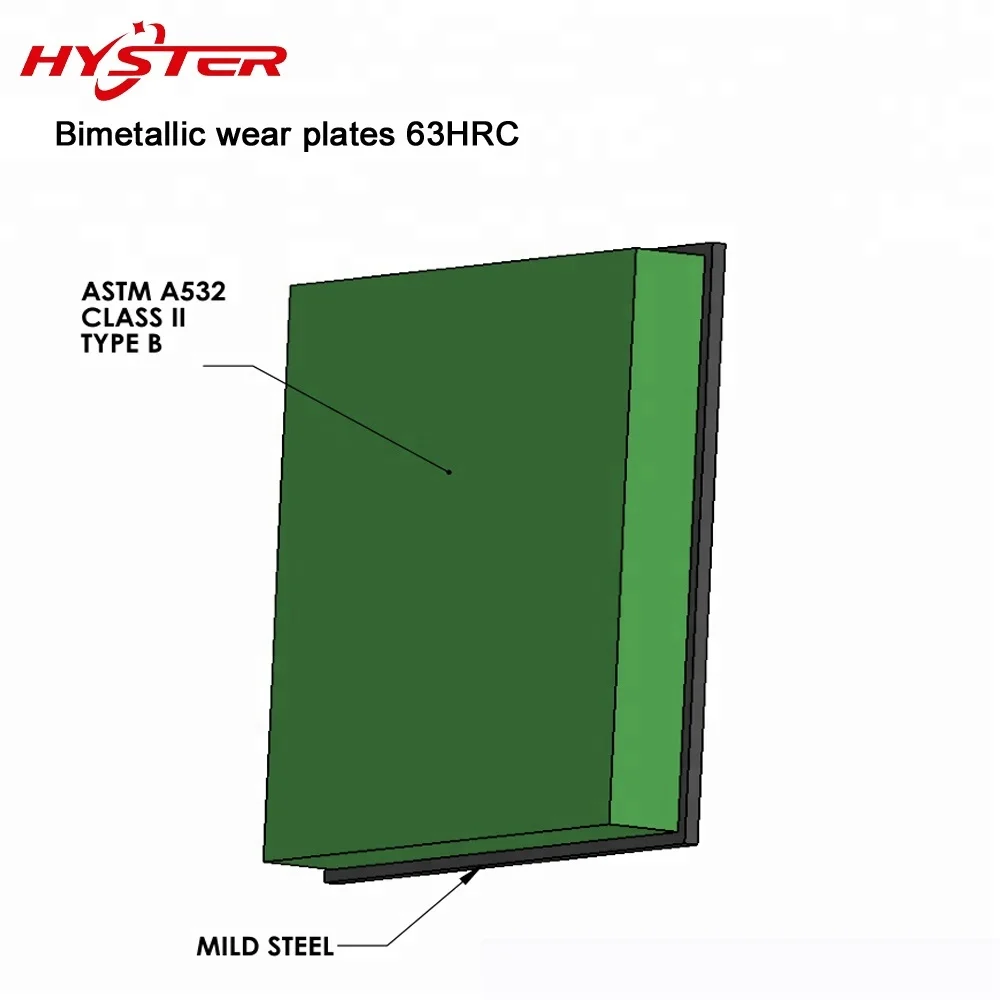

They combine very high wear resistant qualities of a high white iron plate(ASTM A532 15/3CrMo, 700BHN-63HRC) with a weldable & high impact toughness mild steel plate through vacuum brazing to create a product that is exceptionally resistant to impact and abrasion while retaining.

For different work conditions, we can control the thickness of the layer to reach the overall performance requirements, thus, at the same time, satisfy the abrasion-resisting demand and structural requirement of the wear-resistant parts, then to realize the efficient use of the scarce resources. Most usual thickness ranges from 15mm to 90mm.

>> Nihard Wear Plates/liners

NiHard is a well-established white iron product alloyed with nickel and chromium to give significant abrasion and impact resistant properties. The structure of NiHard is composed of iron and chromium carbides, fixed in a matrix rendered martensitic by the nickel content. This structure allows NiHard to be utilised in abrasive and high impact conditions found throughout the construction, mining, manufacturing and mineral processing industries.

Our NiHard products include billets and liner plates that can be made to the customers' specification or supplied from our range of stock sizes. Our NiHard products can be custom designed to meet any situation regardless of any size and shape concerns. We can also supply cut and shaped liners to be strategically placed on fixed plant equipment so that a unique wear package can be created, maximising wear life. This makes NiHard the perfect material for chutes, drop boxes, bin and hopper liners.

We primarily supplies cast billet and liner plates produced to the NiHard 4 specifications.

However, we can produce billets and liner plates from the following alloys on special request:

   > NiHard 1 & 2

   > 27 Chrome Alloy

   > 15/3 White Iron

>> Chromium Carbide Overlay Wear Plates

OVERLAY-PLATE is welded by Chromium carbide overlay on a mild steel backing plate. Manufactured by our own design's welding machine with exclusive technique.

OVERLAY-PLATE has excellent performance in abrasion and impact.

Standard sheet size we can produce is 1500x3000mm, 1200x2400mm.

Thickness we can produce 4+4, 6+4, 6+6, 8+5, 8+6, 10+5, 10+9, 10+10, 12+12, 12+17, 10+20.

Note:

1. Other sizes can be made on request.

2. Liners can be cut to size on request.

3. Bolts/Nuts/Washers are available on request.

4. Holes are to suit M20 fishtail bolt

In every case, we enable customers to:

 1. Reduce downtime due to unscheduled break downs

Typical Data Numbers:

Hyster Made White Iron Wear Parts >>

  Usage life is 50% greater than that of Ni Hard Irons.

  At least 7 times longer than A.R. type steels 360/400 BHN

  5 times the wear rate of Manganese Steel

  3 times the wear rate of Tapco Weld Hardfacing

  4 times the wear rate of Astralloy-Vulcan

  16 times the wear rate of Carbon Steel

  3 times the wear rate of 500 BHN A.R. Plat

Bimetallic White Iron Wear Plate Usage Life is Three Times Higher Than Overlay Wear Plates!!

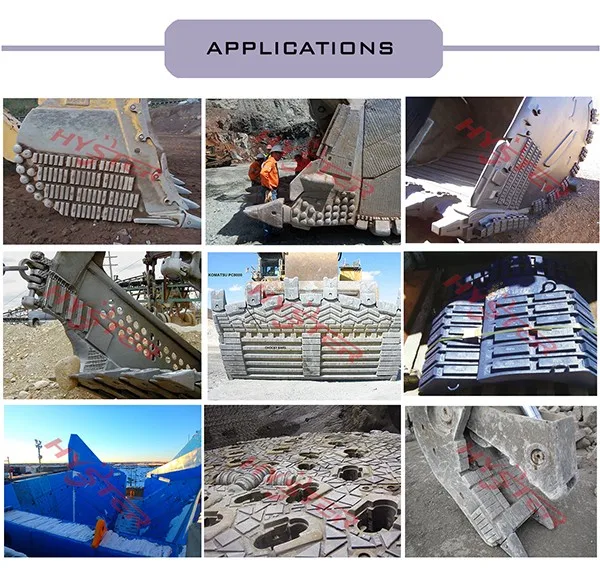

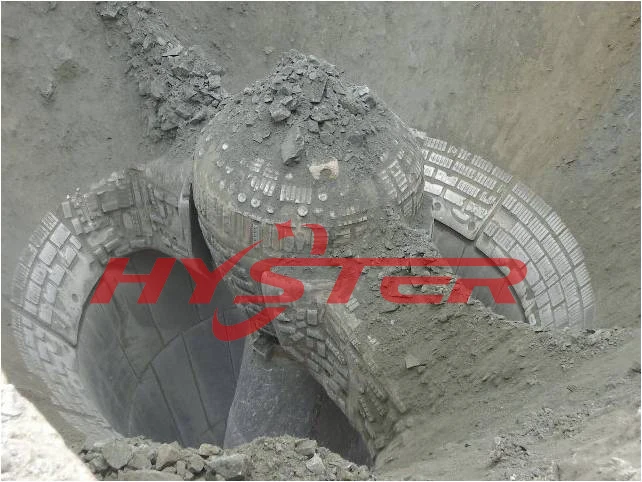

Applications---Typical applications include the following for the Sugar, Mining, Quarrying, Re-cycling, Aggregate and other Heavy Industries (to name only a few of the countless applications):

Chute Linings                        Apron Feeder Liners                Dump& Crusher Hoppers

Distribution Plates                 Rock Box Liners                      Crusher Chutes/Bars

Conveyor Transfer Points        Knife Inserts                         Feeders

Loaders                                 Flop Gates                            Draglines& Shovels

Hammer Mill Inserts              Wear Aprons/Pads                  Dump Hoppers & Crusher Hoppers

Rolling Mill Guides                  Jaw Crusher Check Plates       Skid Plates

Screen Plates                         Drag Line Bucket Liners          Coal Transfer& Tripper Chutes

Surge Bin& Bucket& Trough Liners                  Rock Box& Hopper Edges/Liners

Skip& Loader& Truck Bed Liners                      Lip& Adaptor Protectors

=

Hunan Hyster Material Technology Co., LTD., founded in 1995, we are a professional manufacturer & exporter of Bi-metallic wear blocks/plates, Bimetallic wear pipes, Chocky bars, Wear buttons(white iron vacuum brazed onto mild steel, 63HRC/700BHN), Chromium carbide overlay wear plates, Ni-hard castings/plates, Tungsten carbide castings for Mining, Quarrying, and other heavy industries. We are located in New and High-Tech Development Zones of Changsha city, capital of Hunan province, middle of China.

The company has passed the ISO9001:2008 certificate, quality is very important to the development of Hyster. The company strictly operate according to the ‘Integrity, Dedication, Innovation, Efficiency’ business philosophy. Over 95% products have been sold to Australia, Canada, Brazil, America, Chile, Argentina, South Africa, Indonesia, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.

Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.

Some of our products and services:
  --Wear plates, wear liners-Nihard wear liners, white iron wear liners, bimetallic wear liners
  --Chocky bars and wear buttons
  --Wear blocks, wear bars
  --Custom made wear liners
  --Bucket repair and protection
  --Full Fabrication services
  --Sugar mill hammer tips
  --Drilling, milling or machining
  --Casting/Investment casting
  --Fast service and timely delivery

Following are our laminated wear blocks:

Laminated wear blocks---the most common types are:
  1) Chocky bars (CB 25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. CB150)
  2) Standard wear bars (DLP201A, DLP 125, DLP184, DLP528, DLP619, DLP451, DLP450, DLP2230, DLP2017, DLP4, DLP919, DLP1191, DLP515, DLP200, DLP271, DLP270, DLP508, DLP115, DLP337, DLP1101, DLP343 )
  3) Shaped wear bars
  4) Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196)
  5) Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm)
  6) Bi-metallic wear plates
  7) Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm)
  8) Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm)
  9) Wafer strips, WS25, WS40, WS50, WS65;
 10) Elbow wear blocks
 11) Other sizes and shapes
 12) Multi-function gradient cutter tooth
 13) Rockbox liners
 14) Micro-ledges

We also produce Chromium Carbide Overlay wear plates:

 1) Standard sheet size 1500x3000mm / 1200x2400mm / 1480x3050mm

 2) Thickness available: 4+4(8mm), 6+4(10mm), 6+6(12mm), 8+5(13mm), 8+6(14mm), 10+5(15mm), 10+9(19mm), 10+10(20mm), 12+12(24mm), 12+17(29mm), 20+10(30mm)

 3) Hardness: 58-62HRC and 62-65HRC

Packing Material:

 Option 1. Poly-wood crates, Poly-wood pallets and Oil film, fastening belt.

 Option 2. Carton, PVC, fastening belt.

Packing Photos:

Delivery term:

 1) FOB Shanghai/Ningbo/Shenzhen/Guangdong, China. Other ocean port is also available.

 2) CFR/CIF ocean delivery to destination port.

 3) Express delivery such as DHL, UPS, TNT, FedEx.

 4) Ex-Work Changsha warehouse.

Quality Guarantee

Quality Report to be submit ahead of delivery: include Metallographic Analysis & Hardness & Chemical Composition Analysis & Welding Quality(UT) & Dimensions & G65 Dry Sand/Rubber Wheel Abrasion Test. 12 month warranty on quality.

The company is certified with ISO9001:2015. We have a dedicated R&D team that can tailor various products with special requirements (such as wear resistance, corrosion resistance, impact resistance, heat resistance, etc.) and provide professional wear resistance solutions. Since its establishment, the company has carried out a lot of experiments on improving the wear resistance and composite bonding strength, various heat treatment technology on different products, and the selection of wear-resistant alloys under different working conditions. The production process and product performance are continuously optimized.

Over 95% products have been sold to nearly 300 customers in more than 40 countries and regions, such as Australia, Canada, Brazil, America, Chile, Argentina, South Africa, Indonesia, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.

The main industries we serve:

  -Mining & Quarrying

  -Construction

  -Crushing

  -Dredging

  -Cement

  -Sugar Mill

  -Steel plant

  -Oil & Gas

Mrs. Shing Xiao | technical sales manager
