China Factory wear resistance 60HRC Ni hard wear liner, Nihard block, Ni hard wear billets
- Category: >>>
- Supplier: Hunan Hyster Material Technology Co. Ltd.
Share on (60810984284):
Product Overview
Description
China Factory wear resistance 60HRC Ni-hard wear liner, Nihard block, Ni-hard wear billets
Bottom price economic wear resistance nihard wear block
Nihard Wear Parts
NiHard is a well-established white iron product alloyed with nickel and chromium to give significant abrasion and impact resistant properties. The structure of NiHard is composed of iron and chromium carbides, fixed in a matrix rendered martensitic by the nickel content. This structure allows NiHard to be utilised in abrasive and high impact conditions found throughout the construction, mining, manufacturing and mineral processing industries.
Our NiHard products include billets and liner plates that can be made to the customers' specification or supplied from our range of stock sizes. Our NiHard products can be custom designed to meet any situation regardless of any size and shape concerns. We can also supply cut and shaped liners to be strategically placed on fixed plant equipment so that a unique wear package can be created, maximising wear life. This makes NiHard the perfect material for chutes, drop boxes, bin and hopper liners.
We primarily supplies cast billet and liner plates produced to the NiHard 4 specifications.
However, we can produce billets and liner plates from the following alloys on special request:
> NiHard 1 & 2
> 27 Chrome Alloy
> 15/3 White Iron
Note:
1. Other sizes can be made on request.
2. Liners can be cut to size on request.
3. Bolts/Nuts/Washers are available on request.
4. Holes are to suit M20 fishtail bolt
Item No. | Type | Size (mm) | Dimension(mm) | N.W. (kg) | ||||||
A | B | C | D | E | F | G | ||||
NW 2001 | 1 | 300x300x20 | 300 | 300 | 20 | 74 | 152 | 74 | 152 | 13.8 |
NW 2004 | 1 | 300x150x20 | 300 | 150 | 20 | 74 | 152 | 75 | - | 6.9 |
NW 3201 | 1 | 300x150x32 | 300 | 150 | 32 | 74 | 152 | 74 | - | 11.0 |
NW 3202 | 1 | 300x200x32 | 300 | 200 | 32 | 74 | 152 | 100 | - | 14.8 |
NW 3203 | 1 | 300x300x32 | 300 | 300 | 32 | 74 | 152 | 74 | 152 | 22.0 |
Item No. | Type | Size (mm) | Dimension(mm) | Holes | N.W. (kg) | ||||||
A | B | C | D | E | F | G | |||||
NB 128 | 1 | 128x75x50 | 128 | 75 | 50 | 30 | 68 | - | - | M20 fishtail bolt | 3.3 |
NB 210 | 1 | 210x75x50 | 210 | 75 | 50 | 30 | 150 | - | - | 5.7 | |
NB 432 | 1 | 432x75x50 | 432 | 75 | 50 | 30 | 186 | 186 | - | 12.0 | |
NB 302 | 2 | 302x100x100 | 302 | 100 | 100 | 75 | 152 | - | - | M22 fishtail bolt | 22.0 |
NB 454 | 2 | 454x100x100 | 454 | 100 | 100 | 75 | 304 | - | - | 33.8 | |
NB 224 | 3 | 224x150x100 | 224 | 150 | 100 | 74 | 76 | - | - | M20 hex head bolt | 24.5 |
NB 300 | 3 | 300x150x100 | 300 | 150 | 100 | 74 | 152 | - | - | 33.4 | |
Product Description
Wear Plates
Typical applications of Wear Plates include Discharge Chutes, Hoppers, Rock Boxes, Excavator Buckets, Loader Buckets, Dragline Buckets, Face Shovel Buckets, Spider Arm Guards on Crushers.
\\
Hyster produce three kinds of wear plates to the mining and quarry market:
>> White iron laminated wear plates/Domite wear plates
They combine very high wear resistant qualities of a high white iron plate(ASTM A532 15/3CrMo, 700BHN-63HRC) with a weldable & high impact toughness mild steel plate through vacuum brazing to create a product that is exceptionally resistant to impact and abrasion while retaining.
For different work conditions, we can control the thickness of the layer to reach the overall performance requirements, thus, at the same time, satisfy the abrasion-resisting demand and structural requirement of the wear-resistant parts, then to realize the efficient use of the scarce resources. Most usual thickness ranges from 15mm to 90mm.
| Item No. | Size | Dimension(mm) | N.W. (kg) | ||||
| (mm) | A | B | C | D | E | ||
| Minimum thickness 12mm | |||||||
| (6mm white iron + 6mm mild steel base) | |||||||
| Maximum thickness 160mm | |||||||
| Maximum dimension without splice L x W: 900x600mm | |||||||
| Washers, Nuts, Studs, Threads, Holes are available. | |||||||
>> Nihard Wear Plates/liners
>> Chromium Carbide Overlay Wear Plates
OVERLAY-PLATE is welded by Chromium carbide overlay on a mild steel backing plate. Manufactured by our own design's welding machine with exclusive technique.
OVERLAY-PLATE has excellent performance in abrasion and impact.
Standard sheet size we can produce is 1500x3000mm, 1200x2400mm.
Thickness we can produce 4+4, 6+4, 6+6, 8+5, 8+6, 10+5, 10+9, 10+10, 12+12, 12+17, 10+20.
Product Show

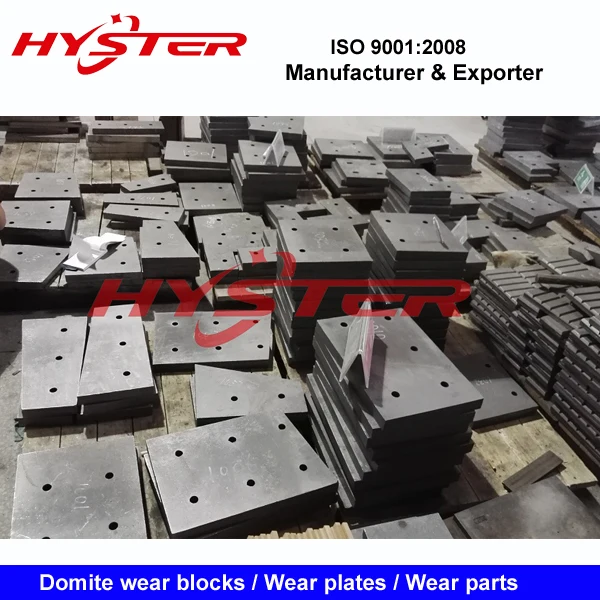

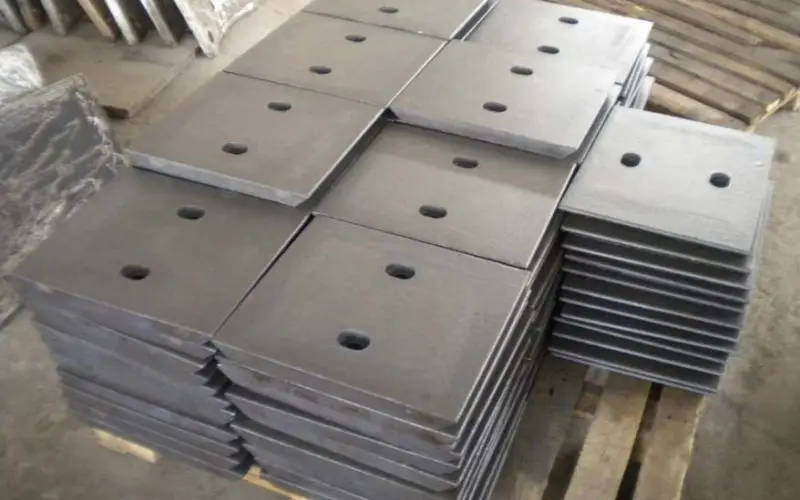

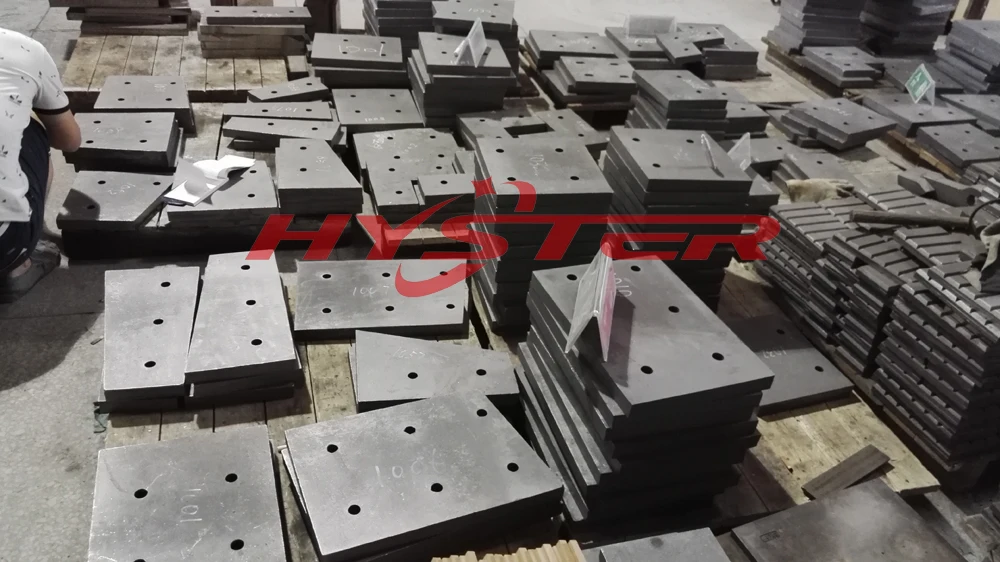

Pictures of wear resistance nihard wear block
FAQ
Q: Are you trading company or manufacturer ?
A: We are ISO9001:2015 Certificated factory.
Q: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. or it is 15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% in advance.,balance against copy of B/L, payable via T/T.
Packaging & Shipping
Packing Material:
Option 1. Poly-wood crates, Poly-wood pallets and Oil film, fastening belt.
Option 2. Carton, PVC, fastening belt.
Packing Photos:
Delivery term:
1) FOB Shanghai/Ningbo/Shenzhen/Guangdong, China. Other ocean port is also available.
2) CFR/CIF ocean delivery to destination port.
3) Express delivery such as DHL, UPS, TNT, FedEx.
4) Ex-Work Changsha warehouse.
