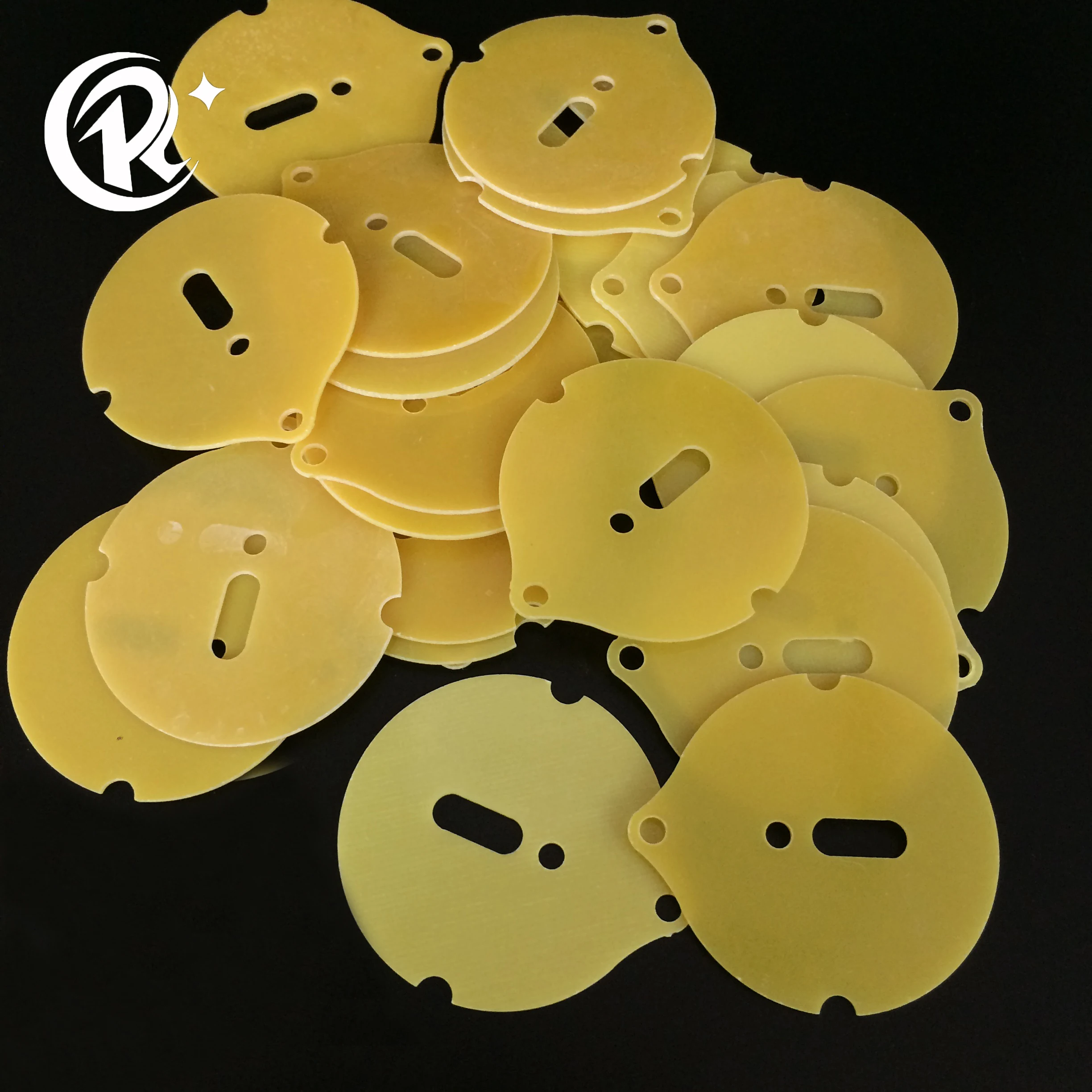

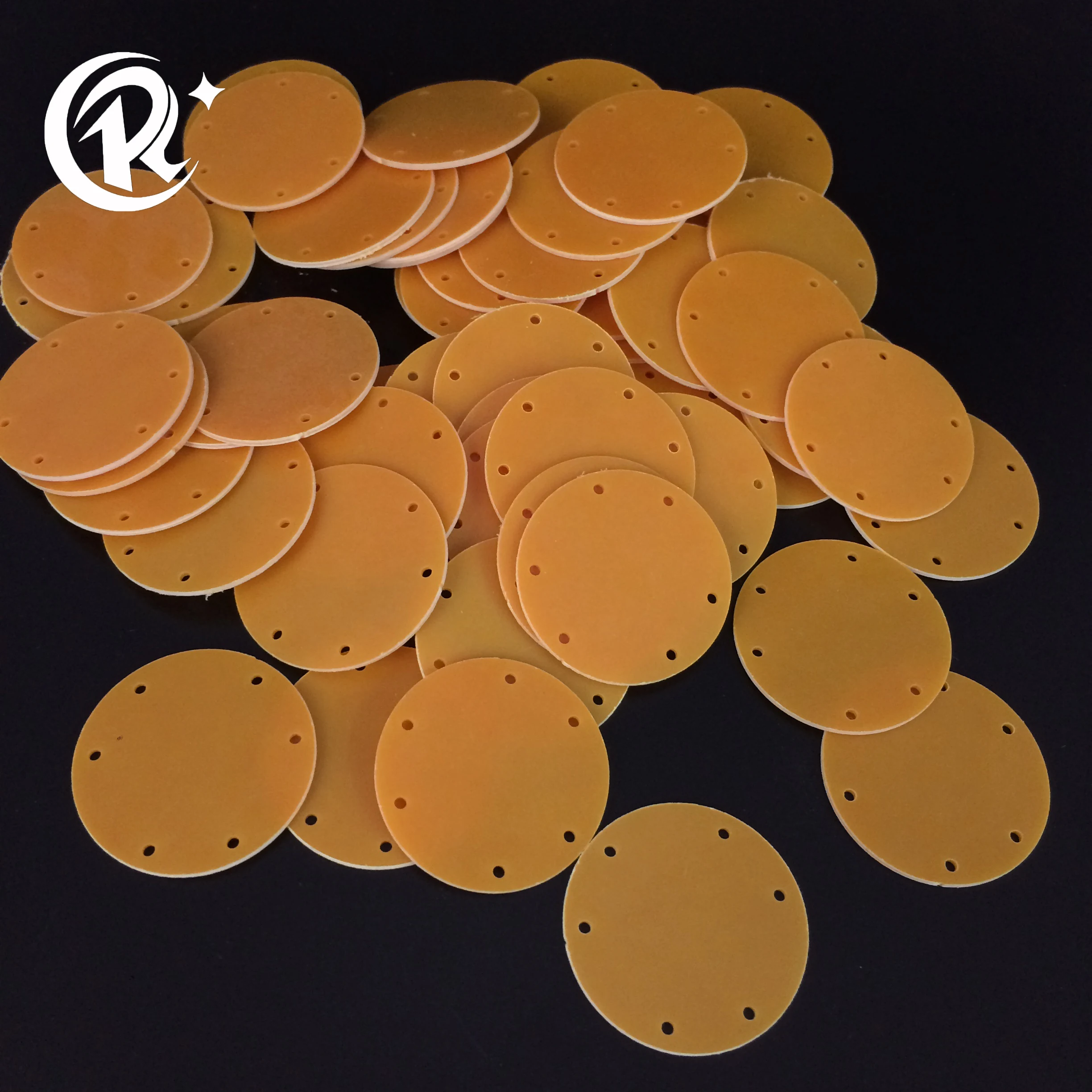

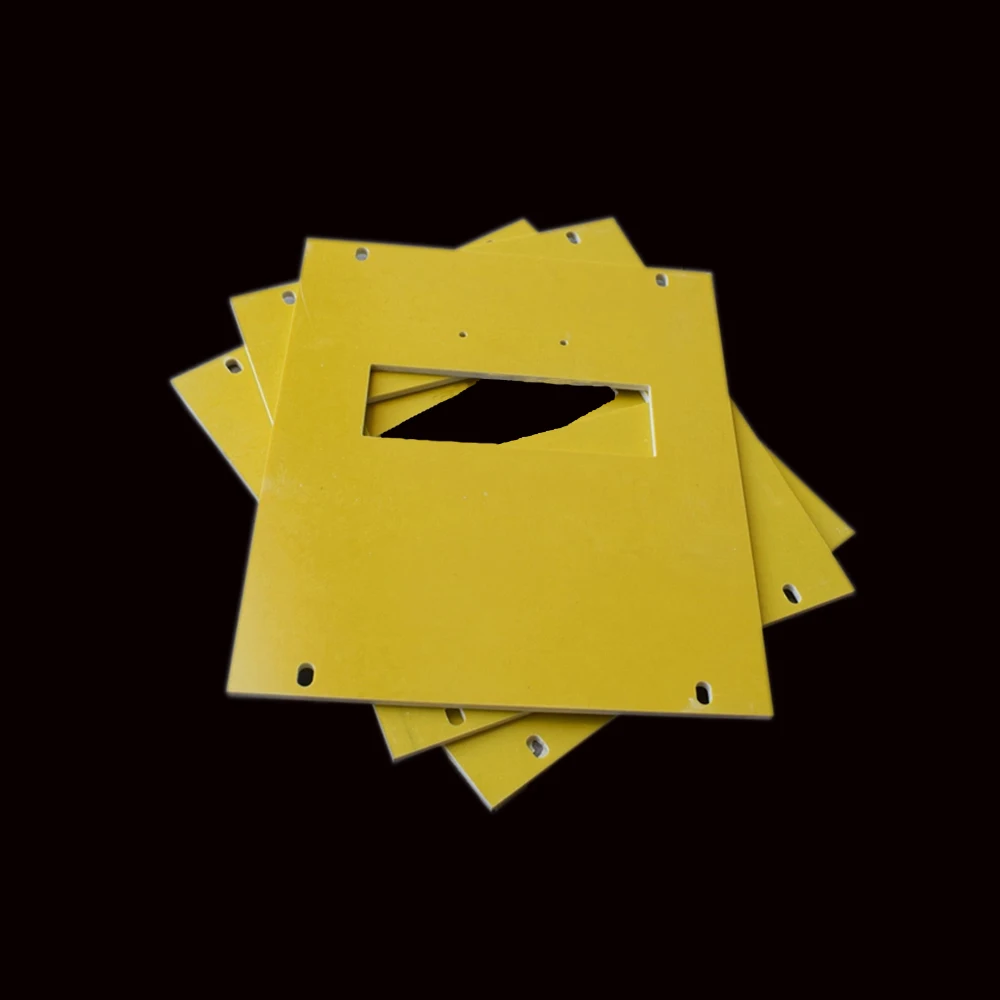

CNC programming fiberglass thermal insulation sheet epoxy plate 2mm

Note: More sheet sizes, thicknesses, colors could be Customize upon request !!

         Before inquiry, we would be grateful if we receive the following infomation:

FR - 4 Product Features:

• The flame retardant grade is UL94 V0


•  F grade Heat resistance and heat resistance (120 min) reaches to 180 ℃


• High mechanical performances (bending, compression and stretching of transverse strength is above 330Mpa)


• High dielectric properties of th e oil (25 ℃ in the vertical dielectric strength of 16 kv/mm)


• We can press, cut and process the sheet according to customer's requirements and provide insulation accessories directly.

Product Application:

• Motor control, communication equipments


• Separator between the magnetic ring inductors and the base of the bottom


• Thermal power devices


• Also suitable for high voltage transformer and switch cabinet, high temperature, high-power welder even in wet environment

NOTE: (1)(2): Enough stock of raw Fr4 epoxy fiberglass board

(3): Cutted into small pieces

(4)(5)(6): CNC router machine programming

(7)(8): OEM products weighted on electronic balance

(9)(10): Products sealed in transparent PE bags

(11)(12): Cartons of Fr4 products ready to be delivered

We are confidents to provide with CUSTOMIZED high quality Epoxy glass fiber Fr4/g10 products by our professional manufacturing team,  manufacturing lines and experienced CNC router operators who have been engaged in this industry for more than 10 years.

1. We have 10 years experiences on processing Epoxy glass fiber sheet (including g10, fr4 and fr1 ), Polycarbonate sheet, PVC sheet and Bakelite sheet.

2. Great passion, rational attitude, advanced equipments and professional engineers enable us to focus on the quality of our products. Quality is ALWAYS OUR PRIORITY.

3. Factory price help our customers save extra money.

4. More kinds of products could be based on customers' drawings/requirements. We await for your inquiry !!

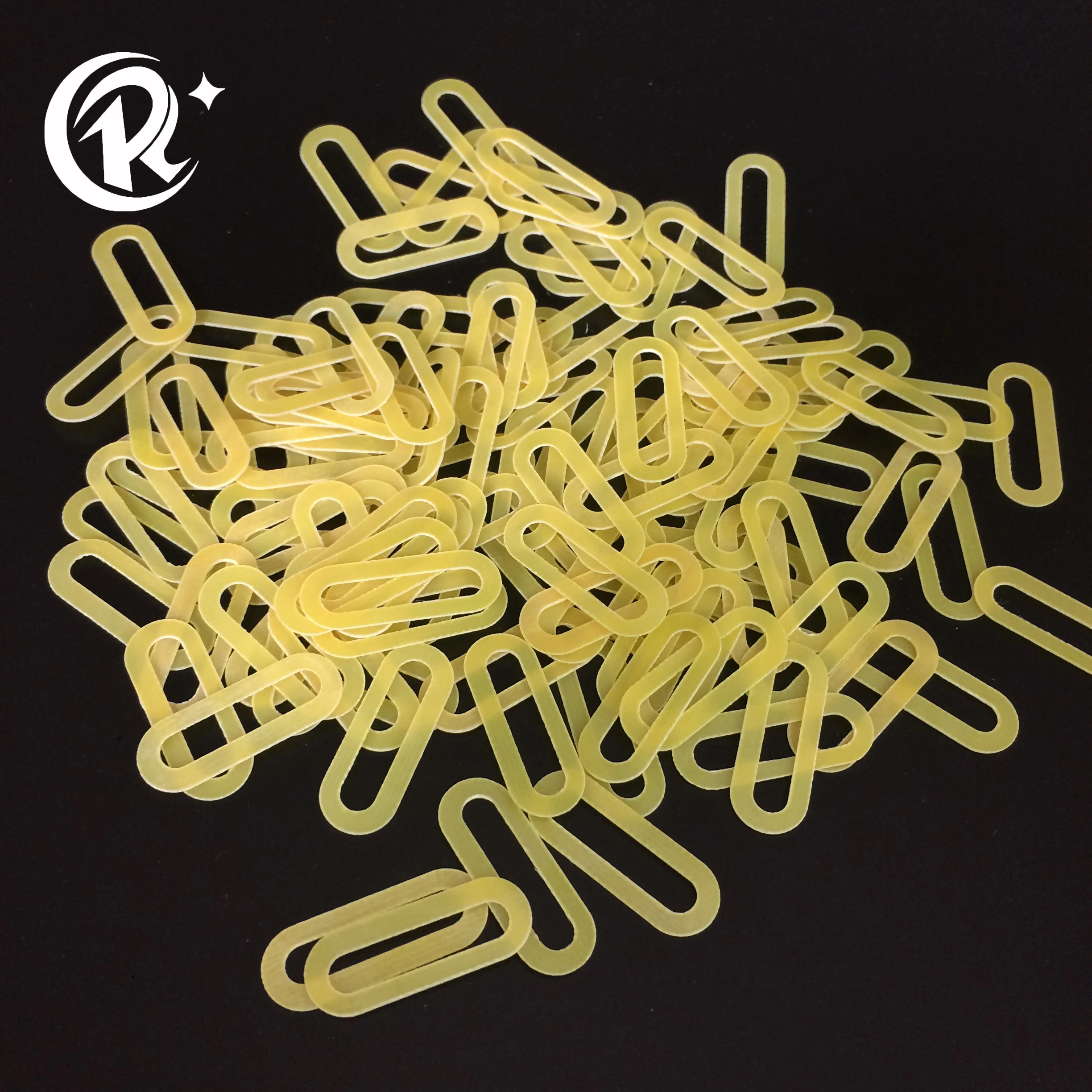

1. Spacer for choke and inductor coil

The epoxy glass fiber sheet serves as an insulation spacer for the upper choke.

The common mode inductance is divided into high voltage AC mode and output DC mode. The voltage between the two copper wires determines whether to use the spacer. If the lead string is added and the casing voltage is not high enough, the spacer shall not be added. But considering the consistency, it is more appropriate to have an insulation spacer in bulk production.

.

2. Baseboard for Transformer Bobbin

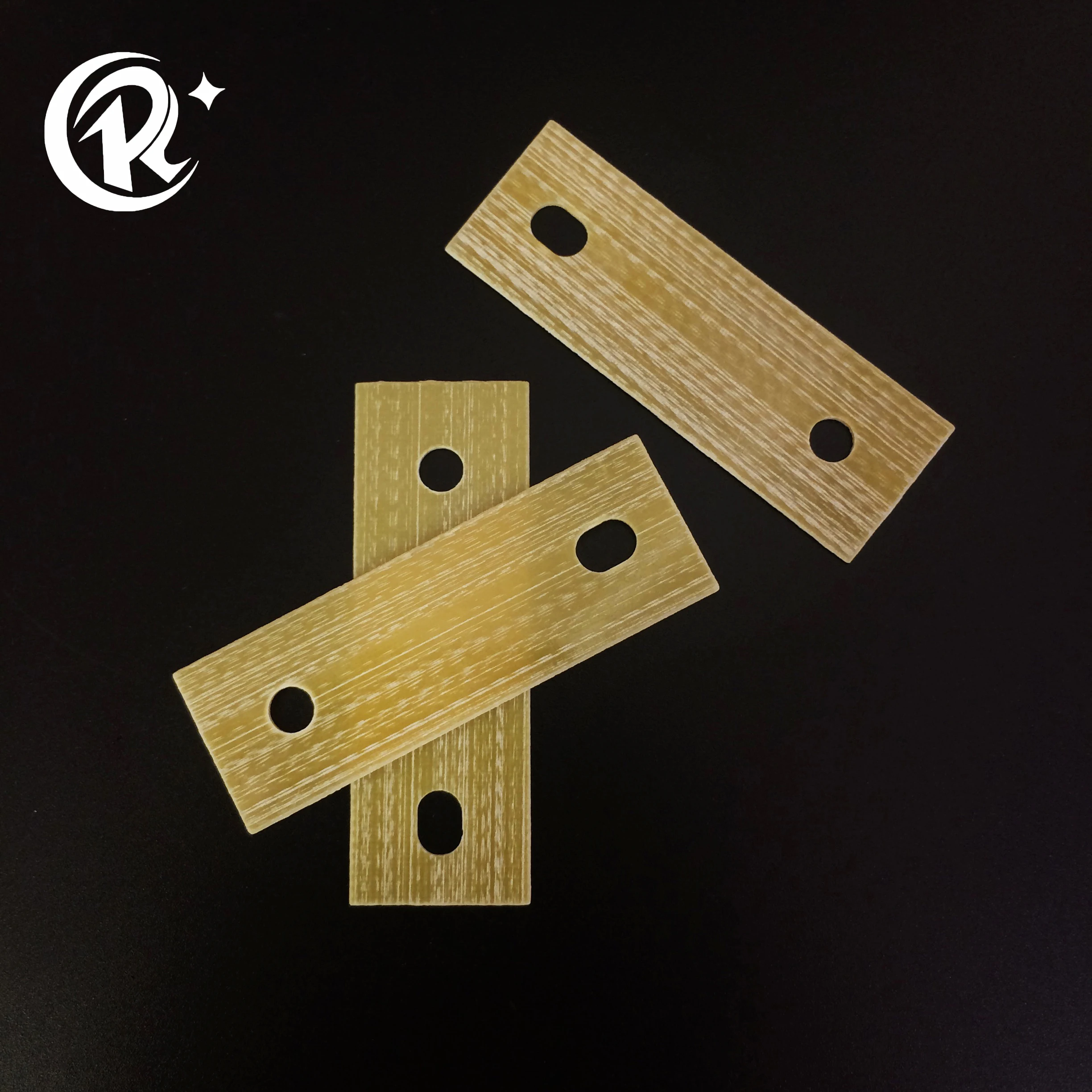

3. Used as washers

(1) Sealing

(2) Increasing friction

(3) Reducing pressure

(4) Bearing high temperature
