Bottled water: often called drinking water, is usually bottled at the source and sealed in safe drinking containers. There are many types of bottled water, held inside many types of unique shaped bottles. It seems the fancier the bottle, the more expensive the water inside. Let's take a look at the kinds of bottled water available:
Spring water: this comes from an underground formation and must flow naturally to the earth's surface or through a sanitary borehole.
Purified drinking water: this type of water has been processed to remove chlorine and a majority of dissolved solids, such as magnesium. The source is not required to be named unless it is untreated public source of water. Naturally sparkling water: this is naturally carbonated from a spring or artesian well. Seltzer Water: the FDA regulates this as a soft drink, which means rules are less strict than those for bottled water. Mineral water: typically from a spring, this contains dissolved solids like calcium, magnesium, sodium, potassium, silica and bicarbonates.

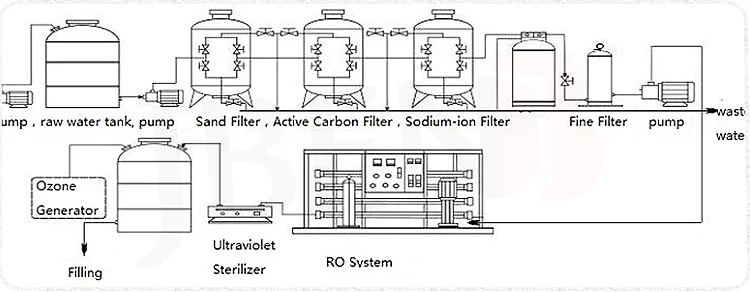

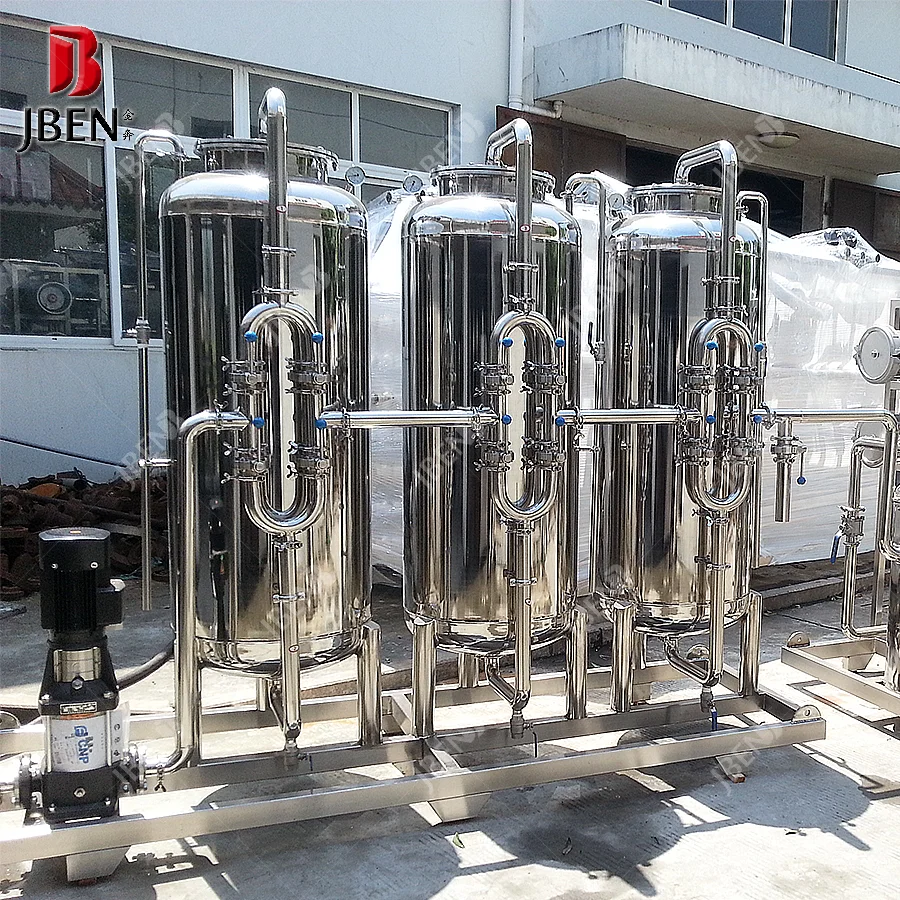

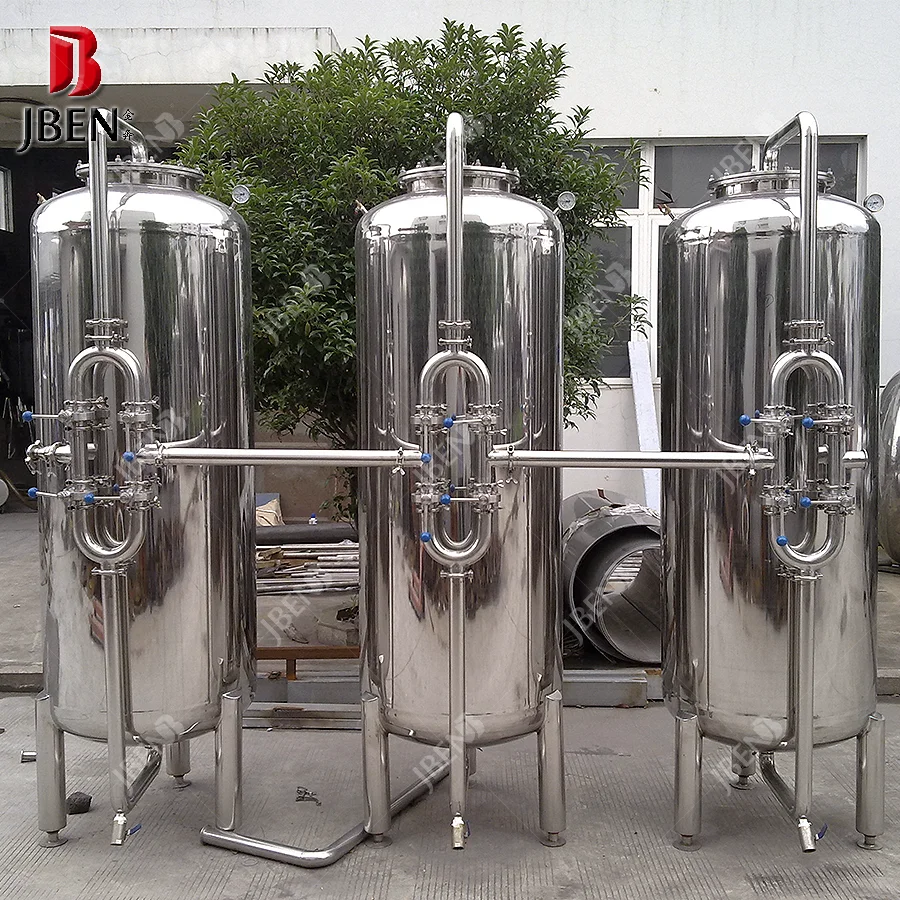

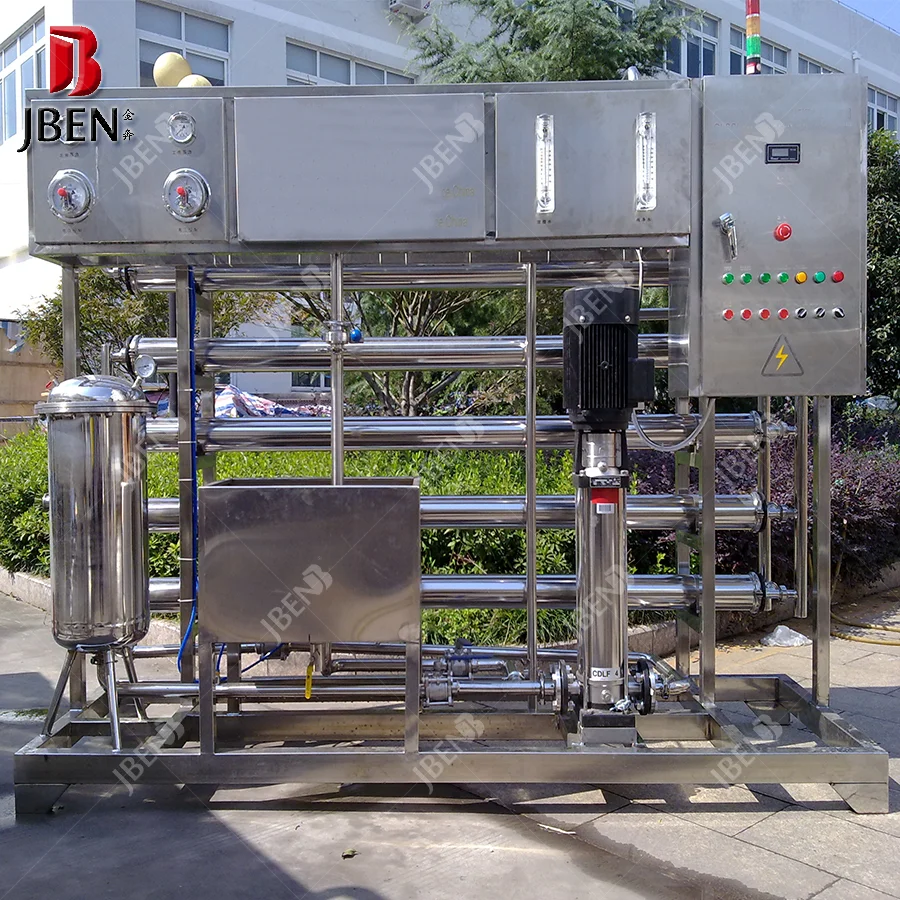

Technical Route: Raw tank-->raw water pump-->quartz sand filter-->activated carbon filter-->water softer--> sediment filter (cartridge filter 5um )-->high pressure pump-->RO desalination device-->permeate water tank

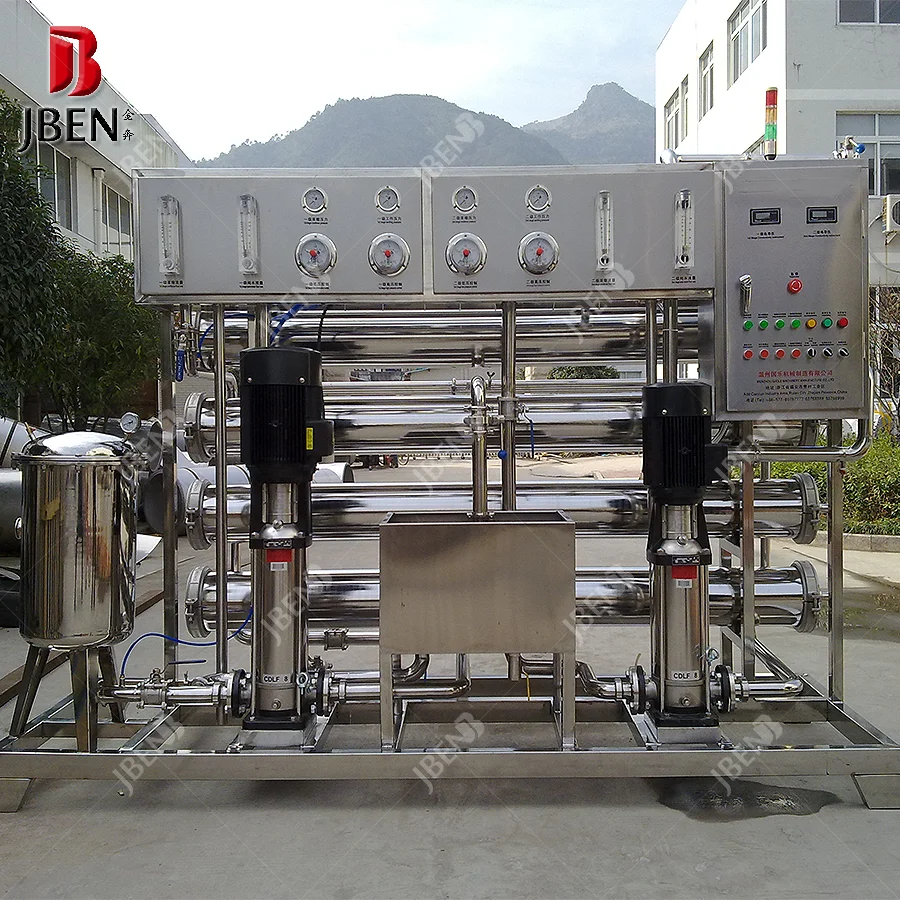

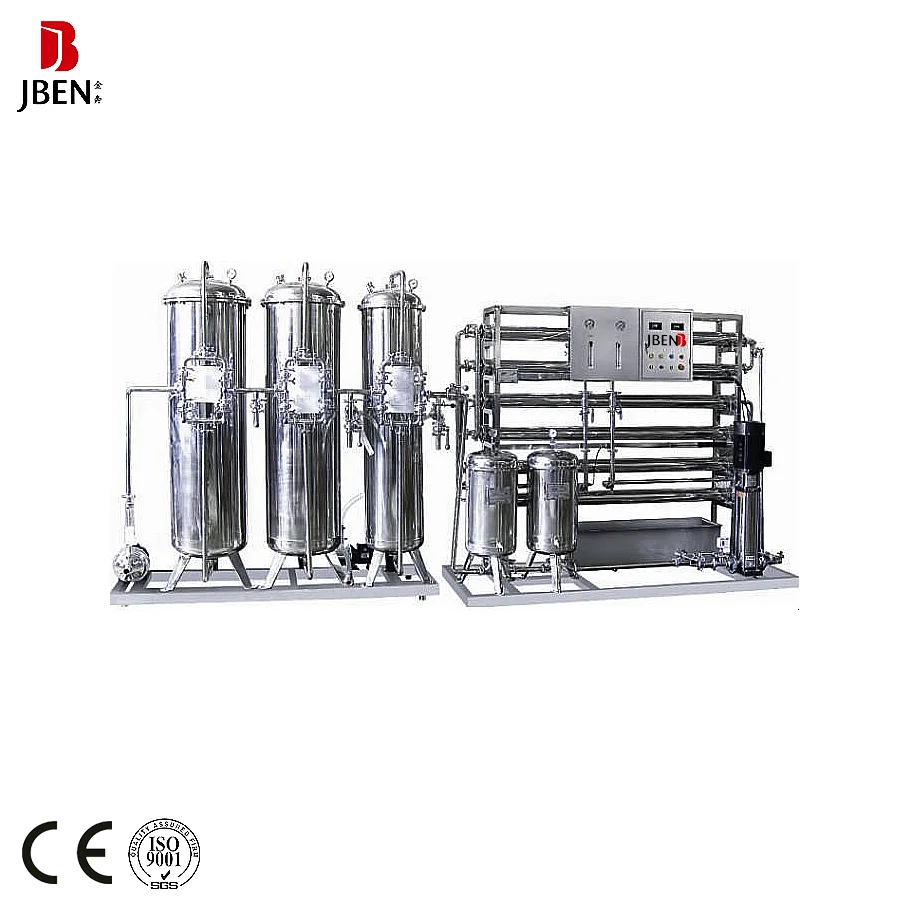

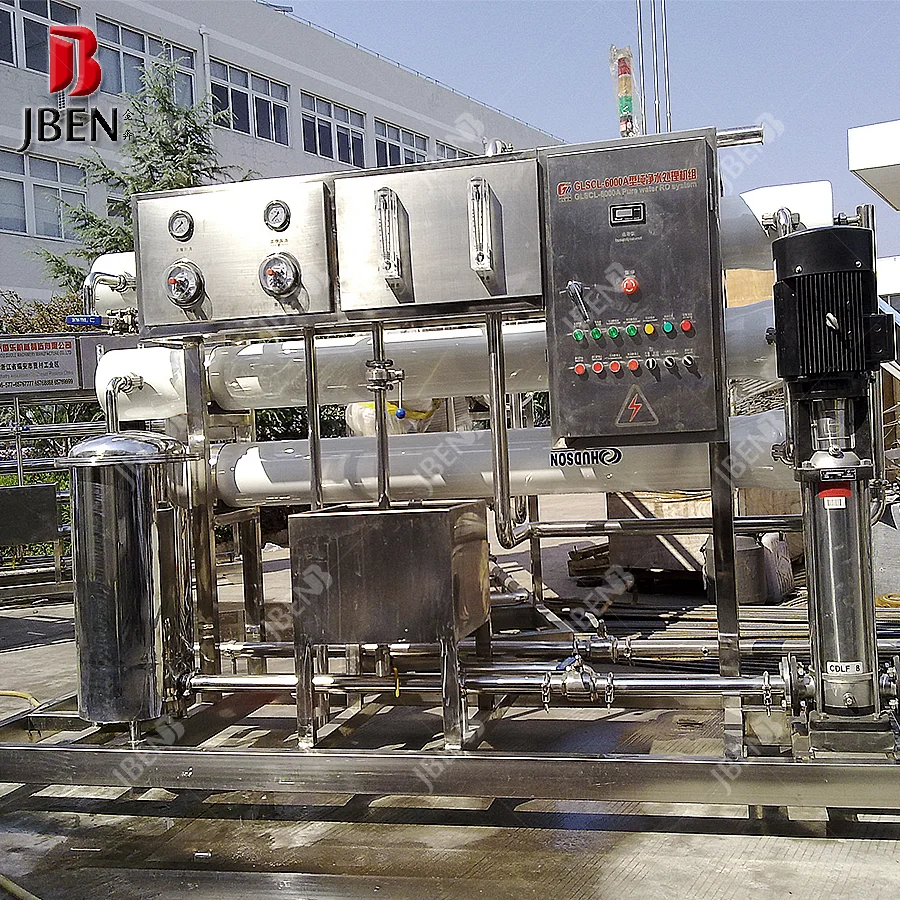

Description This water treatment system can effectively get rid of mud,organic,iron,manganese and oxide. Remove
suspended substance, colloid,micro organism and heavy metal ion in the water. The system also reduce hardness of water to make all water quality specification fully meet the national drinking water standard.
Feature
1). Adopts imported RO membrane from America, which can remove 99.7% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on. 2). No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost. 3). Equipped with pretreatment system, such as active carbon absorption filter and PP sediment filter. 4). 304 stainless steel rack and pipe accessories connection. 5). Equipped with auto pressure protection system and on -line monitor. 6). The lifespan of the whole system is long, operation simple, the applicability is strong
Technical Parameter
Model
Capacity of water
(Ton/hour)
General Power
(Kw)
Size (L*W*H)
( mm)
Weight
(Kg)
RO-100L/H
0.1
0.75
690*570*1490
100
RO-300L/H
0.3
2.75
1550*900*1820
150
RO-500L/H
0.5
2.75
1550*900*1820
250
RO-700L/H
0.7
4.25
1550*900*1820
350
RO-1000L/H
1
4.75
1980*900*1940
500
RO-2000L/H
2
4.75
4800*700*2050
700
RO-3000L/H
3
5.75
6000*800*2200
800
RO-4000L/H
4
7.5
7000*900*2400
1000
RO-5000L/H
5
12.5
8000*1000*2700
1500
RO-6000L/H
6
15
4300*1000*2300
1700
RO-12000L/H
12
19
8500*1600*1920
2500
RO-15000L/H
15
19
10100*1870*3000
4000
Detailed Images
Product Overviews
Company Information
Our Services
1. Guarantee:
For all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
2. Installation:
After the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD100 per day. also you can go to our factory to do training. 3. After service:
If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
FAQ
Q1: Do you have reference project? A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Contact our sales people you can get video of our reference running machine
Q2: Is it necessary to get a water analysis?
A2: A detailed chemical analysis (LSI, SDI, or CFI) of the RO feed water is an absolute necessity for identifying
potential foulants. This should include a measurement of the hardness (calcium and magnesium), barium, strontium, alkalinity, pH, and chlorine. The data from the chemical analysis can be used by the engineers designing the system to determine the optimum membrane array that will both minimize the tendency of scale and deposit formation and maximize the recovery and flux rate.
