0.4~0.75 kw, 50/60hz,QS7AA020M Industrial CNC Sewing machine universal ac servo motor driver

Accumulation: The independent research and development experience of six years of servo products. Design Maturity, Scale Production, Rigorous Testing, Quality Assurance, Cost-Effective.

Control Variesty: Position control, Speed control, Torque control; Postion/Speed, Postion/Torque mixed control. New four sections of the internal velocity and internal position control, which achieved speed and location of segment control.

Variety of models: Power from 100W to 5500W; Low-intertia, Middle-intertia, High-interria; Voltage have 220V single-phase, 220V three-phase, 380V three-phase series products.

High performance: Rest to 3000 ROM time less than 20MS, seismic capability, short response time.

Operation easy: Adopt the current loop, velocity loop, position loop closed-loop control, adaptive ability; serial RS-232 communications, computers, real-time monitoring of operating waveforms and operating results.

Passed certificates: ISO9001, CE.

QXM Series Servo Drives(High Performance)

Power range: 0.1kw-3kw

QX series servo drives into the forefront of the current world servo control technology, its excellent driving performance reached the international advanced level.

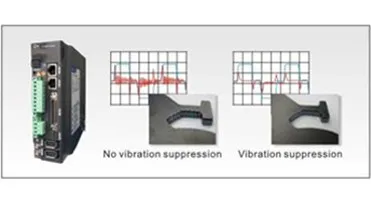

Vibration Suppression

* Use notch filter technology, respectively, to achieve mechanical high/low frequency resonance suppression.

* The introduction of a unique inverted superposition algorithm to achieve the end of the vibration suppression motion.

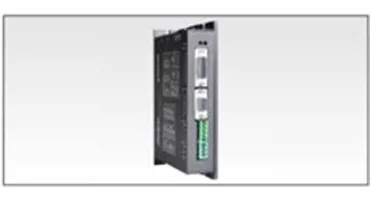

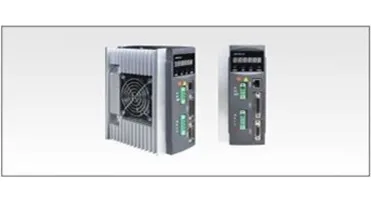

QS7 Series Servo Driver(Universal Type)

Power range: 0.1kw-5.5kw

Voltage input: AC200v-230v, use single-phase/Two phase or three input.

Postion/Speed/Torque control mode;

Built-in single axis postioning control function (degree of control, zero return, auto-loop positioning control, position teaching);

Support Modbus communication protocal, multi-axis bus control(communication interfaces:RS-485/RS-232)

Perfect protection Function: over-current, over-voltage, over-heating and encoder bug, etc.

                                                     QXM

                                                     QS7

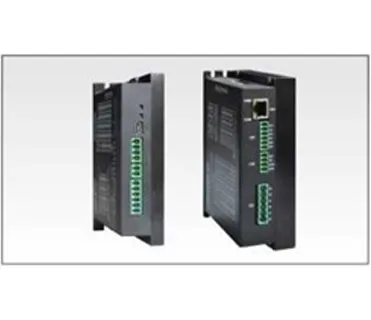

QS2 Series Low-Voltage Servo Driver

Power range: 0.1kw-0.4kw

Voltage input: 24-80v dc,

Built-in variety of algorithms, rich control mode, easy to setup, perfect protection, compact size, cost-effective

Support Modbus communication protocal, multi-axis bus control(communication interfaces: RS485/RS-232)

Step Motor/Driver

ADTECH provides solution for all series step motor/step driver. We developed high-performance step motor & driver based on using DSP system & making space vector; sine wave current output smoothly, motor noise suppression & vibration effectively; low heat, high-speed and torque output improve motor; prolong using lige; in especially, reduce the low/medium frequency vibration greatly, improve low-speed steady; at the same time, the exquisite design, improve integration, reduce size and weight of product, which can matching the corresponding model of the domestic and international brands.

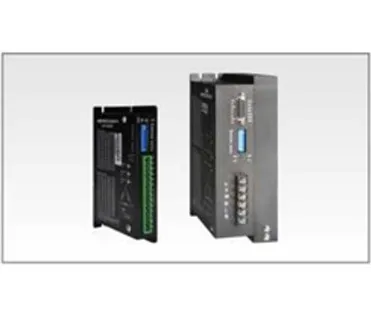

Step Driver

2-phase Step Driver:

Current Range: 2.0A-8.0A;

Voltage range: 20VAC-60VAC; 24VDC, 80VDC;

Subdivision: Provides 15 grades of the general micro-step subdivision setting value, the maximum subdivision no. is 512

3- phase Step Driver:

Current Range: 2.0A-8.0A

Voltage Range: 80VAC-110VAC; 24VDC, 40VDC, 80VDC;

Subdivision: Provide 15 grades of the general micro-step Subdivision setting value, the maximum subdivision no. is 512

Step Motor

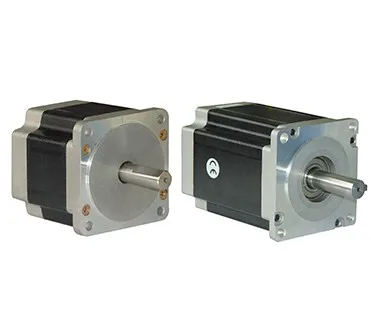

2-Phase Step Motor:

Size Range: 42-130MM

Holding Torque: 0.21-40N.m

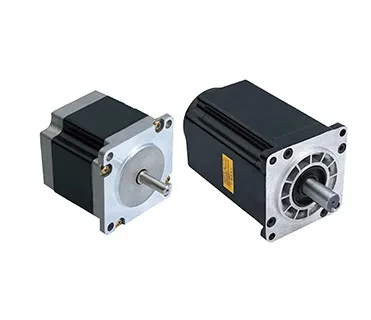

3-Phase Step Motor:

Size Range: 56-130MM

Holding Torque: 0.45-35N.m

Company Profile

ADTECH / STEP (Stock Code:002527)

ADTECH (SHENZHEN) TECHNOLOGY CO., LTD. was established in 2002 and become one of the wholly-owned subsidiaries of STEP in 2014. ADTECH specializes in motion control system including motion controller, stepper & servo driver, motor and industry application software and industrial robot that have been sold into over 103 countries and enjoy a good reputation worldwide.
