Product Overview
Description
3C-LINK RoHS Compliant 10G SFP+Optical Module CWDM/DWDM 1270-1610nm Duplex LC Connector 10G SFP Transceiver
Factory direct, FULL COMPATIBLE WITH FOLLOWING NETWORK DEVICES
Certifications
Product Description
Description
3C-LINK's SFP+ transceiver are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 1000 Base-SX Ethernet. 3C-LINK offers the whole series of 10G SFP+ fiber optic transceivers, including: SFP+ 10GBASE-SR 300M (SMF OM3); SFP+ 10GBASE-LRM MMF 220M; SFP+ 10GBASE-LR SMF 10-20KM; SFP+ 10GBASE-ER SMF 40KM; SFP+ 10GBASE-ZR SMF 80KM; 18 Channels CWDM SFP+; 40 Channels DWDM SFP+; BIDI SFP+
Feature
Operating data rate up to 10.3Gbps
CWDM /DWDM Wavelength
Distance from 10km, 40km, 80km
Single 3. 3V Power supply and TTL Logic Interface
Duplex LC Connector Interface, Hot Pluggable
Compliant with MSA SFP+ Specification SFF-8431
Compliant with 10G 1200-M5-SN-I and 1200-M6-SN-I FC standard
Compliant with 8.5G 800-M5-SN-I and 800-M6-SN-I FC standard
Compliant with 4.25G 400-M5-SN-I and 400-M6-SN-I FC standard
Compliant with 2.125G 200-M5-SN-I and 200-M6-SN-I FC standard
Compliant with 1.0625G 100-M5-SN-I and 100-M6-SN-I FC standard
Compliant with IEEE 802.3ae 10GBASE-SR/SW
Operating Case Temperature Standard:0℃~+70℃
Specification
Compliant with SFF-8431, SFF-8432 and IEE802.3ae
- Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
- RoHS compliant and lead free
- Low power consumption
- All-metal housing for superior EMI performance
- Advanced firmware allow customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Applications
10GE CWDM/DWDM
8x FC at 8.5Gbps
4x FC at 4.25Gpbs
2x FC at 2.125Gpbs
1x FC at 1.0625Gbps
Common Module Connector Introduction
Perfectly compatible with 99% brand equipment of current market. we are focused on the optical fiber communication industry,committed to provide solutions for the customers and reduce the users’ cost . Now, we can make it compatible with 99% of the telecommunication equipment on the market.

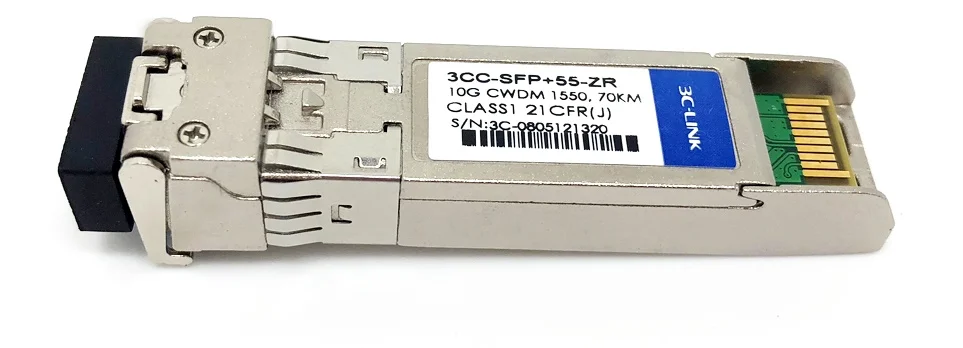

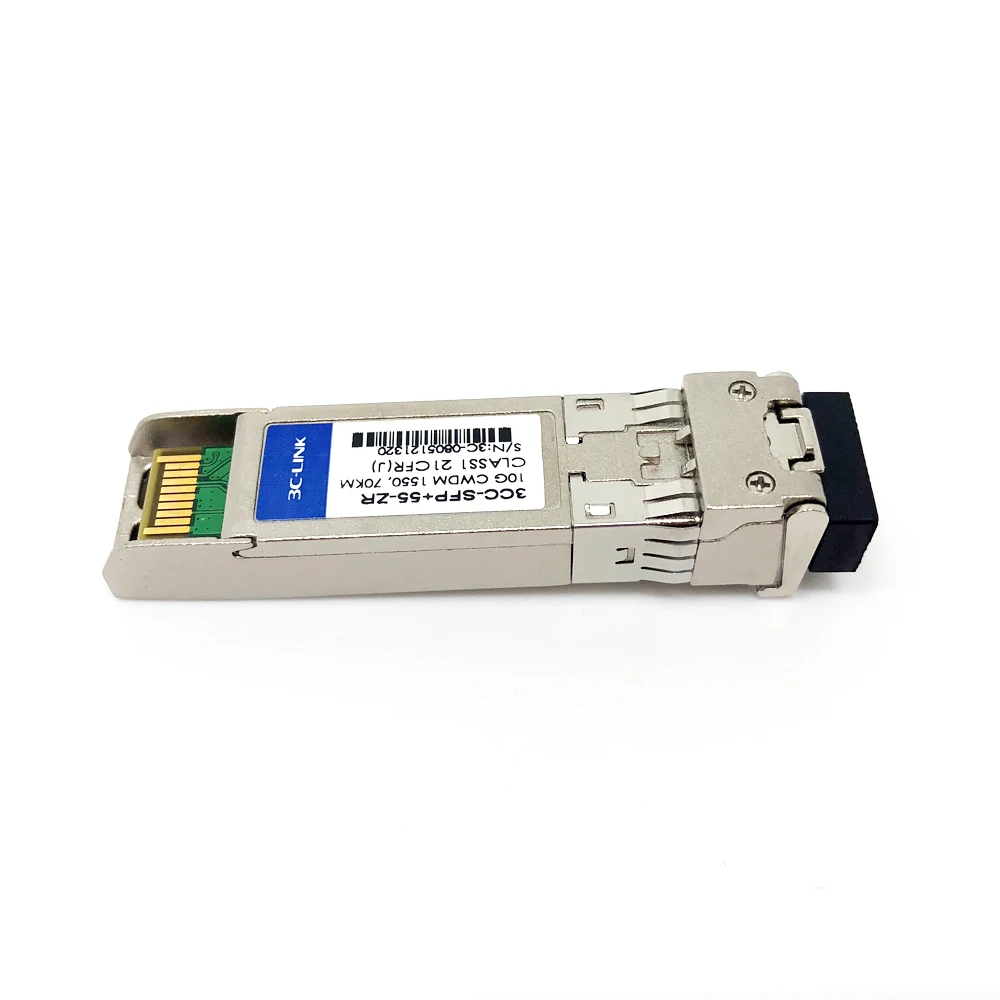

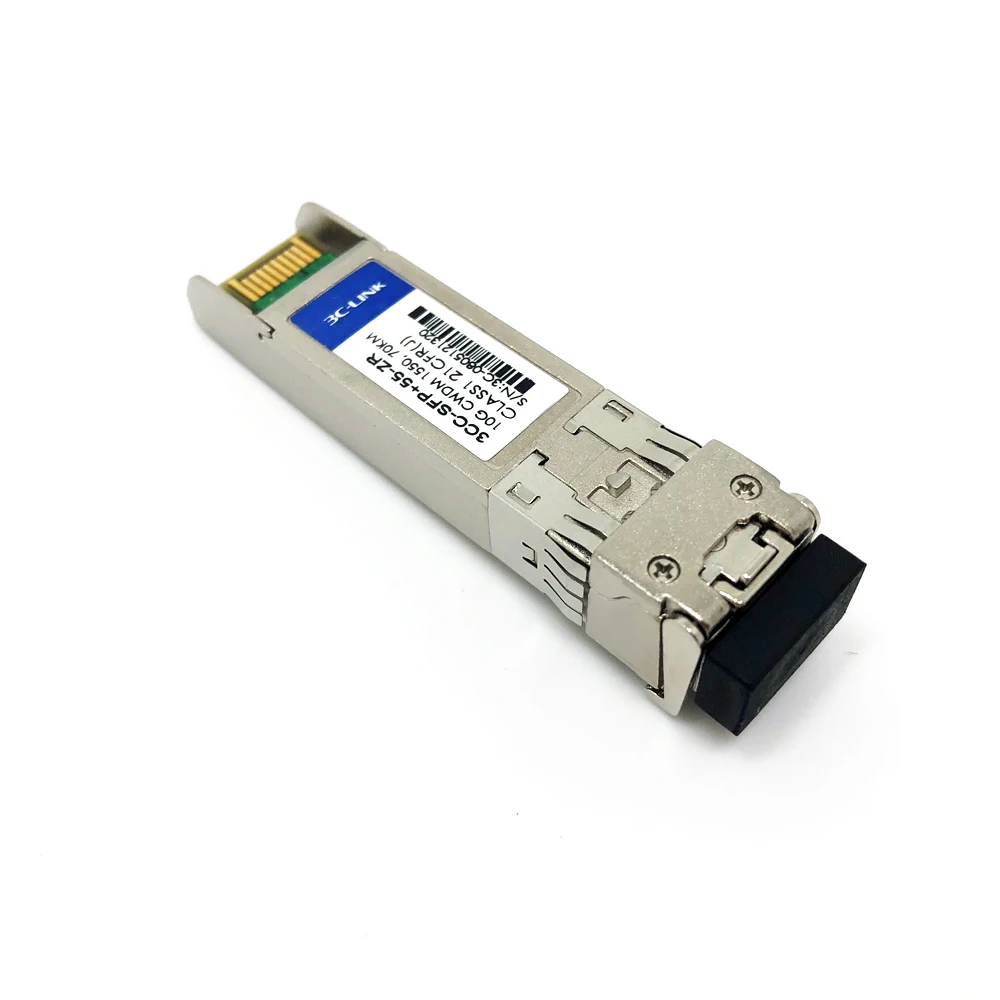

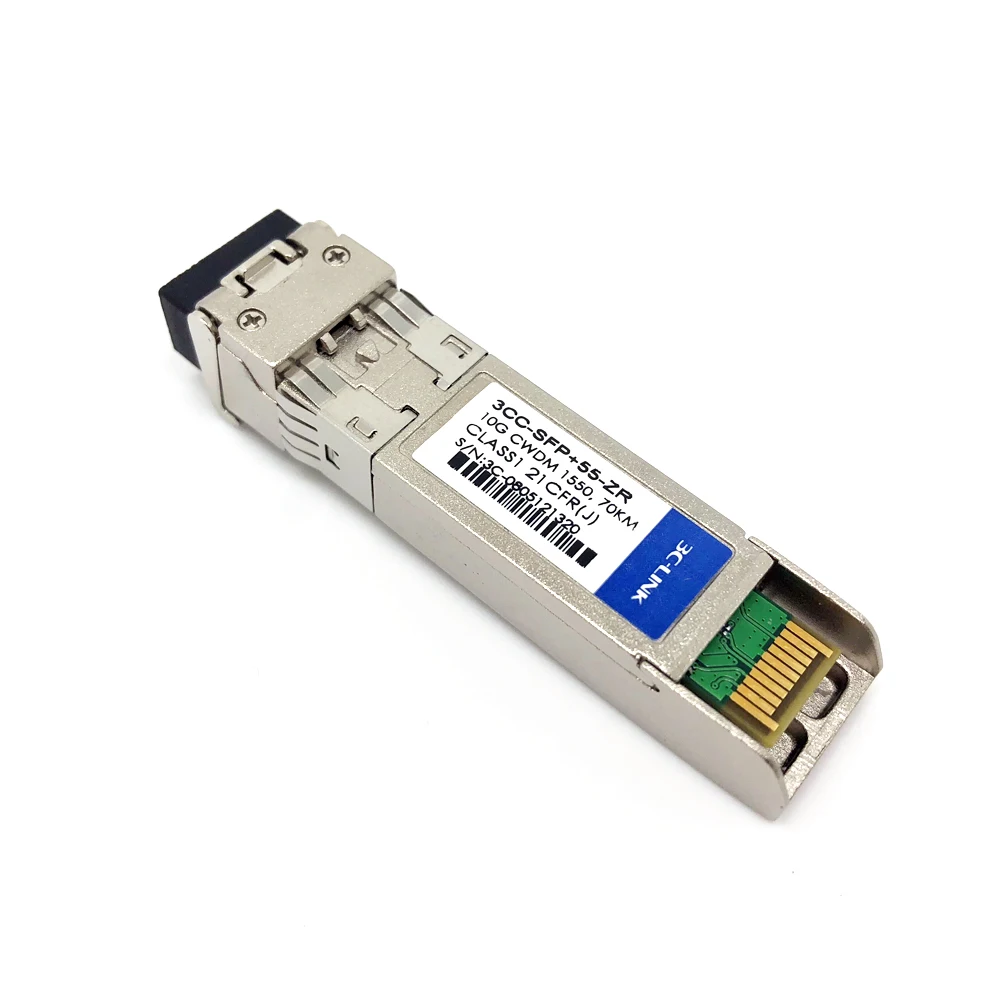

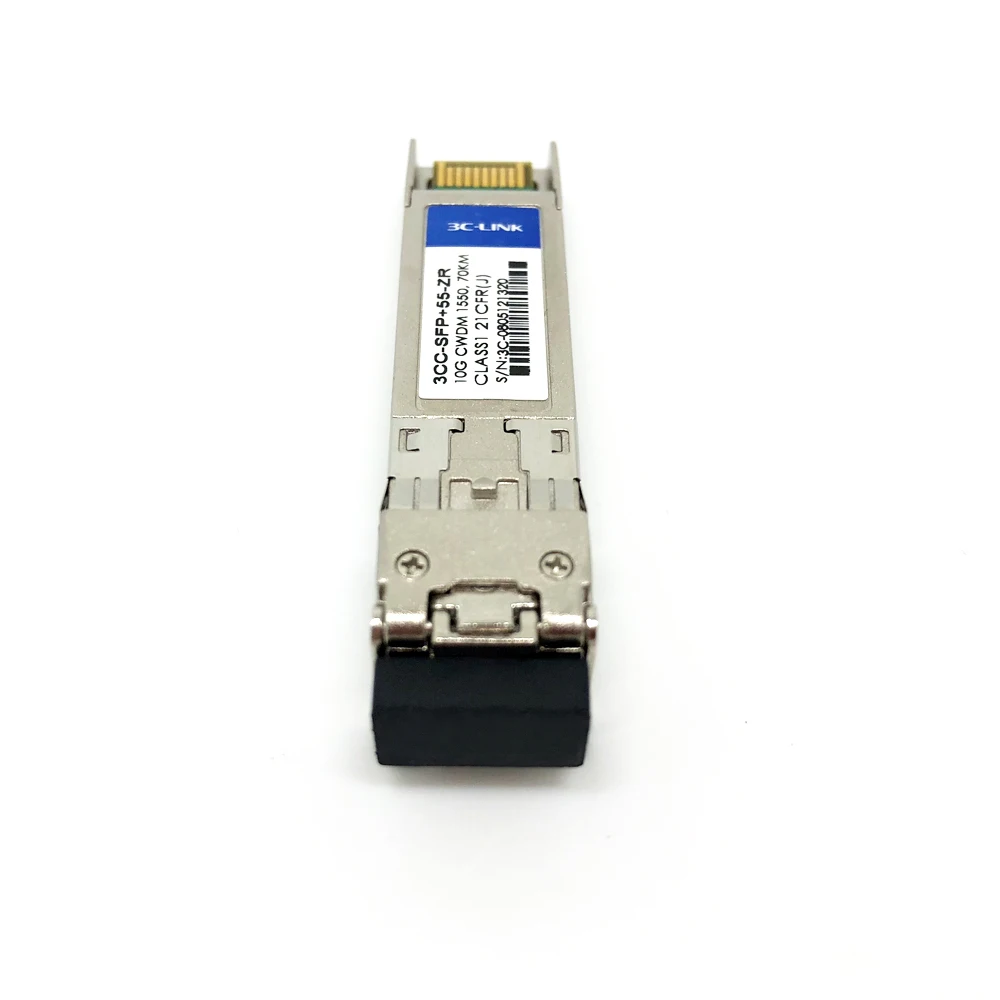

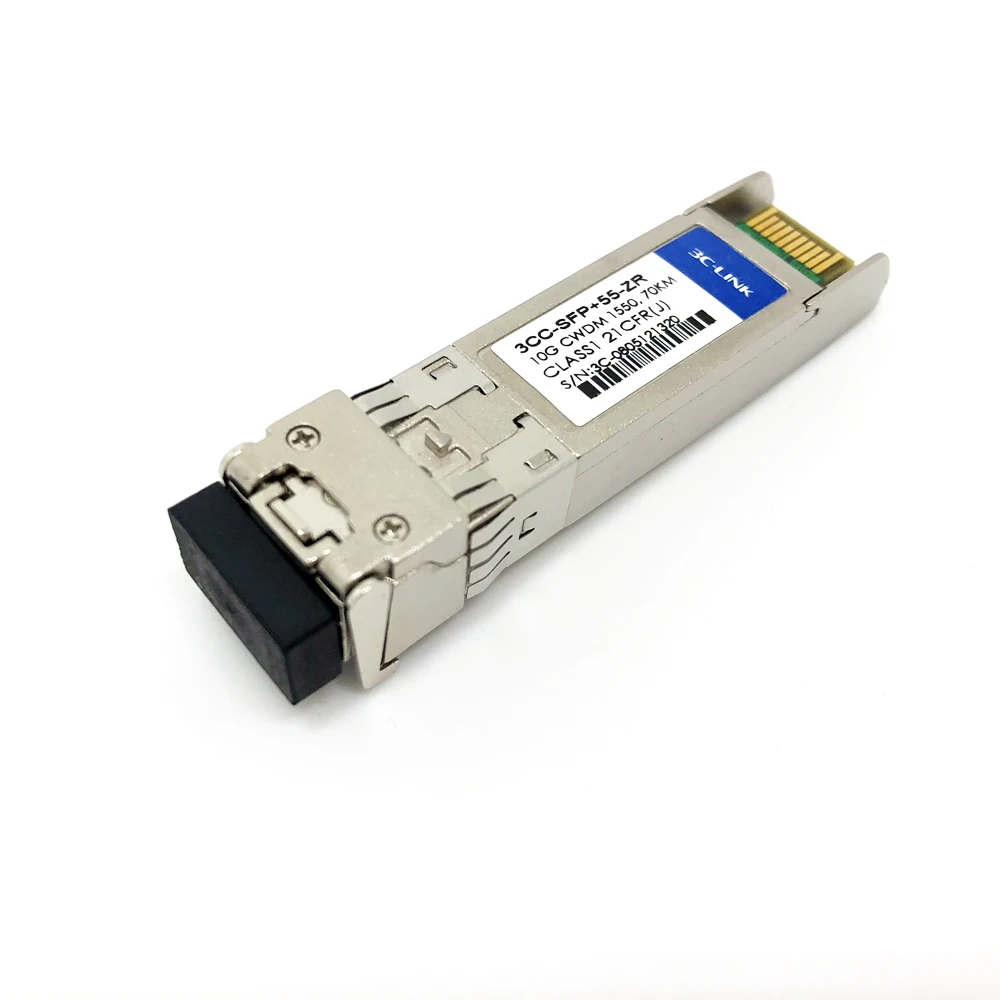

-----------------------------------------------------------SFP Module Pictures--------------------------------------------------------
Packaging & Shipping
Packing Details:
10pcs/ anti-static box.
Shipping Methods:
1. Samples and Small quantity order FedEx/DHL/UPS/TNT ,Door to Door.
2. Batch goods :By Air, by Sea or by Rail.
3. FCL: Airport/Seaport/Railway Station receiving.
4. Lead Time: 1-7 working days for samples; 7-15 working days for mass.
Precautions:
1. Storage in anti-static box.
2. When used, please ensure that the voltage is normal and stable.
Our Services
MOQ
Although we expect you to place bigger order to benefit a good discount, we undertand that you may like to test the quality and market first. Our MOQ for sfp tranceivers is 1-10 pcs.
Lead Time
Normally our lead time is 5-7 days, but sometimes we can provide priority production for urgent case.
Payment
For samples: Paypal and western union are accepted, as they are fast to receive payment;
For bulk order: Below $5000, we accept full payment; Above $5000, we could accept 30% deposit in advance, the
balance to arranged before shipment.
Warranty
12 months starts from the date of delivery. The technical service is free of charge under warranty period.
Technical service: Includes E-mail support, phone support, on-site support and repairation / replacement service.
Order Information
| Model | Description |
| 3CC-SFP+-27-LR | 10Gbps,CWDM, 1270nm SFP+LR 10km, 0ºC ~ +70ºC |
| 3CC-SFP+-29-LR | 10Gbps, CWDM, 1290nm SFP+LR 10km, 0ºC ~ +70ºC |
| 3CC-SFP+-31-LR | 10Gbps, CWDM, 1310nm SFP+LR 10km, 0ºC ~ +70ºC |
| 3CC-SFP+-33-LR | 10Gbps, CWDM, 1330nm SFP+LR 10km, 0ºC ~ +70ºC |
| 3CC-SFP+-47-ER | 10Gbps, CWDM, 1470nm SFP+ER 40km, -5ºC ~ +70ºC |
| 3CC-SFP+-49-ER | 10Gbps, CWDM, 1490nm SFP+ER 40km, -5ºC ~ +70ºC |
| 3CC-SFP+-51-ER | 10Gbps, CWDM, 1510nm SFP+ER 40km, -5ºC ~ +70ºC |
| 3CC-SFP+-53-ER | 10Gbps, CWDM, 1530nm SFP+ER 40km, -5ºC ~ +70ºC |
| 3CC-SFP+-55-ER | 10Gbps, CWDM, 1550nm SFP+ER 40km, -5ºC ~ +70ºC |
| 3CC-SFP+-57-ER | 10Gbps, CWDM, 1570nm SFP+ER 40km, -5ºC ~ +70ºC |
| 3CC-SFP+-59-ER | 10Gbps, CWDM, 1590nm SFP+ER 40km, -5ºC ~ +70ºC |
| 3CC-SFP+-61-ER | 10Gbps, CWDM, 1610nm SFP+ER 40km, -5ºC ~ +70ºC |
| 3CC-SFP+-49-ZR | 10Gbps, CWDM, 1490nm SFP+ZR 80km, -5ºC ~ +70ºC |
| 3CC-SFP+-51-ZR | 10Gbps, CWDM, 1510nm SFP+ZR 80km, -5ºC ~ +70ºC |
| 3CC-SFP+-53-ZR | 10Gbps, CWDM, 1530nm SFP+ZR 80km, -5ºC ~ +70ºC |
| 3CC-SFP+-55-ZR | 10Gbps, CWDM, 1550nm SFP+ZR 80km, -5ºC ~ +70ºC |
| 3CC-SFP+-57-ZR | 10Gbps, CWDM, 1570nm SFP+ZR 80km, -5ºC ~ +70ºC |
| 3CC-SFP+-59-ZR | 10Gbps, CWDM, 1590nm SFP+ZR 70km, -5ºC ~ +70ºC |
| 3CC-SFP+-61-ZR | 10Gbps, CWDM, 1610nm SFP+ZR 70km, -5ºC ~ +70ºC |
| 3CD-SFP+-XX-ER | XX= ITU Grid 17~61, 10Gbps, DWDM SFP+ 40km, -5ºC ~ +70ºC |
| 3CD-SFP+-XX-ZR | XX= ITU Grid 17~61, 10Gbps, DWDM SFP+ 80km, -5ºC ~ +70ºC |
