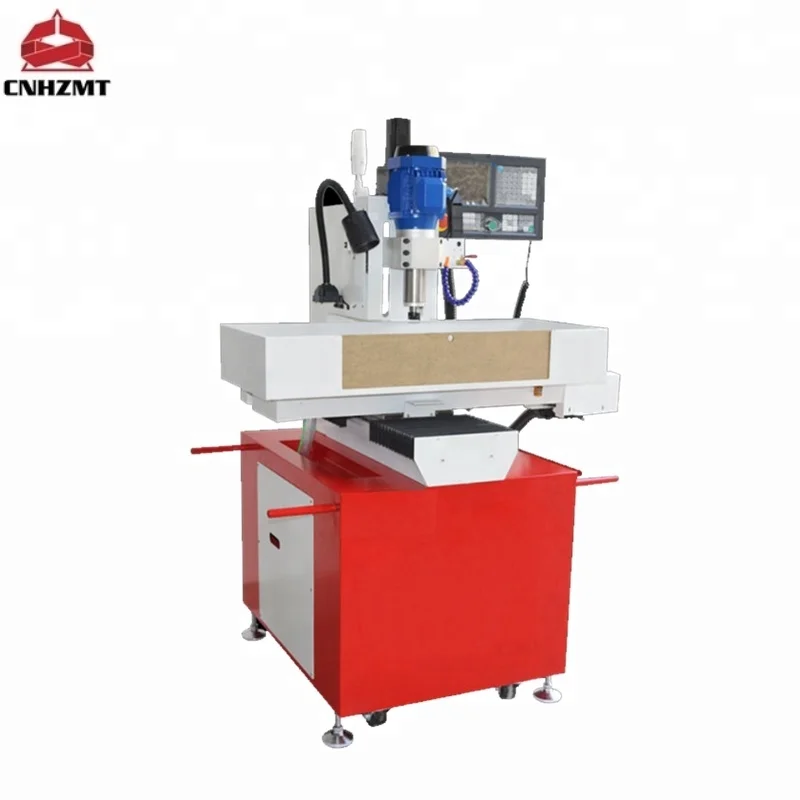

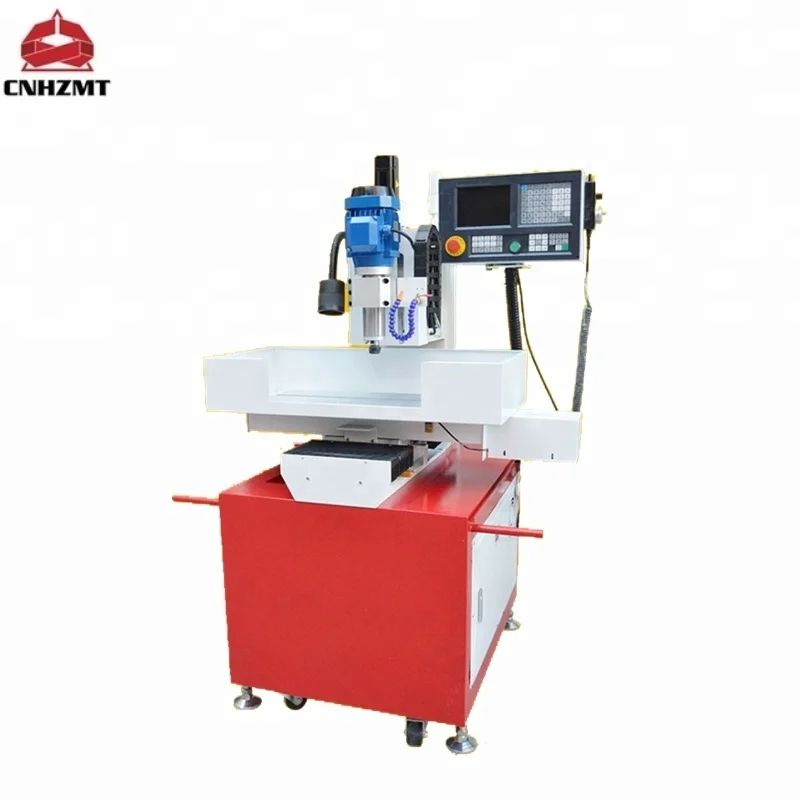

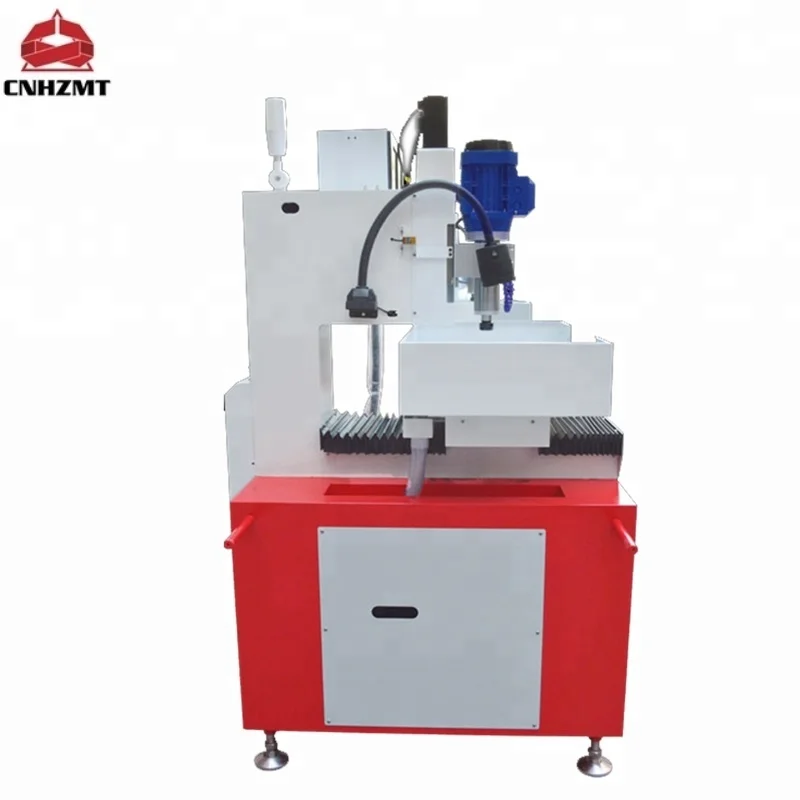

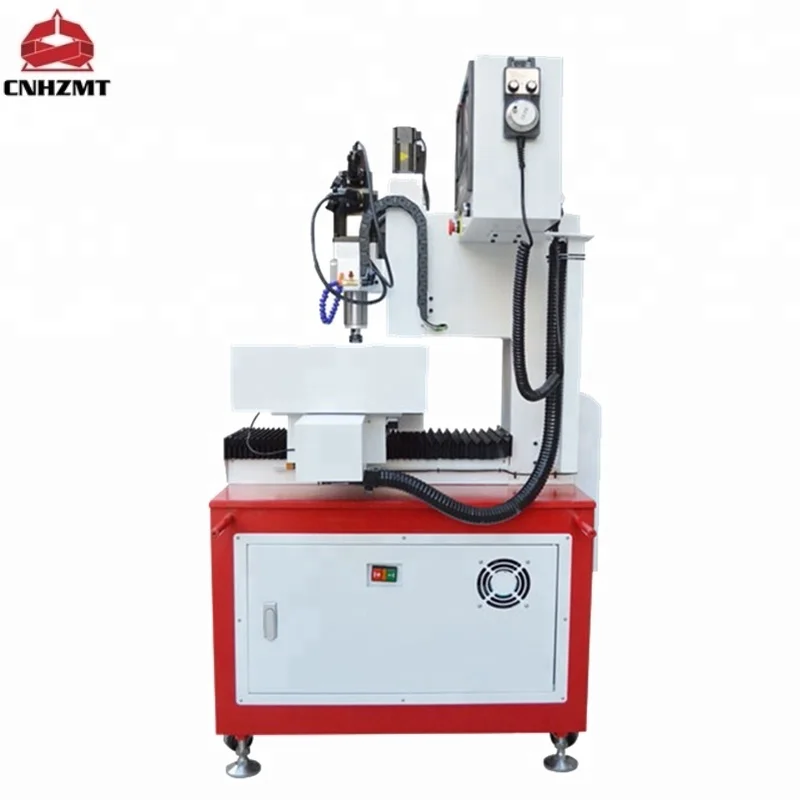

2018 CNC Spindle Vertical Drilling Machine for Metal
- Category: >>>
- Supplier: Botou Huazheng Mechanical Equipment Co. Ltd.
Share on (60811300096):
Product Overview
Description
Product Description
Product Application of 2018 CNC Spindle Vertical Drilling Machine for Metal:

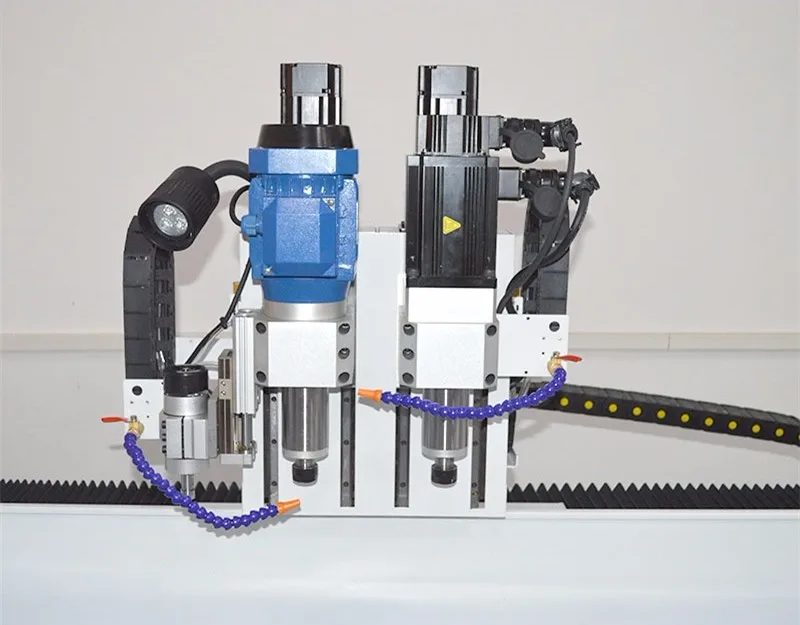

A machine tool has two functions of drilling and tapping. It is aimed at machining the perforated holes of various small workpieces.

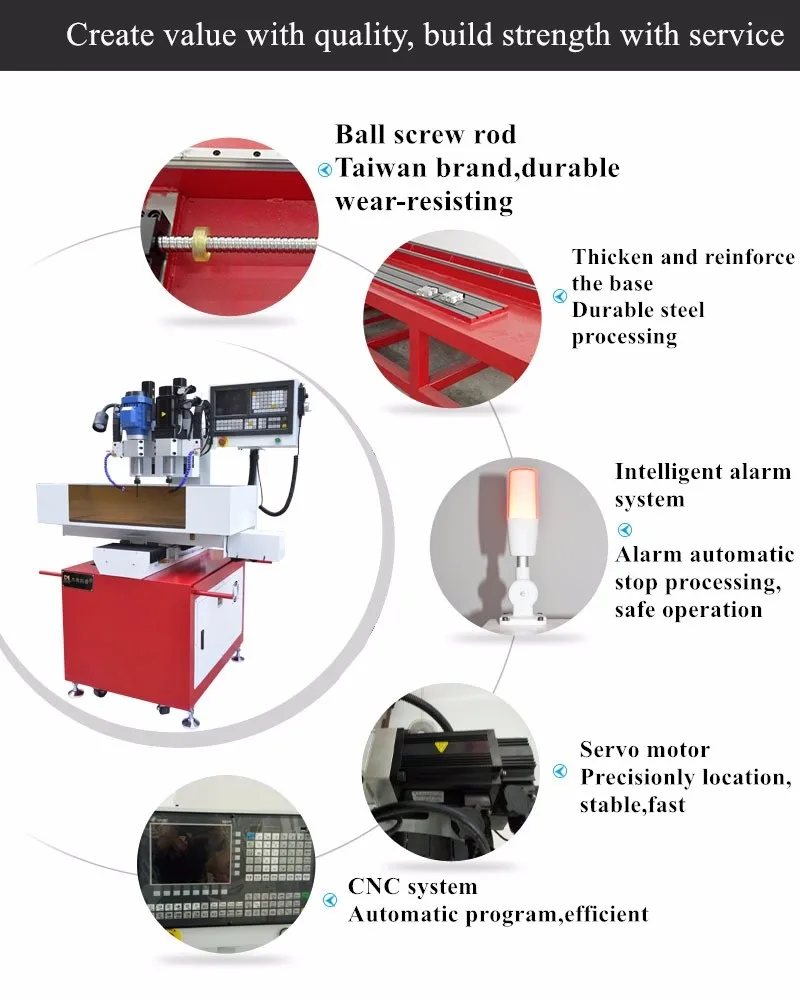

Advantage of 2018 CNC Spindle Vertical Drilling Machine for Metal:
1.Automatic alarm stop function of bit breaking, numerous customers verify that there is no leakage false alarm high accuracy.
2.The mechanical spindle can move in the effective processing stroke, input a value , the spindle can reach the processing position quickly, making the product processing more flexible.
3.Processing large travel and open type structure, can put more products at a time, drilling tapping in turn, non-stop circulating processing in processing at the same time also can operate on other machines, more than one machine operation, improve processing efficiency
Details of 2018 CNC Spindle Vertical Drilling Machine for Metal:
| Model | 430DT | Unit |
| Dimension | 1200*1000*1700 | mm |
| X (Main spindle movement-left right) | 400 | mm |
| Y(Main spindle movement-front back) | 300 | mm |
| Z(Main spindle movement-up down) | 200 | mm |
| Spindle end face to table | 120 | mm |
| Table size | 800*250 | mm |
| Max bearing load | 50 | kg |
| Size of t slot | 13*20 | mm |
| Drilling range | 0.3-16 | mm |
| Main spindle rotating speed | 0-24000 | rpm/min |
| Ball screw (Taiwan) | x=2010,y=2010,z=1605 | mm |
| Linear guide rail | x,y,z=20*2 | mm |
| Main spindle power | 0.55/0.75/2.2 | kw |
| X,Y,Z feeding rate | 15000/15000/15000 | mm/min |
| Positioning accuracy | ≤0.02/1000 | mm |
| Repeated positioning accuracy | ≤0.02 | mm |
| System resolution | 0.001 | mm |
| System program storage | 10000 | pc |
| Weight | 1500 | kg |

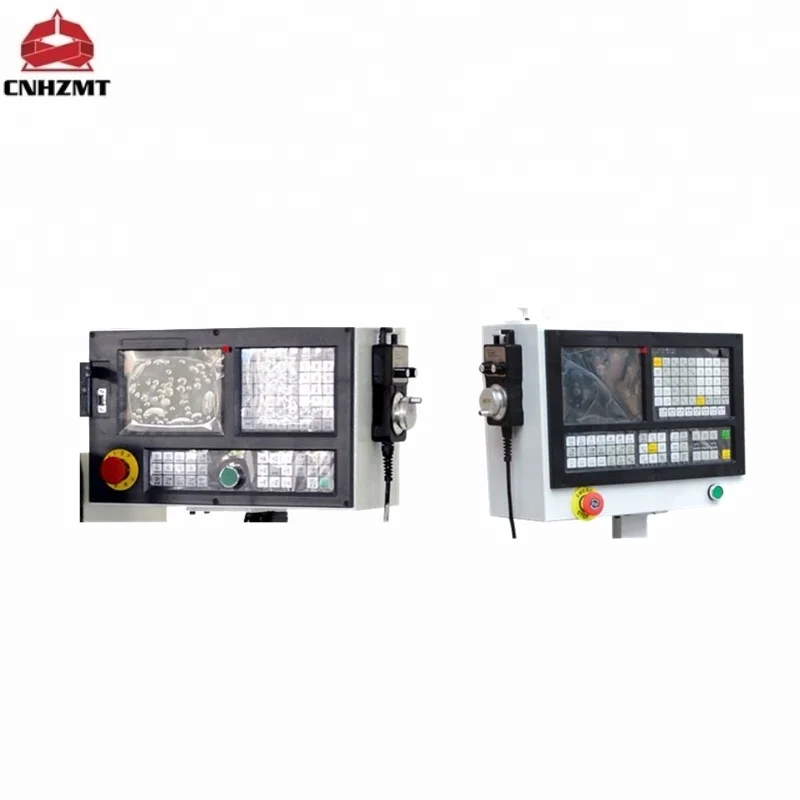

| Programming method | Manual/computer programming | |
| Programmatic transmission | USB | |
| Cooling system | Water jet type | |
| External signal control | Provided | |
| External movement control | Handwheel control | |
| Signal light | Three colors and beeping LED signal light | |
Related Products

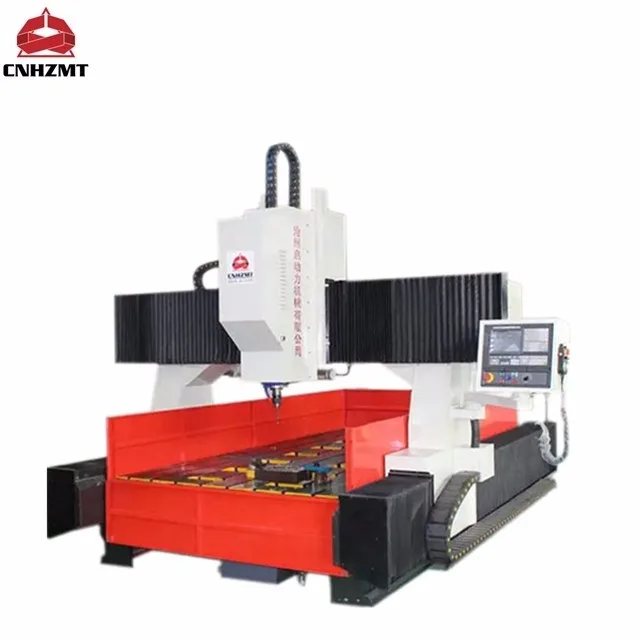

1*1m drilling machine
90.8% response rate
2*2m drilling machine
91.5% response rate
1*2m drillling machine
96.1% response rate
Our Company
Botou Huazheng Machinery Equipment Co., LTD., located in Hebei Province, founded in 2004, ISO 9001 certificated.
Over 300 employees, 5000 tons' iron yearly capacity, 30-50 billion' s annual output value, advanced management philosophy, abundant technical resources and complete testing methods, these are factors that make us into your strong backup. Our product development department applies 3D and CAD technology.
Our core products cover High-Speed Drilling Machine, CNC Drilling Machine, CNC Drilling-Milling Machine, Gantry Drilling Machine, Electric Threading Machine, 3D Working Table and Welding Torch.
We have been providing massive solutions for high-efficiency processing to customers in industries like aviation, automobile, shipping, wind power, electronics, molding and so on. In other words, 20 industries, 1620 enterprises and 45 thousands sets of qualified products with after sale service.
Our High-Speed CNC Drilling Machine and Iron Casting Working Table can be custom made on the basis of customers' requirements to meet different processing demands.
Our factory
Our workshop
Our milling place
CNC processing workshop
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

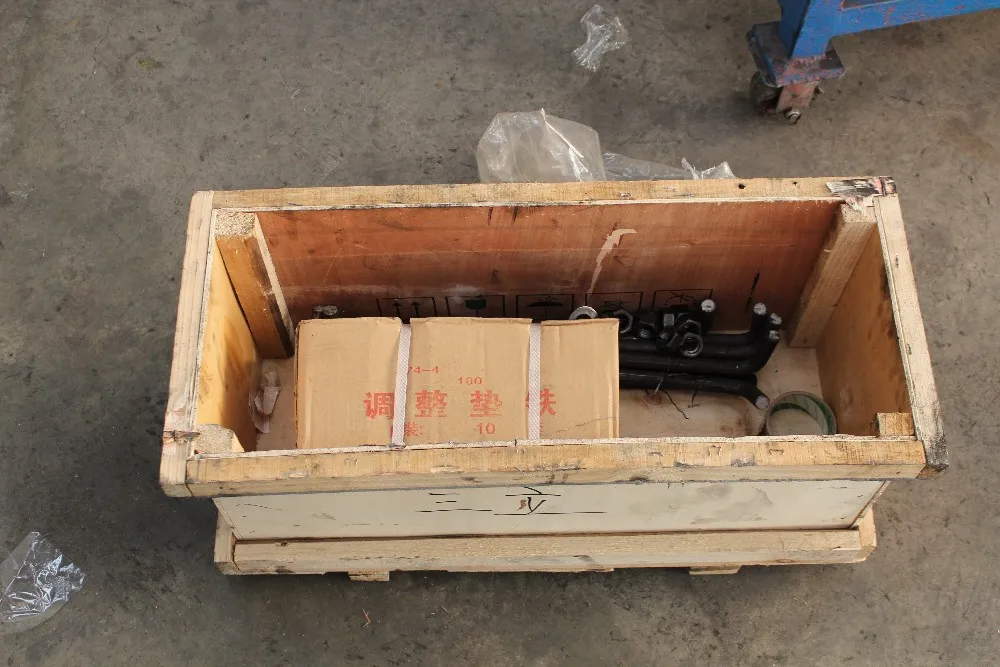

Accessories packed in the wood case

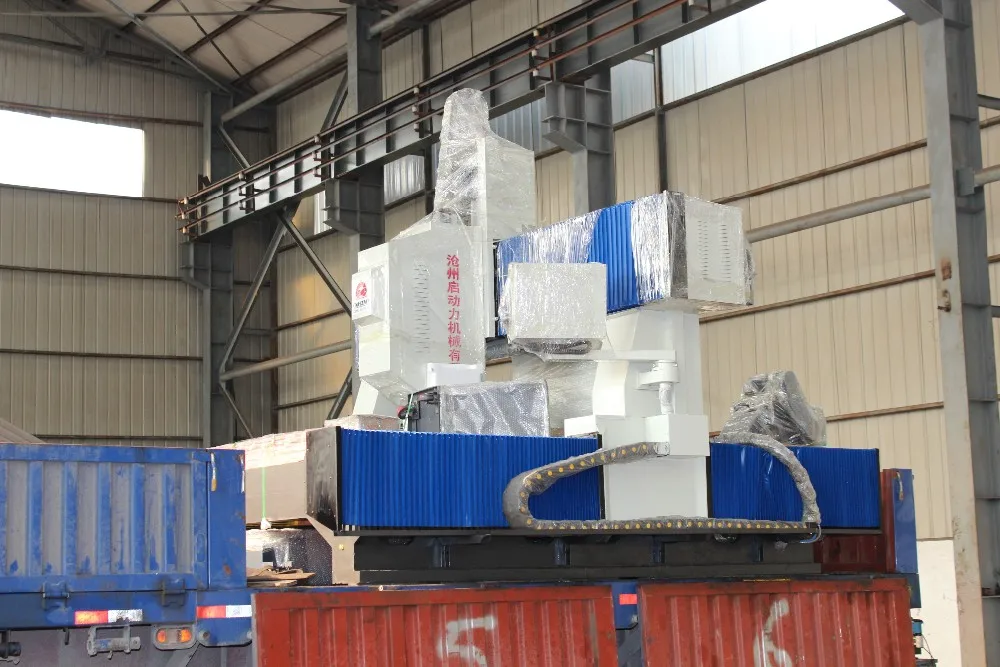

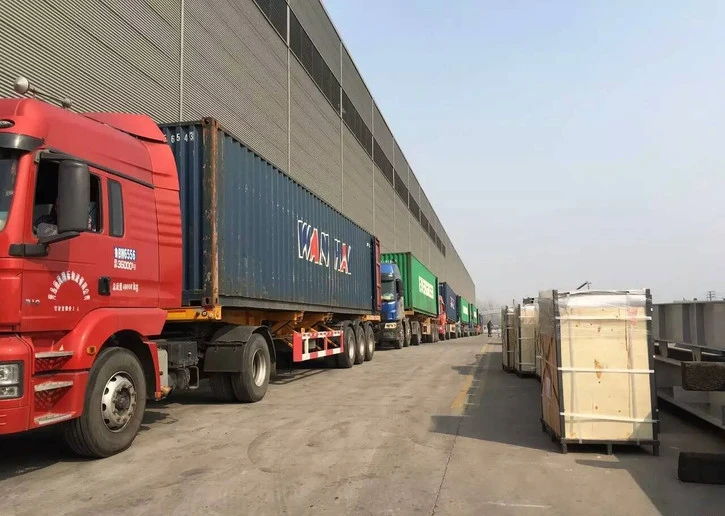

Hang the machine to the car
Carefully hanging with inspection
Accessories packed in the wood case
Avoiding missing or losing
