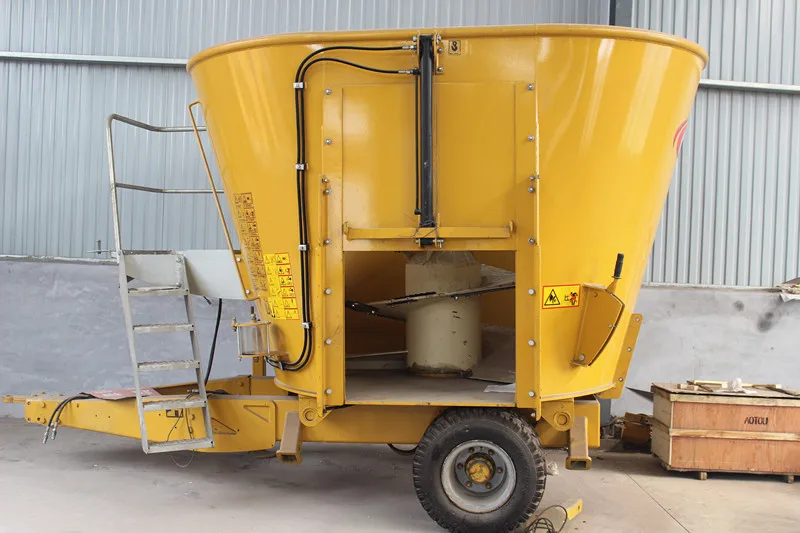

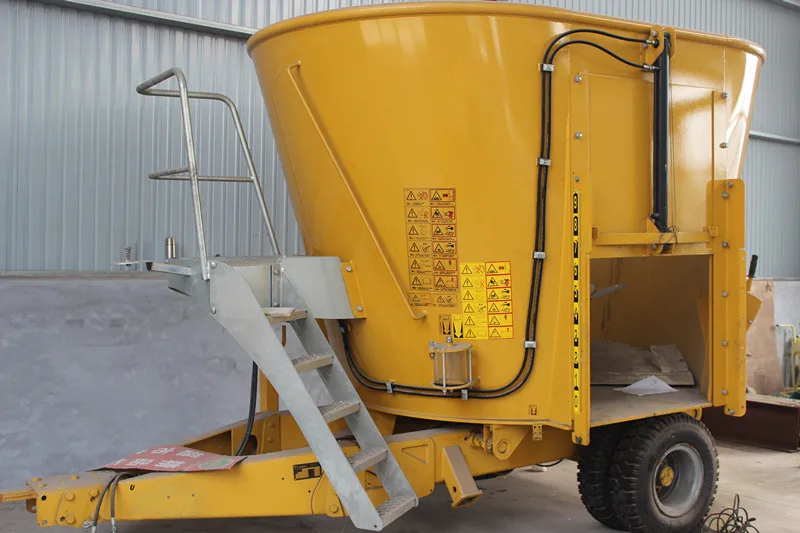

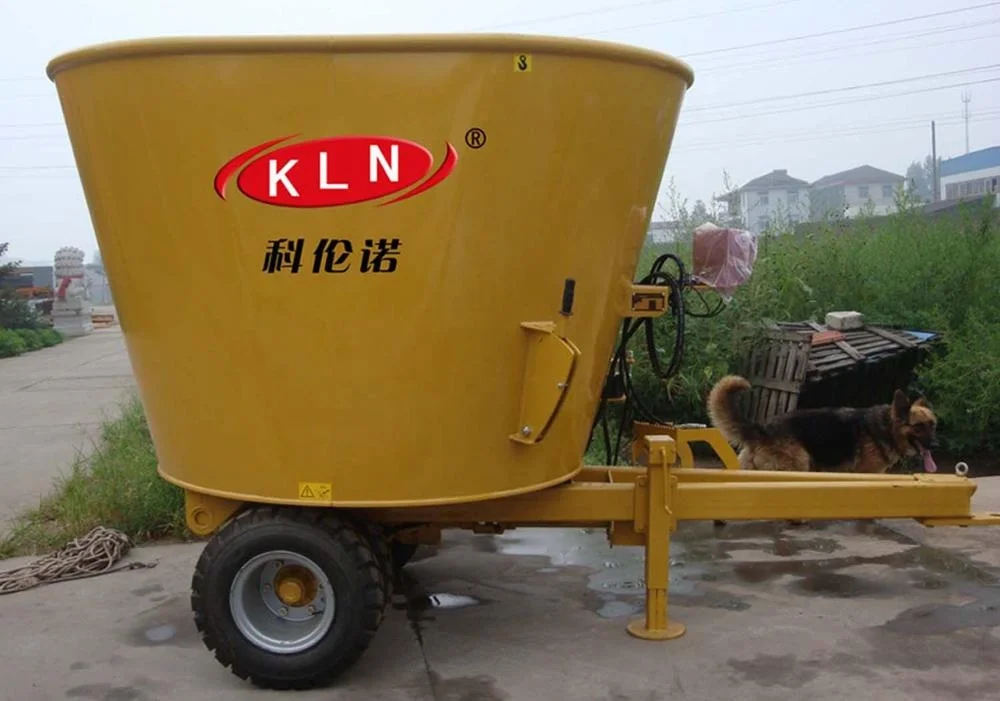

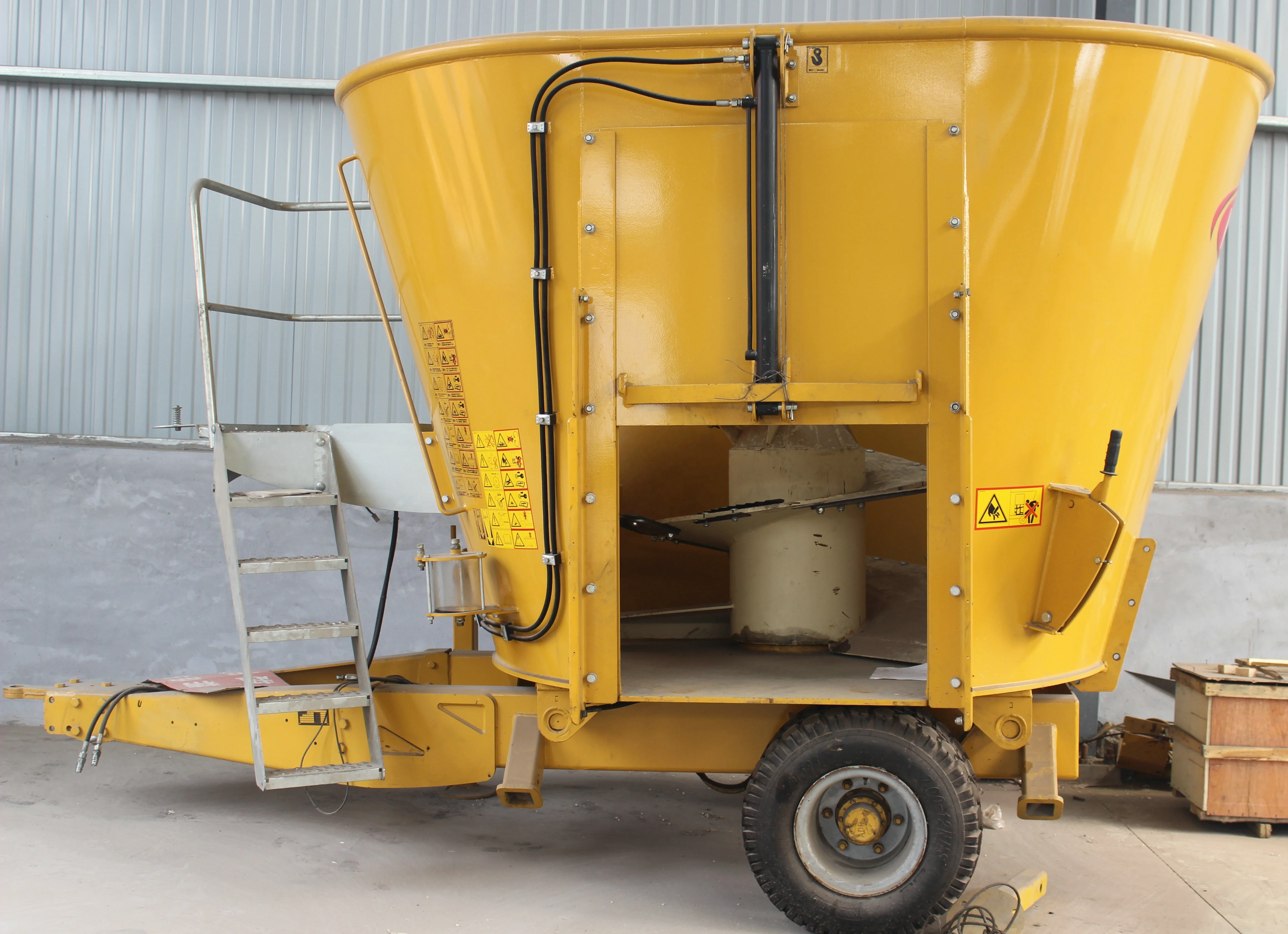

TMR cattle animal feed mixer wagon

Product Overview

Description

TMR cattle animal feed mixer wagon









1.Animal feed mixer introduction:

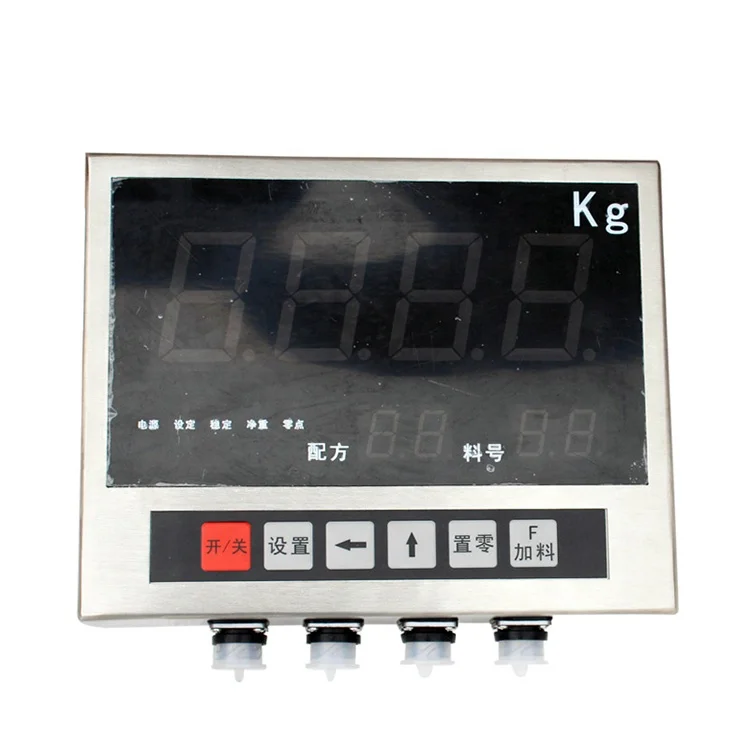

Animal feed mixer  (TMR) can be described as a mixture of both the roughage and the processed ingredients, formulated and mixed to supply the cattle requirements, in a form that precludes selection. It is designed to be the sole feed source given over a 24 hour period and fed for optimum results. This cannot be accomplished without the use of accurate weighing equipment and adequate and proper mixing equipment (feed mixer wagon).









2. Animal feed mixer  technical parameters:

Model	9JL-8 type
Stirring Speed	17.5~22.8 rpm
Mixing Chamber Volume	8 cube-meter
Structure Form	Vertical
Supporting Power	22KW/ 40PS
Input/Output Speed	1470/540rpm

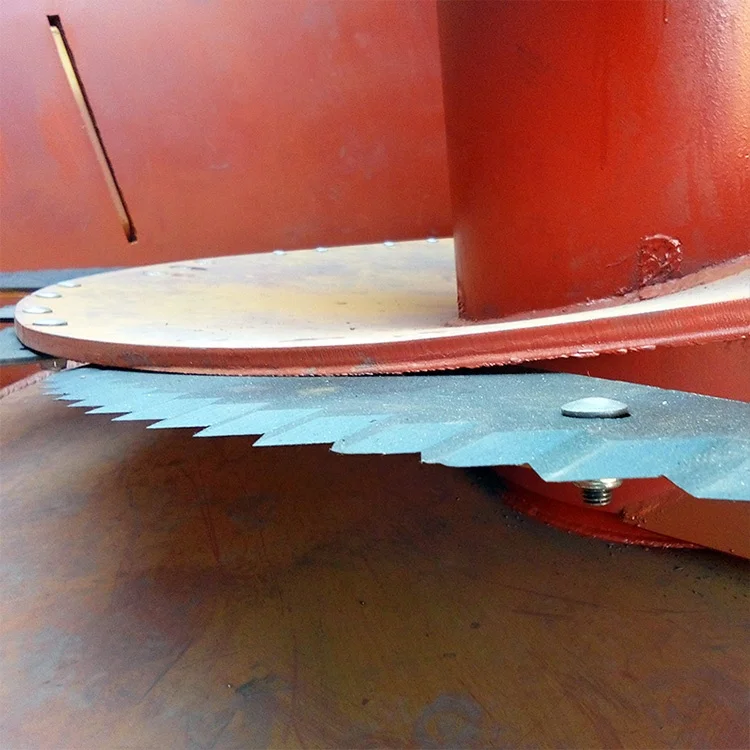

Blade Form	Serrated sector
Blade Quantity	16 pcs
Size	4400x2360x2560mm
Weight	3050kg







3. Animal feed mixer features:

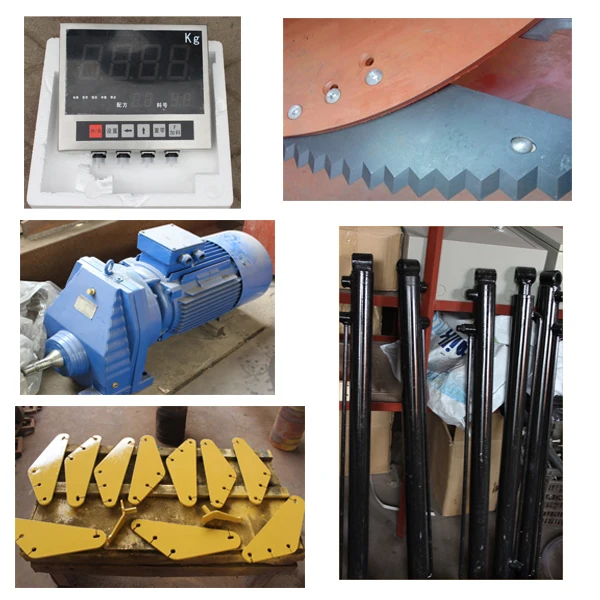

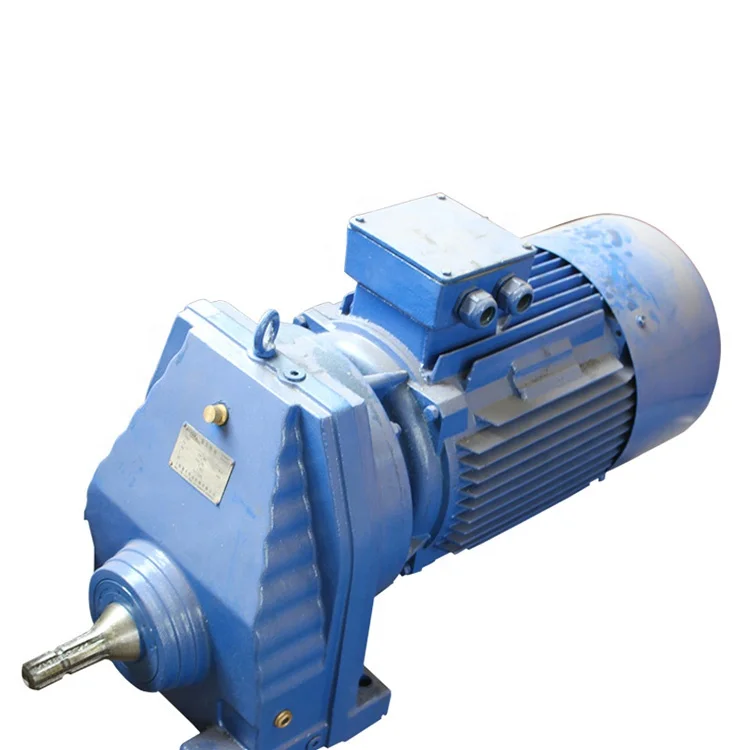

3.1. The feed mixer adopt high quality gear reducer, stable quality, low failure rate, the design life is more than 20000 hours, and the maintenance is also very simple, first maintenance and replacement of gear oil is after 1000 working hours, and every 4000 hours after the first time maintenance.

3.2. The maximum design of auger, improve the mixing efficient and mixing effect, standard production can complete full ration in 10-15 minutes.





4. Animal feed mixer advantage:

1), no need to pre-cut long grass

2), the cabinet is not easy to produce waste

3), strong cutting ability, fast

4), less wearing parts, low maintenance costs

5), the venue requirements are not high, relatively flexible









5. Animal feed mixer volume selection:

1), the size of the herd and the effect of grouping, such as the structure of the building, the width of the feeding channel, the height of the barn, etc.

2), the actual situation of the pasture, the number of feeding, etc.

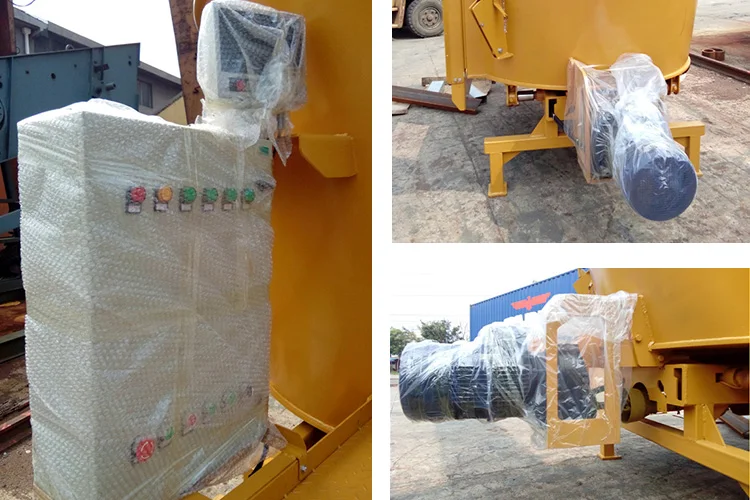

 6. Animal feed mixer package:

Single package size: 360X165X220 cm
Single gross weight:1800.0 Kg
Package Type:Container

If you have special package requirements, we will pack as required.







7. Animal feed mixer installation:

1). Fixed the TMR on ground.

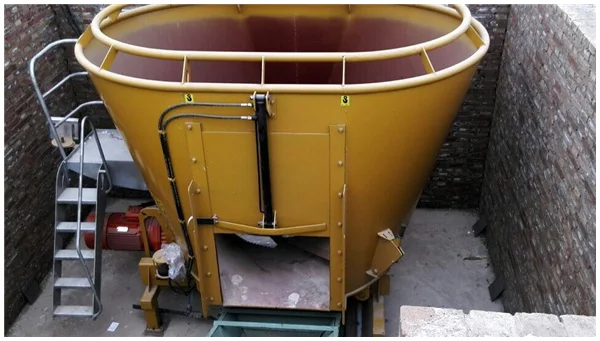

2). Dig a big pole and install the TMR, this type can save labor when input feed and grass.

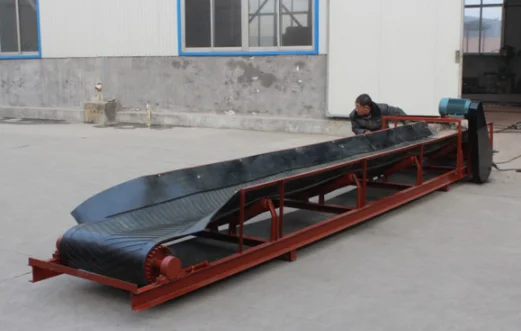

3). Customer can use transport belt to help input / output feed.

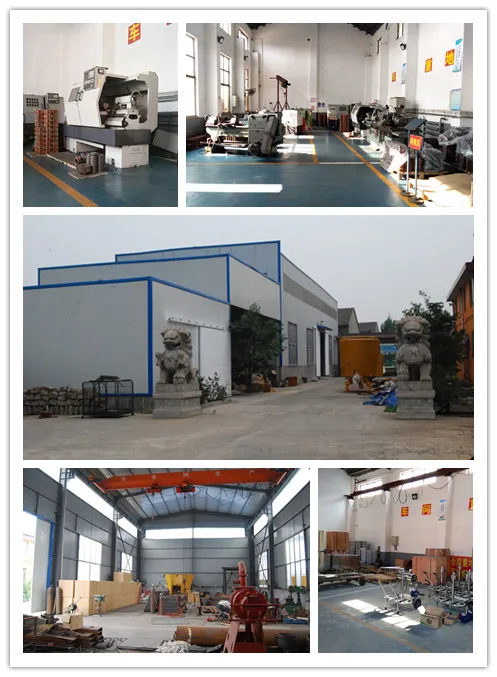

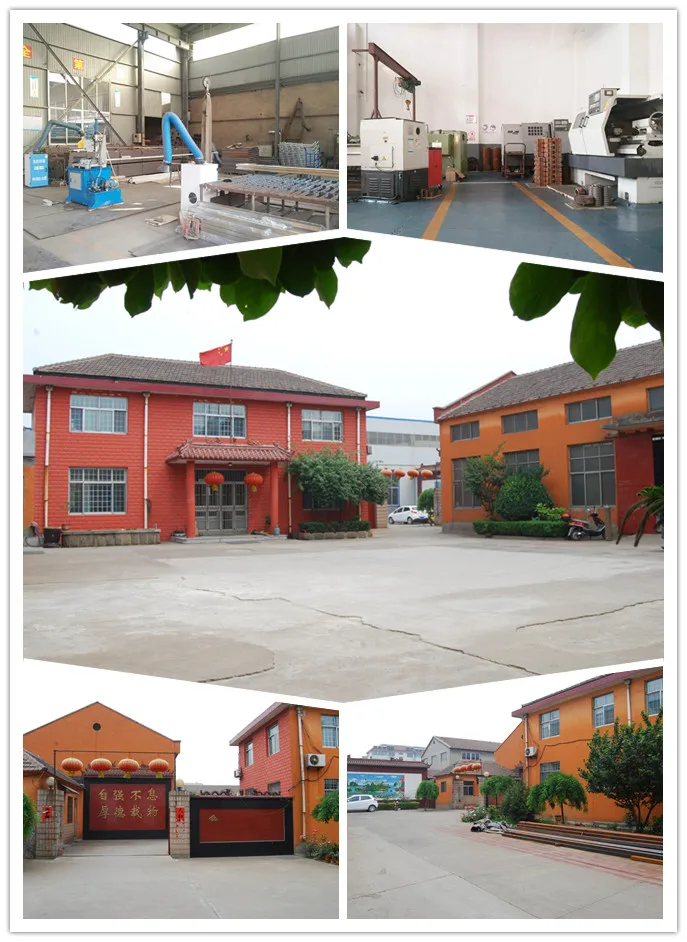

8. Factory show:
