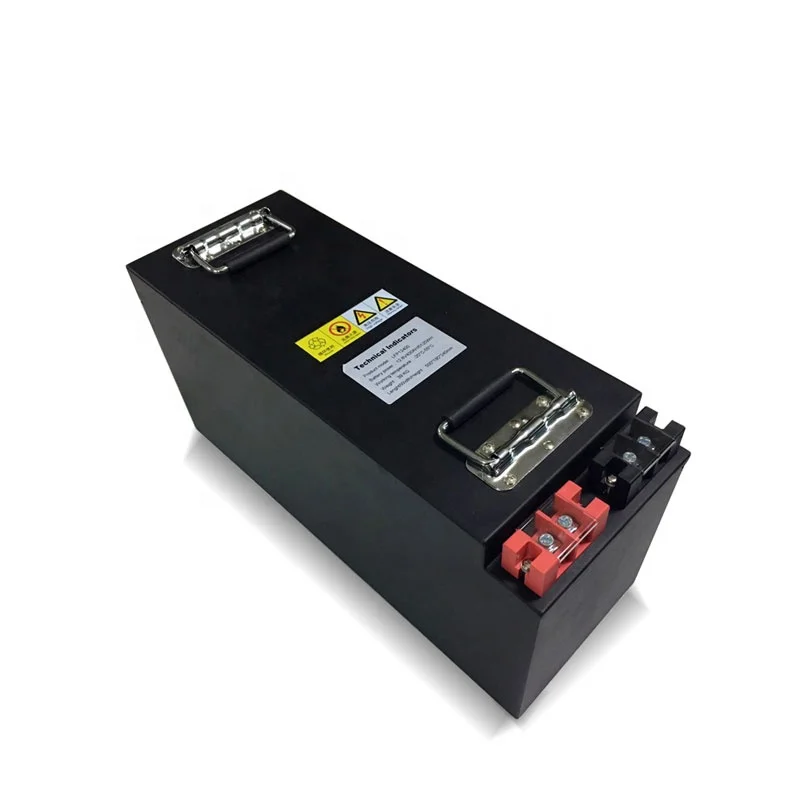

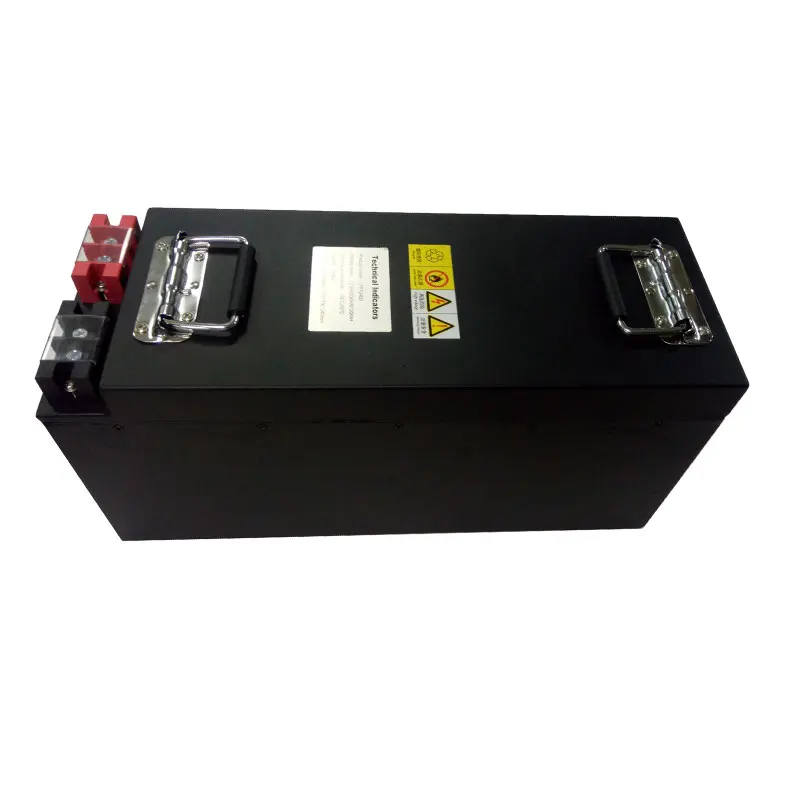

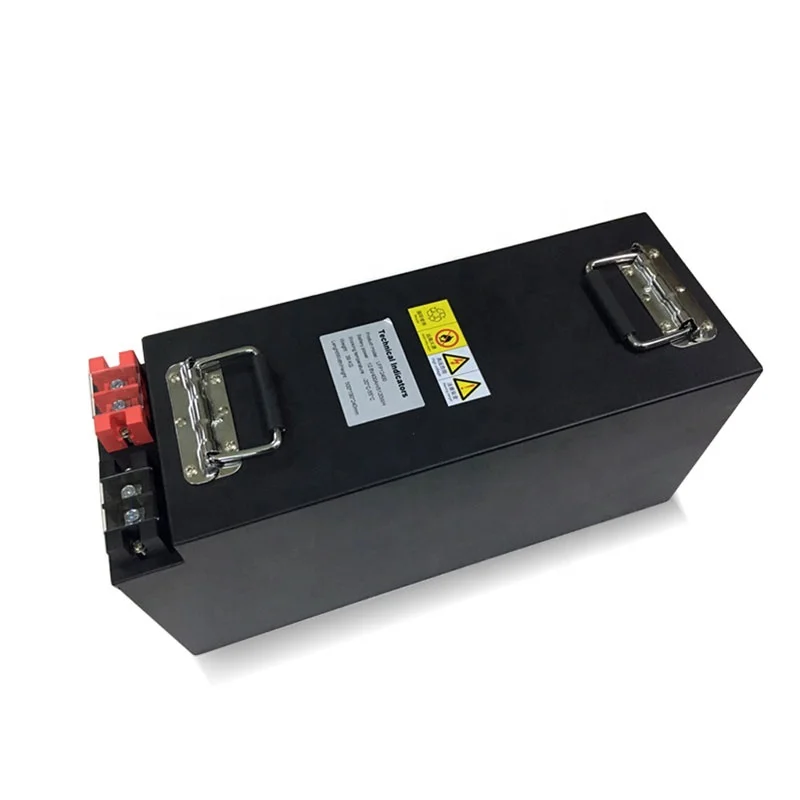

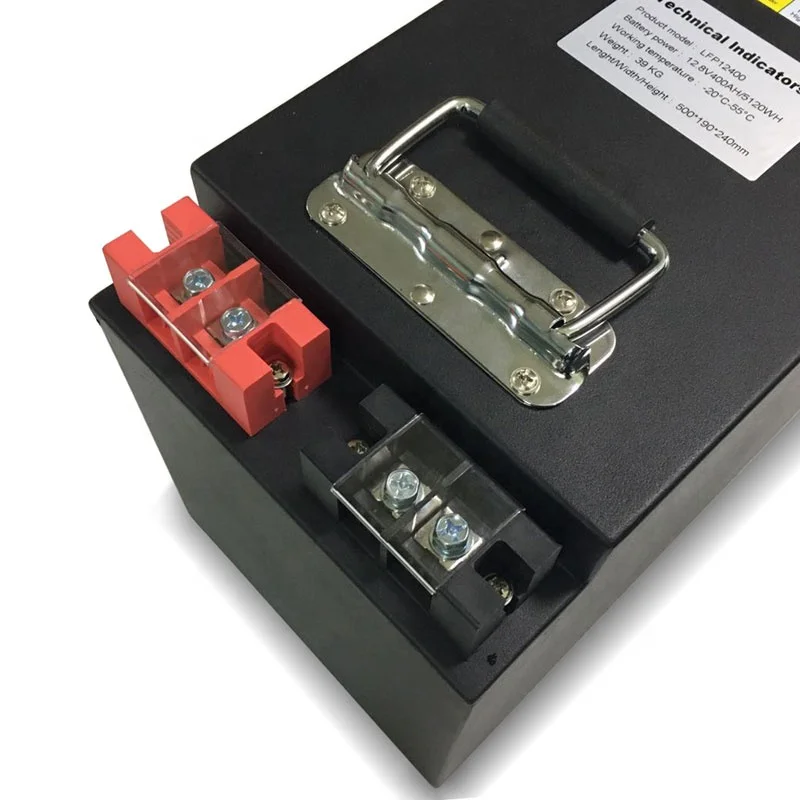

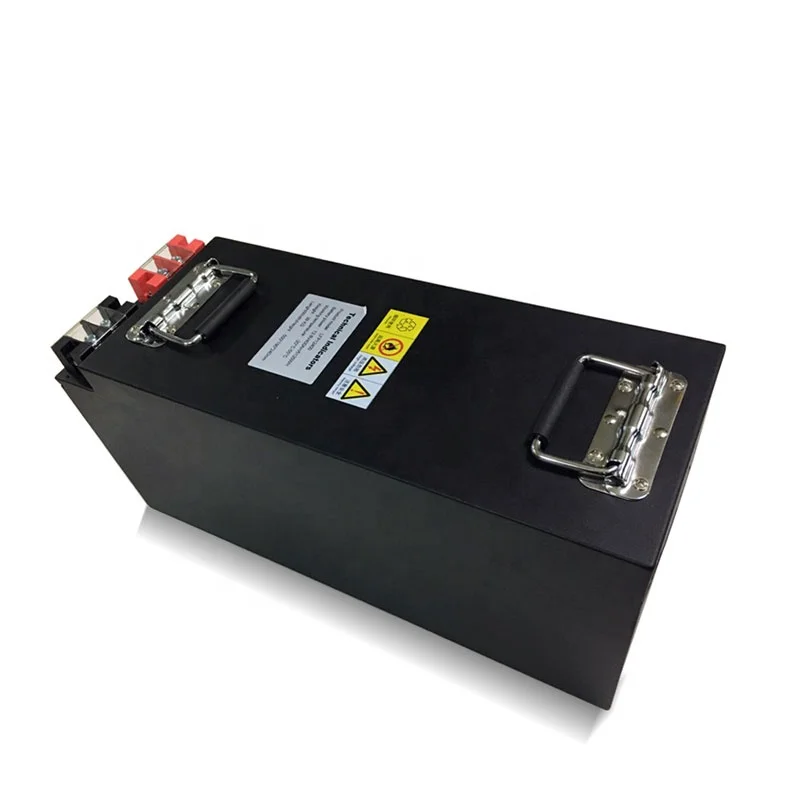

Customized 10kwh 10kw Lifepo4 48V 200Ah Battery Build in 2PCS 24V 200Ah Lithium Ion Battery Pack
- Category: >>>
- Supplier: Shenzhen Herculesi Technology Co. Ltd.
Share on (60811361378):
Product Overview
Description
Specification
lifepo4 48v 200ah battery
Battery can be customized as your requirement.
Why 48V 200Ah build in 2PCS 24V 200Ah ?
1)more lightweight ,easy to carry .
2)small size
3)2PCS in series ,it is easy too .
Nominal Voltage | 48V |
Nominal Capacity | 200Ah |
Energy | 10KWH 48V 200Ah Lifepo4 battery pack |
Internal Resistance | ≤19mΩ |
Cycle Life | >3000cycles |
Model Number | 10KWH Lifepo4 48V 200Ah Battery |
Charge | Charge Voltage :58.4±0. 1V |
Charge Mode : CC/CV | |
Rated Charge Current : 100A | |
Max. Charge Current : 200A | |
Suggest Charge Current : 50A | |
Discharge | Rated Continuous Current : 200A |
Peak Discharge Current : 250A | |
Discharge Cut-off Voltage : 45V | |
Environmental | Charge Temperature : 0 ℃ to 45 ℃ |
Discharge Temperature : -20 ℃ to 60 ℃ | |
Storage Temperature : 0 ℃ to 40 ℃ | |
Mechanical | Cell & Method : 3.2V 200Ah cell |
Battery Module : 2PCS 24V 200Ah | |
Shell material : Iron case | |
Dimensions (in./mm.) 500x190x240mm | |
Module weight : 39kgs | |
Total weight : 80kgs | |
Warranty | 15 months |
Product Description
Recommend Products
Capacity | Size |
6V 6Ah | 70*46*(100*10)5mm |
6V 7Ah | 150*34*(92*97)mm |
6V 10Ah | 150*50*(93*98)mm |
12V 7Ah | 150*63*(93*98)mm |
12V 9Ah | 150*63*(93*98)mm |
12V 12Ah | 151*98*(95*101)mm |
12V 15Ah | 151*82*130mm |

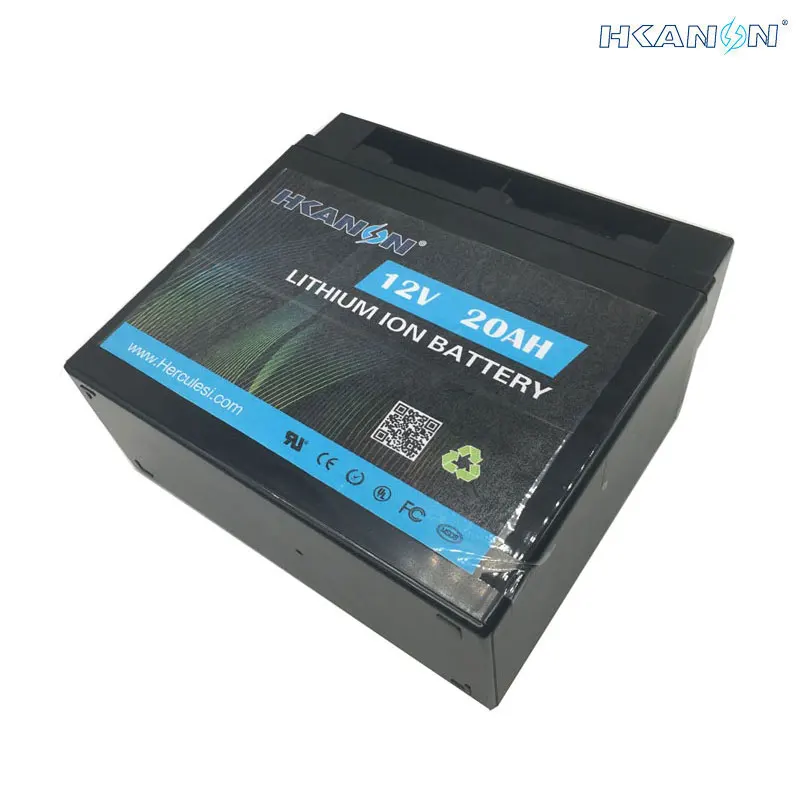

12V 20Ah | 181*77*170mm |
12V 24Ah | 181*77*170mm |
12V 25Ah | 165*125*(176*180)mm |
12V 30Ah | 189*122*(170*172)mm |
12V 50Ah | 197*165*(170*190)mm |
12V 80Ah | 258mm*168mm*215mm |
12V 100Ah | 329*172mm*213mm(223mm) |
12V 150Ah | 450(482)*168*240*(248)mm |
12V 200Ah | 500*(522)*240*215*(240)mm |
12V 400Ah | 500x190x240mm |
24V 200Ah | 500x190x240mm |
Application
Application lifepo4 48v 200ah battery
48v 200ah battery for Solar & Wind Off Grid systems
PV Solar panel for solar off-grid and tied-grid systems
The batteries used to store solar and wind energy are currently mainly lead-acid batteries. Short lifespan and low cycle number of lead acid batteries make it a weak candidate for environment and cost efficiency.
Lithium-Ion batteries allow to equip solar or wind “off-grid” power stations, replacing the lead-acid batteries.
These batteries are excellent for use in motorcycles, snowmobiles, jet skis, Camping Car/Yacht/Caravan etc.
48v 200ah golf cart battery ,48v 200ah inverter battery ,48v 200ah power bank ,48v 200ah ups battery ,48v 200ah battery for emergency power supply ,48v 200ah rv battery ,48v 200ah solar battery and so on ....
Deep Cycle Batteries 48v 200ah Lifepo4 Lithium Ion Solar Battery Pack for Accu Bateria 48v System
PV Solar panel for solar off-grid and tied-grid systems
The batteries used to store solar and wind energy are currently mainly lead-acid batteries. Short lifespan and low cycle number of lead acid batteries make it a weak candidate for environment and cost efficiency.
Lithium-Ion batteries allow to equip solar or wind “off-grid” power stations, replacing the lead-acid batteries.
These batteries are excellent for use in motorcycles, snowmobiles, jet skis, Camping Car/Yacht/Caravan etc.
48v 200ah golf cart battery ,48v 200ah inverter battery ,48v 200ah power bank ,48v 200ah ups battery ,48v 200ah battery for emergency power supply ,48v 200ah rv battery ,48v 200ah solar battery and so on ....
Deep Cycle Batteries 48v 200ah Lifepo4 Lithium Ion Solar Battery Pack for Accu Bateria 48v System
Company Profile
FAQ
Q:What capacity battery do I need?
A:We recommend adding all the device wattages used daily and dividing this number by 48V to get a rough estimate on the amount of amperage needed per day.
Q:Can I mount my Lithium battery in any position?
A:Yes Lithium batteries can safely be mounted in any position.
Q:What's 48V 200Ah battery watts ? (48v 200ah how many watts)
A:The battery can be customized as your requirement include rated power (watts) .Default BMS is 200A,rated power is 10kw .
A:We recommend adding all the device wattages used daily and dividing this number by 48V to get a rough estimate on the amount of amperage needed per day.
Q:Can I mount my Lithium battery in any position?
A:Yes Lithium batteries can safely be mounted in any position.
Q:What's 48V 200Ah battery watts ? (48v 200ah how many watts)
A:The battery can be customized as your requirement include rated power (watts) .Default BMS is 200A,rated power is 10kw .
