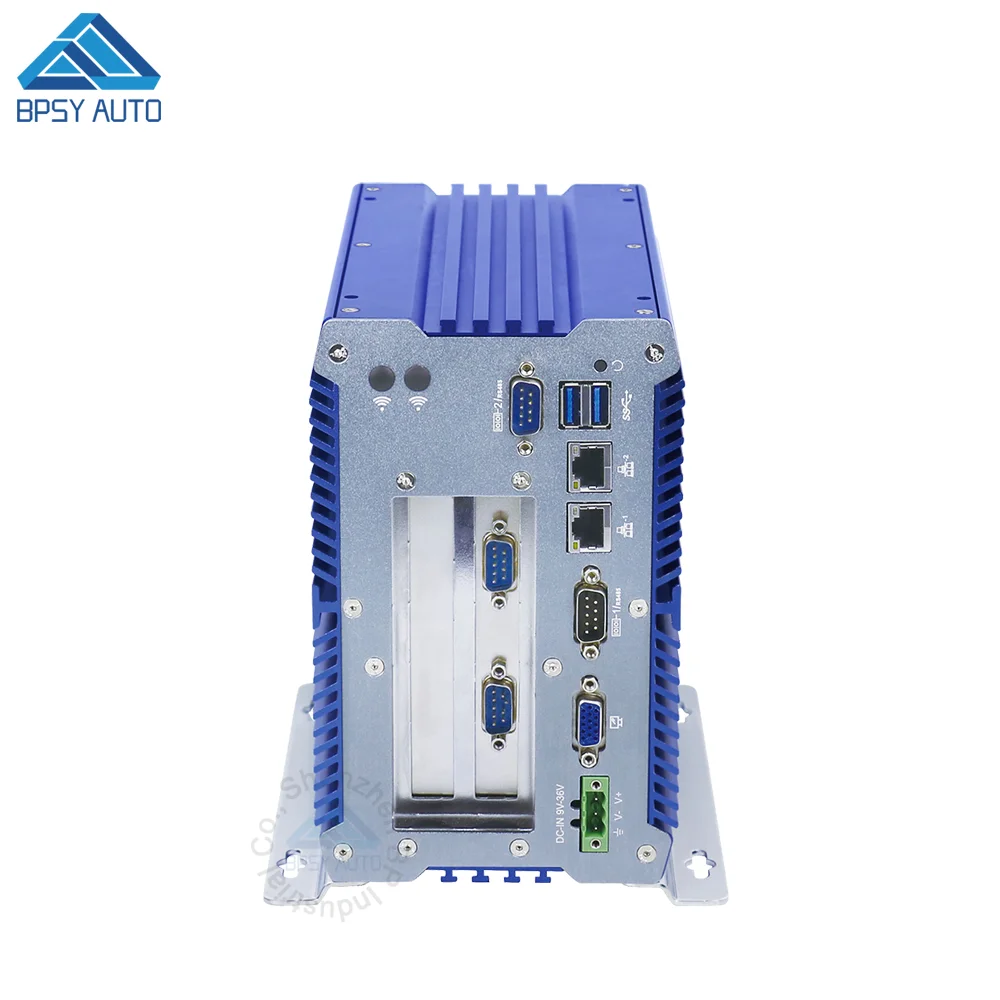

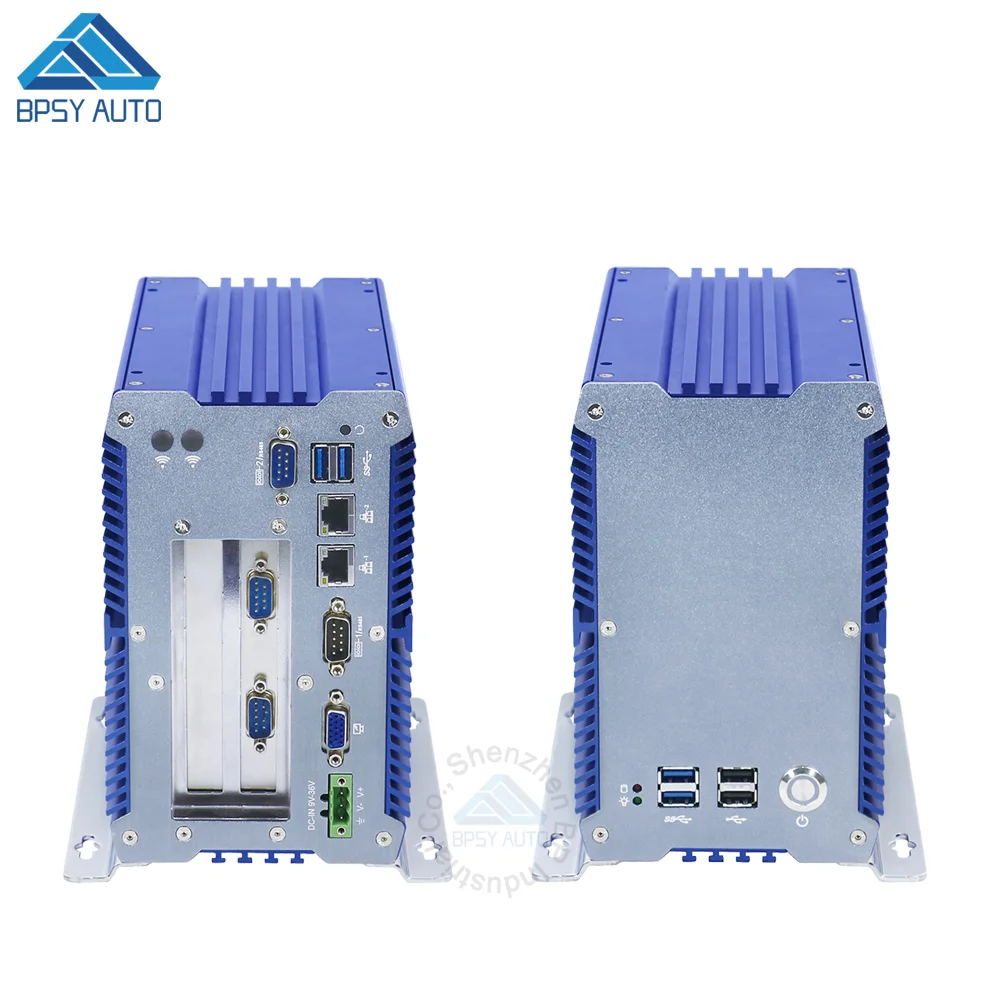

Cheap Fanless Mini PC DDR4 16GB RAM Desktop Computer Mini Linux Win 10 Embedded PC Dual Ethernet

Main Product

Features:

1. All aluminum structure,fanless design

2. Adopt Intel Celeron 3865U,Core i5 7200U

3. Support 1*DDR4 1866/2133 ram slot, max16G

4. Support 1*MSATA,1*2.5 HDD

5. Support WIFI/3G/4G(three choose one)

6. Max support 6*COM(2*COM support  RS232/422/485 optional)

7. Support DC9~36V wide voltage,power positive and negative reverse protection ;

8. Support OS: Linux, Win7/8/10



Specifications:



Model No.

DBOX-701Plus

Color

Blue +Gray( color can be customized )

Material

High-quality all aluminum

Processor

Intel Celeron 3865U dual core 1.8GHz, 2MB third cache

Intel Core i5 7200U dual core 2.5G,max turbo boost 3.1G

RAM

Support 1*DDR4 1866/2133MHz,max 16GB

BIOS

64Mb SPI Flash

Display Chip

Integrated Intel HD Graphics 610/620

Display port

1*VGA,1*HD,1*LVDS( Support synchronous and asynchronous dual display )

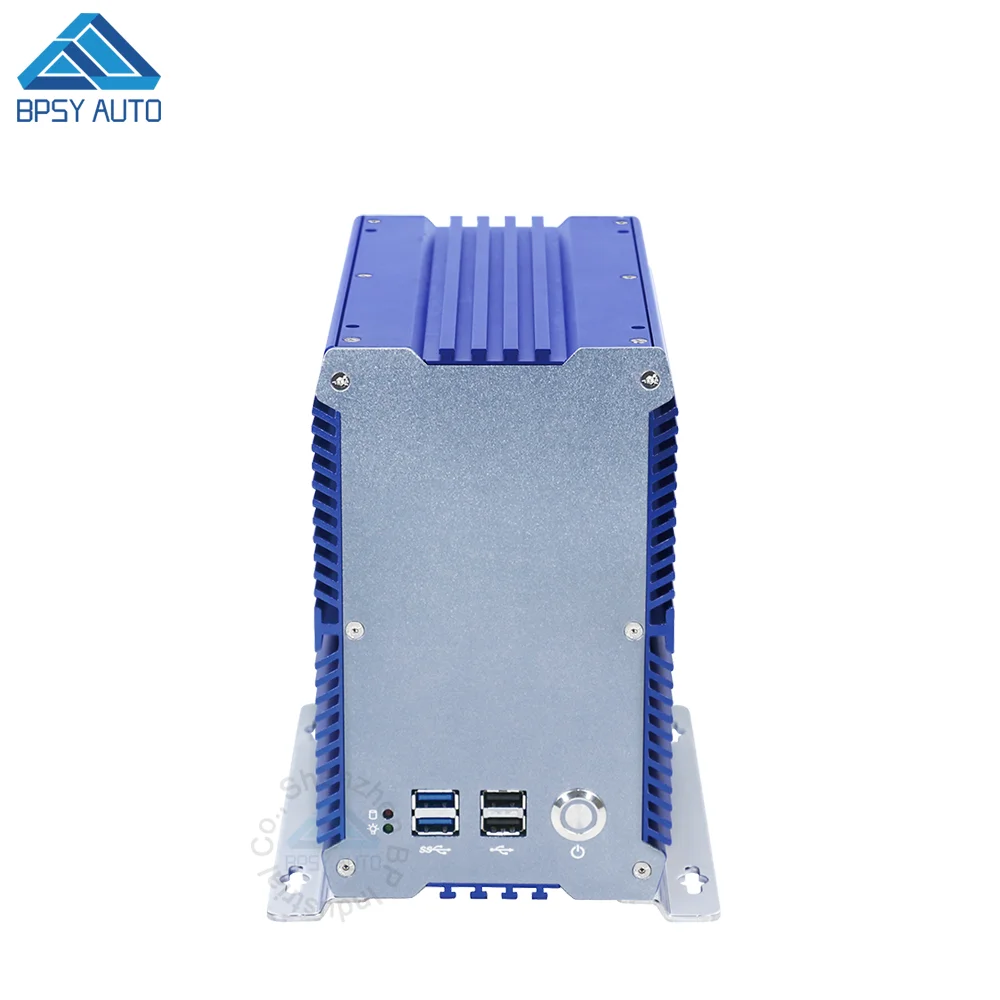

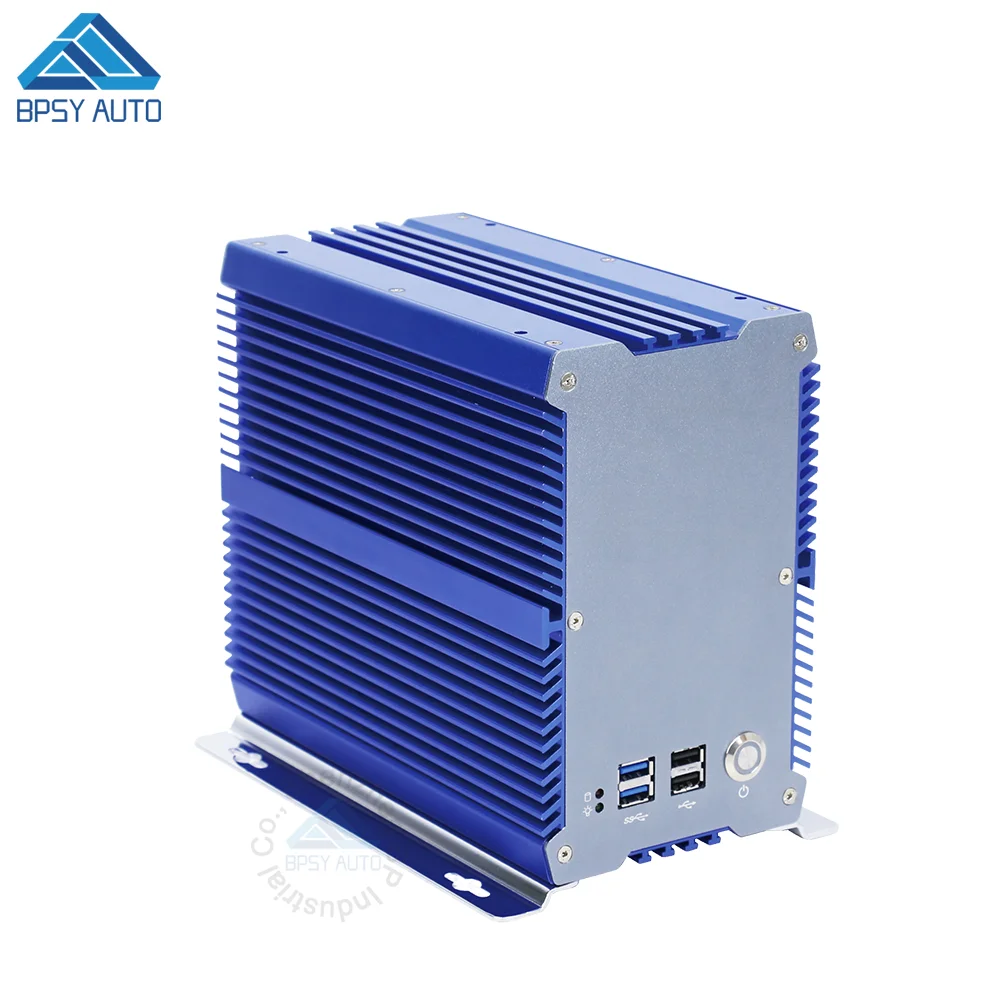

Front I/O

2*USB3.0,2*USB2.0,2*LED light,1*Power Switch

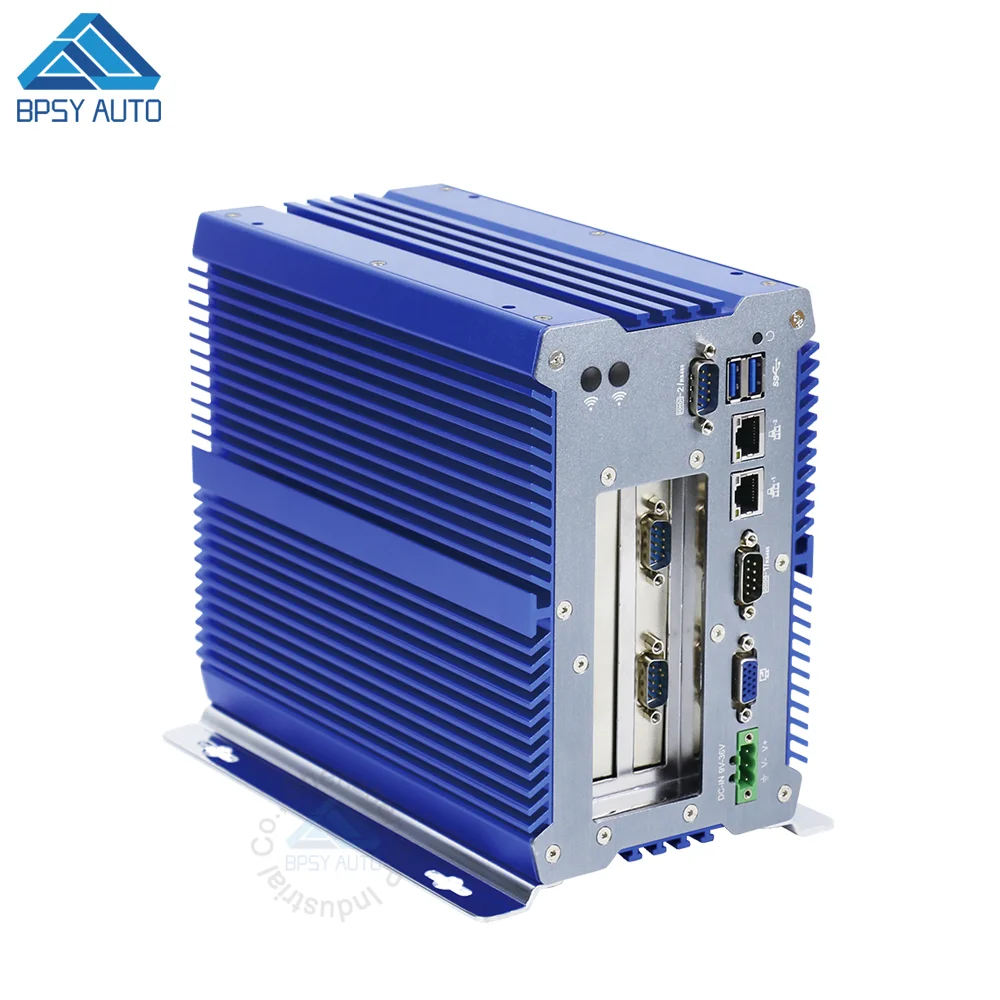

Real I/O

2*USB3.0,2*Intel 1000M Lan,1*VGA,1*3Pin Phoenix Terminal,1*RST button, 4*COM(max 6*COM,COM1, COM2 support RS232/422/485 optional)

Expansion Port

Support 1*MINI PCIE(Support MSATA);

Support 1*MINI PCIE(WIFI/3G/4G optional),embedded SIM slot ;

Optional port( Standard version without this port ):GPIO,PS/2,Audio,HD

Expansion Slot

1*PCIE 4X + 1*PCI(32bit)

2*PCI(32bit)

Network

2*Intel i211-AT 10/100/1000M Lan

Storage

Support 1*2.5’’HDD,1*MSATA

Power Supply

DC 9~36V, power positive and negative reverse protection

Work Tem

 -20℃ to 50℃

Work Humidity

 0-95%  No-condensing

Product Description

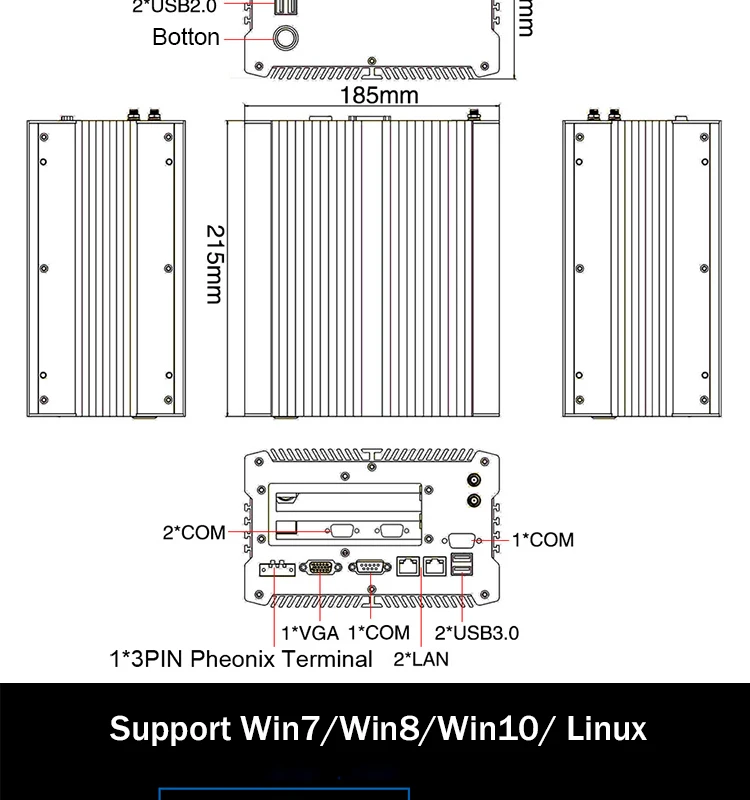

 description_01.jpgdescription_02.jpgdescription_03.jpgdescription_04.jpgdescription_05.jpg

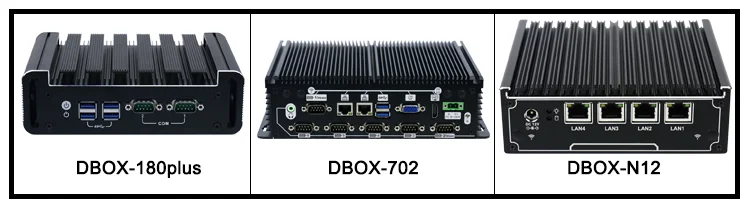

Related Products
