Stainless steel corrugated/convoluted flexible metal hose
Product Description
Product Details:
Provide essential protection and resistance to high pressure, temperature, vibration and fire hazard. Design for Motorsport and Racing Material: PTFE Teflon inner Tube with Fire Resistant Stainless Steel Braiding Operation Temperature Ranges from -60℃ to 260℃. Max PSI: 12000 Hose size: Inch:1/8"~1'', DN:3~25 Works With All Swivel Reusable Hose End Fittings
gemflex-R14 Technical Specifiction
Product Number
Hose ID
I.D x O.D
W.P.
Min B.P
Min B.R.
Weight
Dash
in
mm
PSI
PSI
mm
Kg/m
R14-03
3
1/8
3.5*6.6
3000
12000
35
0.05
R14-05
5
3/16
4.8*7.9
3000
12000
36
0.06
R14-06
6
1/4
6.4*9.5
3000
12000
45
0.08
R14-08
8
5/16
8*11.1
2175
8700
50
0.09
R14-10
10
3/8
9.5*12.6
1957
7830
55
0.11
R14-12
12
1/2
12.9*16.1
1740
6930
70
0.15
R14-16
16
5/8
16.2*19.7
1450
5800
130
0.19
R14-19
19
3/4
19.0*23.6
1305
5220
190
0.21
R14-22
22
7/8
22.3*26.4
1000
4000
205
0.26
R14-25
25
1
25.5*29.6
942
3770
270
0.31
Remark:1MPa=145PSI

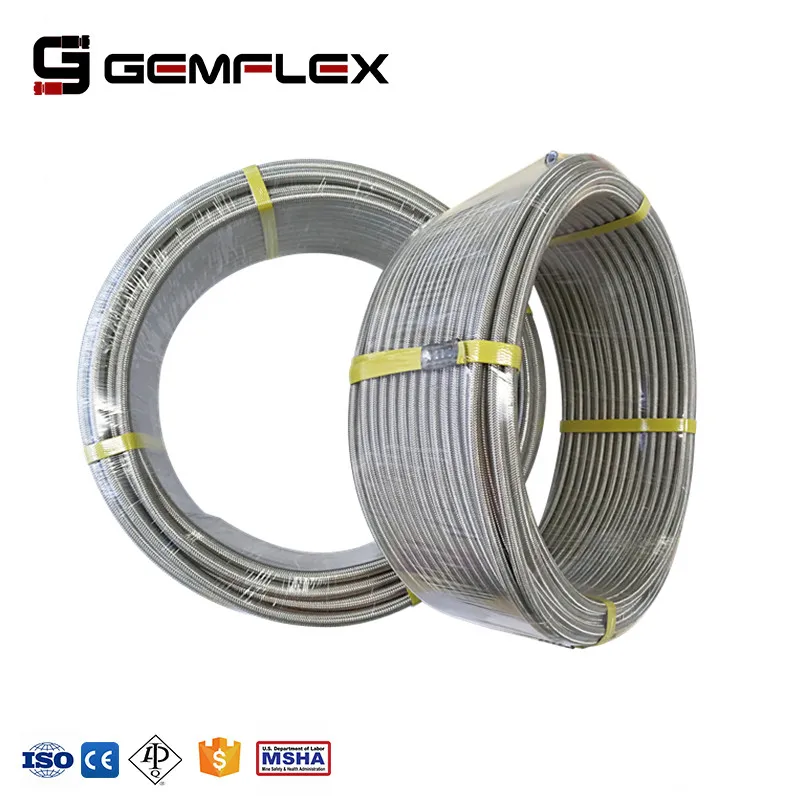

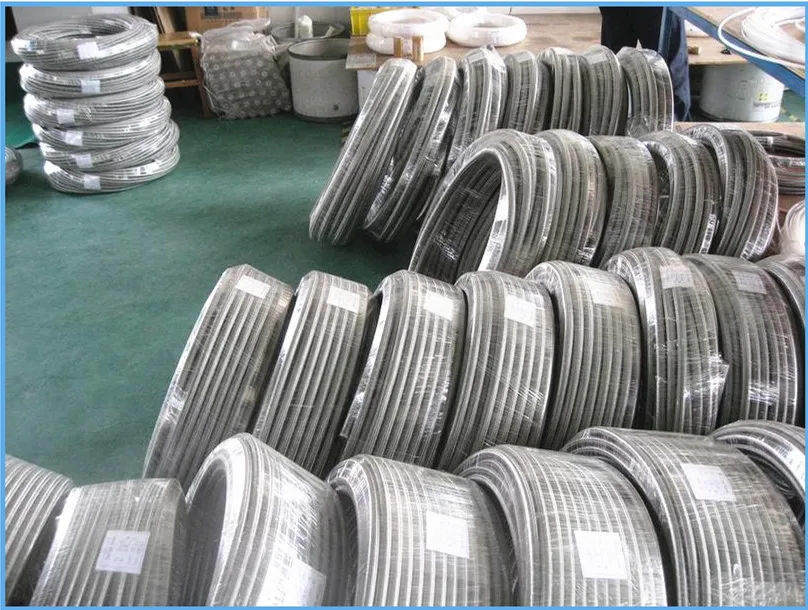

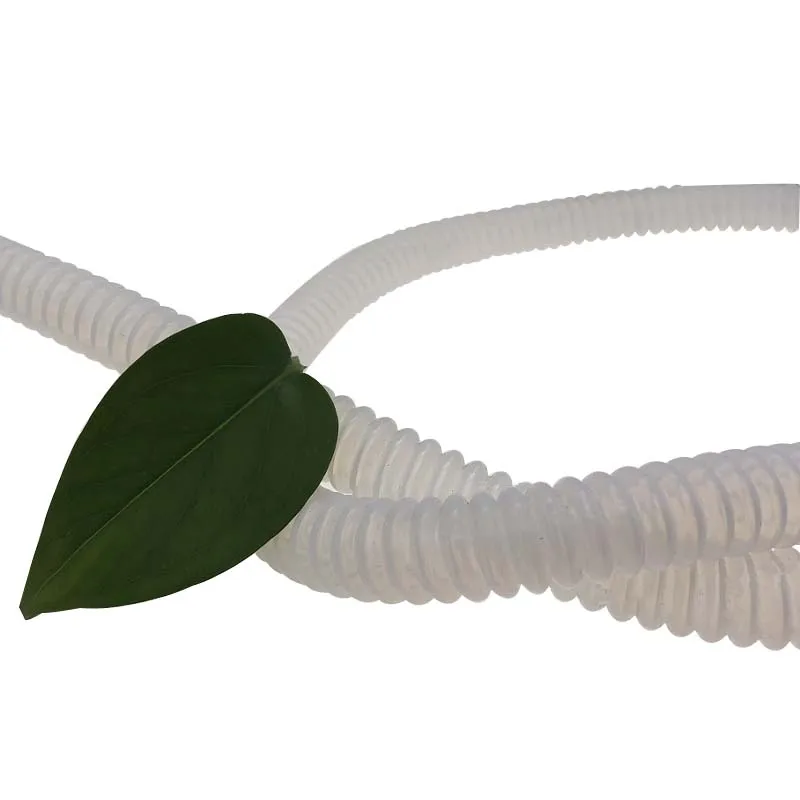

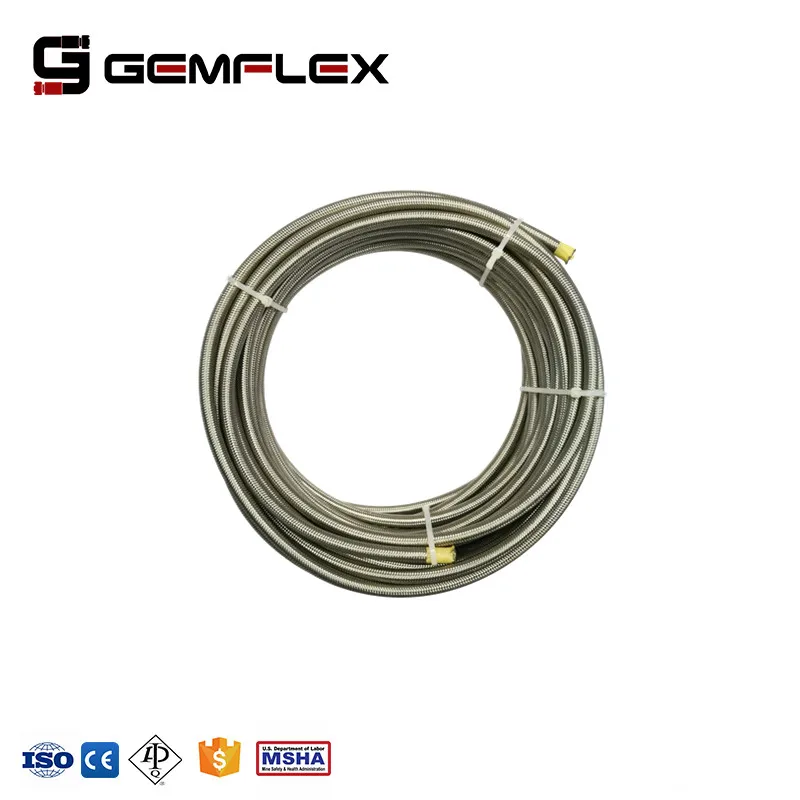

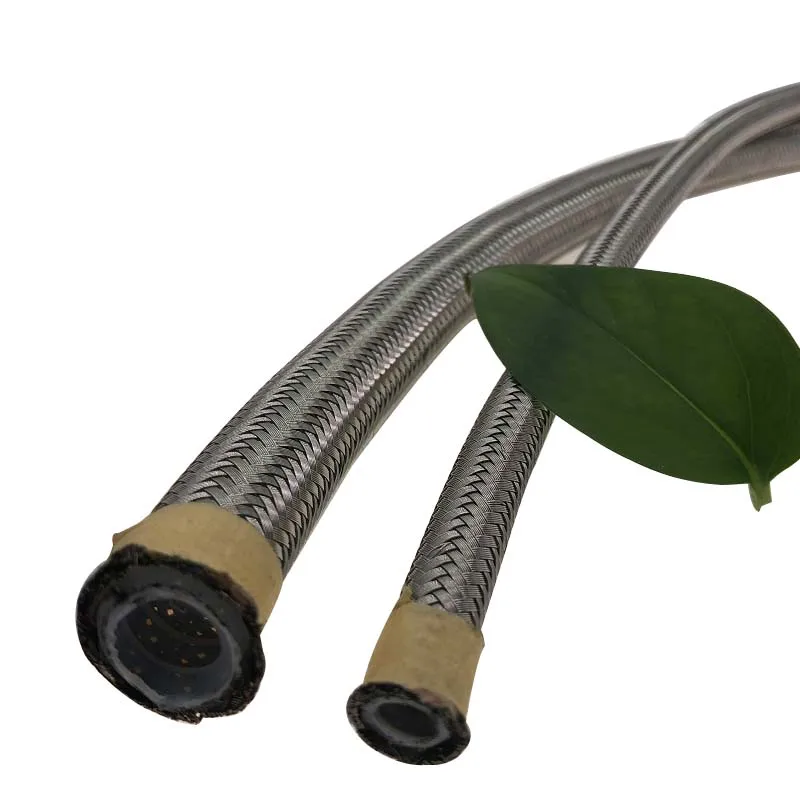

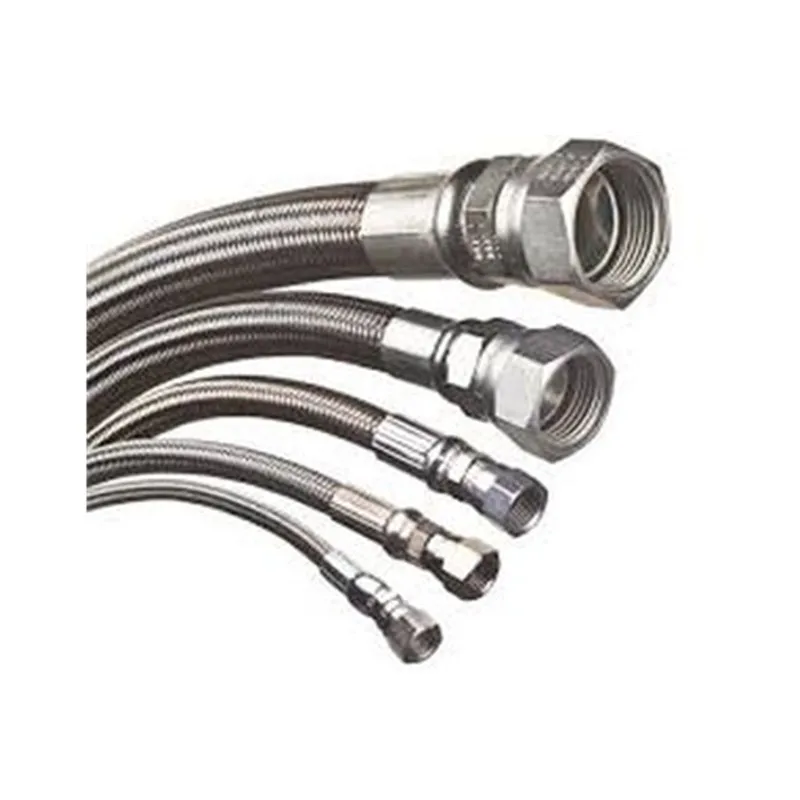

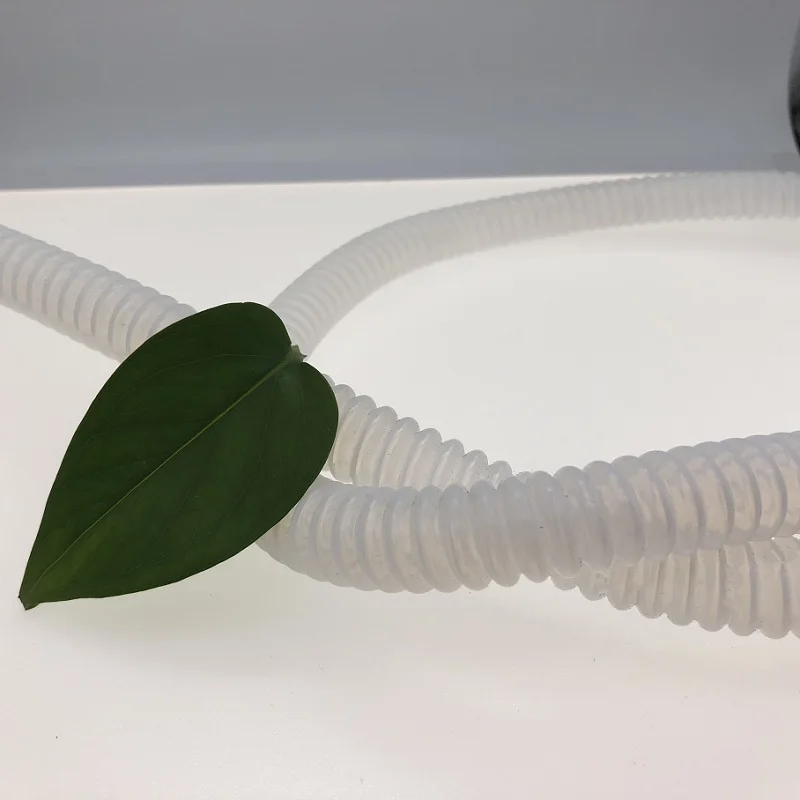

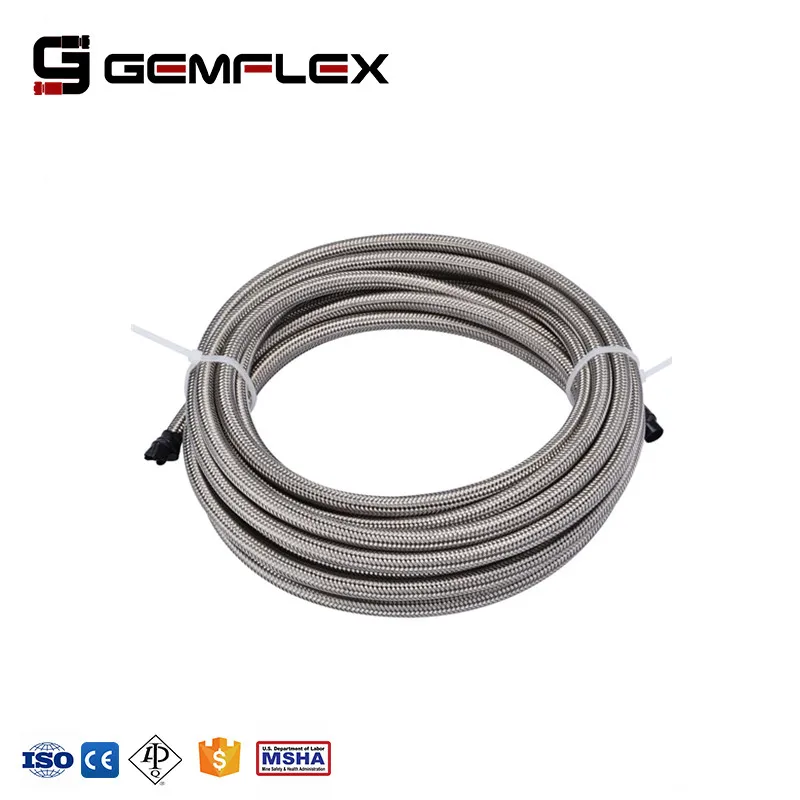

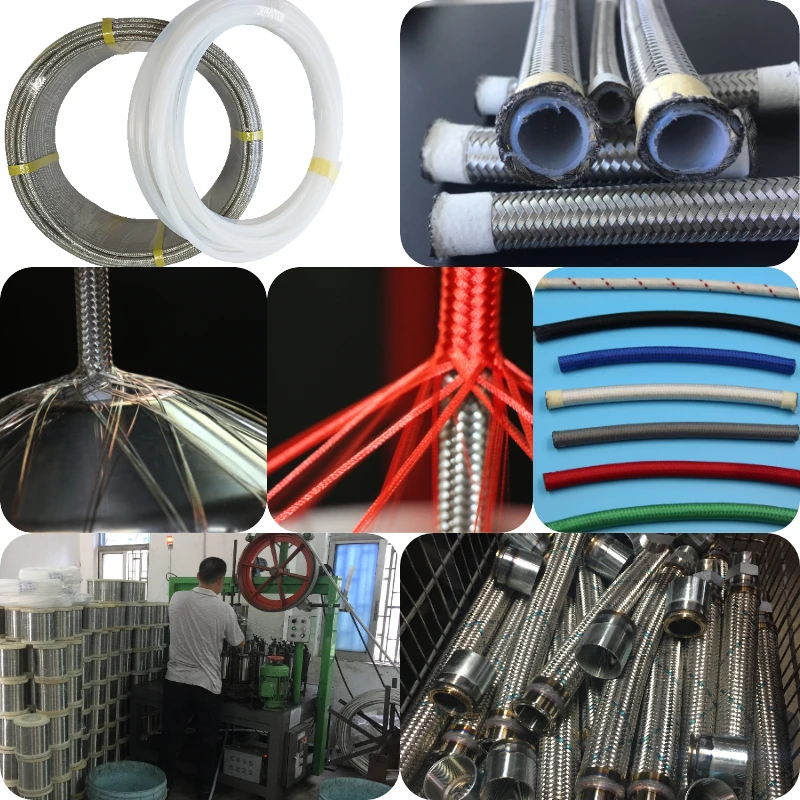

Product Photo:
Our Services
We can offer OEM Services
We can provide FREE SAMPPLE for our customers
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
