Evaporator transformer radiator making corrugated aluminum fin press forming machine line
Evaporator transformer radiator making corrugated aluminum fin press forming machine line

Evaporator transformer radiator making corrugated aluminum fin press forming machine line

Share on (60811446638):


Price:$18,000.00 - $32,000.00

Quantity:


Product Overview

Description



Product Description




Main Features

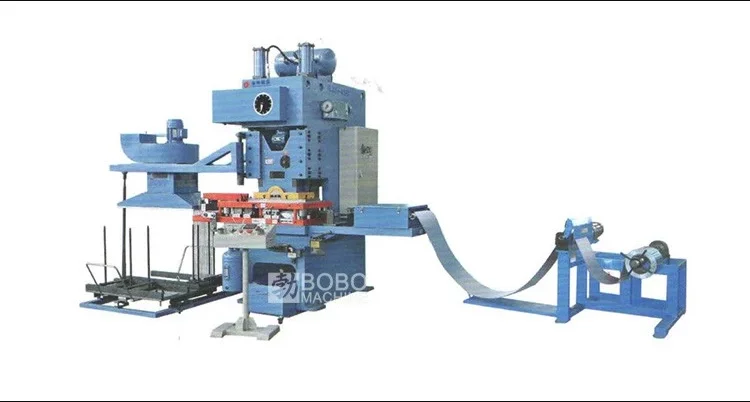

1.JL21 series C-type fins press line for the punching of air conditioner fins is specially intended for meeting the requirements for the produxtion of air conditioner fins. The line mainly consists of uncoiler, oil tank, fin press, suction unit, stacker and relevant electrical control systerm.
2. Imported PLC, counter and contact point free cam controller are adopted to meet the requirements of counting the fins cut collected as well as the function of progress change.
3. Production line of special specifications can be made subject to the user's requirements.



Detailed Images




Model
JL21-45C
JL21-63C
JL21-45B
JL21-63B
JL21-80B
Capacity
KN
450
630
450
630
800
Slide of stroke
mm
40
40
40
60/50/40
60/50/40
Strokes
s.p.m
150-250
150-250
100-180
100-150
90-120
Die height
mm
200-270
210-290
200-270
210-290
220-300
Botton size of slide
mm
500x300
600x350
500x300
600x350
600x350
Size of table
mm
800x580x100
850x580x110
800x580x80
850x580x90
900x600x100
Width of material
mm
300
300
300
300
300
Sucking length
mm
1000
1000
1000
1000
1000
Collecting height of material
mm
600
600
600
600
600
Inner diameter of material rolling
mm
Φ75
Φ75
Φ75
Φ75
Φ75
Outer diameter of material rolling
mm
850
850
850
850
850
Main motor power
kw
5.5
7.5
5.5
7.5
11
Overall diamensions
mm
6500x2500x2330
6500x2500x2500
6500x2500x2500
6600x2500x2800
6600x2500x2800
Total weight
kg
6000
7500
6000
7500
8500
Die height adjustment
Motorised
Manual
Motorised
Overload protect type
Hydraulic
Block shearay
Hydraulic
Speed adjustment
FDI
Signal output
Rotary encoder
Angle display
Pilot pin & diginal mode
Crank bearing way
Roller bearing
Bronze bush


Our Service


Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
