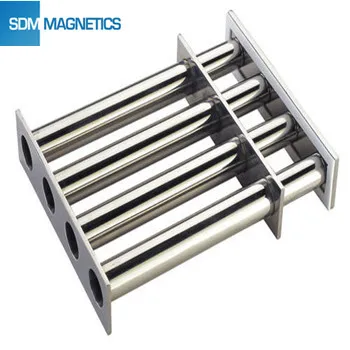

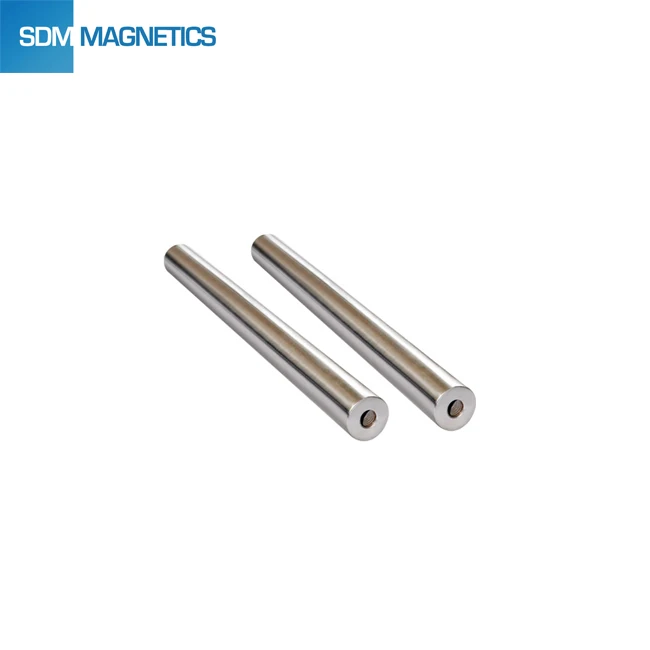

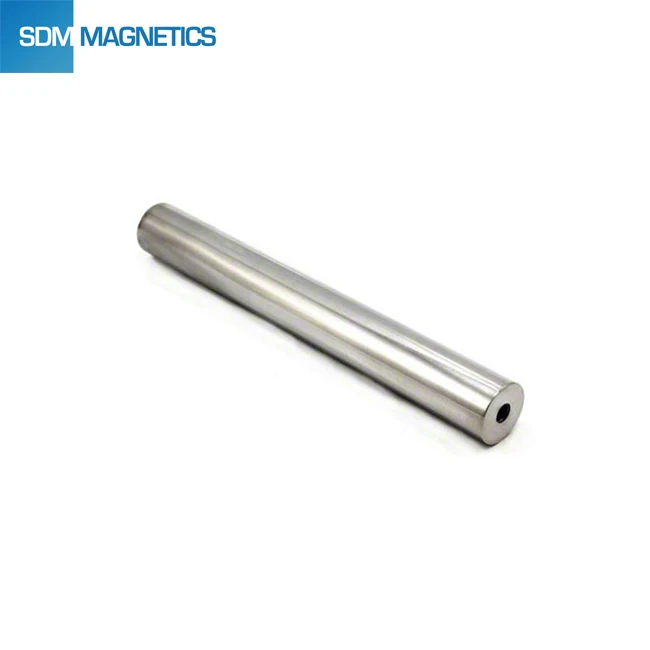

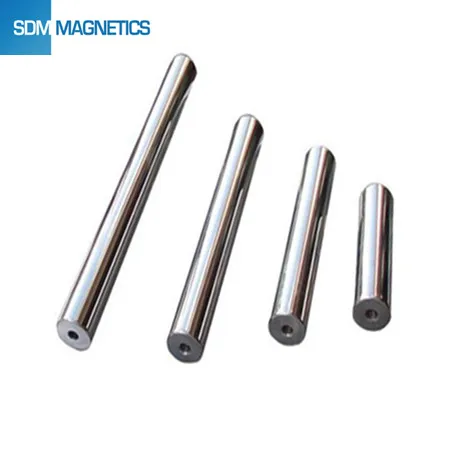

Super Strong 11000 Gauss Filter Magnetic Separator Magnet

Product Overview

Description

Super Strong 11000 Gauss Filter Magnetic Separator Magnet

Product Description

15 Years Professional Neodymium Magnet Manufacturer

             US$ 61,000 Trade Assurance to Secure Your Transaction

               Top 2 Alibaba Neodymium Magnet Supplier

What is magnetic separator magnet?

The filter magnet is a kind of common magnetic assembly, and widely used in many industries. The surface of magnetic filter bar will generate strong magnetic field strength rely on its particular internal designing, then removing iron contained impurities and magnetic substance from pending material. The magnetic filter bar is also the most important component for magnetic separator system. The magnetic filter bar is the main consumers of the permanent magnet industry.





The main parameters of magnetic separator magnet

1. The diameter and length of magnetic filter bar.


2. The Max. Operating Temperature.


3. The working condition of magnetic filter bar.


4. The Max. Surface Gauss Value.


5. The polarity of magnetic filter bar.


6. The request about end faces.

The structure of magnetic separator magnet



The structure of magnetic filter can be divided into four parts:

1. Stainless steel tube.


2. Permanent Magnets.


3. Spacers


4. Stainless steel plug.



The magnet in magnetic separator magnet

The type and grade of the magnet in a magnetic filter bar base on the different requirements of Max. Operating Temperature and Max. Surface Gauss Value. The Ferrite, NdFeB and SmCo can all be applied in magnetic filter bar. It is important to emphasize that the majority of magnets in magnetic filter bar are non-coated magnets. According to the simulation results and practical production experience, the magnet with the sharp corner is more apt to help magnetic filter bar to get higher Max. Surface Gauss Value. In general, there is no need to worry about the magnets in magnetic bar will be corroded, and the chamfer process before surface treatment will remove the sharp corner of magnets.

Production process of magnetic separator magnet



The type of magnetic seperator magnet

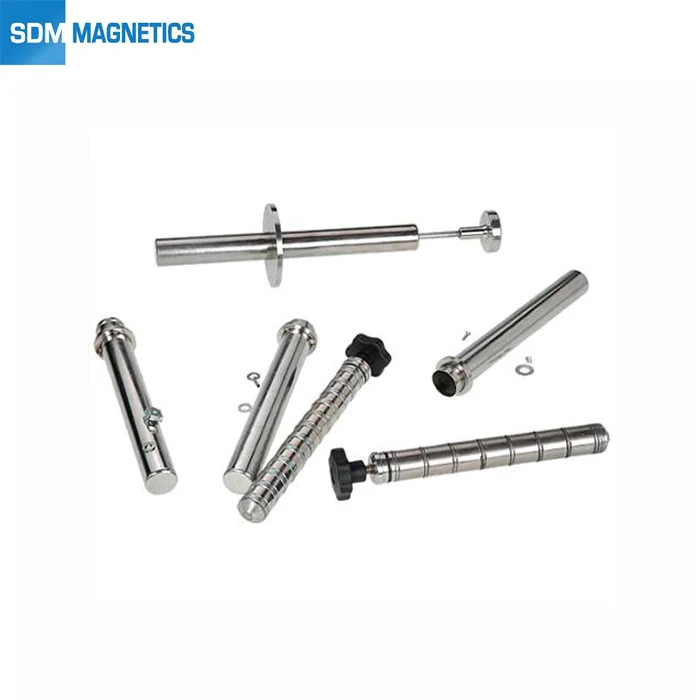

The type of magnetic filter bar can be divided into three types according to magnetic filter bar’s end surfaces:

1. Threaded hole-type.


2. Double screw bolt-type.


3. Tip-type.

The influence of magnet’s dimension on Max. Surface Gauss Value of magnetic separator magnet

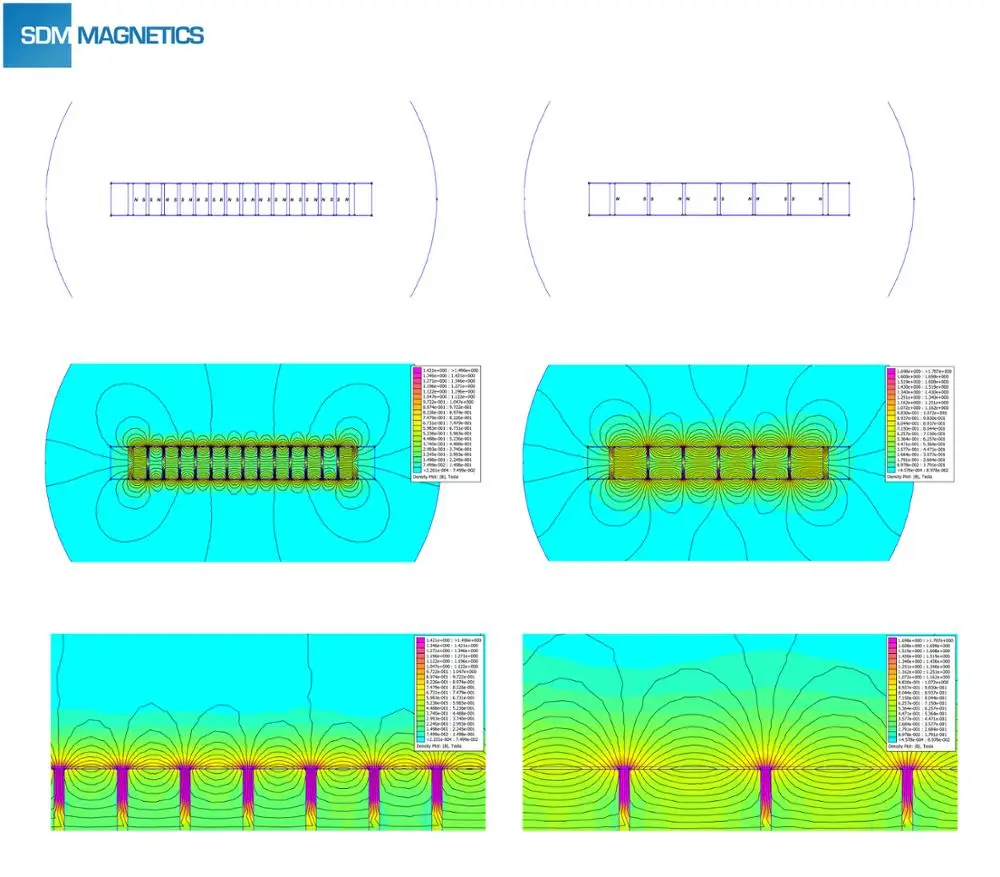

As we can see from the simulation results, the Max. Surface Gauss Value of magnetic filter bar with thick magnet is much higher than thin‘s one under the same grade, then we can find the high gauss magnetic filter bar has larger affected area from the cloud map of magnetic field and magnetic field lines.

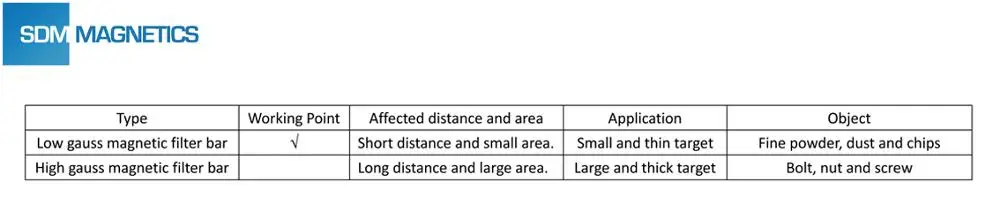

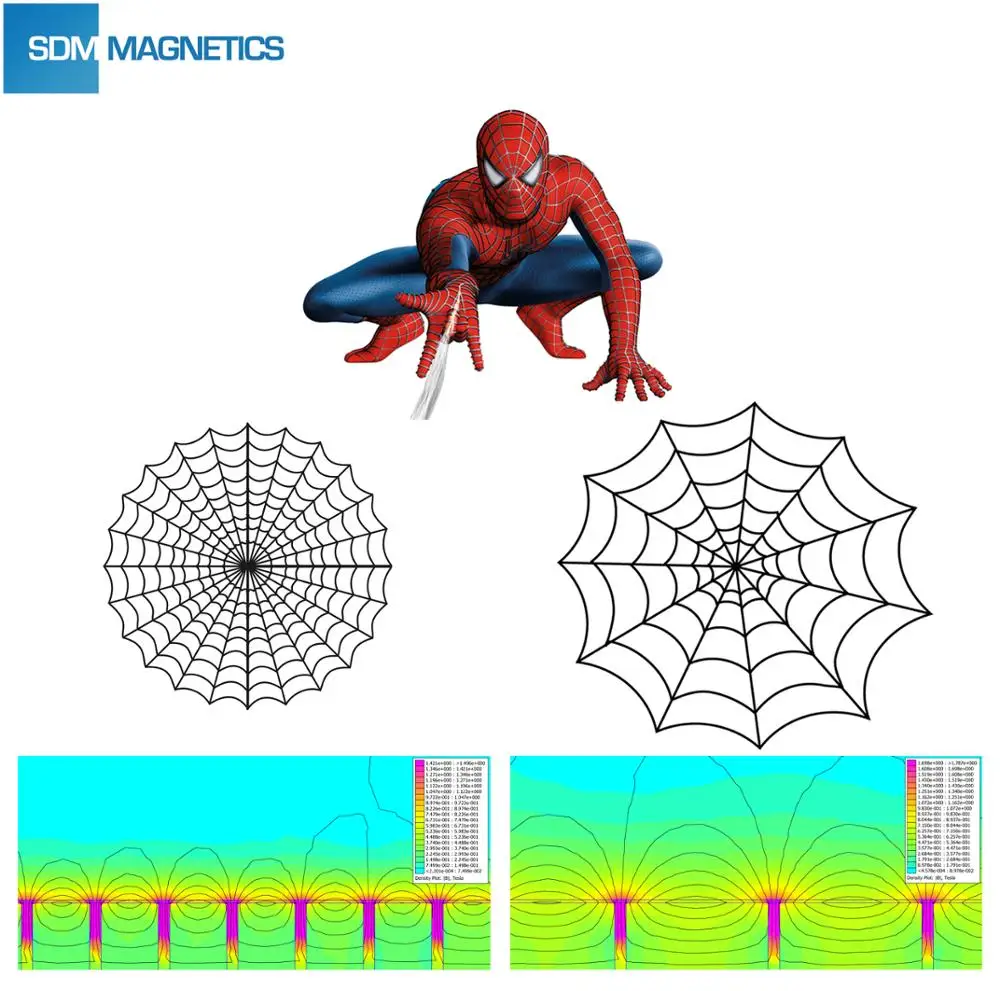

The magnetic filter bar with different Max. Surface Gauss Value has its own application objects. The magnetic field lines form a “spider web” in the space around the magnetic filter bar.

The spider web area of high gauss magnetic filter bar much larger than low-gauss one, and the spider web gap is the opposite. The spider web theory can reveal that the high gauss magnetic filter bars are appropriate for thick and large objects, and low gauss magnetic filter bars are apply to small and thin objects.

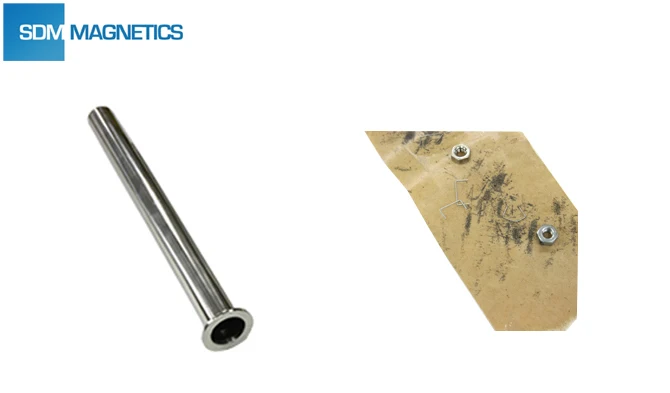

How to clean the surface of magnetic separator magnet?







1.Main QC Equipments

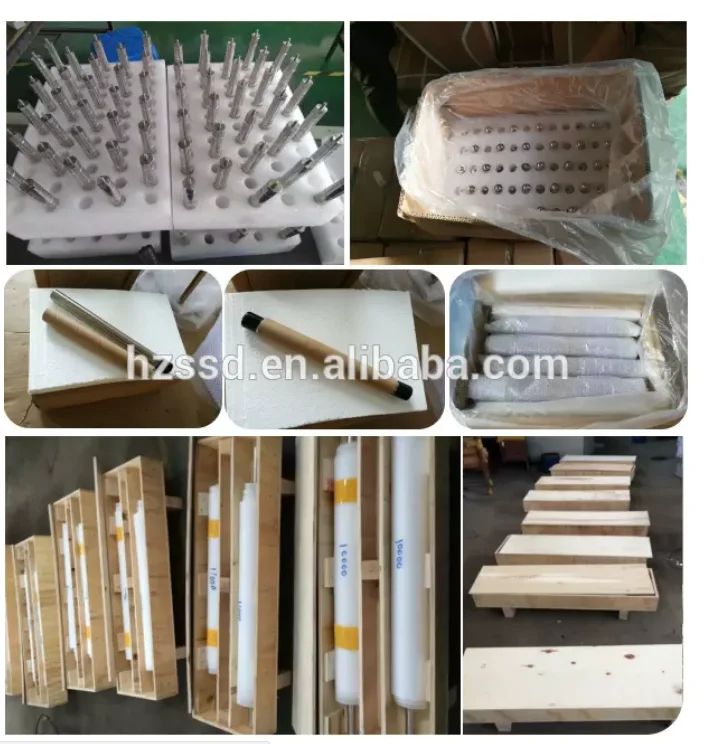

2.Standard Packaging and Shipments

a.Vacuum packing for all magnetic sepearator magnet.

b.Shielding box and wooden box to protect the magnetic seperator magnet in the process of shipping.



3.Exhibitions

a.We attend CWIEME BERLIN every year,Germany.

b.We attend HANNOVER MESSE every year, Germany.

c.We attend CWIEME CHICAGO every year, US.

4.Our Workshops



5.Company Information

Seniority and Integrity

Hangzhou SDM Magnetics Co., Ltd established in 2004 year, over 10 years experience in cable filed. "Quality"and "Integrity"is the life of enterprise. After a long-term development,established a good reputation in the market and amongf the customers.

Technology

We have the advanced manufacturing equipment and quality test equipment for each batch of product testing.Also, we can design and produce every single specification for every customer's different requirements.

Factory

Our factory located in the Tonglu ,Xiaoshan. Total about 2000 employees including 130 production workers ,30QC and 20 engineers. The factory area is 17,000. We have a complete industry chain. And we have our own raw materials supply which decreased the procurement cost.

6.Payments

We accept T/T, Paypal,Western Union,ESCROW and L/C.



7.FAQ

1.How fast can I get a reply?

You will receive our reply within 15 minutes during our work time 08:00-18:00(UTC-8).

2.Can I get free samples?

Free samples are available at SDM warehouse. However it may take minimum 7 days for production if your size is not on our stock list.

3.Are you able to offer best price?

Magnets are functional products,the cost depend on how strong the materials you need. We believe the most suitable is the best, therefore SDM keen to offer best prices to meet your targets.

4.Are you able to provide best quality?

At SDM you receive products under guarantee of ISO9001,ISO/TS16949 systems.

5.What are your best lead time?

Immediately shipments are available for stock magnets. For fresh materials,we need 7-15 days for production.

6.How can you sure that my money is safe with you?

As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payments will not be released to vendor until buyer confirms receipt and good material of delivery.
