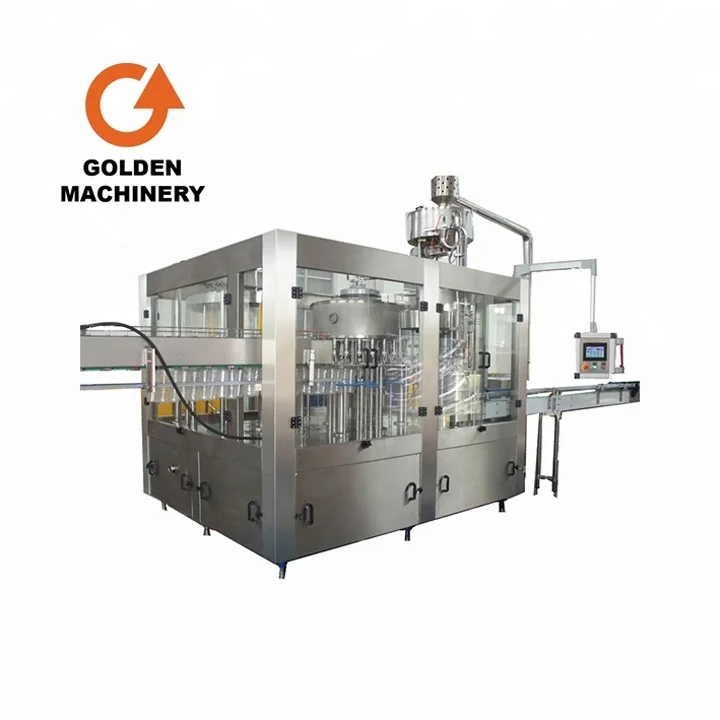

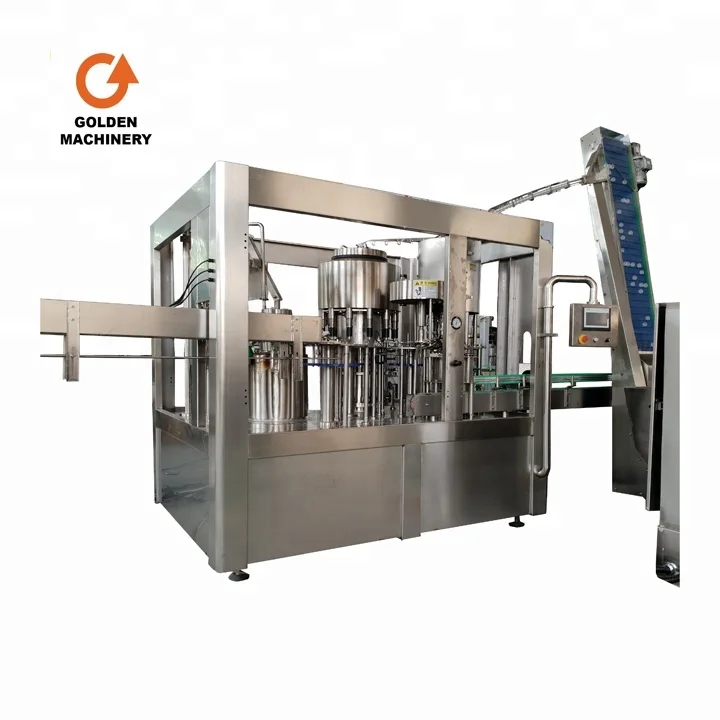

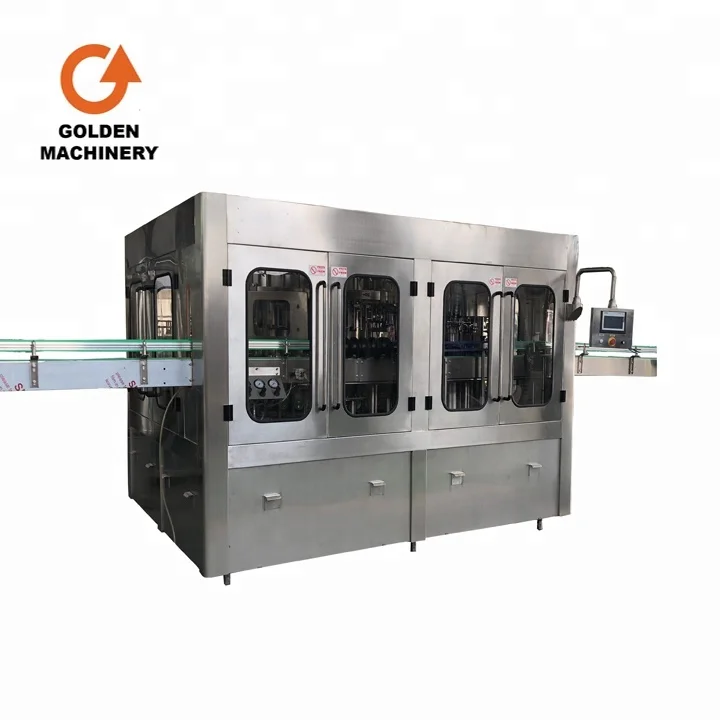

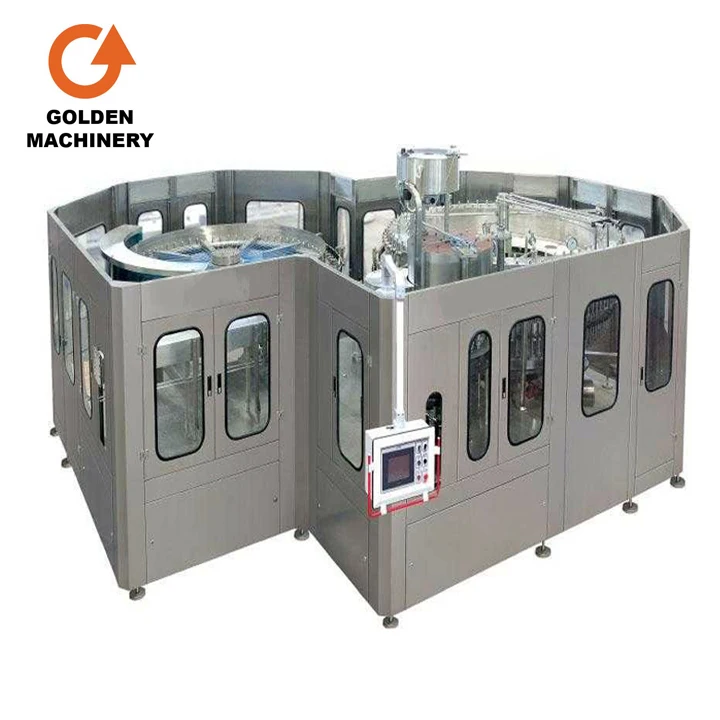

Natural Water Filling Machines

Product Overview

Description

 full automatic Natural Water Filling Machines



Main Feature:

1. This machine has a compact structure, perfect control system, easy to operate and highly automated.
2. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
3. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
5. This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
6. Equipped with perfect clean management system to ensure the bottle clean.
7. Only by changing the star-wheel, can realize to fill the changed bottle shape.
8. The machine adopts perfect overload protective device can ensure the operator and machine safe.
9. This machine adopts adjustable frequency converter.
10. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12. The electric components and pneumatic components are all introduced from world famous brand products.



Origin of Main Parts



Item	Part Name	Brand name
1	Frequency converters	MITSUBISHI
2	PLC	MITSUBISHI
3	Touch screen	MITSUBISHI
4	Electricity panel	Well organized
5	Photoelectricity Control parts	OMRON
6	Pump	CHINA



 Washer





Filling and Capping Machine







   This series of Automatic PET Bottle Filling Line are applied to used in production of PET bottle-packing water ,such as mineral water,pure water,drinking water and other non-carbonated beverage, it integrates bottle washing, filling and capping into one body of this machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.

Main Technical parameters
Model	CGF16126	CGF18186	CGF24248	CGF32328	CGF404010	CGF50-50-12	CGF60-60-15
Heads of washing ,filling , sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15
Production  capacity (bottle/hour)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000
Suitable bottle diameter(mm)	φ=50-100 H=170 330-1500ml
Spraying pressure	2~3
Motor power	Main  motor 1.5kw	Main motor 2.2kw	Main motor 3kw	Main motor 4kw	Main motor 7.5kw	Main motor 9.5kw	Main motor 12kw
Power of outer vacuum  pump	0.75	1.1	1.5	2.2	2.2	3	4
overall dimension (LxWxH)	2100x 1400x 2500	2460x 1720x 2650	3100x 2100x 2650	3500x 2500x 2650	4600x 1800x 2650	5200x 4500x 3400	6500x 4500x 3400
Weight	2500	3500	4200	5500	6800	7600	9800
