Spot Laser Welding Machine for stainless and aluminum letters
- Category: Laser Welders >>>
- Supplier: Weifang Handun Cnc Equipment Co. Ltd.
Share on (60811520045):
Product Overview
Description
Product Description

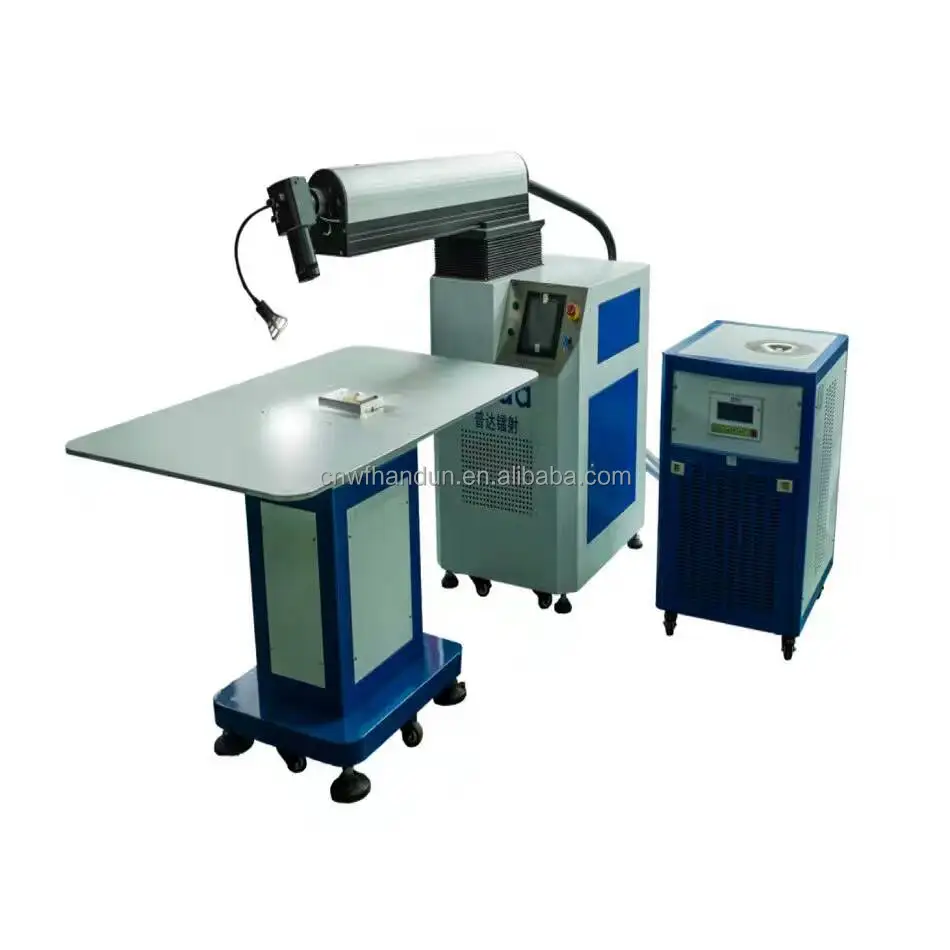

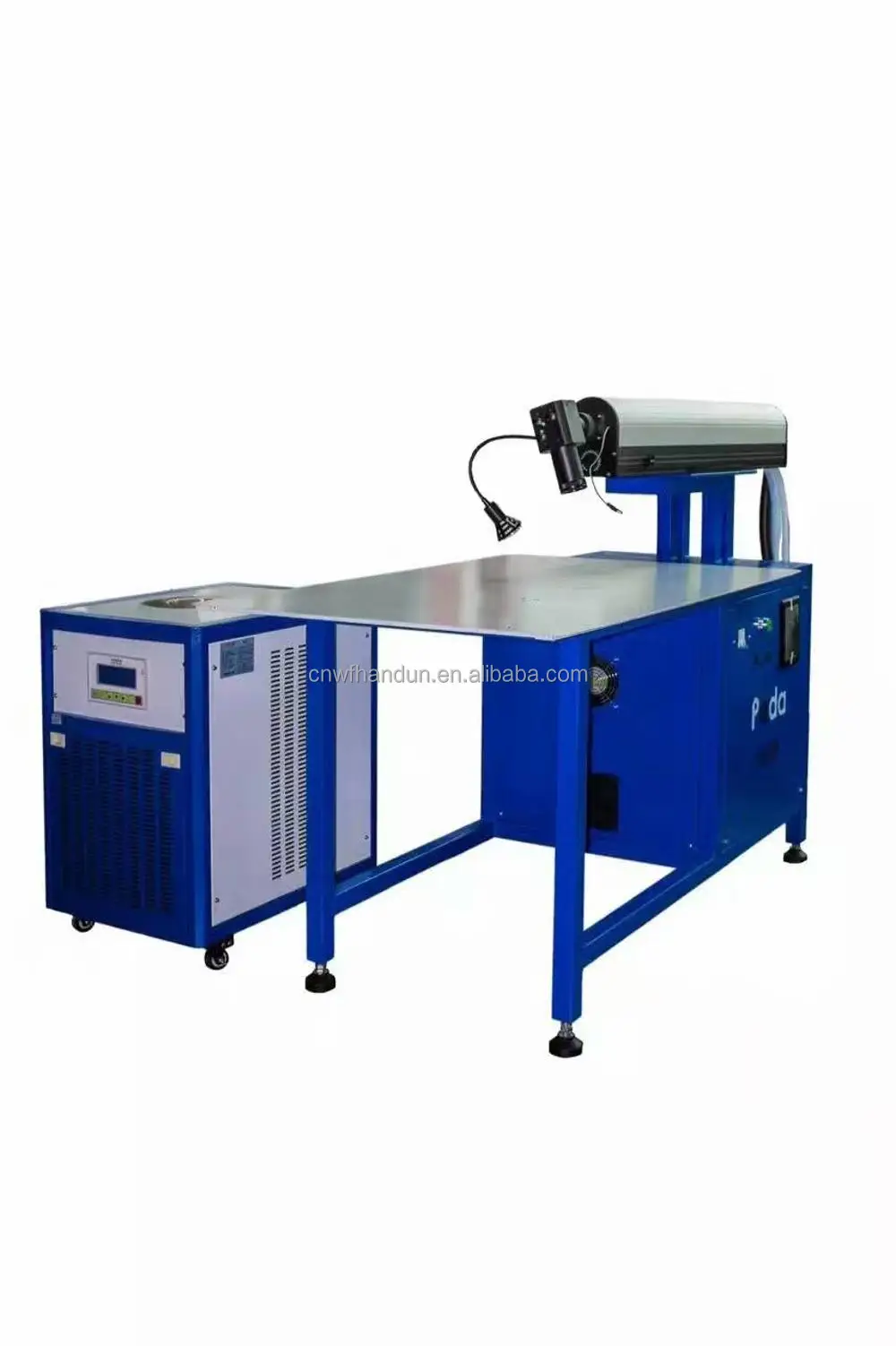

Spot Laser Welding Machine for stainless and aluminum letters
Product Advantages
PD-AW300T-Ⅱ/AW500T-III advertisement word laser welding machine has a substantial upgrade compared with the origin I type:
Overall use of streamline;
Operation mode is more humanized
Working radius is greater, while the overall size is reduced;
Working table is used upgrade tempered glass and more smooth;
Modulation of the laser power and laser is designed for galvanize sheet material, welding effect is better.
Use ceramic chamber cavity which have longer life with high energy efficiency;
Integrated Structure; easy to adjust welding method;
Large worktable; it can be applied to all kinds of metal advertising words welding;
Small heat deformation is small and firm without penetration;
Unique appearance design; wider processing scope and powerful processing ability;
Stable power supply; high peak power; it is good for galvanized plate welding;
With Long focus, it is suitable for welding relatively thick (deep) font;
Special welding CCD observation system used and will not cause any harm to human eyes,and thus it can endure long-time operation.
Laser Welding Machine Technical Parameters
Item | Model | PD-AW300T-Ⅱ, III | PD-AW500T-III |
Parameter name | Parameter Value | ||
Laser Parameters | Maximum laser output power | 300W | 500W |
Laser wavelength | 1064nm | ||
Maximum laser pulse energy | 50J/10ms | ||
Pulse Width | 0.5-10ms | ||
Laser pulse frequency | 0.5-60Hz | ||
Spot size | 0.2mm– 1.5mm | ||
Positioning Systems | Red Location/CCD | ||
Other Physical Characteristic | Countertops | 800×1200mm | |
Table load | |||
Host maximum power consumption | 6KW | 11KW | |
Cooling System | Forced integration Chiller 3P | ||
Electricity demand | 220V±5%,50Hz,40A | ||
Environment | Clean, Dust-free, No vibration, 13ºC-28ºC, Humidity 5%-75% | ||
Workshop Display

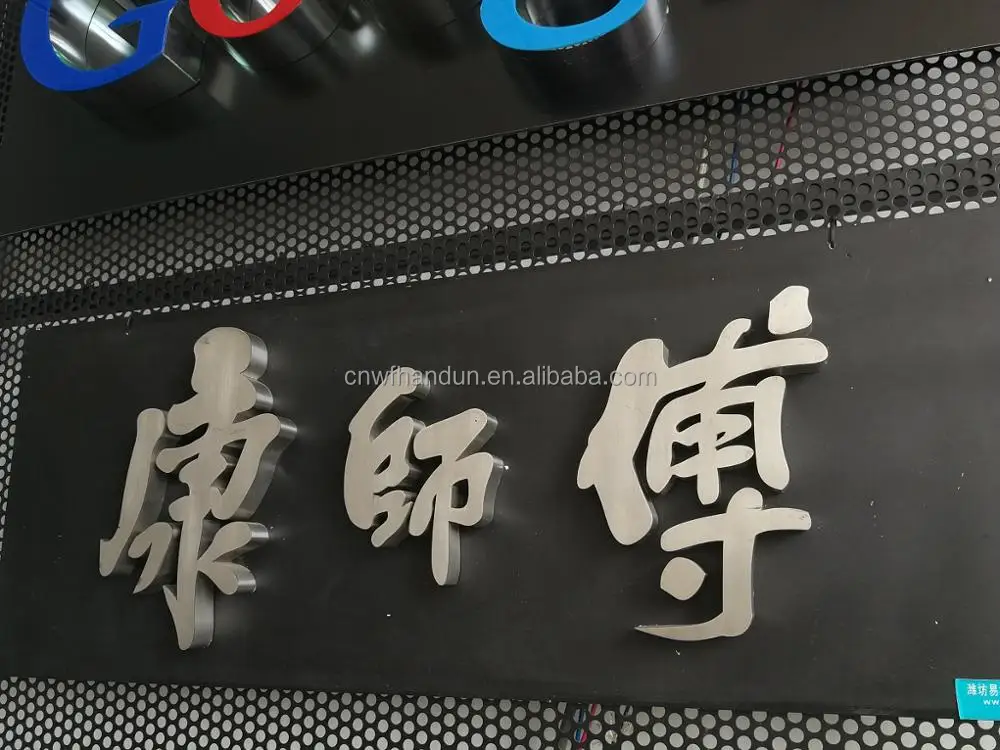

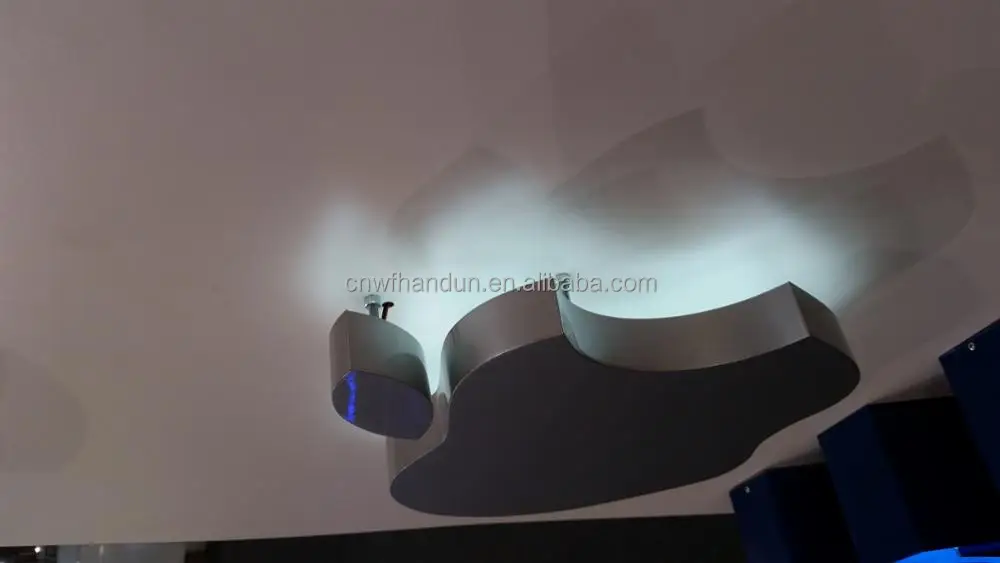

Letter Samples

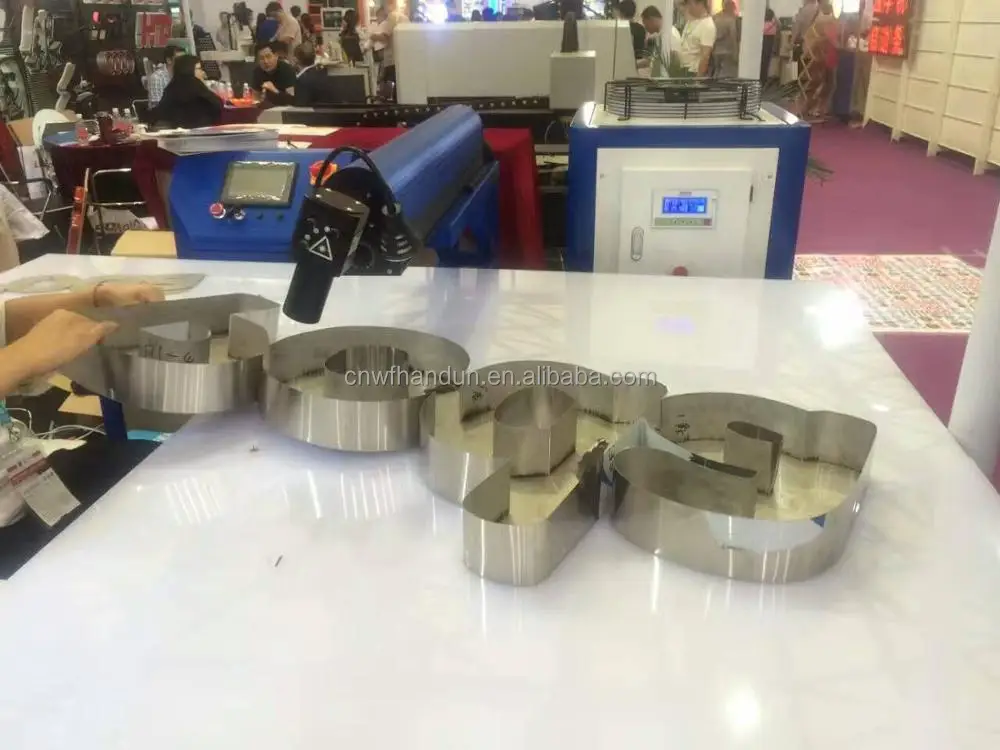

Trade Shows
Certifications
CE certificate, US Patent, Invention Patent
