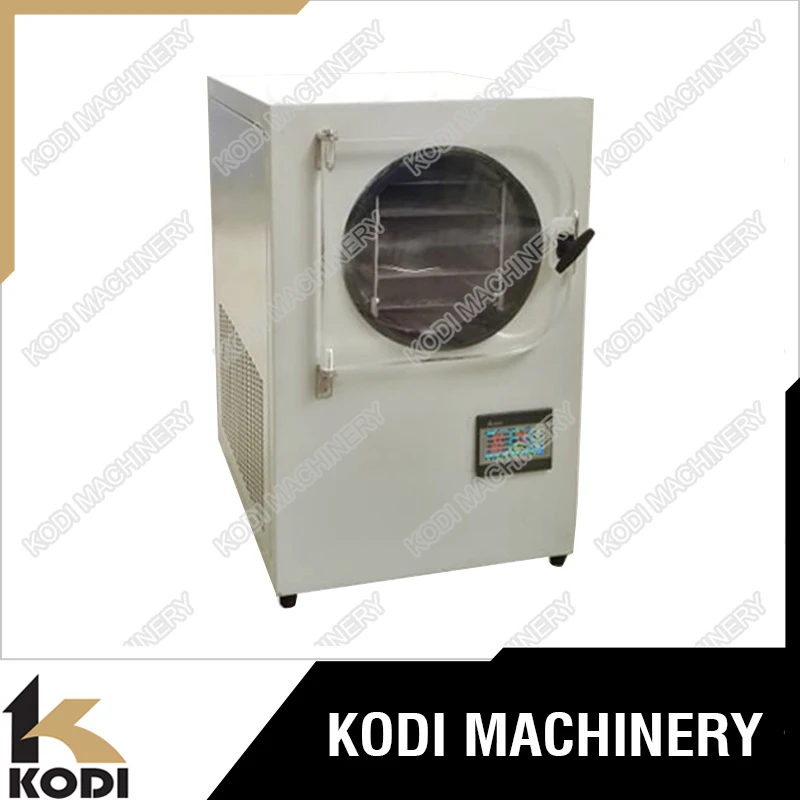

Food Industry Mini Vacuum Freeze Dryer For Home or Lab Use
- Category: >>>
- Supplier: Changzhou Kodi Machinery Co. Ltd.
Share on (60811524777):
Product Overview
Description
Food Industry Mini Vacuum Freeze Dryer For Home or Lab Usee
1. Freeze Dryer / Mini Freeze Dryer / Mini Vacuum Freeze Dryer
2. Made of SS304
3. Easy operation and maintenance
4. GMP standard
Product Description
Mini Vacuum Freeze Dryer Introuction
The major parts of KODI VMini Vacuum Freeze Dryer are imported from other countries, characterized by stability and reliability and many other advantages, such as good-looking appearance, small volume, light weight and easy operation. They can be widely applied to many fields, such as foods, biological products, chemical engineering, traditional Chinese medicinal materials and health care products. Because the drying process is carried out at low temperature, it can be used for some materials such as proteins, which are easy to be denatured at high temperature, and can ensure that the properties of other compounds will not change.

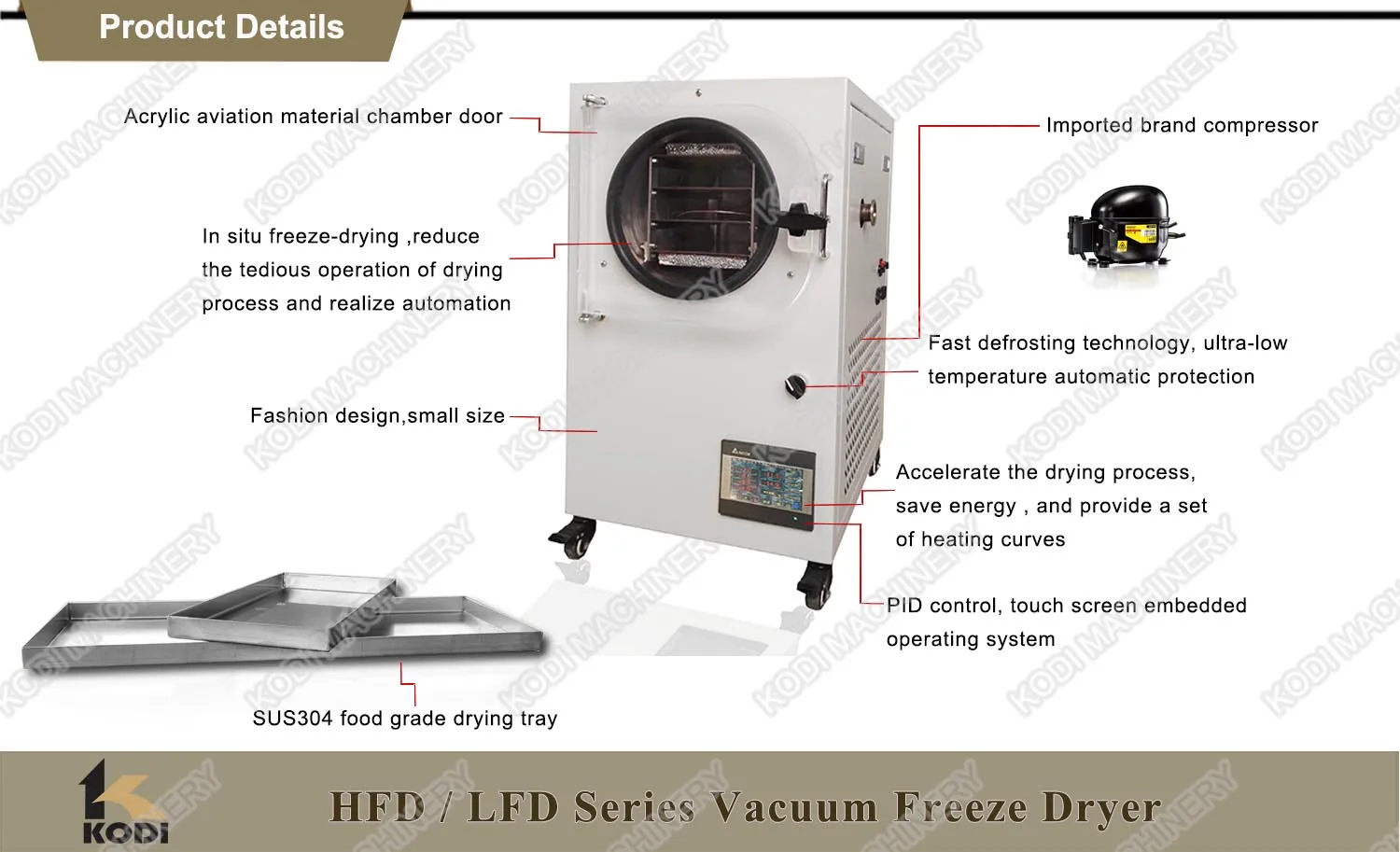

Mini Freeze Dryer Features:
1. The appearance is fashionable and the dimension is small and exquisite.

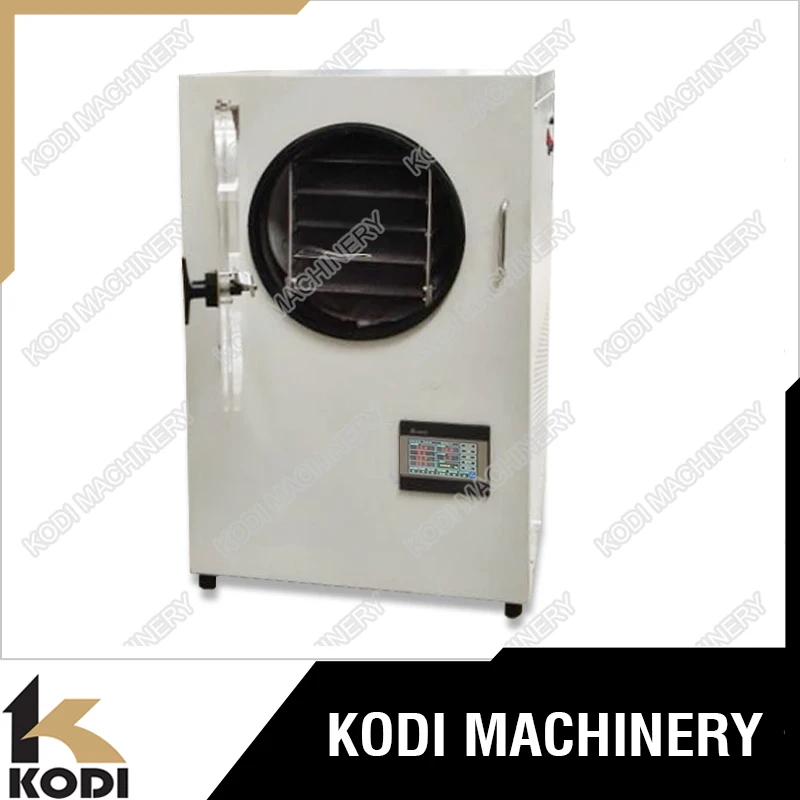

2. The transparent organic glass door is helpful in observing the freeze-drying process of materials.

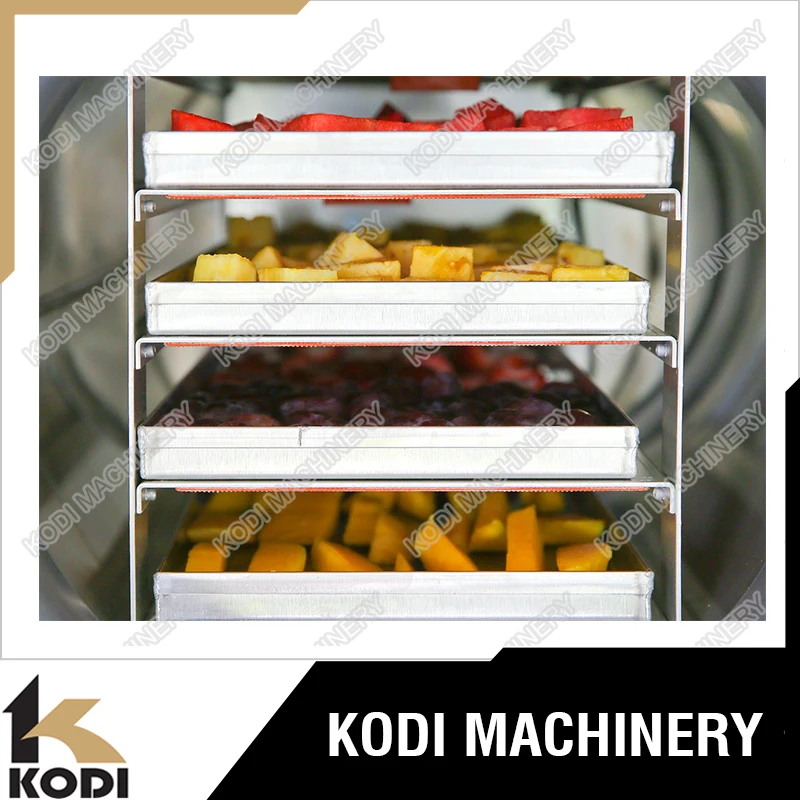

3. Dish and inner tank are made of SUS304 stainless steel, which guarantees the safety of product.
4. The imported key components are characterized by low noise, great power, high quality and high performance.
5. Operate on touch screen, one key start and automatical control freeze-drying process, easy and convenient operation.
6. Set and real-timely adjust freeze-drying technology by requirement and show the freeze-drying data and curve.
7. Advanced system, small running current and low energy consumption.
8. Fast defrosting tehnique and automatic protection for overheat.
9. Patented products with advanced technology.

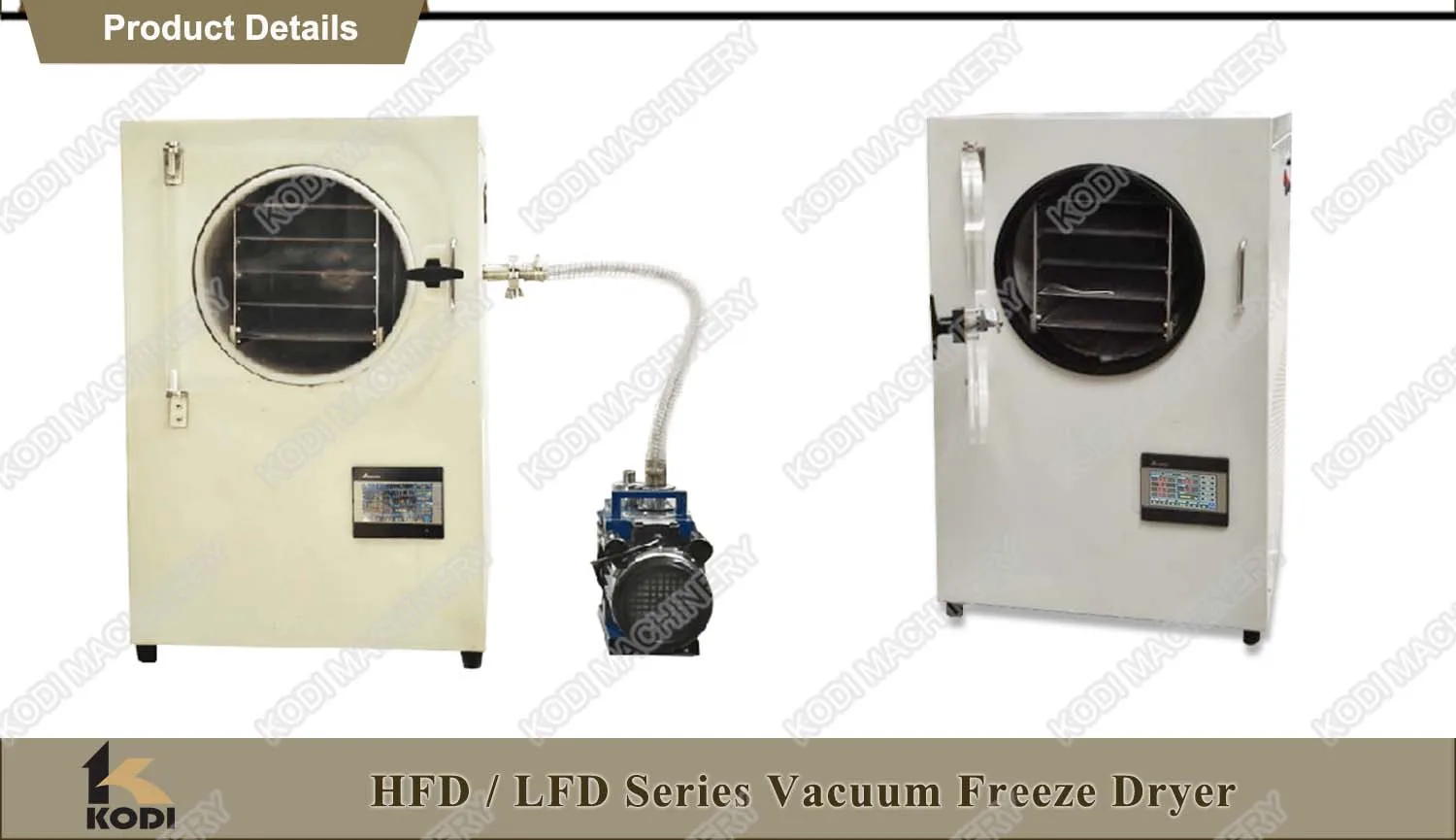

10. The vacuum pump is connected by international standard KF quick connector.
Mini Vacuum Freeze Dryer Operating principle
Mini Vacuum Freeze Dryer is one of the gentlest ways to dry. It is based on the sublimation principle, that is, the solid phase directly into the gas phase of this physical phenomenon. The freeze-dried material is placed in a vacuum drying chamber for drying, and the water vapor produced by the cold trap is condensed to form ice, so as to achieve the purpose of eliminating water vapor. Vacuum pump is used to discharge the air in the drying room, not including water vapor.
The baffle plate is provided with a heating device, and the heat is transferred to the material through the conduction function to provide the energy needed for sublimation. When the free water in the material is sublimated, the internal bound water can also be removed from the material at a very low vacuum. This drying process is considered to be the last stage of drying, analytical drying.
Mini Freeze DryerTechnical Parameters
Model | TF-HFD-1 | TF-HFD-4 | TF-HFD-6 | TF-LFD-1 | TF-LFD-4 | TF-LFD- 6 | TF-LFD-1A | TF-LFD-4A | TF-LFD-6A |
Lyophilizing acreage(m2) | 0.1 | 0.4 | 0.6 | 0.1 | 0.4 | 0.6 | 0.1 | 0.4 | 0.6 |
Cold trap temperature(℃) | -40 | -45 | -60 | ||||||
Ultimate vacuum(Pa) | 15 | 15 | 10 | ||||||
Material handing capacity(kg/Wholesale) | 1-2 | 4-6 | 6-8 | 1-2 | 4-6 | 6-8 | 1-2 | 4-6 | 6-8 |
Shelf Spacing(mm) | 45 | 45 | 50 | 45 | 45 | 50 | 45 | 45 | 50 |
Power Supply | 220V;50HZ | 220V;50HZ | 220V;50HZ | ||||||
Power(W) | 750W | 1100W | 2300W | 750W | 1100W | 2300W | 1700W | 2500W | 4500W |
Equipment weight(Kg) | 50 | 80 | 120 | 50 | 80 | 120 | 50 | 80 | 120 |
Shelf Dim(mm) | 140*278; 3floor | 200*450 4floor | 300*400 5floor | 140*278; 3floor | 200*450 4floor | 300*400 5floor | 140*278; 3floor | 200*450 4floor | 300*400 5floor |
External Dimensions(cm) | 40*55*70 | 51*70*85 | 70*80*130 | 40*55*70 | 51*70*85 | 70*80*130 | 55*62*85 | 60*70*105 | 70*80*130 |
Packaging & Shipping
Company Information
Why Choose KODI
International high quality certification product chain
Manufacturer, more reasonable price
Solid technical support and after-sales service
Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
Exports to more than 20 countries and regions, good customers feedback
One-stop service, customized exclusive project feasibility report
Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in Freeze Dryer / Mini Vacuum Freeze Dryer / Mini Freeze Dryer, high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Our Services
Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
FAQ
Special Notice:
In order to quota you the right freeze dryer / Mini Vacuum Freeze Dryer / Mini Freeze Dryer with best price , we would like to get the following information include in your inquiry:
-What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
-What is the capacity per hour you need (kg/h)?
-What is the initial moisture and final moisture of finished products you require to get?
-What about the maximum heat temperature of raw material?
-What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
-Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
-Provide us your country’s electricity information, such as phases, voltage, HZ?
-How about dust collect requirements?
-Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
