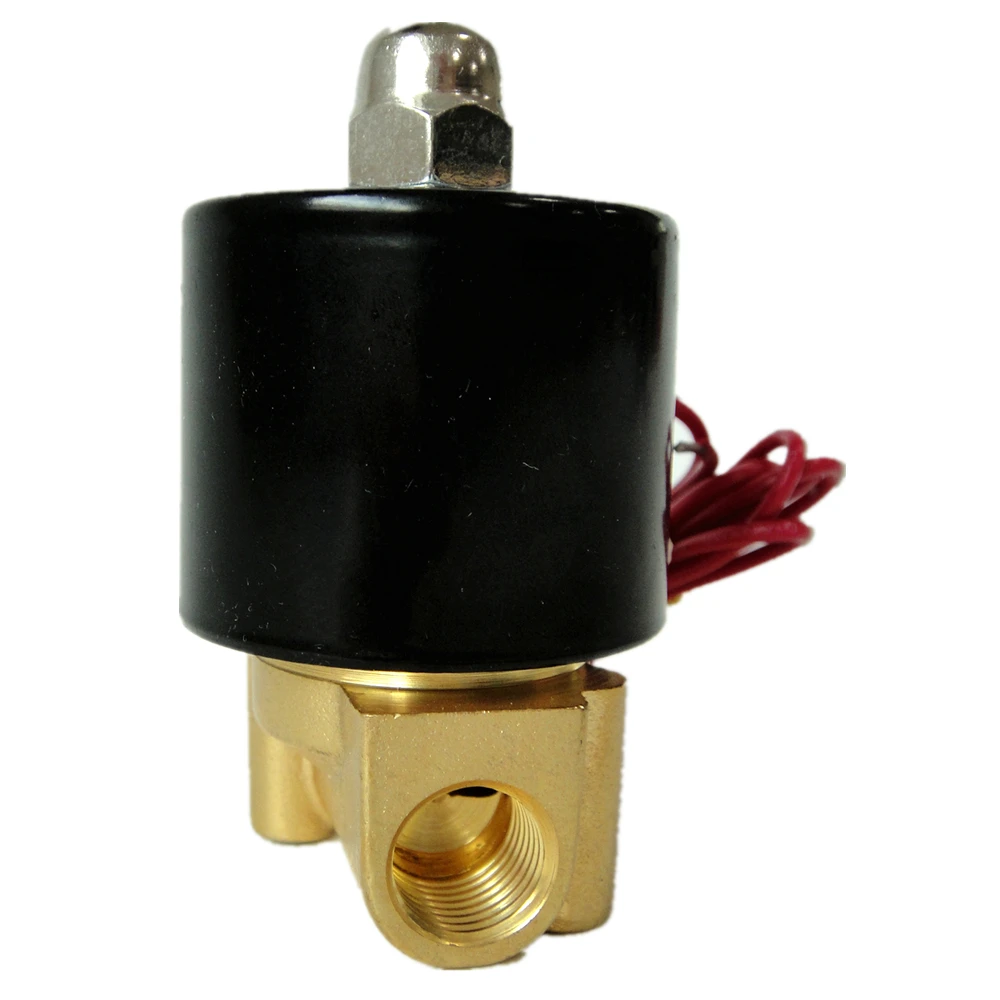

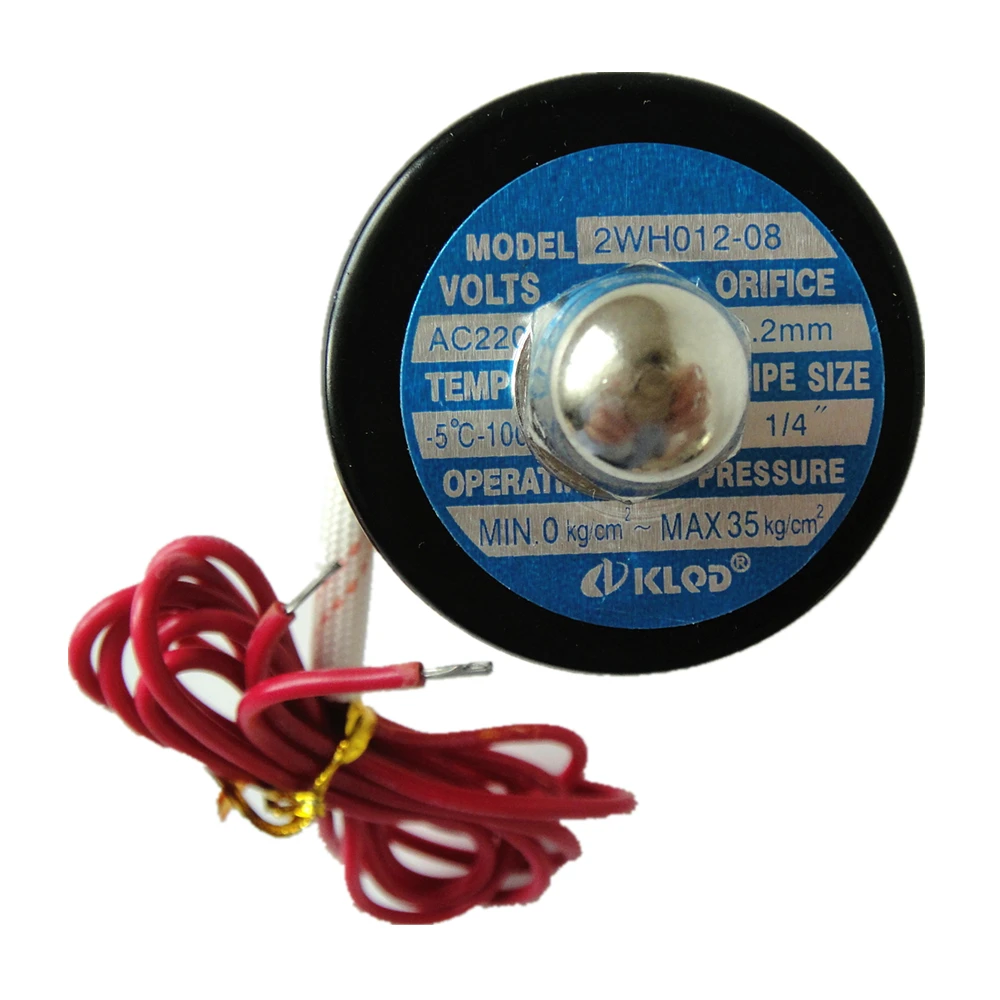

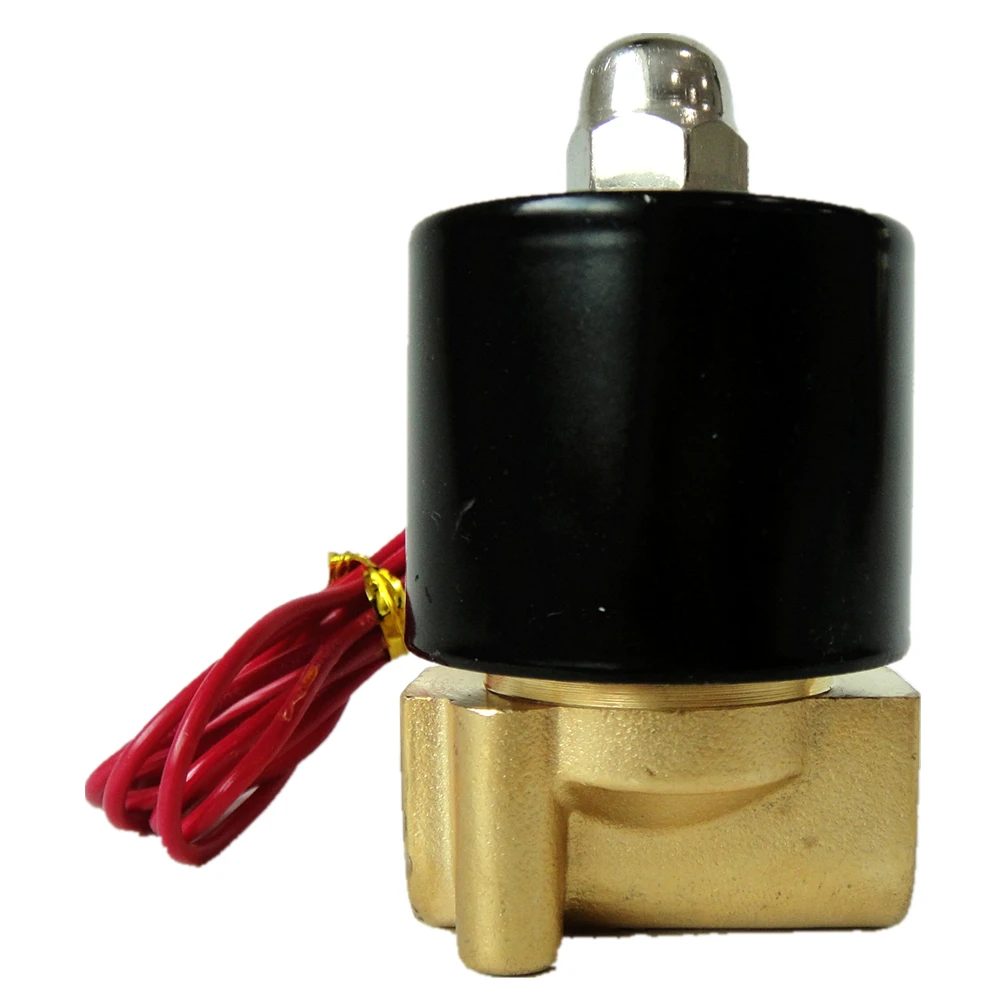

2WH012 08 Direct Acting High Pressure 220V AC Water Solenoid Valve

Share on (60811535838):


Price:

Quantity:


Product Overview

Description


Product Description

2WH012-08 Direct Acting High Pressure 220V AC Water Solenoid Valve

\t
Ordering Code
\t
2W
\t
025
\t
08
\t
B
\t
S
\t
E
\t
AC110V
\t
Specification Code
2W:2/2Way Direct Acting
2WH:2/2Way Solenoid Valve for High Pressures
\t
Orifice Size
012:1.2mm
020:2mm
025:2.5mm
040:4mm
\t
Port Size
06:ZG1/8''
08:ZG1/4''
10:ZG3/8''
\t
Blank:Brass
B:Stainless Steel
\t
Blank:Round Coil
S:Square Coil IP65
\t
Sealing Material
Blank:NBR
E:EPDM
V:VITON
S:SI
\t
Standard Voltage
DC12V
DC24V
AC24V 50Hz/60Hz
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz
AC380V 50Hz/60Hz
\t
Specification
\t
Model
\t
2W025-06
\t
2W025-08
\t
2W025-10
\t
2WH012-06
\t
2WH012-08
\t
2WH020-10
\t
Working Medium
\t
Air,Water,Oil,Gas
\t
Operation
\t
Direct Acting
\t
Acting Type
\t
Normally Closed
\t
Orifice Size(mm)
\t
2.5
\t
4
\t
1.2
\t
2
\t
CV Value
\t
0.23
\t
0.60
\t
0.05
\t
0.15
\t
Port Size
\t
ZG1/8''
\t
ZG1/4''
\t
ZG3/8''
\t
ZG1/8''
\t
ZG1/4''
\t
ZG3/8''
\t
Operation Fluid Viscosity
\t
20CST Below
\t
Operating Pressure
\t
Air,Water,Oil,Gas:0~0.7MPa
\t
Air,Water,Oil:0~0.2MPa
\t
Max.Pressure Resistance
\t
1.0MPa
\t
3.5MPa
\t
Operating Temperature
\t
NBR for -5~80℃ and VITON for -5~150℃
\t
Voltage Range
\t
-10% or +10%
\t
Material of Body
\t
Stainless Steel or Brass
\t
Material of Oil Seal
\t
NBR,EPDM or VITON
Detailed Images
Packing & Delivery
Payment
Our Company

NingBo Kailing Pneumatic Co ,LTD. is a professional company engaged in the production of Solenoid Valves and pneumatic parts.Our company has strong techologies and high capability in research and development of new products.The company has fine workmanship amd perfect inspection techniques. The products include Solenoid Valve , Air source treatment unit , control element and executive element etc which are widely used in industries such as machinery , metallurgy, food , textile and environmental protection.

FAQ

Q1. Is sample order acceptable?
A: Yes.It's ok.

Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.

Q3. How many days for delivery?
A: We have stock for standard products.

Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C,

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.


Waiting for your inquiry!
