SWT-383m 36V 3 phase stepper motor driver for cnc NEMA17, 23, 24 and 34 stepper motor for cutting machine

Share on:


Price:RUB 2,638.47 - RUB 4,533.92
Price in USD:Details

Quantity:


Product Overview

Description

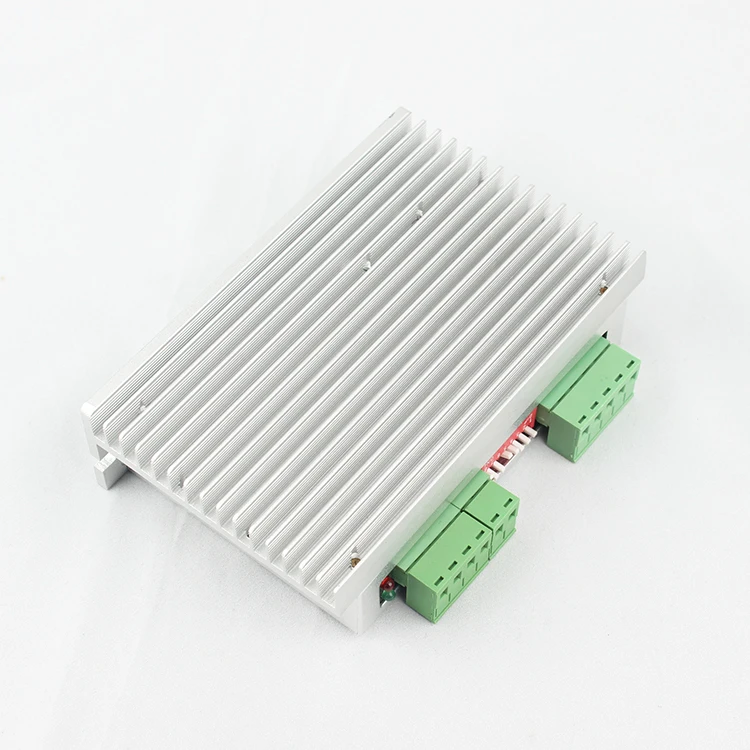

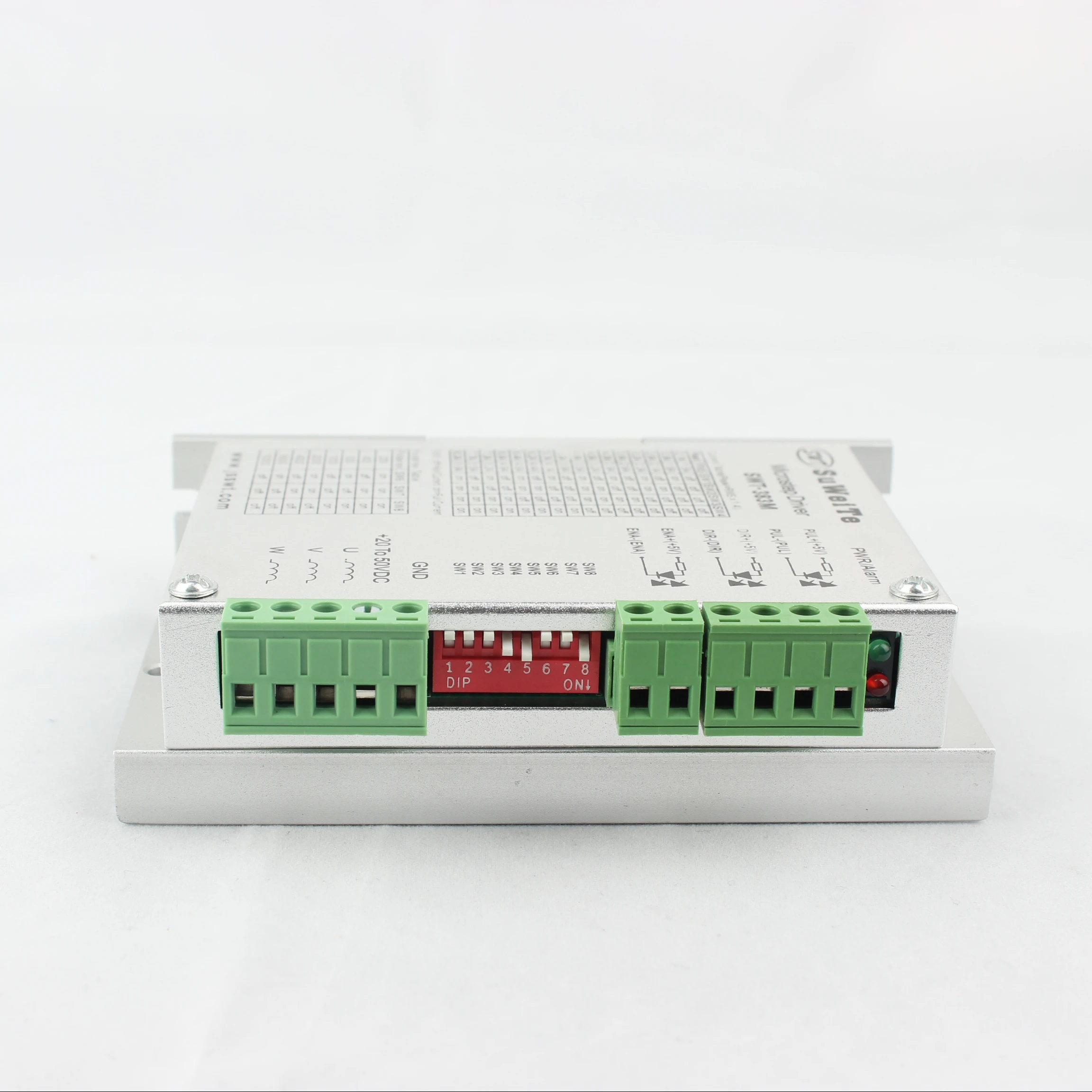

SWT-358M 3 Phase Stepper Motor Driver


SWT-358M is a high-divided three-phase stepper drive designed by the company using precision current control technology. It is suitable for driving various brands of three-phase stepper motors with 57-86 frame numbers. Thanks to the advanced and pure String current control technology, motor noise and smooth running performance are significantly improved. Compared with most other subdivided drive products on the market, the SWT-358M drive and the matching motor have a heat loss of 15% to 30%. Moreover, the SWT-358M driver and the matched three-phase stepping motor can improve the position control accuracy, so it is especially suitable for high requirements where low noise, low motor heat and high stability are required.








STP/ROTATE

SW6

SW7

SW8

200

ON

ON

ON

400

OFF

ON

ON

500

ON

OFF

ON

1000

OFF

OFF

ON

2000

ON

ON

OFF

4000

OFF

ON

OFF

5000

ON

OFF

OFF

10000

OFF

OFF

OFF


Extra-low motor noise offers excellent quietness.
Industrial-grade Stepper Driver.
Suit for 3-Phase Nema 17, 23 and 34 Stepper Motor.
Output Current: 1.0 ~ 8.0A, Supply Voltage: 18 ~ 50VDC.
Application areas: engraving machine, filature, wire-stripping machine, marking machine, cutting machine, die bonder, plotter, numerical control machine, automatic assembly equipment etc.

--details_07.jpg--details_08.jpgChangzhou Vic-Tech Motor Techology Ltd. is a professional  manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.--details_10.jpg--details_11(1)

1. How about the quality of products in your company?

We have high and best quality products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guarantee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1%.

2. Are you a manufacturer?

Yes, we are a manufacturer, not agent. We have own factory, which is located changzhou, CHINA. We have a leading power in producing and exporting galvanized steel pipe etc. I promise that we are what you are looking for. and Welcome you to contact us !--details_13.jpg
