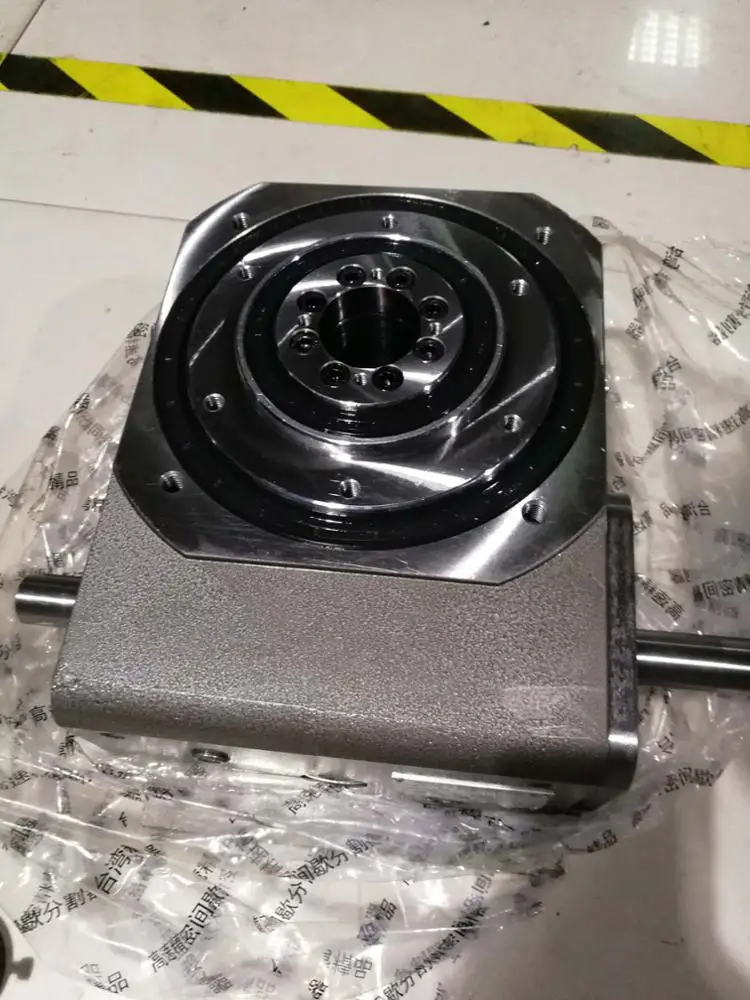

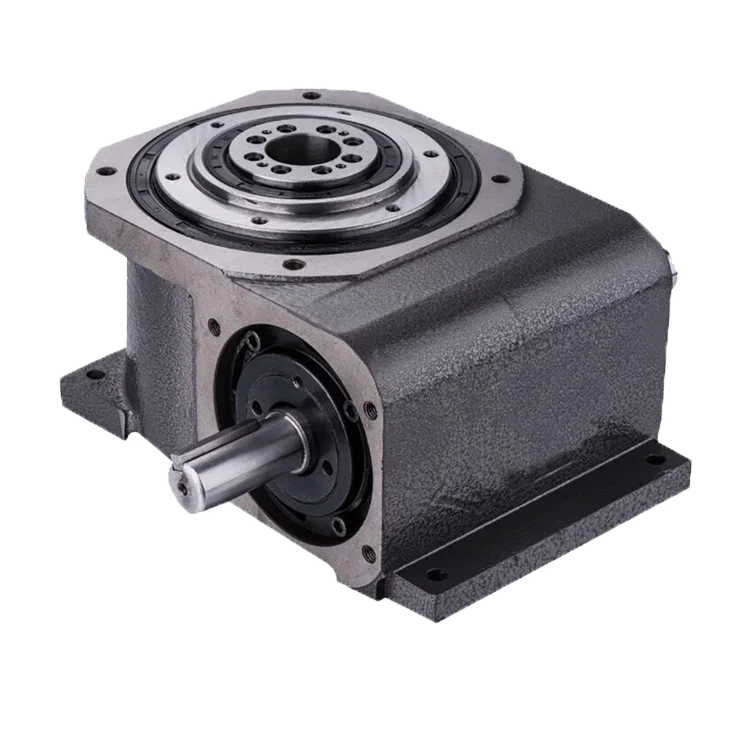

190DA Series Cam Indexer

Product Description:

<

Brand:chengchang

Product certification:ISO9001

Processing customization:Yes

Disk diameter:700-1500mm

Bearing weight:0-200KG

Mainly applied to: Automaic assembly machine, printing press

Location and segmentation of equal parts:2,3,4,5,6,8,10,12,16,20,24,30,32,36,40,48

Driving angle:90°,120°,150°‘180°,210°,240°,270°,300°

Cam curve: deformation curve, deformation sine curve and deformation velocity curve.

Rotation direction of cam: left and right.



Standard accuracy:±30 seconds, customizable±15 seconds high precision.

Weight:180kg   torque limiter (TL): 750   lubricant:90-140#

 Matching motor: 2.2KW   motor speed at 1400 or 1450.

Advantage:

One. Durability

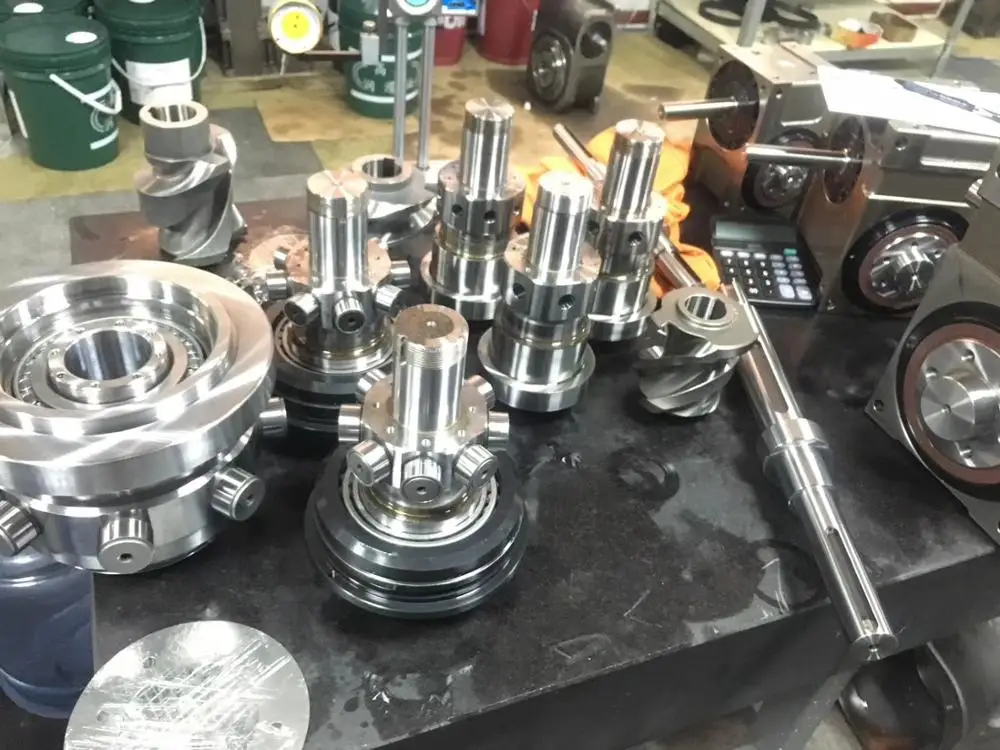

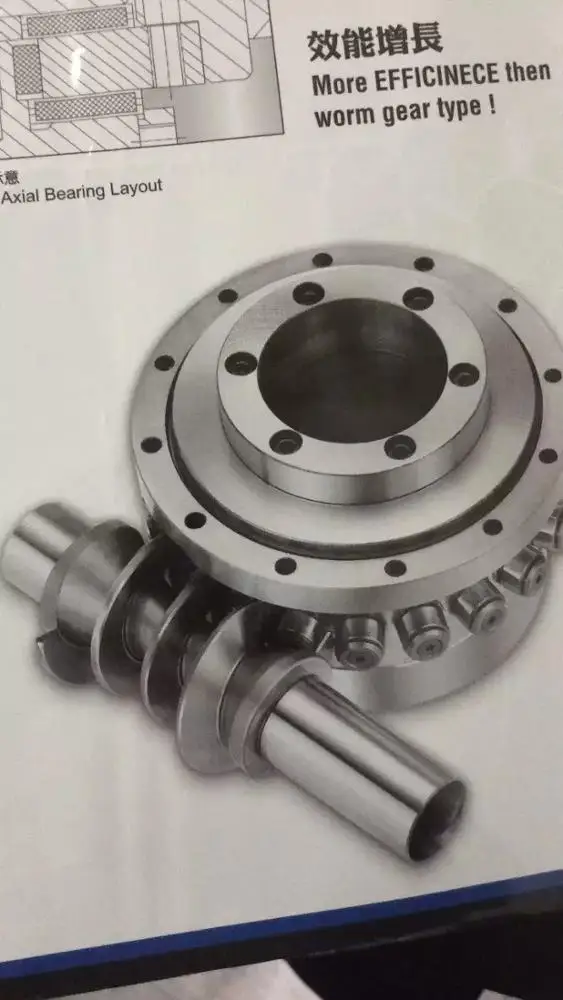

1. cam processing technology is carburizing and grinding, the hardened layer is about 5mm.

2. surface spray paint is diaphragm type dry antirust oil.

3. the internal bearing is imported from Japan, NSK/NTN.

Two. Price concessions. In the same quality, our price is the most favorable.

Three. Large quantities of stock.

Parameter table:



All    Allowable radial load of output shaft (C1):     1838 kgf

Max.repetitive torque on input shaft(C5): 61kgf-m

All     Allowable axial load of output shaft (C2):       918  kgf

CD² on input shaft(Note1): 0.105kgf-m²

All     Allowable torque of output shaft (Ts): Reference torque table

Indexing accuracy: ±30 Sec.

All     Allowable  radial load of intake shaft (C3):     510 kgf

Weight:180 kg

Ma    Max.repetitive bending force on input shaft (C4): 510 kgf



Note1:CD² on input shaft is value dwell ragne .           Note2:Value of c1 to c5 are those obtained for safety factor=2.

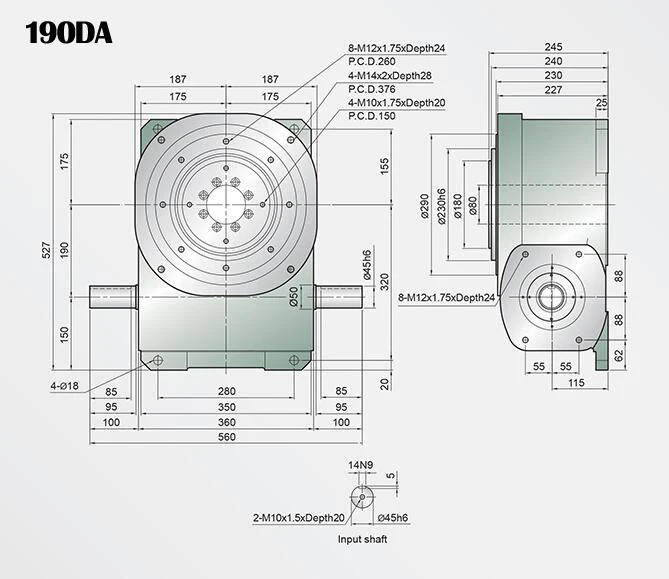

Size diagram:


 .jpg



 .jpg

.jpg
