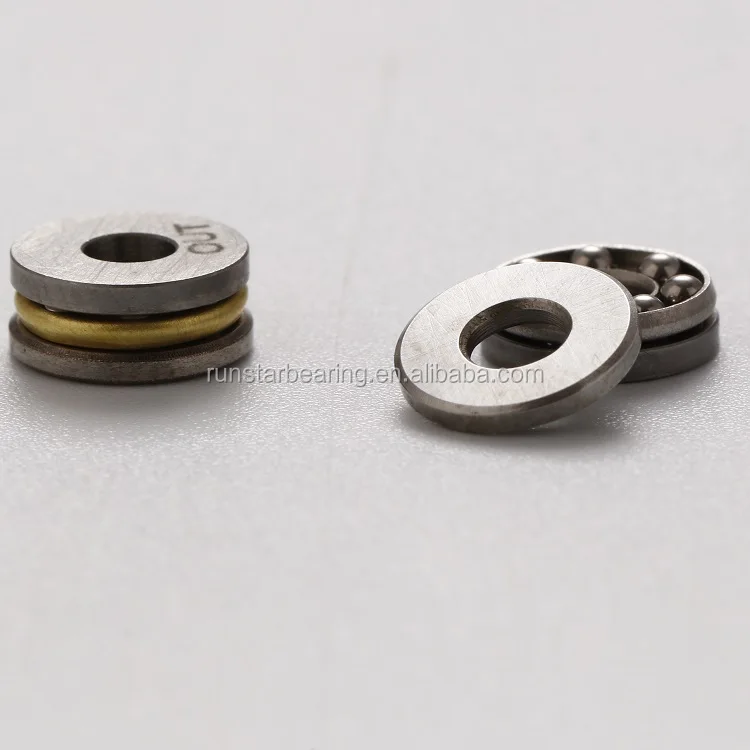

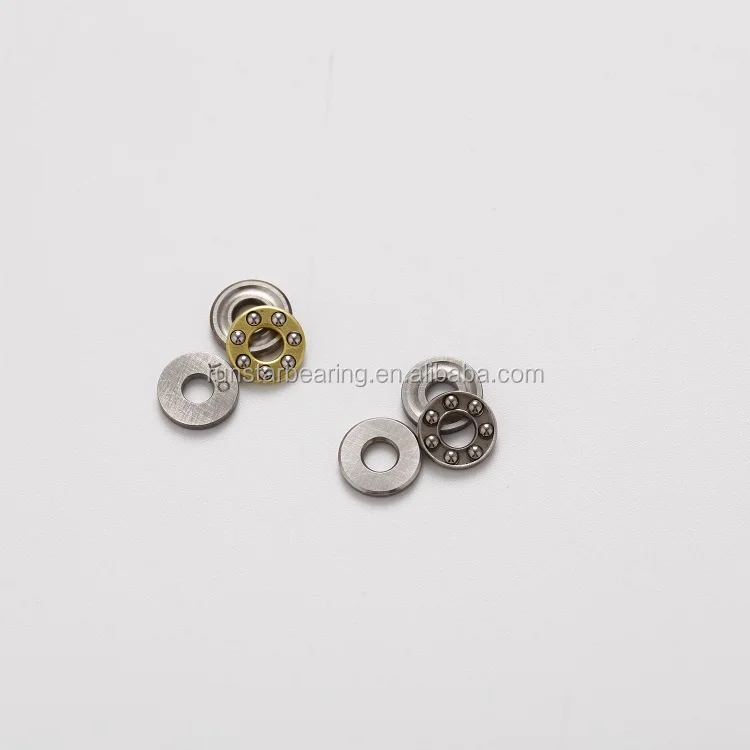

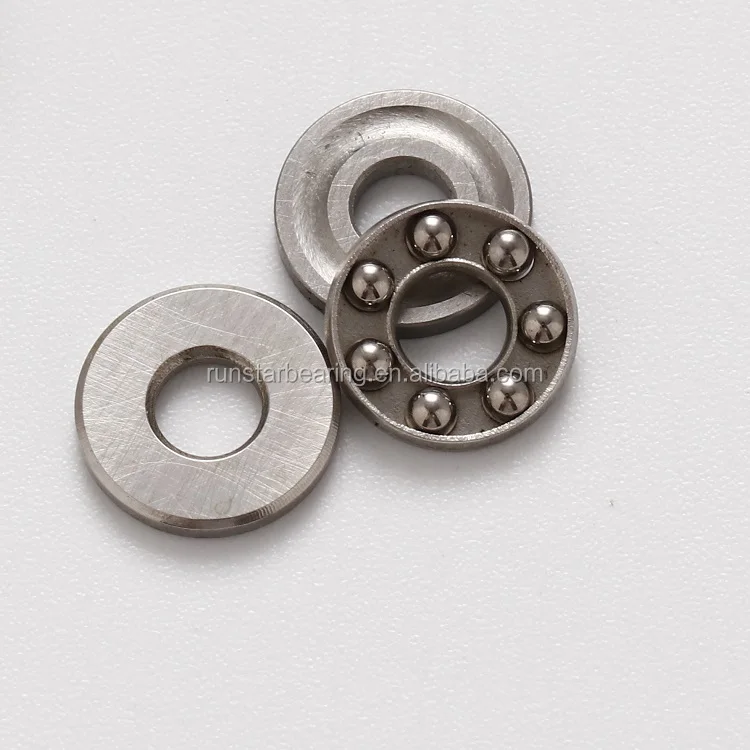

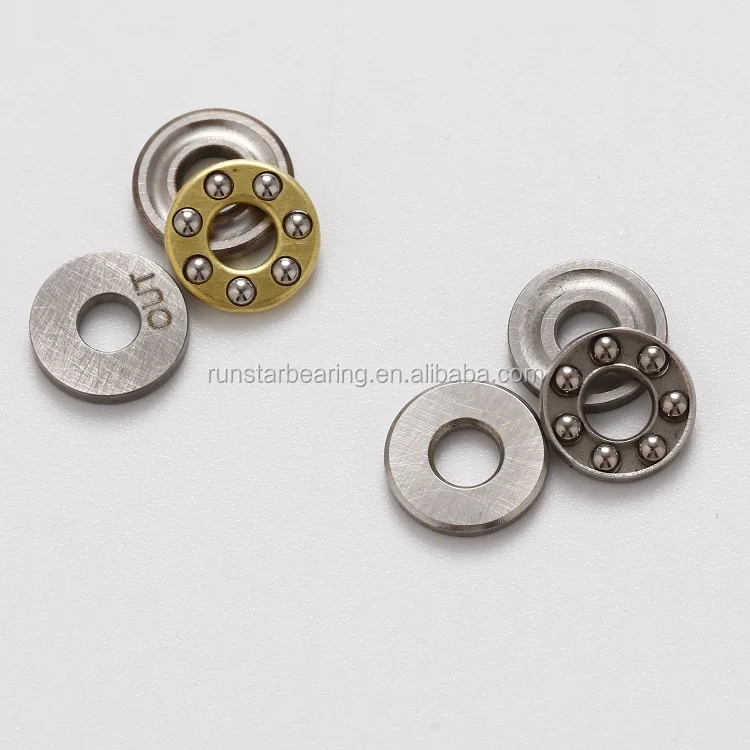

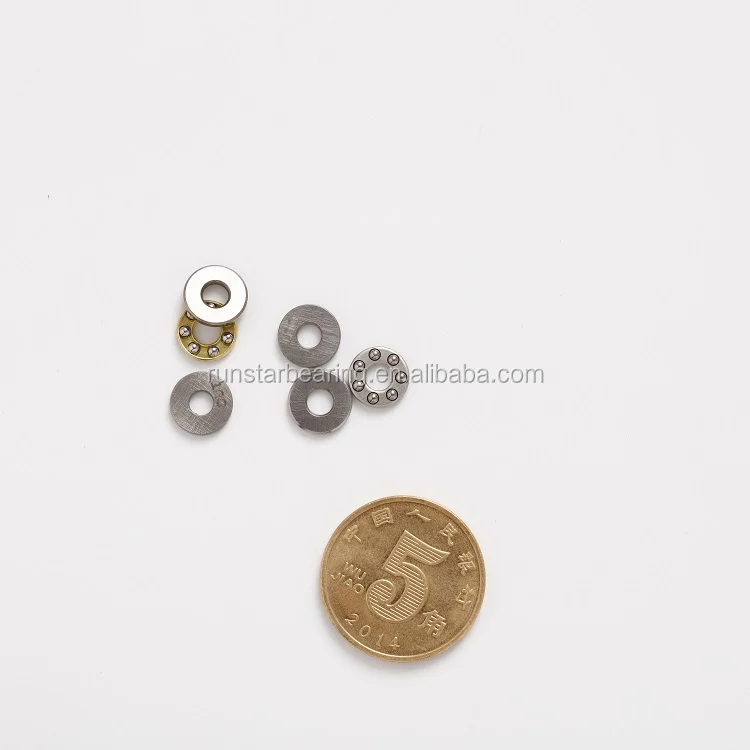

ISO9001:2015 MANUFACTURER F3 8M 3*8*3.5MM THRUST BALL BEARING

Product Overview

Description

    Thrust ball bearings consist of two precision chrome stee or stainless steel washers (ring) and a ball complement spaced by bronze retainer(as well as stainless steel stainer). They can be supplied with or without radius ball grooves in the rings. Thrust bearings only support purely axial loads.

                   FM SERIES(WITH GROOVE)

Type	d	D	d1	D1	H	Load	Load Rating Cor(N)
						Rating
						Cr(N)
F3-8M	3	8	3.2	7.8	3.5	600	480
F4-9M	4	9	4.2	8.8	4	800	520
F4-10M	4	10	4.2	9.8	4	658	580
F5-10M	5	10	5.2	9.8	4	950	830
F5-11M	5	11	5.2	10.8	4.5	988	880
F5-12M	5	12	5.2	11.8	4	988	880
F6-12M	6	12	6.2	11.8	4.5	1600	1255
F6-14M	6	14	6.25	13.8	5	1800	1588
F7-13M	7	13	7.2	16.8	4.5	1422	1255
F7-15M	7	15	7.2	14.8	5	2200	2000
F7-17M	7	17	7.2	16.8	6	2600	2256
F8-16M	8	16	8.2	15.8	5	2500	3000
F8-19M	8	19	8.2	18.8	7	3452	3000
F9-20M	9	20	9.2	19.8	7	3356	2999
F10-18M	10	18	10.2	17.8	5.5	2230	2721





            F  SERIES(WITHOUT GROOVE)

Type	d	D	d1	D1	H	Load RatingCr(N)	Load Rating Cor(N)
F2-6	2	6	2	6	3	117	83
F2X-7	2.5	7	2.5	7	3.5	156	117
F3-8	3	8	3.2	7.8	3.5	600	480
F4-9	4	9	4.2	8.8	4	800	520
F4-10	4	10	4.2	9.8	4	658	580
F5-11	5	11	5.2	10.8	4.5	988	880
F6-12	6	12	6.2	11.8	4.5	1600	1255
F7-15	7	15	7.2	14.8	5	2200	2000
F8-16	8	16	8.2	15.8	5	2500	3000
F9-17	9	17	9.2	16.8	5	578	627
F10-18	10	18	10.2	17.8	5.5	2230	2721
