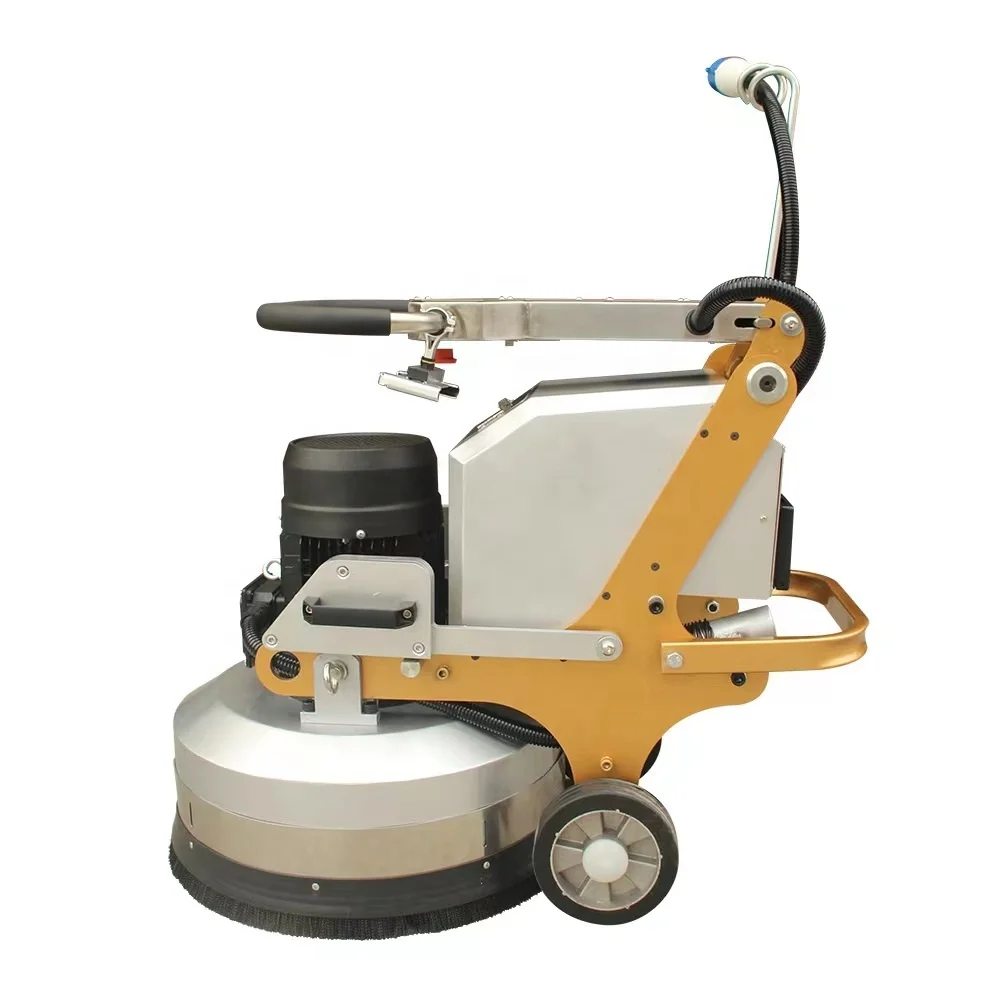

22 Inch 9 Heads Planetary Concrete Floor Grinder Polisher Polishing Grinding Machine
- Category: >>>
- Supplier: Dongguan Merrock Industry Co. Ltd.
Share on (608116604):
Product Overview
Description
Product Description
22 Inch 9 Heads Planetary Concrete Floor Grinder Polisher Polishing Grinding Machine
22 Inch 9 Heads Planetary Concrete Floor Grinder Polisher Polishing Grinding Machine is used to produce a smooth finish on flat surfaces for free movement floors. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinite number of travel paths.
High tech grinding machine S9-X-550 with unique and patented planetary 9-heads driving system, which achieve
the innovation of low maintenance gear driving planetary head rotation system.
1. S9-X-550 with the multi-functional plate which with magnetic, it's suitable for all kinds of pads, blade, like velcro-back or metal wheel.
2. Three plates with 9 pieces heads, each time need fix 9 pieces pads (blades), with planetary three-plate driving system,
S9-X-550 use aluminum alloy die-casts base plate, it's hard and won't be out of shape, stainless steel water tank.

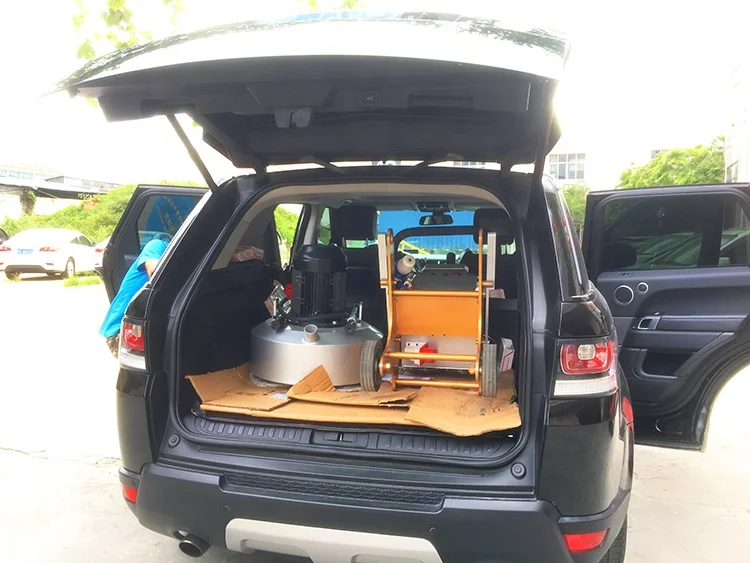

3. Separated body and chassis can put in a car.
4. Fold handle can save space.
5. 22 Inch 9 Heads Planetary Concrete Floor Grinder Polisher Polishing Grinding Machine with vacuum cleaner connector could install a vacuum cleaner outside.
5. It with water tank can wet and dry grinding.
7. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and epoxy floor etc.
5. 22 Inch 9 Heads Planetary Concrete Floor Grinder Polisher Polishing Grinding Machine with vacuum cleaner connector could install a vacuum cleaner outside.
5. It with water tank can wet and dry grinding.
7. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and epoxy floor etc.
Item no. | S9-X-550 | ||||||||
Phase | 1 | ||||||||
Voltage | 220V-240V | ||||||||
Input Power | 5.5HP/4000W | ||||||||
Inverter | 5.5HP/4000W | ||||||||
Autorotation speed | 0-1250rpm | ||||||||
Revolution speed | 0-320 rpm | ||||||||
Work area | 550mm | ||||||||
Grinding Heads | 9 pieces | ||||||||
Plate | 3 pieces | ||||||||
Water tank | 10.6 L (Stainless steel) | ||||||||
NW (KG) | 220/232 | ||||||||
Packing size(CM) | 93x62x93 cm | ||||||||

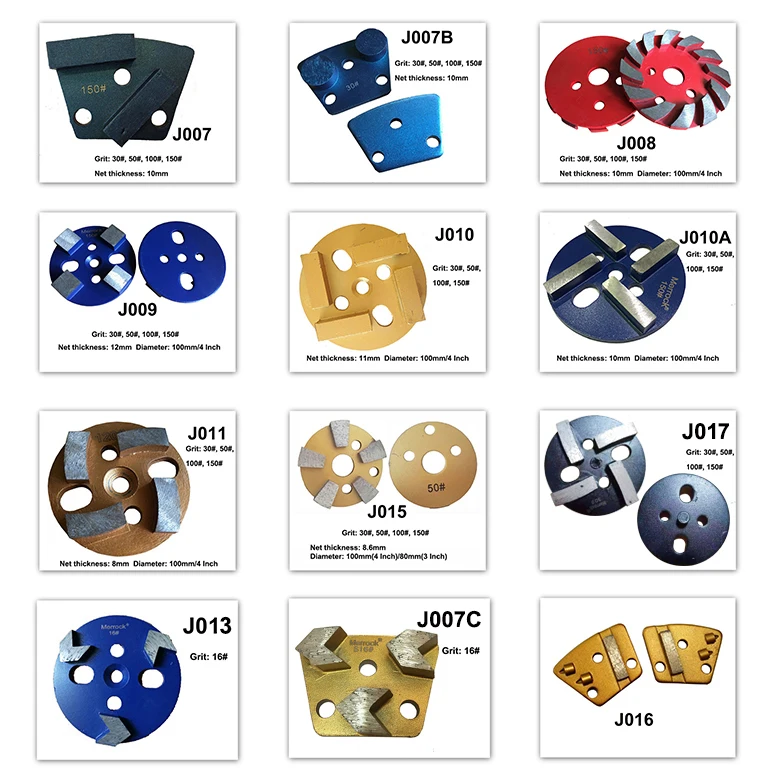

Available blade
1. 22 Inch 9 Heads Planetary Concrete Floor Grinder Polisher Polishing Grinding Machine can use the metal diamond grinding blade in 4 inch or smaller than 4 inch.
2. The metal diamond grinding blade can use for terrazzo concrete and epoxy floor.
3. J007C, J013 and PCD for removing the old epoxy.
3. J007C, J013 and PCD for removing the old epoxy.
Abailable resin pad
1. 22 Inch 9 Heads Planetary Concrete Floor Grinder Polisher Polishing Grinding Machine can use the resin polishing pad which in 4" or smaller than 4".
2. The diamond wet and dry polishing pad can use for marble, granite, terrazzo quartz and concrete floor etc.
Related Products
Packing&Shipping
Packing in export wooden case
Packing size: 135x85x140 cm
Company Introduction
Dongguan Merrock Industry Co., Ltd are the manufacturer of floor grinding and polishing machine, polishing pads, marble polishing powder and concrete sealer.
Our company set up in 2007, our products sell to more than one hundred countries, and we have distributor in America, Thailand, Vietnam and Colombia etc.
Our company set up in 2007, our products sell to more than one hundred countries, and we have distributor in America, Thailand, Vietnam and Colombia etc.
2007 - Dongguan Merrock Industry Co., Ltd was set up, our goal is to grow into an excellent brand in the surface grinding
industry.
2009 - Merrock started to produce large grinding equipment.
2011 - Merrock began producing chemicals, we became to Chinese stone and concrete surface chemistry important supplier.
2012 - Merrock has become the largest manufacturer of large grinding equipment in China.
2013 - Merrock took over a Canadian companies: Guangzhou Dangsing Abrasive Co., Ltd - An overseas-funded company of theearliest abrasive manufacturer in China, it has the famous brand of Apollo, little bear, Dangsing etc., attended the Brasil concrete show in St. Paul.
2014 - Merrock became the only one manufacturer which can research and produce the grinding equipment, chemical and abrasive in China.
2015 - Merrock had develop some agents and partners in United States and European Countries etc.
2016 - Merrock attended the exhibition of WOC in Las Vegas, attended the exhibition of Vietnam Vietbuild in Hochiminh, and got a good reputation from the customers.
industry.
2009 - Merrock started to produce large grinding equipment.
2011 - Merrock began producing chemicals, we became to Chinese stone and concrete surface chemistry important supplier.
2012 - Merrock has become the largest manufacturer of large grinding equipment in China.
2013 - Merrock took over a Canadian companies: Guangzhou Dangsing Abrasive Co., Ltd - An overseas-funded company of theearliest abrasive manufacturer in China, it has the famous brand of Apollo, little bear, Dangsing etc., attended the Brasil concrete show in St. Paul.
2014 - Merrock became the only one manufacturer which can research and produce the grinding equipment, chemical and abrasive in China.
2015 - Merrock had develop some agents and partners in United States and European Countries etc.
2016 - Merrock attended the exhibition of WOC in Las Vegas, attended the exhibition of Vietnam Vietbuild in Hochiminh, and got a good reputation from the customers.
2017- Merrock attended the exhibition of WOC in Las Vegas.
2018-Merrock attended the exhibition of WOC in Las Vegas, attended the India Concrete show in Mumbai, attended the Indonesia Concrete show in Jakarta, attended the exhibition of Vietnam Vietbuild in Hochiminh.
