HFE19 90A 60A latching relay for electricity meter
- Category: >>>
- Supplier: Xiamen Universal Electronic Co. Ltd.
Share on (60811672578):
Product Overview
Description
HFE19 90A 60A latching relay for electricity meter

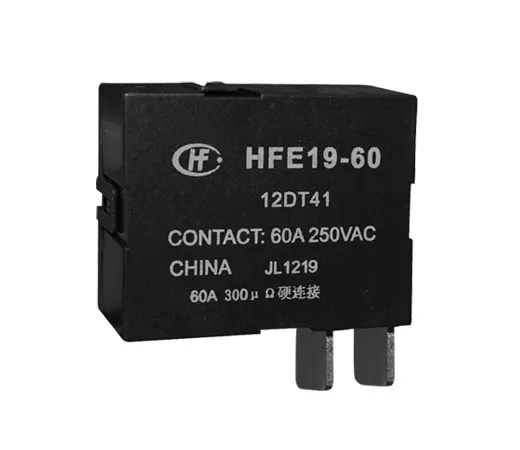

Picture of electricity meter relay latching relay
HIGH POWER LATCHING RELAY HFE19 electricity meter latching relay
Features of electricity meter relay

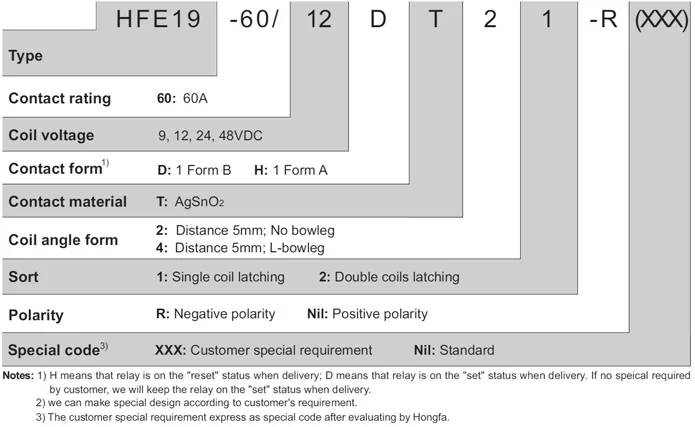

| Relay Type:HFE19-60 electricity meter relay |
| · 60A switching capability · Latching relay · The relay can stand 1500A peak current for 10ms · Carrying the 3500A r.m.s short circuit current without explosion for 10ms · 4kV dielectric strength (between coil and contact) · Environmental friendly product (RoHS compliant) · Outline Dimensions: (38.0 x 30.0 x 16.5) mm |
| | |
| Contact Arrangement: | 1A,1B |
| Contact Resistance: | AgSnO2 |
| Contact Rating: | 60A 250VAC |
| Max. switching Voltage: | 250VAC |
| Max. Switching Power: | 22500VA |
| Mechanical Endurance: | 1×105OPS |
| Electrical Endurance: | 6000OPS |
| | |
| Insulation Resistance: | 1000MΩ |
| Dielectric Strength: | 4000VAC |
| Operate Time (max): | 20ms |
| Release Time (max): | 20ms |
| Ambient Temperature: | -40℃ ~ 70℃ |
| Terminal Type: | QC |
| | |
| Nominal Voltage: | (9~48)VDC |
| Coil Power: | 1.0W, 2.0W |
| |
To order HFE19 90A 60A latching relay for electricity meter,
Contact us:
