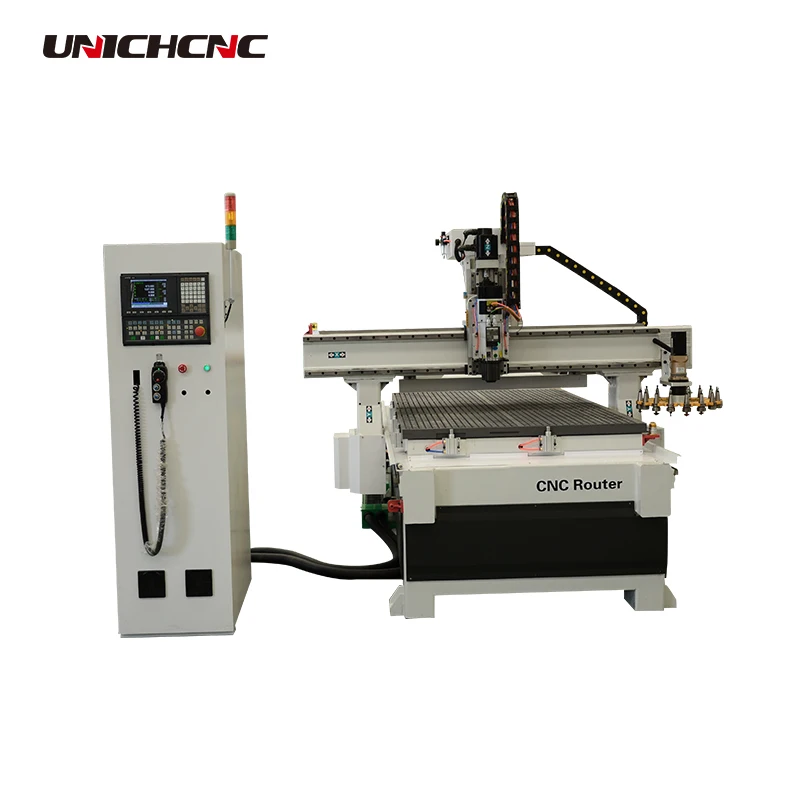

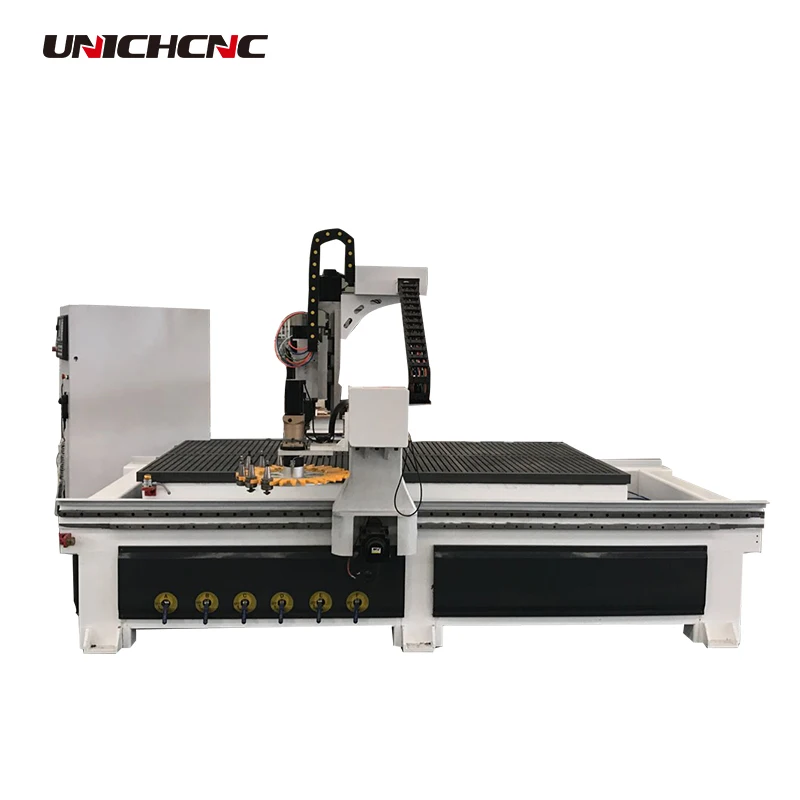

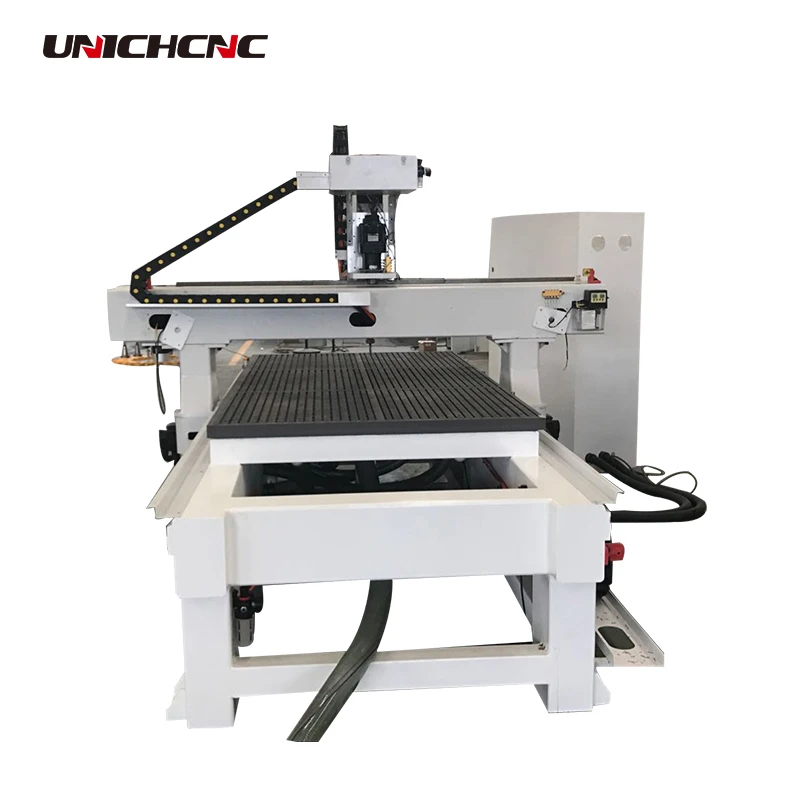

Auto tool changer woodworking cnc router machine 1325

Specification

1325 CNC

Notes

Machine Size(L*W*H)mm

3500*2300*1800

Working Area(X*Y*Z) mm

1300*2500*200

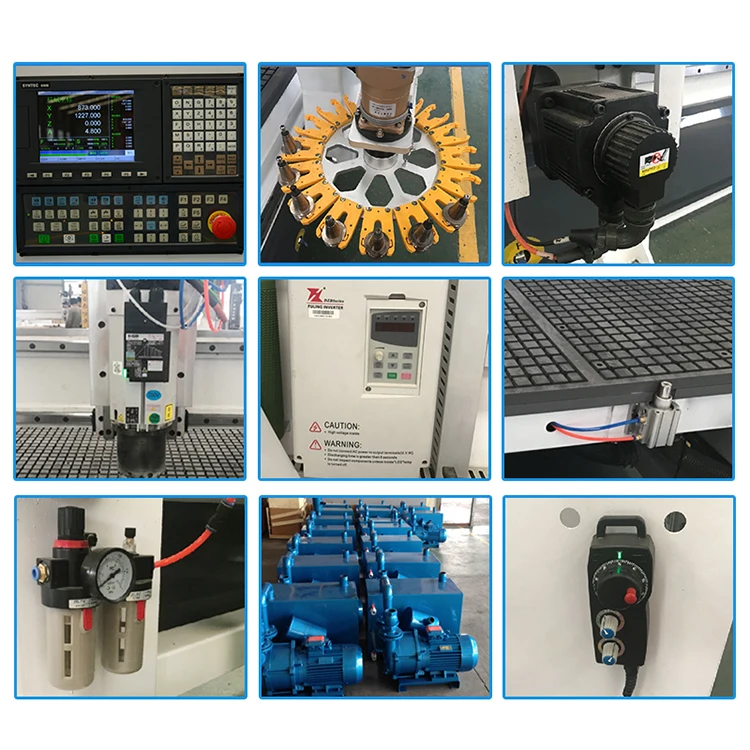

Spindle motor

Brand

HQD

18000-24000r/min

Power

9KW/unit

Cooling

Air Cooling

Working speed

18000-24000rpm/Min

Drive system

Type

High performance servo

Driver motor

YASKAWA

Driver

YASKAWA 850w

Inverter

Brand

Fuling inverter

Power

11KW/unit

Control system

            Syntec 6MB

16 Servo knife tool changer

Guide rail

Taiwan CSK

Ball Screw

Taiwan TBI

Working table

Double vacuum adsorption table

Lubrication

Automatic central centralized lubrication system

Position cylinder

X:2pcs Y:3pcs

tool auto-checking

Reduce gear

Japan Xinbao imported reduce

X transmission

30 square guide 1.5M high accuracy helical tooth reduce 8:1

Y transmission

30 square guide 1.5M high accuracy helical tooth reduce 8:1

Z transmission

30 square guide  high precision helical tooth reduce 8:1

Rack

Xinyue rack

vacuum pump

Brand

Junran

Power

11KW

Cooling

Water cycle cooling

dust collector

5.5Kw

Electrical cable

Shanghai cable

Wiring standards

CE standard

Electrical

Zhengtai

magnetic valve

Germany imported

 air cylinder

        Germany imported
