Промышленный сетевой коммутатор, 17 дюймов, 8 портов, CAT5 IP, kvm переключатель с ящиком KVM 1U в стойку

Share on (60811750606):


Price:399,00 $ - 425,00 $

Quantity:


Product Overview

Description



Product Description


 Main features


« KVM (keyboard, video ,mouse ) access over IP and analogous telephone line (modem needed) .
« Full control under any OS, in BIOS mode , during boot, at Blue Screen


« 256 bit SSL encryption of all transmitted data and certificate management
« Port to connect a user console for direct analogous access to KVM switch


« Can be used with most standard KVM


« To switch the host computer though the hotkey or OSD menu, which can manage up to 1024 computers.
« Password security protection, only authorized users can view and manage on-line computer.
« Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc
« Support various operating system: Microsoft, Linux, Unix, etc.


Introduction


« IP-KVM switch can save your Money ,Time, Space, Equipment and Power . IP KVM switch defines a new class of remote KVM switch devices. IP KVM switch combines digital remote KVM access via IP networks with comprehensive and integrated system management.


« IP KVM Switch provides convenient, remote KVM access and control via LAN or internet . it captures, digitizes, and compresses videa signal and transmits it with keyboard and mouse signals to and from a remote computer. IP KVM switch provides a non-intrusive solution for remote access and control . Remote access and control software  runs on its embedded processors only but not on mission-critical servers, so that there is no interference with server operation or inpact on network performance.


Specification
































































































































Model



IP KVM-1708C



Computer connect



     Direct : 8


    (Max:256)



Keyboard



104 Mechanical mute Keyboard



Mouse



Touchpad



Switch Mode



Hotkey , OSD Menu , Panel Button



Auto-scanning interval



5~99 second



LCD resolution



1280 *1024 DDC2B



Safety performance



Provide access control list function



Power input



DC12V input , (AC100-240V 47-63Hz, 35W ) optional









Cable Port



Local console



Keyboard / Mouse/ Display


(2*USB +1* HDB-15 female  )



Connector port



8  * RJ45 ( CAT5 port )



Power supply



1 * 3 pin AC power supply socket



Support Daisy-chain series connectors (8 level )









LED Indicator



Power indicator



              2



Selection indicator



             16



Boost on-line indicator



             16



Num Lock



              1



Caps Lock



              1



Scroll Lock



              1






Work environment



Operating Temp



          -10~60



Storage Temp



          -20~70



Humidity



          0%-95%RH



Cabinet Material



high-strength and Anti-corrosive steel plate



Color



Insulated black (optional)



For Cabinet



800-1040mm



Net  weight



13KG-17KG



Gross Weight



17KG-22KG

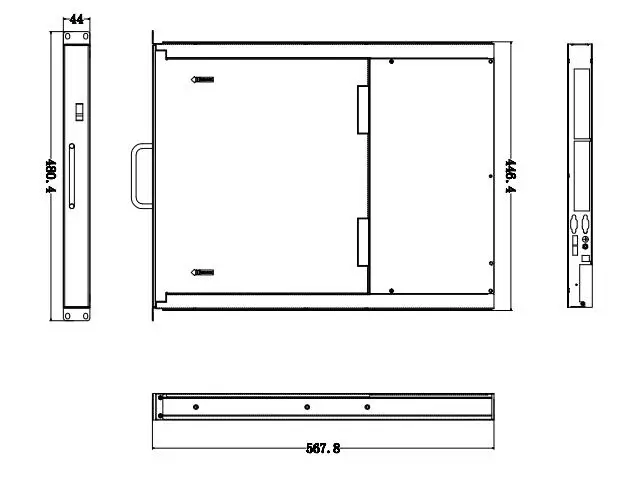

Dimension



568*480*44mm(L x W x H)



Package



708*608*195mm (L x W x H)



Certificate



CE , FCC , RHOS






Ordering information










IP KVM - 1708C

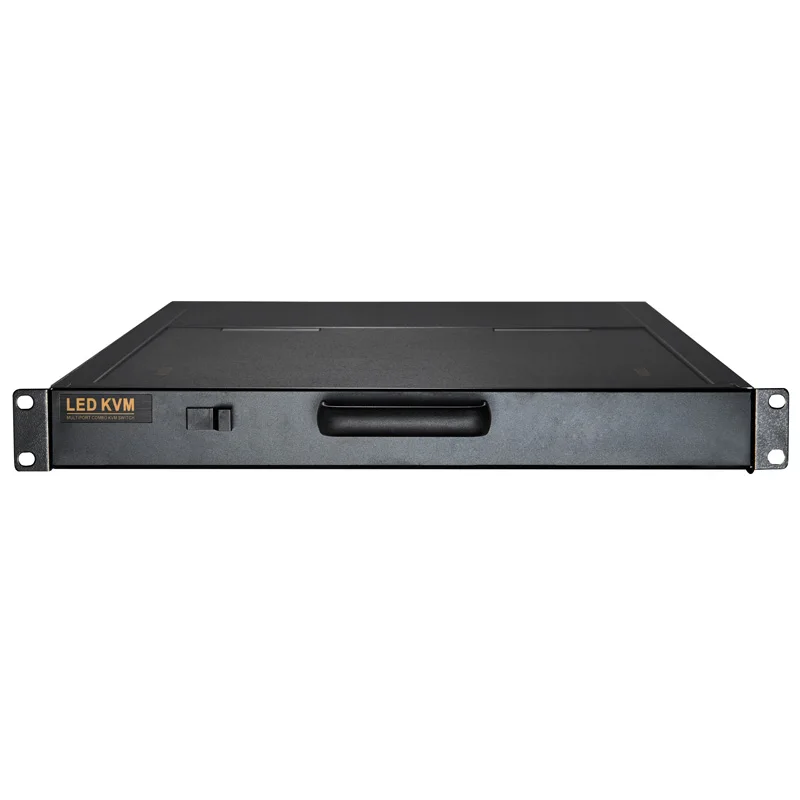

1U Rack mount 17" TFT LED KVM Drawer with 8 port over IP

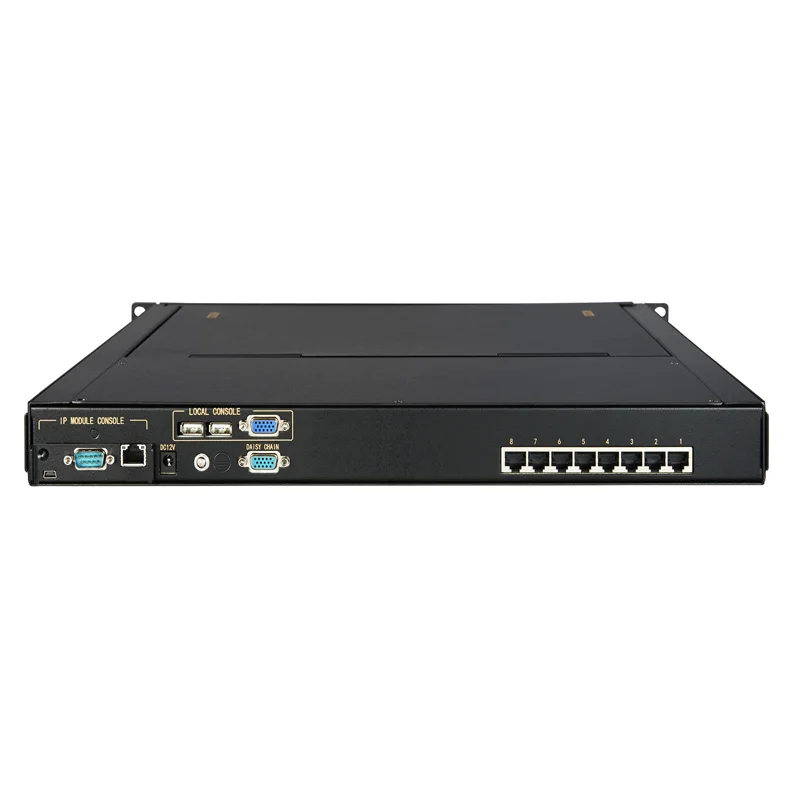

IO View




QQ20181108143011

















QQ20181018152227
