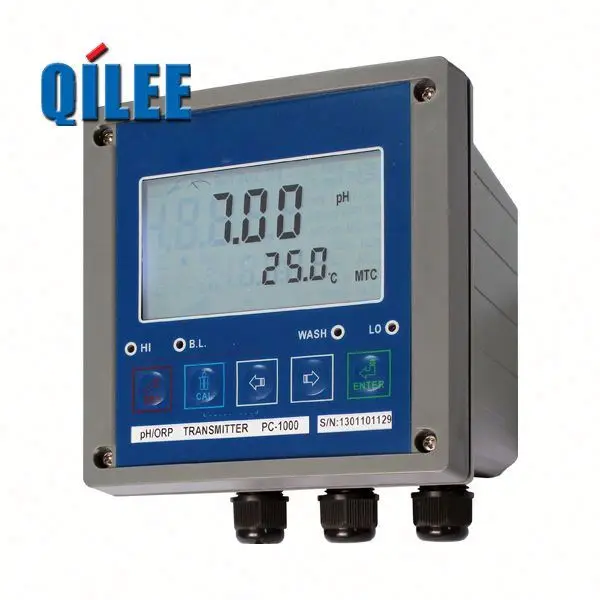

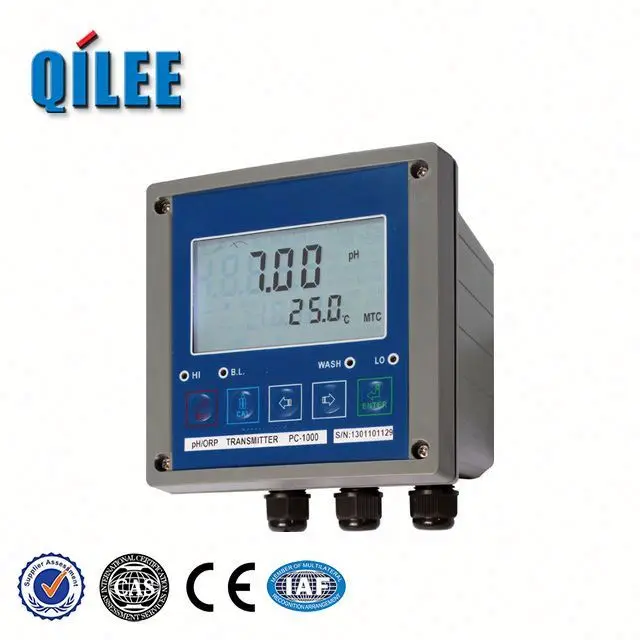

Ec orp meter ph test liquid controller1

Ph test liquid controller Features:
144 x 144 mm microprocessor pH/ORP transmitter
Waterproof design, suitable for wall/panel/pipe mounting
Large LCD to display working status
Time washing function with programmable time interval
Automatic calibration; automatic/manual temperature compensation
Provide solution grounding function to eliminate electricity disturbance on sample
Combination keys to access Setting and Calibration mode to improve parameter protection

Ph test liquid controllerApplications:
Widely used in environment-protection water treatment, surface water, pure water and circulation water systems etc.;as well was electroplating, electronics, printing and dyeing, chemical industry, food industry and pharmaceuticals fields; perform excellent in wastewater treatment, pollution source monitoring and industry processes etc.

ProductTechnical Parameters:

Model

PC-1000

PC-1000RS

Measuring Ranges

pH

-2.00~16.00 pH

ORP

-1999~1999 mV

Temp

-30.0~130.0

Resolution

pH

0.01pH

ORP

1mV

Temp

0.1

Accuracy

pH

0.01pH±1Digit

ORP

1mV±1Digit

Temp

0.2±1Digit

Temperature Compensation

Automatic temperature compensation with Pt1000/Pt100 dual mode

Manual adjustment

Relay Output

Hi/Lo contact and hysteresis programmable

Wash Contact

Programmable time control; compatible with Hi/Lo

Analog Output

2 sets of isolated 4~20mA output corresponding to pH/ORP/temp. setting

Serial Interface

-

RS-485 Modbus

Solution Grounding

Eliminate electrical disturbance on solution

Ambient Temperature

-20~60

Power Supply

88~265V AC, 50/60Hz; or 24V DC

Dimensions

144mm x 144mm x 115mm (H x W x D)

Cut off Dimensions

138mm x 138mm (H x W)

Installation

Wall or Panel or Pipe mounting

Ingress Protection

IP65
