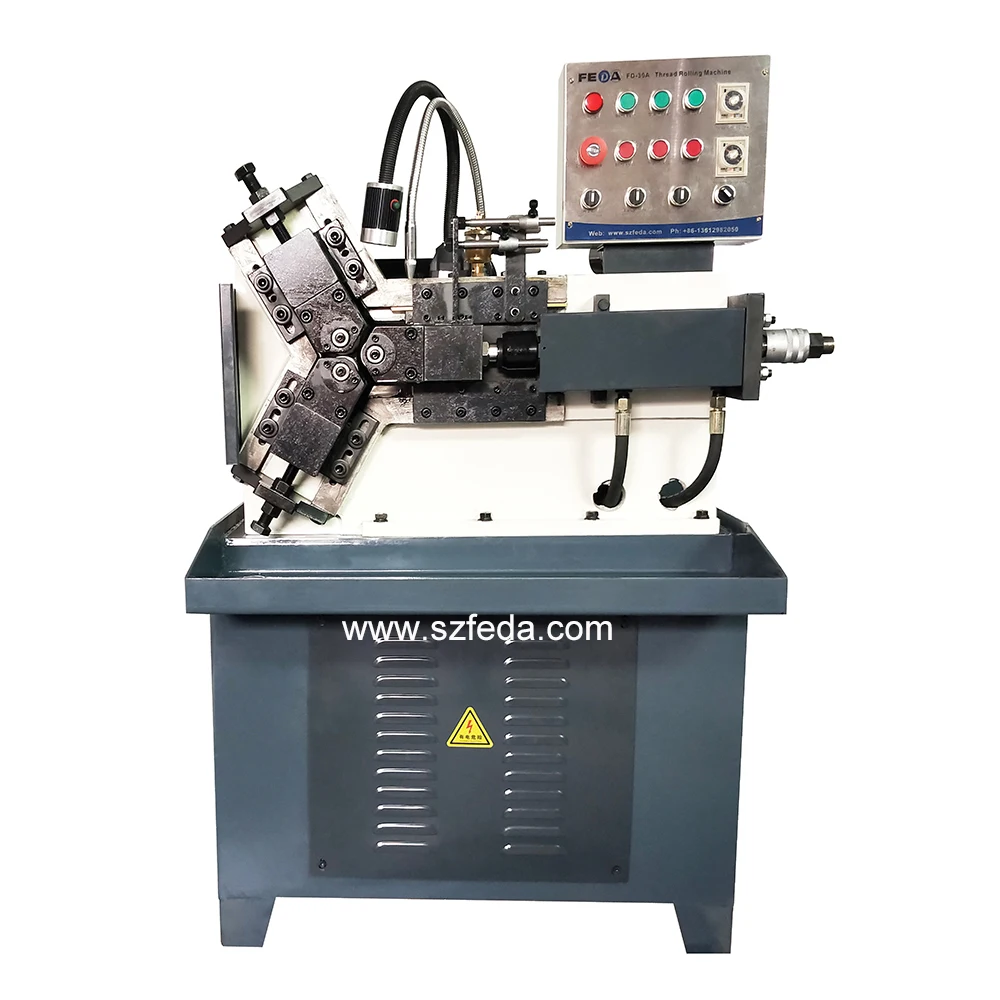

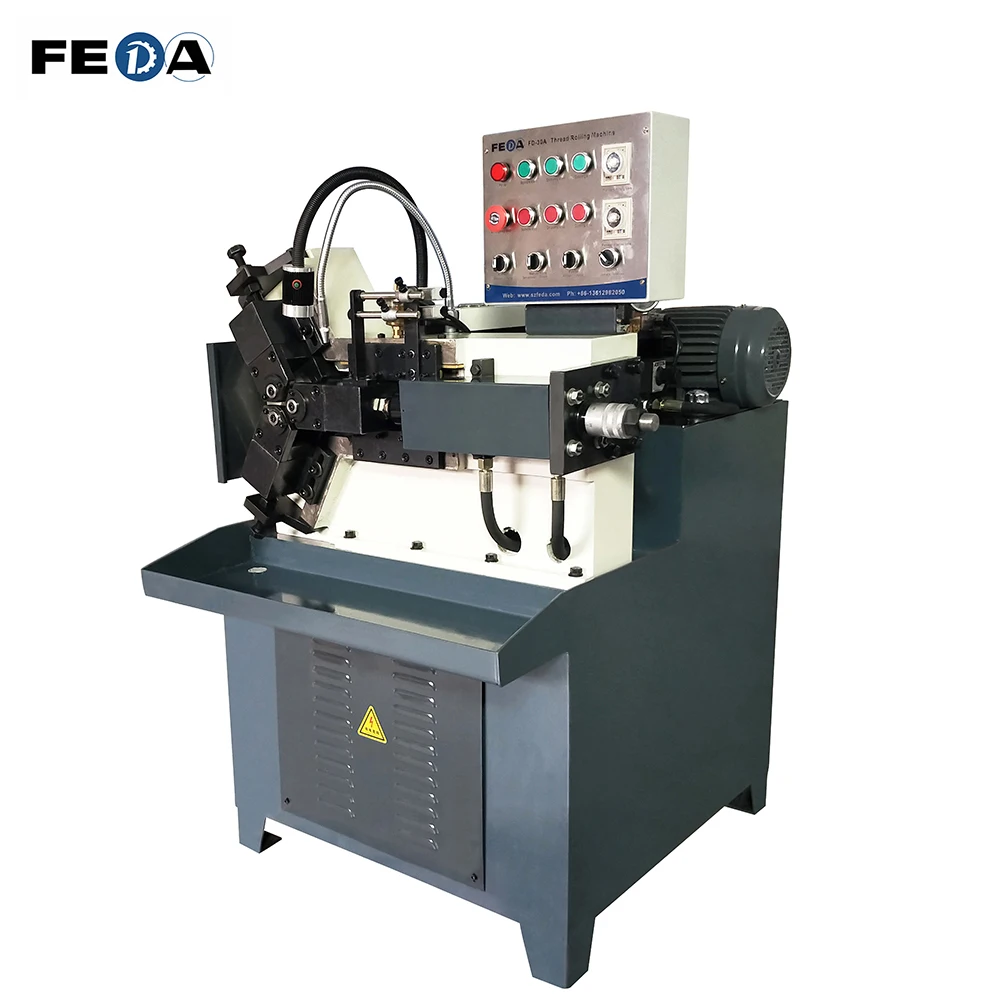

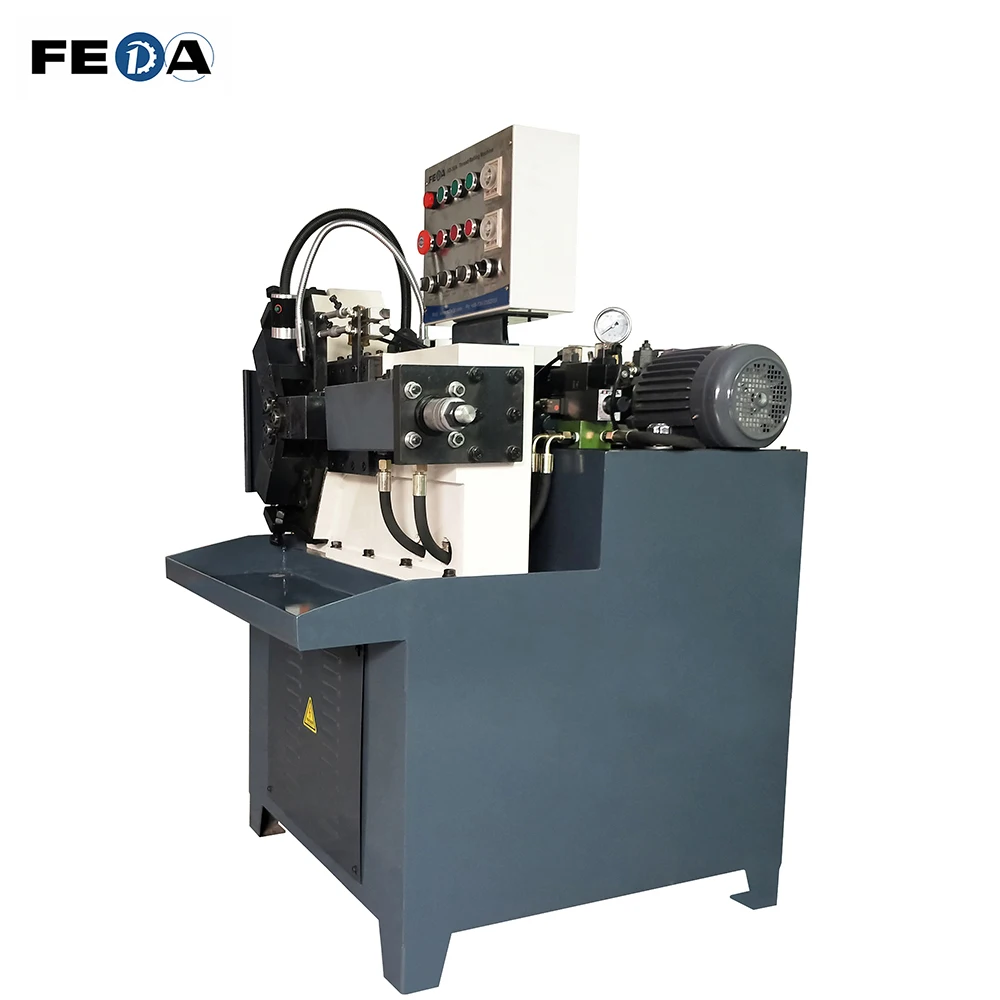

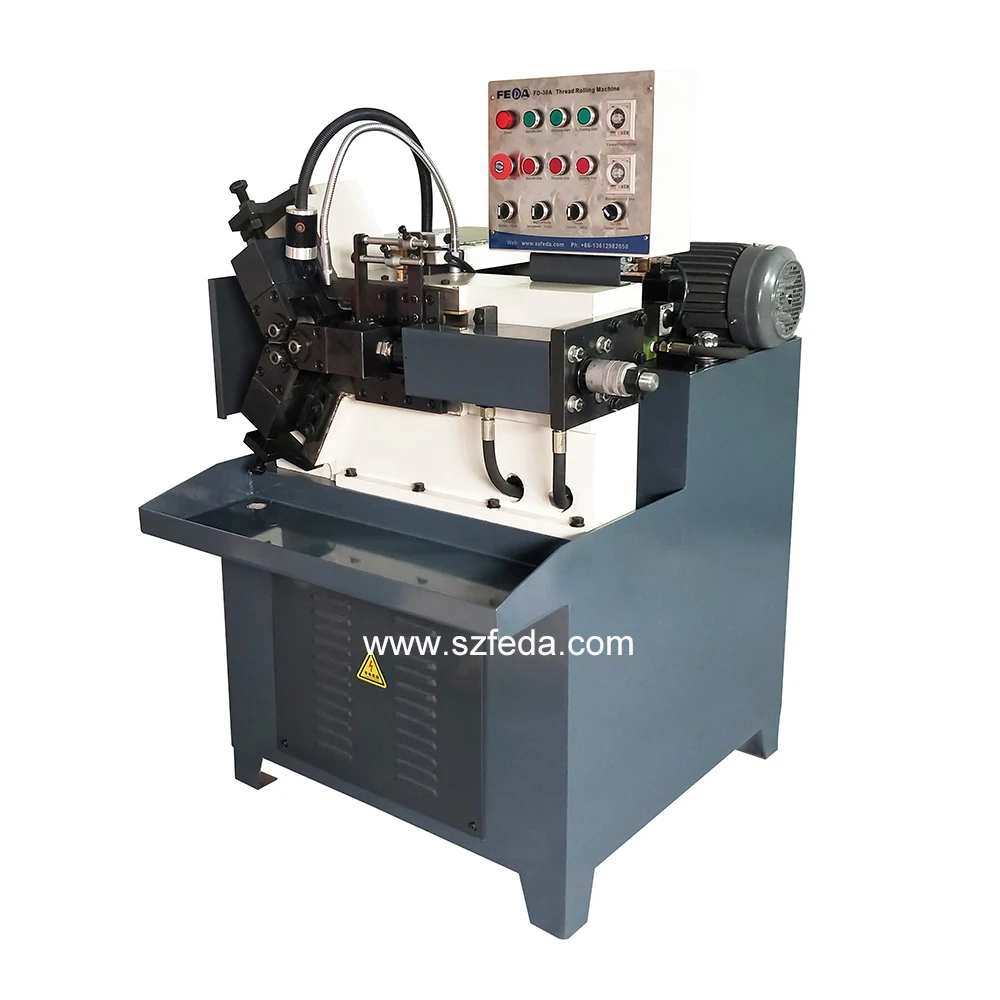

FEDA automatic three rollers pipe thread rolling machine FD 30A

Product Overview

Description

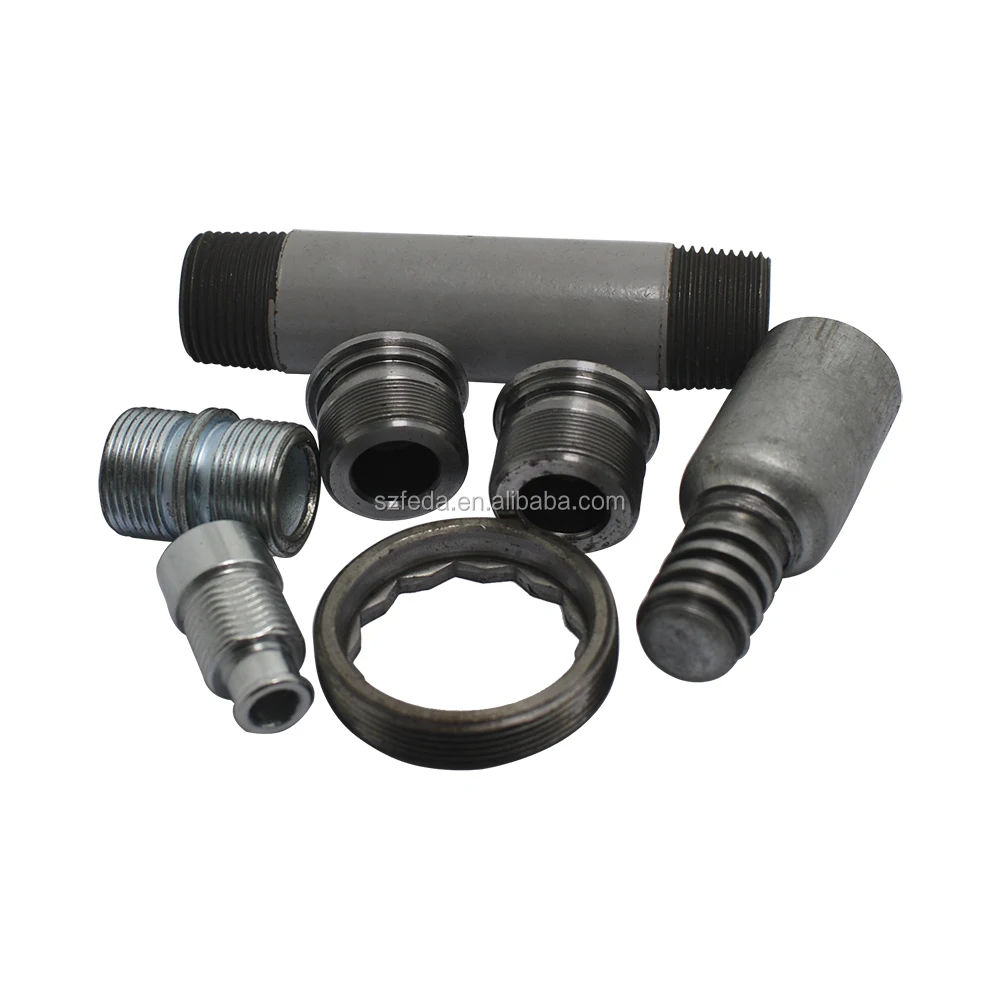

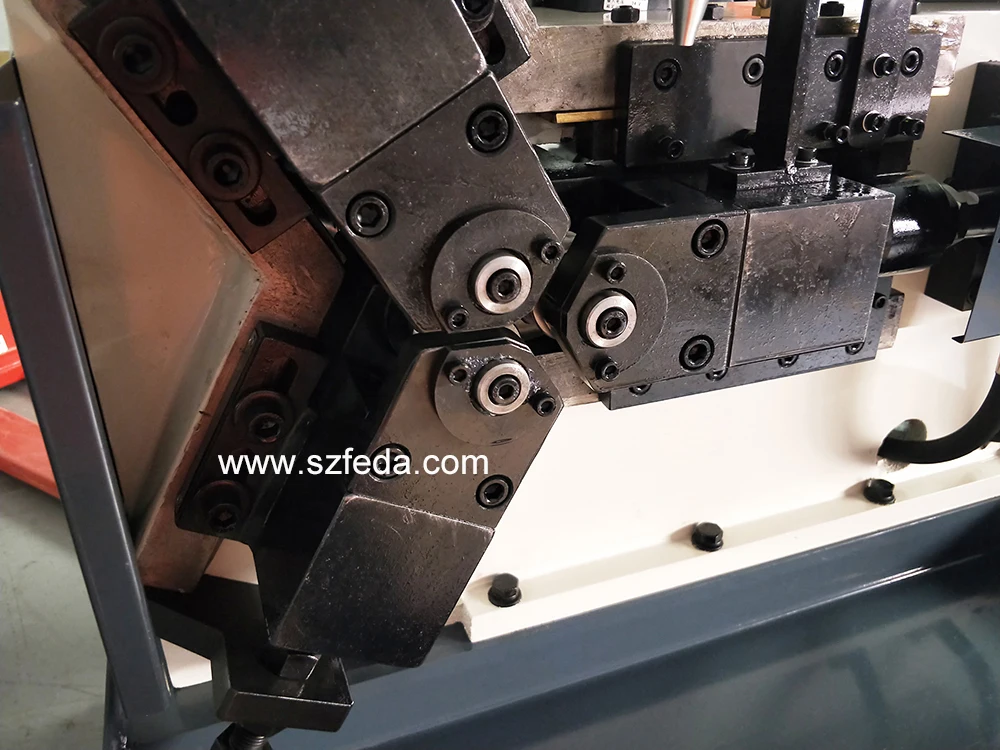

1. Three rollers specially for making pipe thread

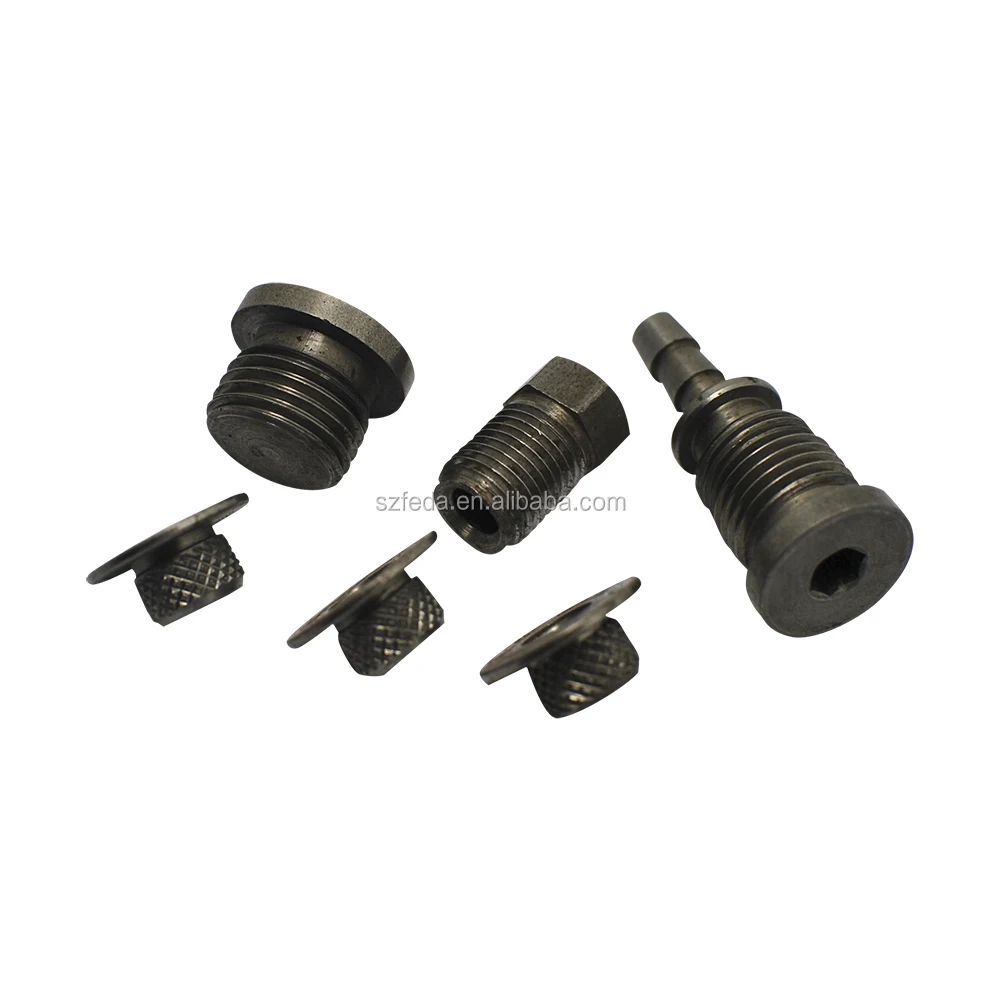

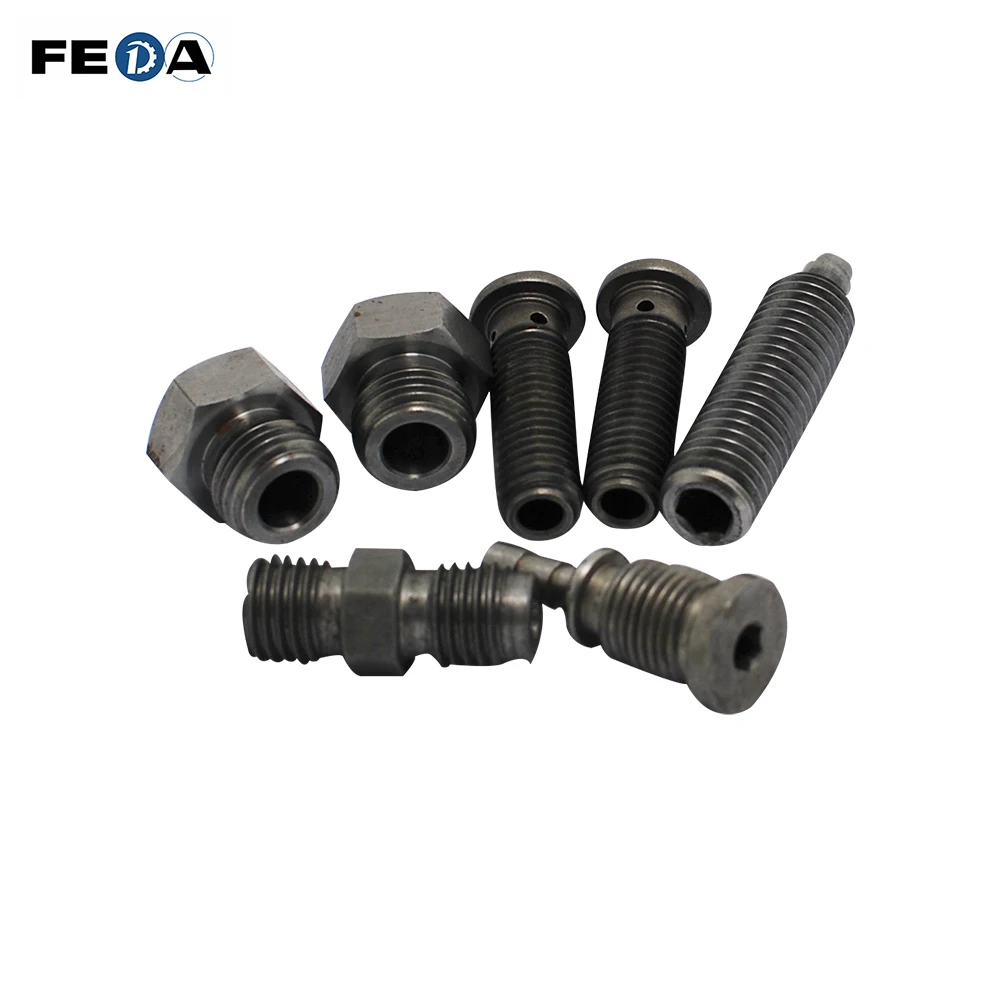

2. Used for making thread, knurling, or groove

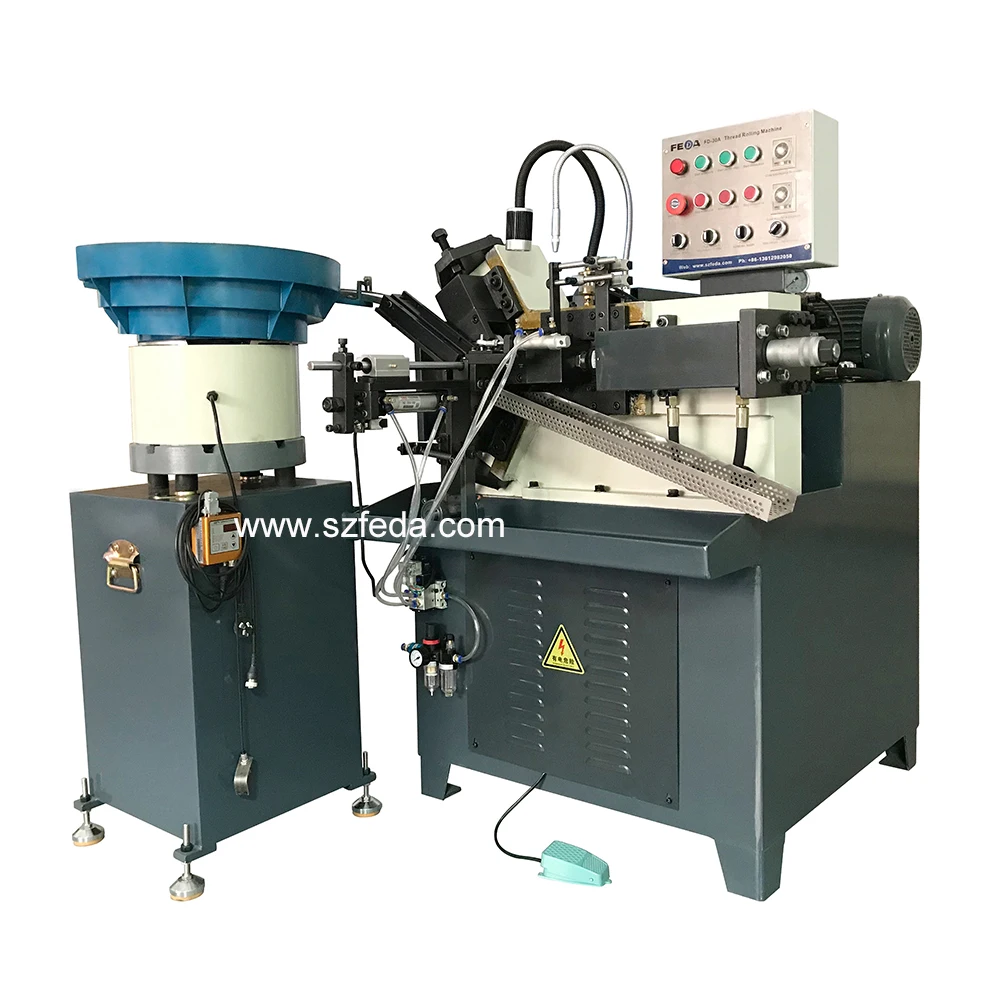

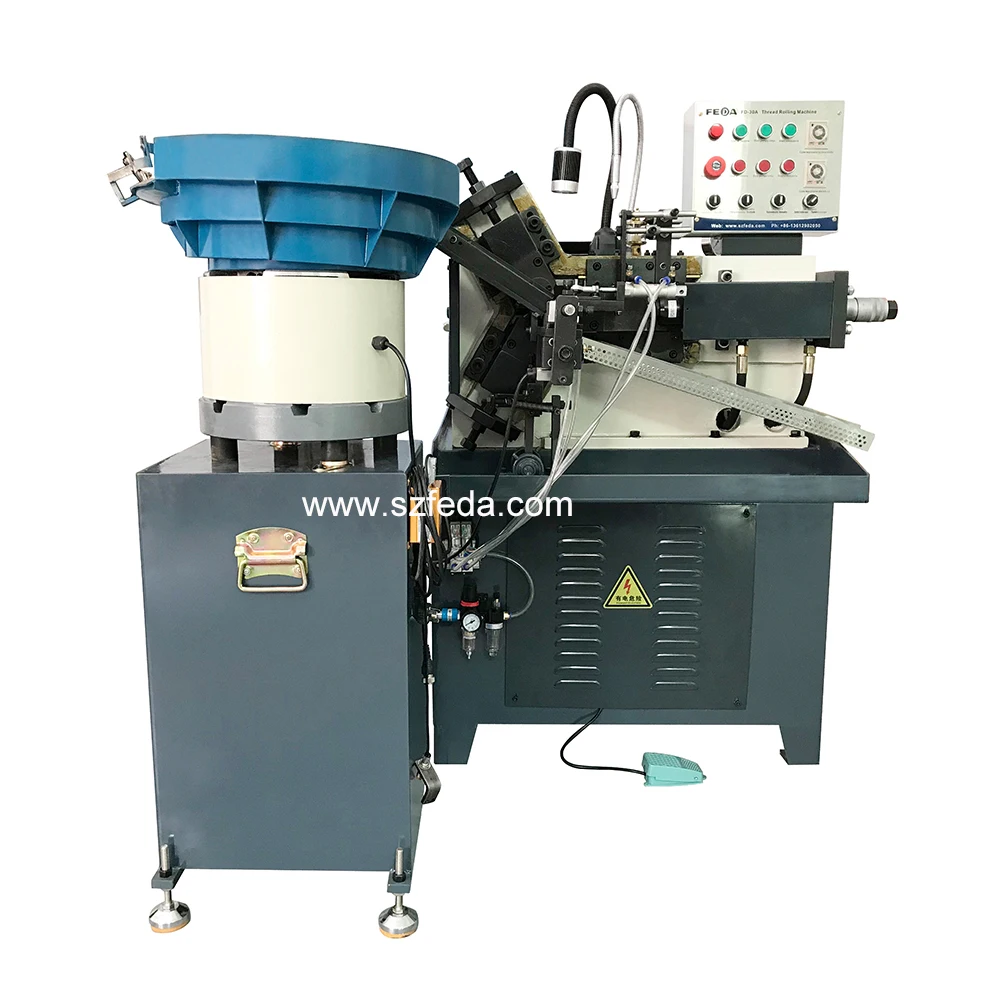

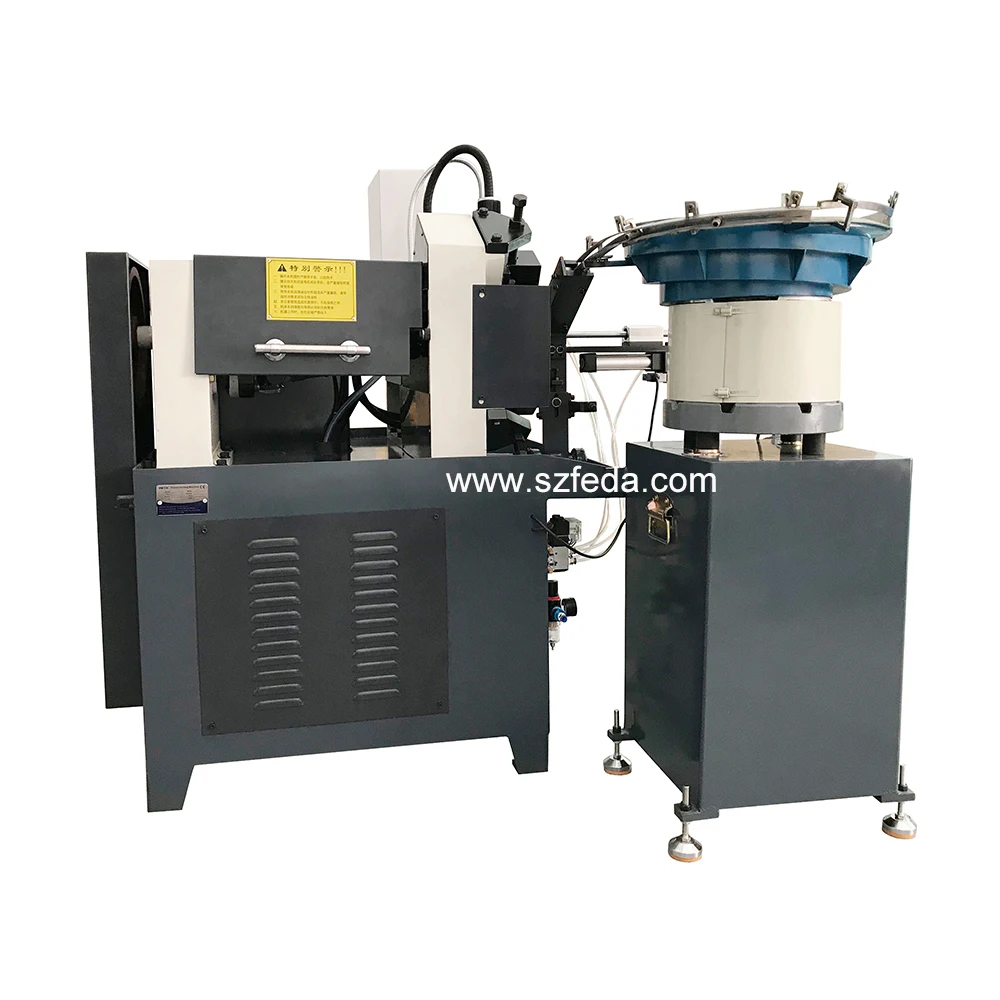

3. Automatic feeding devices can be designed

4. CE, ISO9001-2008

5. High precision, stability and high durability



Specification
Working diameter	9-35mm
Thread pitch	0.5-2.5mm
Thread length	In feed or Thru feed
Spindle speed	350-600rpm (variable speed)

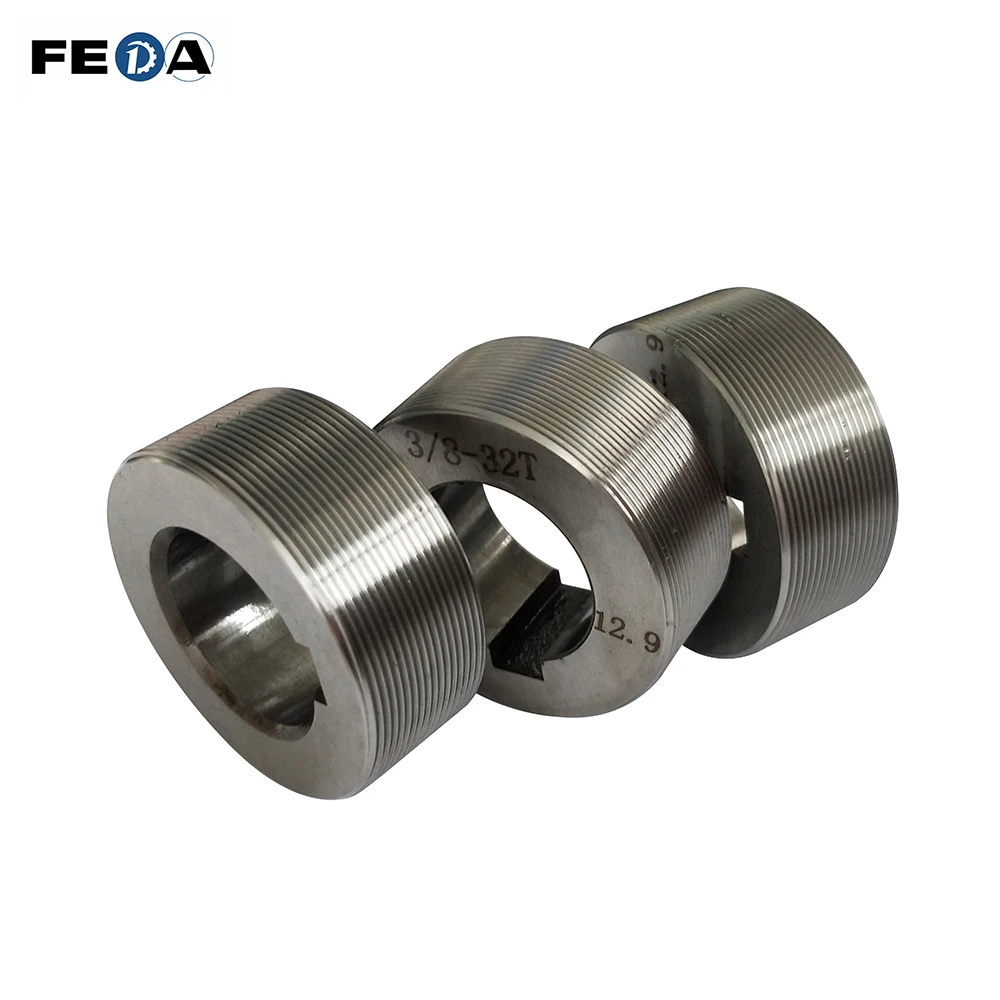

Outside diameter of rolling die	78mm- 90mm
Inside diameter of rolling die(keyway)	25.4mm & 35mm
Thickness of rolling die	40mm
Center distance between die spindles	55-90mm
Output(pcs/min)	5-30(pcs/min)
Swiveling Angle(degree)	±3°
Main power motor	2.2 KW
Hydraulic motor	1.5 KW
Max rolling pressure	6T
Supply voltage	380V 3P 50Hz
Weight(reference)	650KG
Package Dimension(L*W*H)	1280*1100*1600 mm
Dimension(L*W*H)	1180*1000*1500 mm





Q1. Are you factory or trading company ?

A1. We are factory of manufacturing thread rolling machine and dies by ourselves.

      Welcome to visit our factory, if possible.



Q2. What is the delivery time ?

A2. Usually 15-25 working days for machine, and 10-15 working days for dies.



Q3. What is the warranty time for machine?

A3. Usually 12 months from B/L date.



Q4. What is the payment term?

A4. T/T, Western Union, Money Gram, Alipay, PayPal.

      50% as deposit, and 50% before shipping.

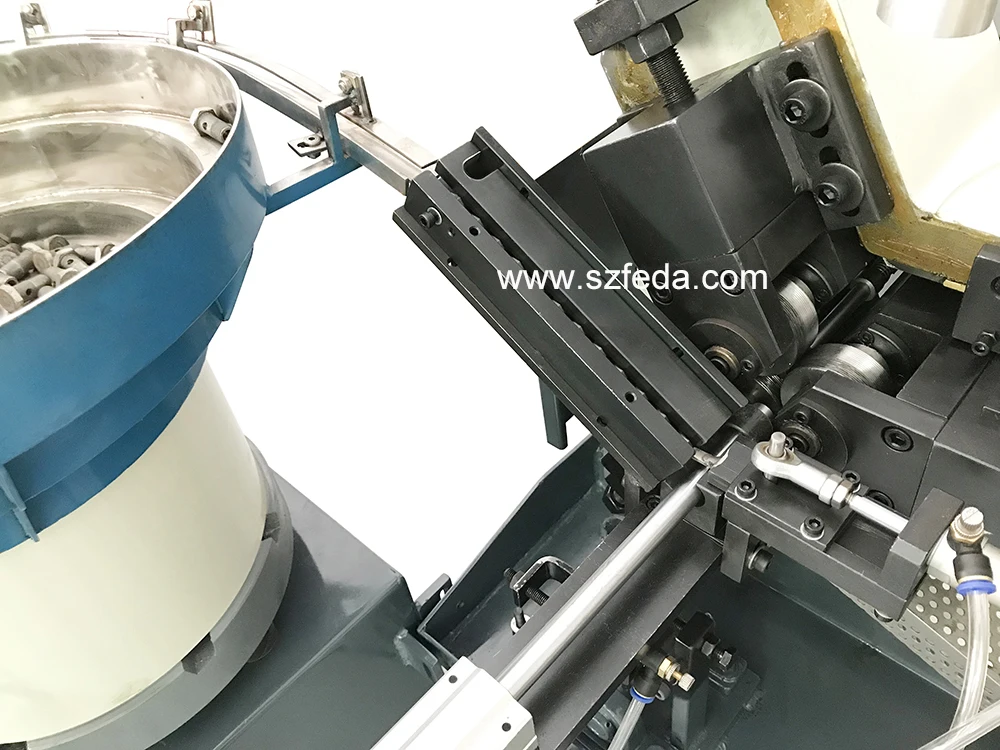

Q5. Is it possible to design and produce automatic loading & unloading devices?

A5. Yes, Engineer can design special auto feeding device according to your products.

      But please provide the drawing of your products before that.



Q6. How will you solve problems that we face during using your machine?

A6. A. Please provide necessary videos and pictures that can show the problems, our engineers will check        and give corresponding solutions.

      B. Will arrange engineers to solve problems at the scene, if possible.
