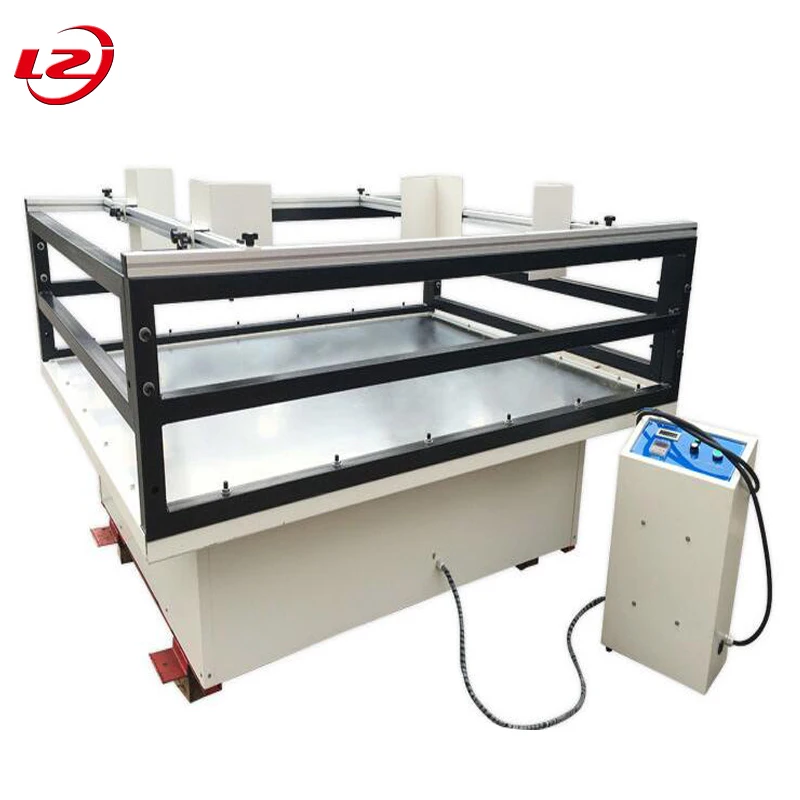

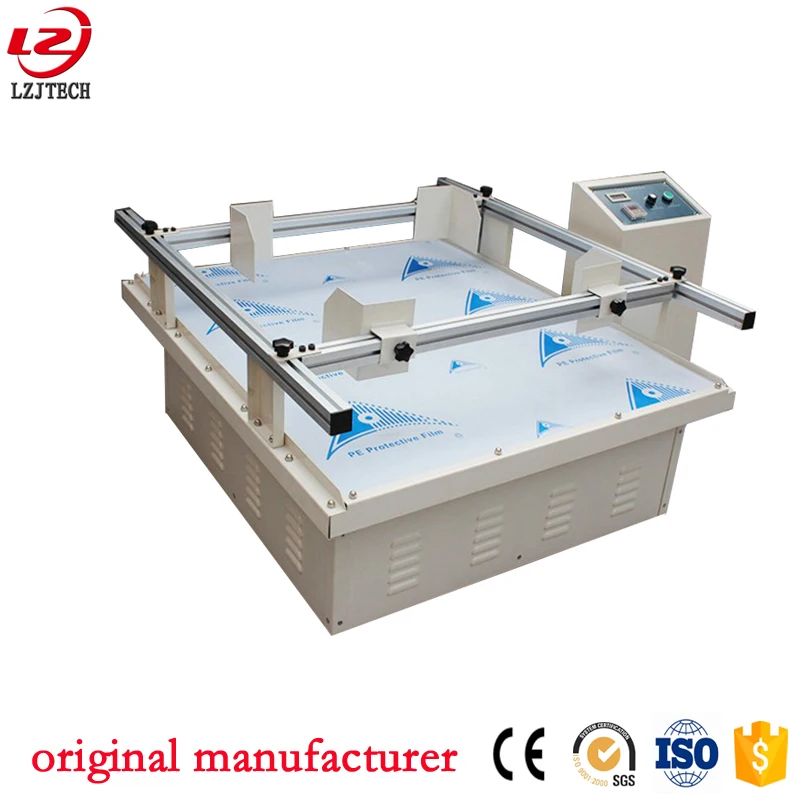

Transport Simulated Vibration Testing Machine Price/Vibrating table laboratory
- Category: >>>
- Supplier: Dongguan Lizjin Electronic Technology Co. Ltd.
Share on (60811891577):
Product Overview
Description
Product Description
Product Application
Transport Simulation Vibration Testing Machine is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.
Specification
| Model | LZJ-ZD-55 |
| Max. Test Load | 1 T |
| Frequency Range | 50-330 round/min adjustable |
| Amplitude Range | 25.4 mm P-P(1 inch) |
| Programmable Digital Timer | 0.1second ~99.59hours |
| Vibration Mode | reciprocating |
| Work Table Size ( L×W×H ) | 2090×1600×1615 mm( Support customization) |
| Fence Height | 1000 mm |
| Power Capacity | 5.3 HP |
| Weight | 1200 Kg |
| Speed Mode | DC converter or AC Frequency Control |
| Power | 380V/220V, 50 Hz |

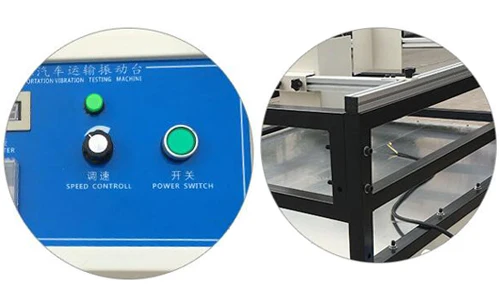

Detailed Images
Packaging & Shipping
Company Information
Our products
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Pre-sales service
*24-hour Online contact
*Choose the right model of the equipment according to customer's request
Middle service
*Give the best offer
*Support customization
* Do customer's request
*Choose payment term you convenient.
*Promptly production and delivery inform you in time.
*Can provide invoice value as you like to decrease your tax
After sale service
*1 year warranty service and all life maintenance
*Provide Free information (1. Product Instruction 2. Product
operation instruction/video 3. Experiment Test)
*Remote control technical consult
*Free installation DVD
*Maintenance plan
Certifications
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
