10G SFP Duplex Optical Transceiver 850nm 300m dual mode sfp fiber transceiver module

Product Overview

Description

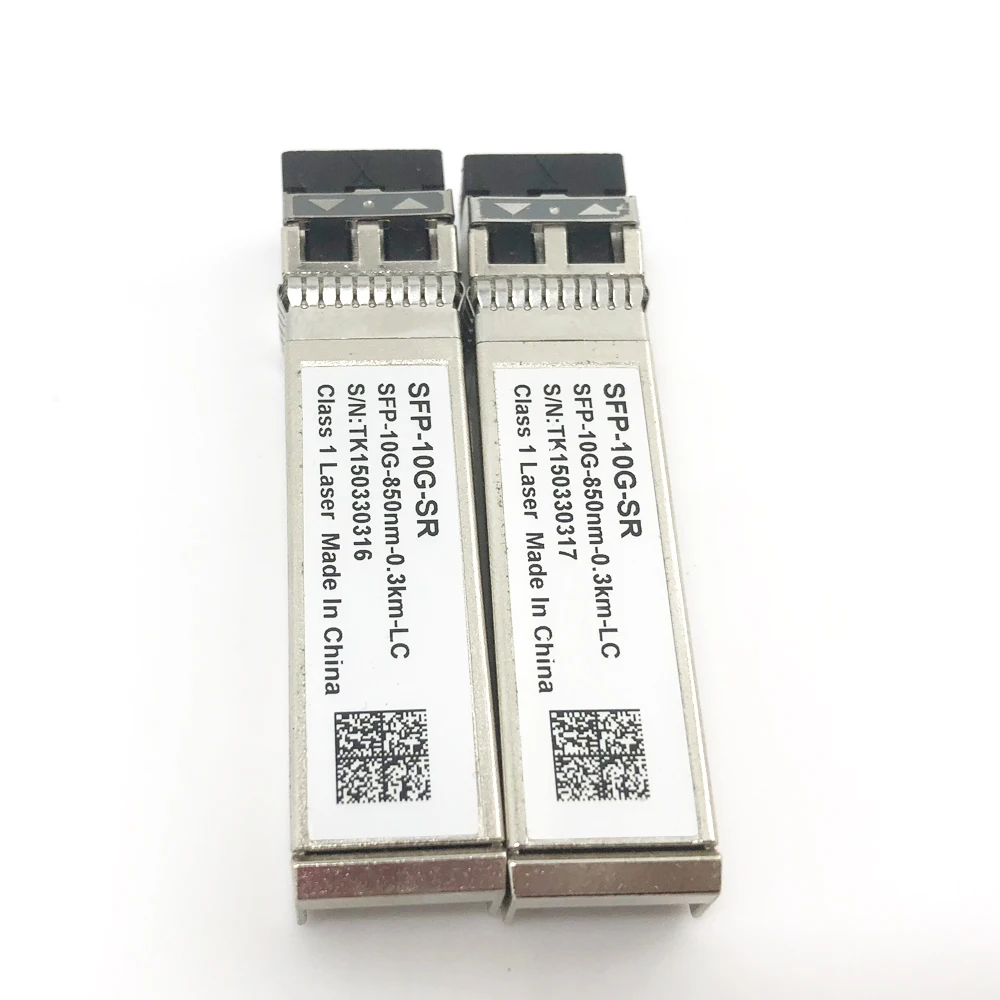

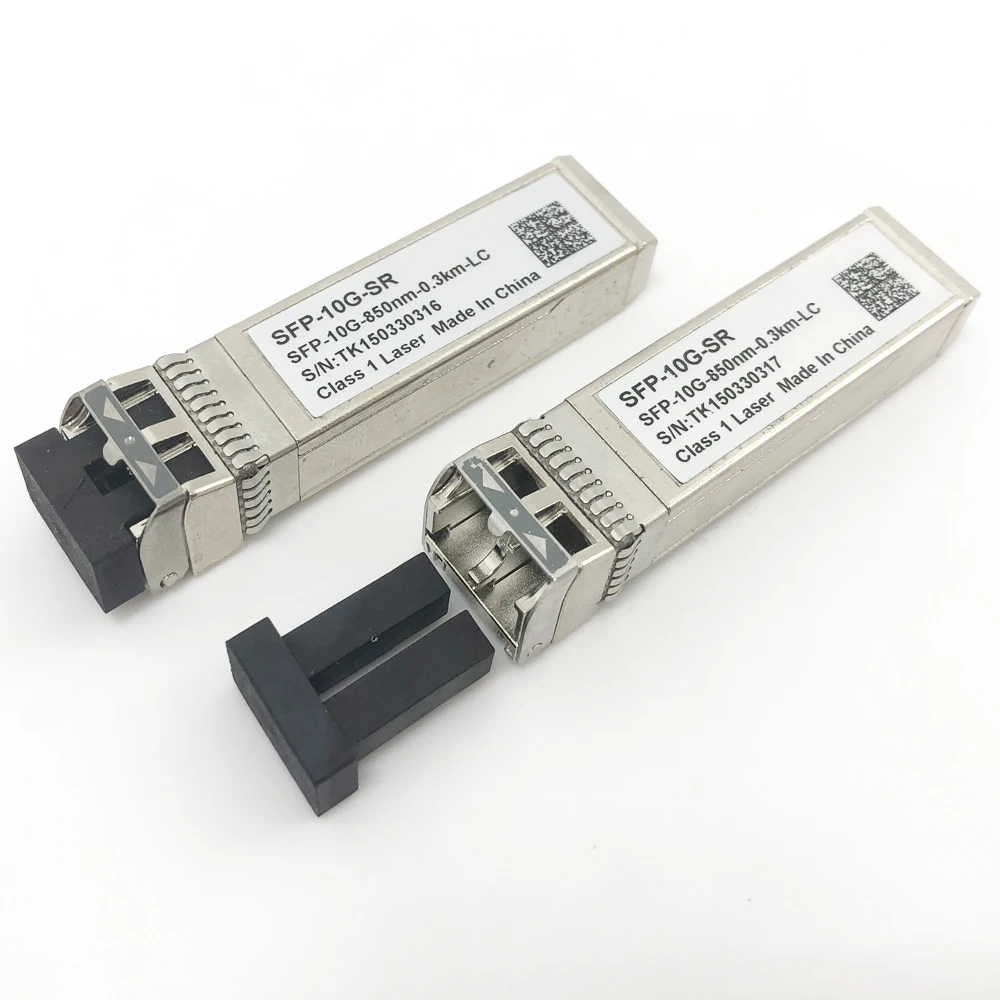

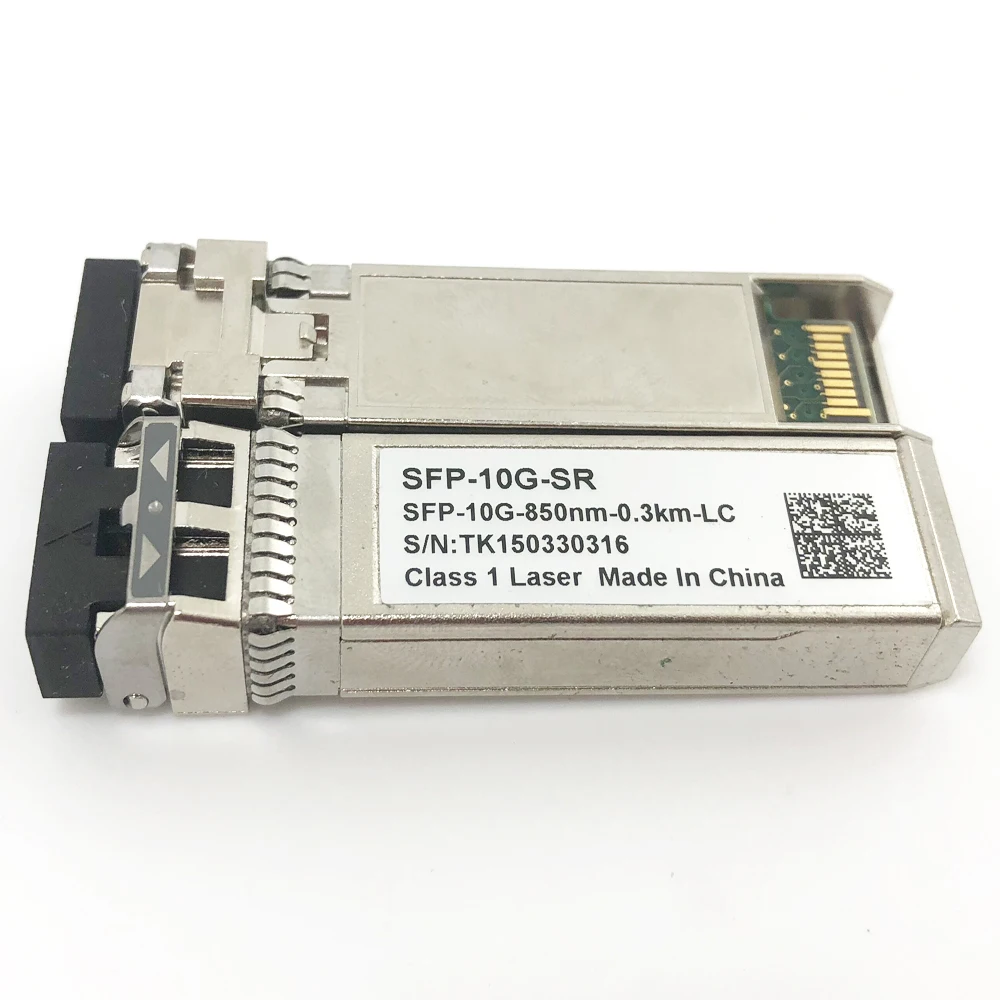

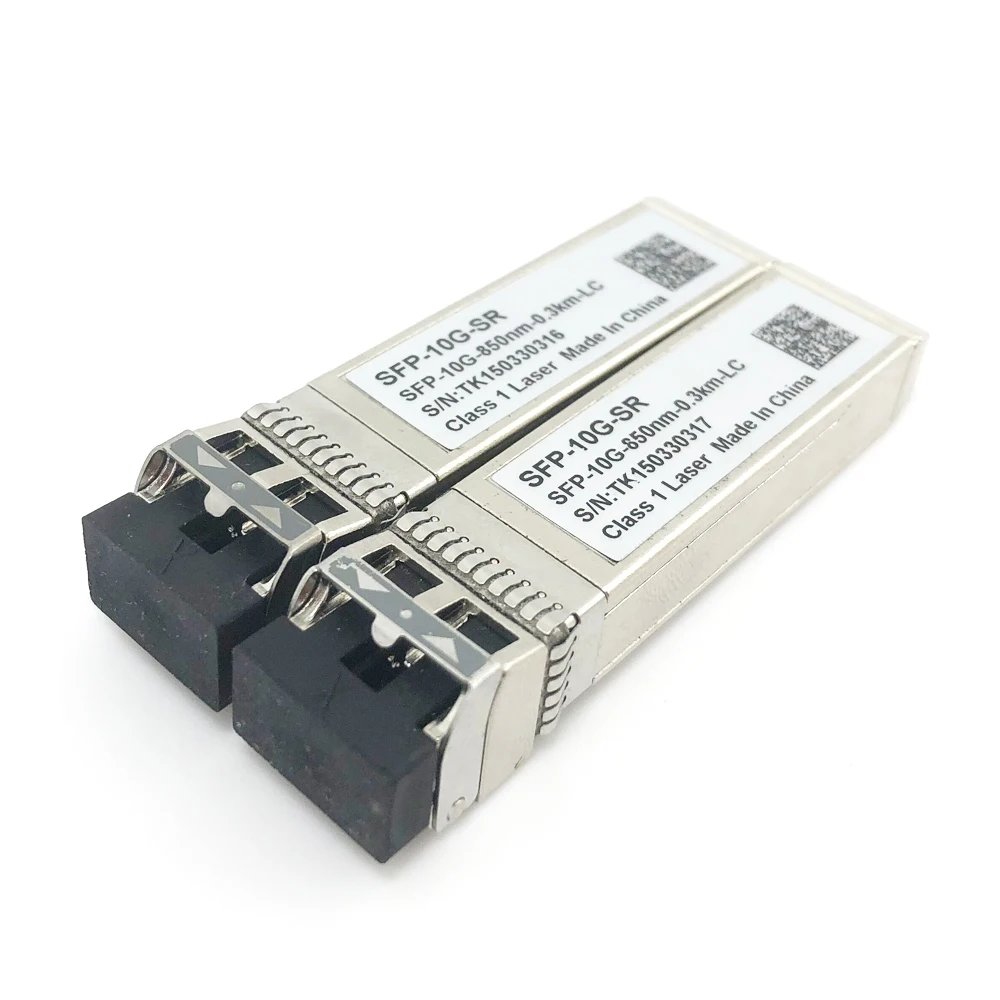

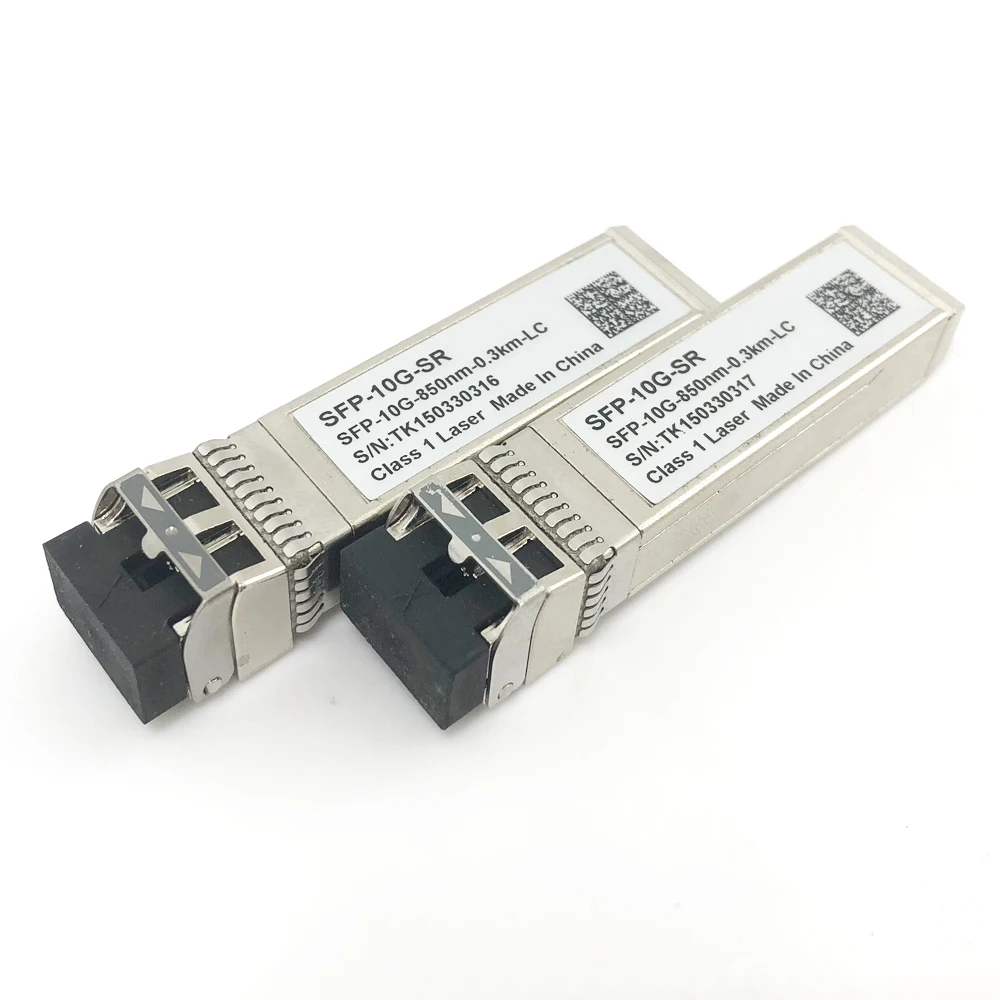

10G SFP+ Duplex Optical Transceiver 850nm 300m dual mode sfp fiber transceiver module

3C-SFP+10G-SR

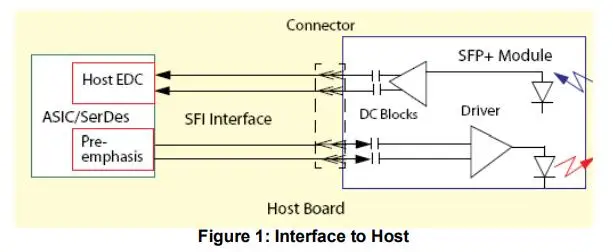

This 850 nm VCSEL 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125 μm or 62.5/125 μm multimode optical fiber (Table 1). Table 1: SFP+ SR Operating Range for each Optical Fiber Type The SFP+ SR module electrical interface is compliant to SFI electrical specifications.







       Optical interface compliant to IEEE 802.3ae 10GBASE-LR

       Electrical interface compliant to SFF-8431

       Hot Pluggable

       1310nm DFB transmitter, PIN photo-detector

       Operating case temperature: 0 to 70 °C

       Low power consumption

       Applicable for 10km SMF connection

       All-metal housing for superior EMI performance

       Advanced firmware allow customer system encryption information to be stored in transceiver

      Cost effective SFP+ solution, enables higher port densities and greater bandwidth

























• 10GBASE-SR at 10.3125Gbps


• 10GBASE-SW at 9.953Gbps

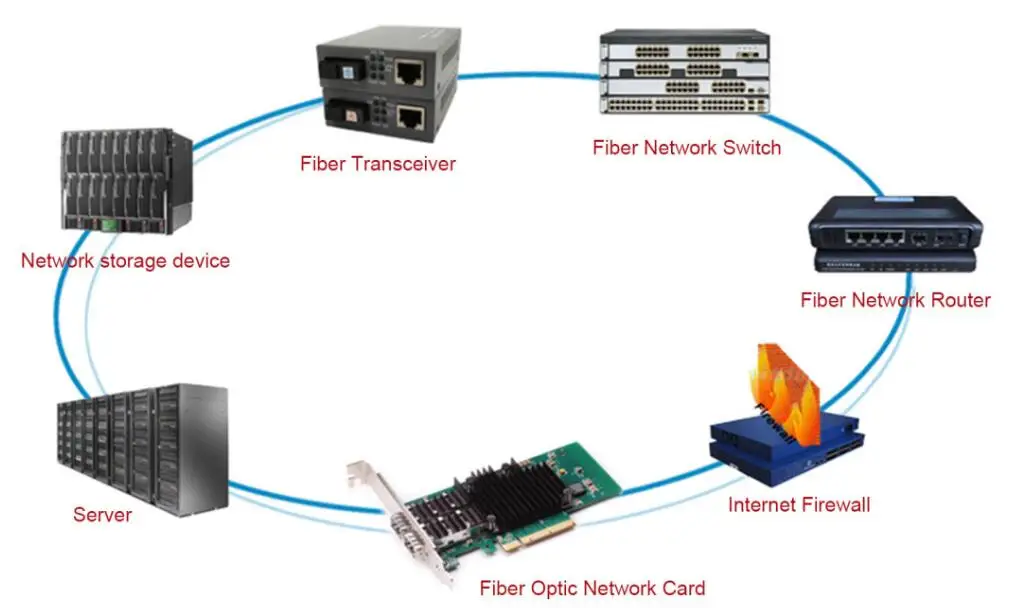

• Other optical links



                                          Common Module Connector Introduction

Perfectly compatible with 99% brand equipment of current market. we are focused on the optical fiber communication industry,committed to provide solutions for the customers and reduce the users’ cost . Now, we can make it compatible with 99% of the telecommunication equipment on the market.
