Product Overview
Description
12mm 15 Smart Glass Film 15% Electric Bathroom Smart Glass
Product Description
What is Switchable Privacy Glass?
Also Called:Privacy glass/PDLC smart glass/Switchable glass/Electric tinted glass/Electric glass/Electric opaque glass/Electric frosted glass/Electrochromic glass

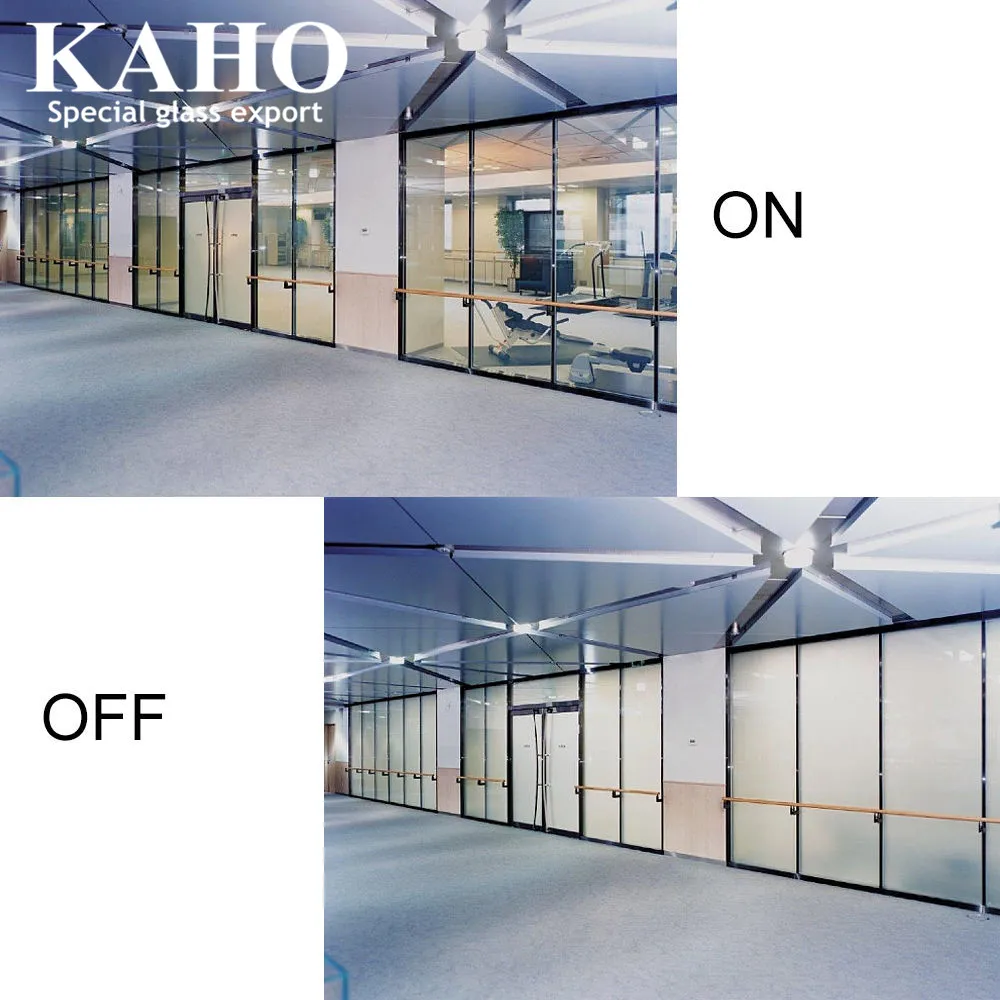

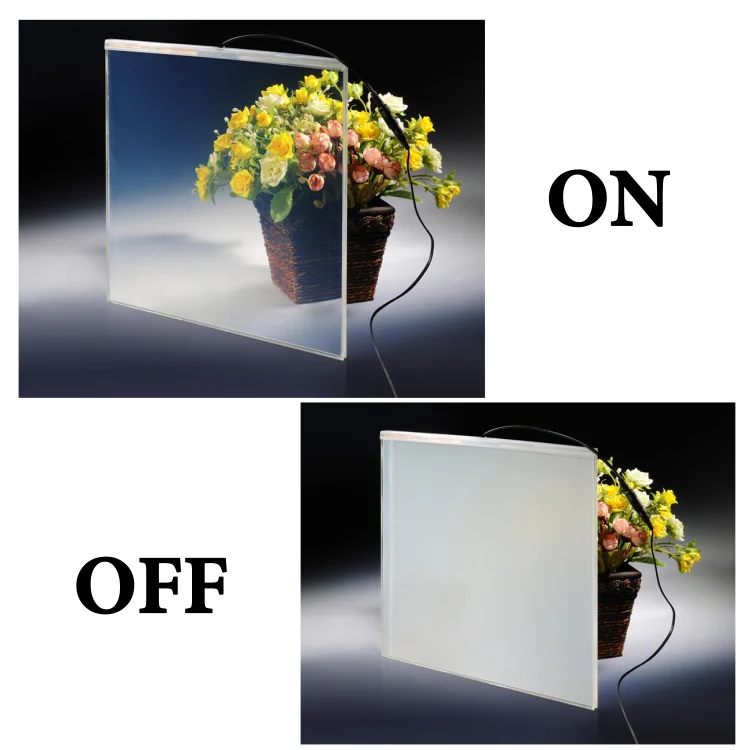

Switchable Smart Glass is laminated glass with smart PDLC film and PVB film in between two pieces float glass, it also have same function as smart PDLC film that when power on it is transparent, when power off it is opaque, and the transmittance of the smart glass can be controlled by electrical switching. They also have a function of the real projection screen.

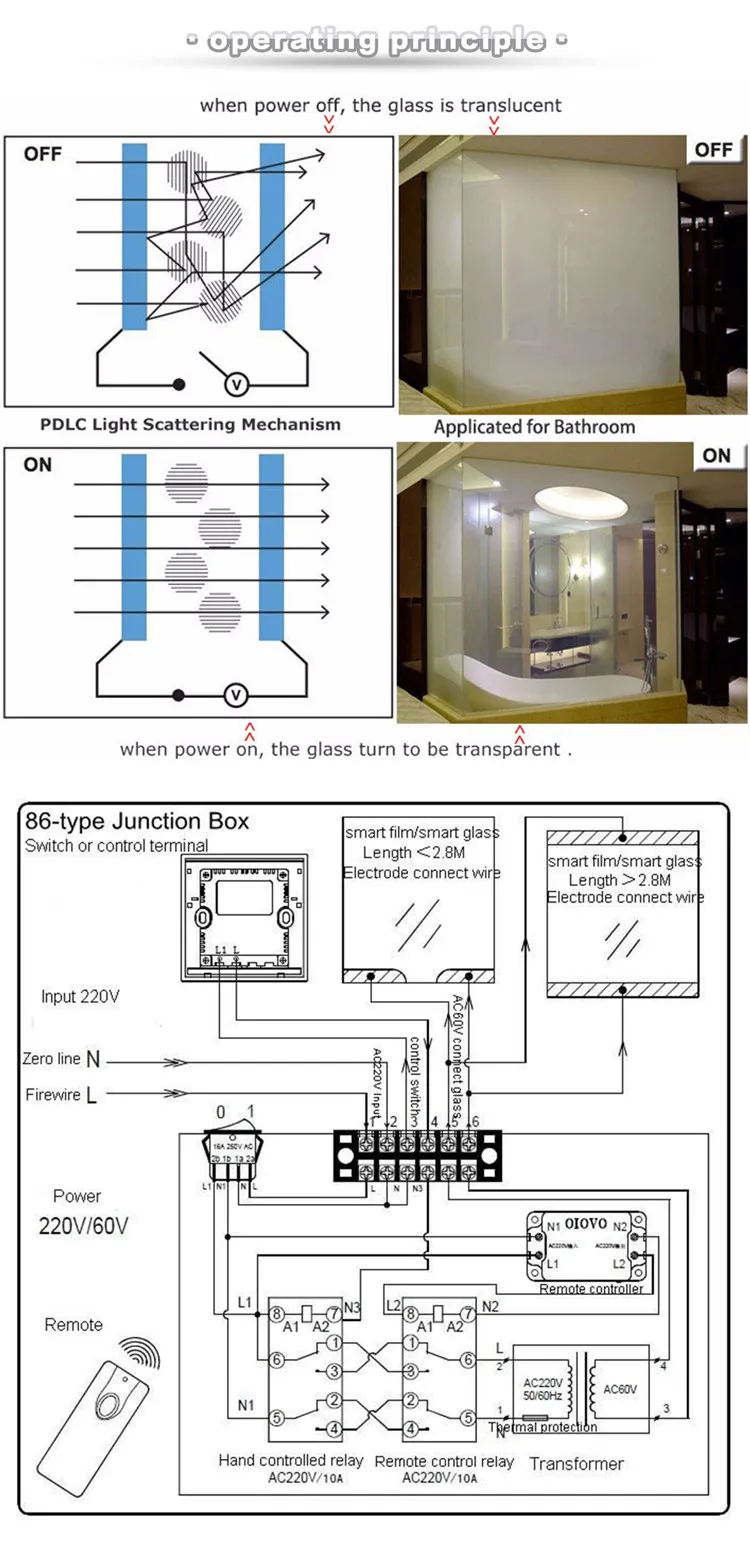

How it works
Technology Principle

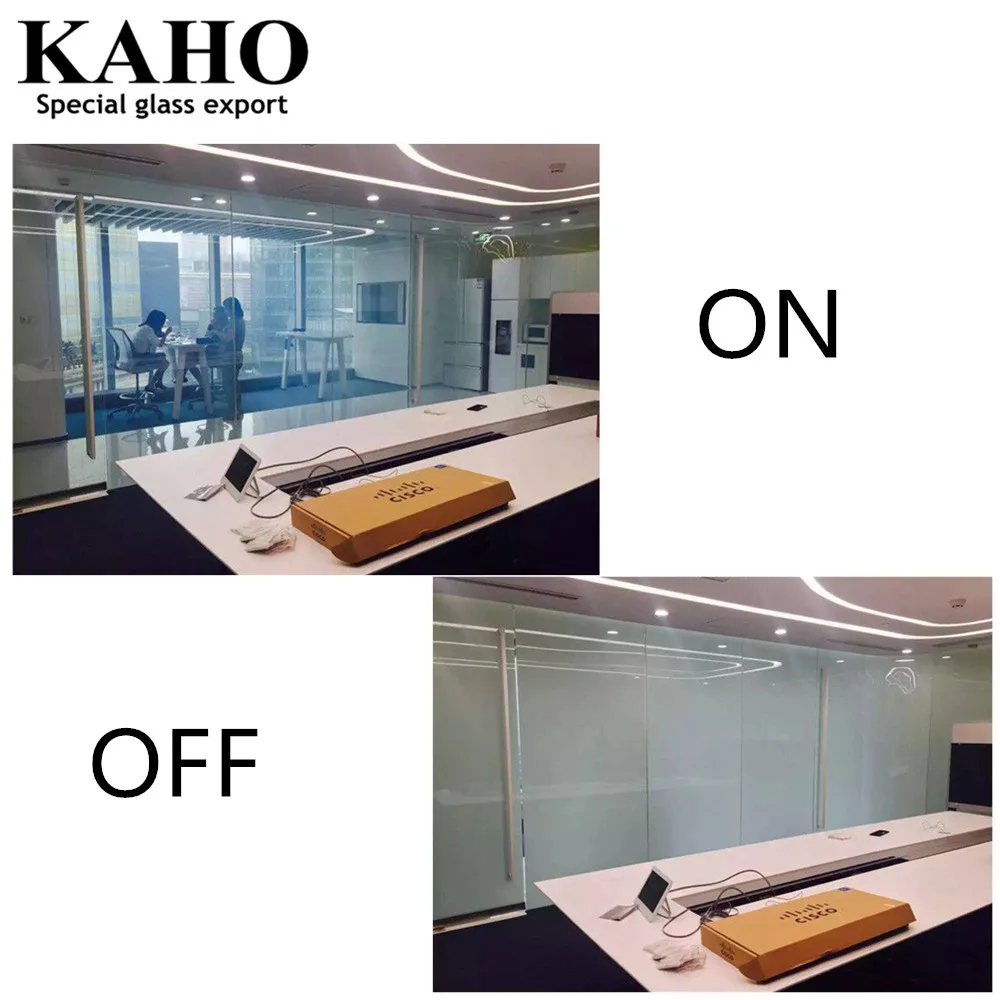

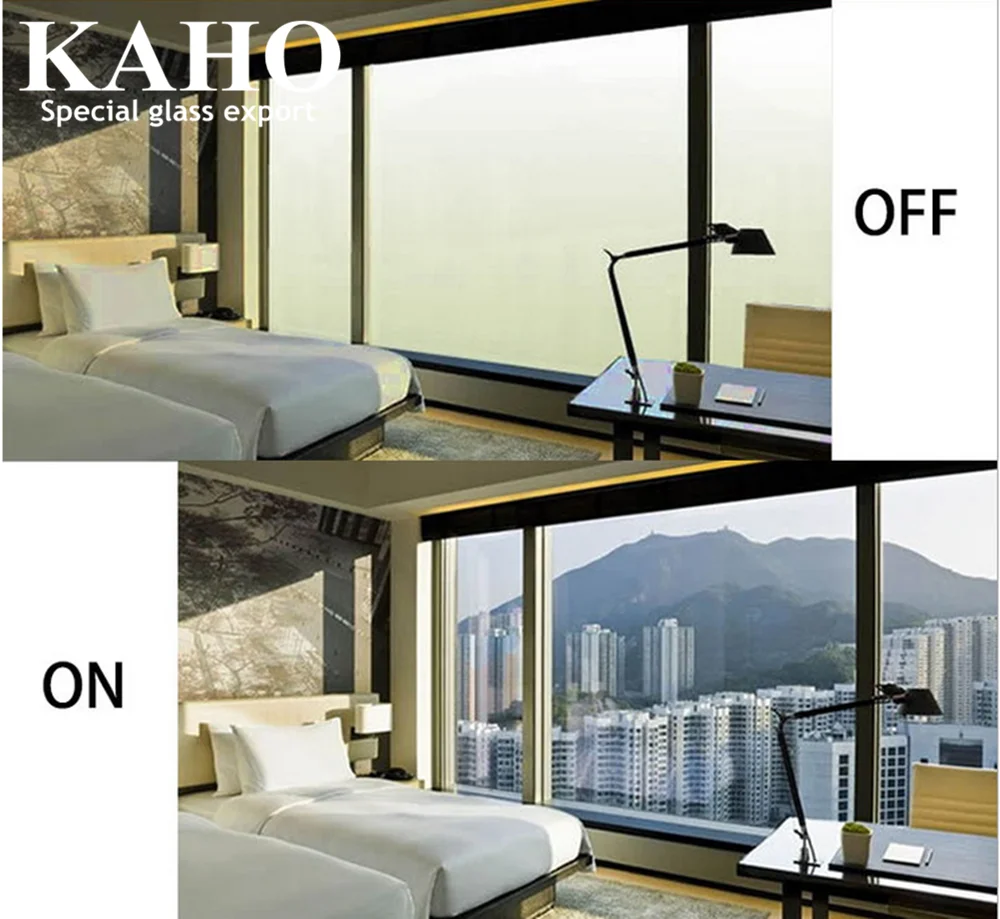

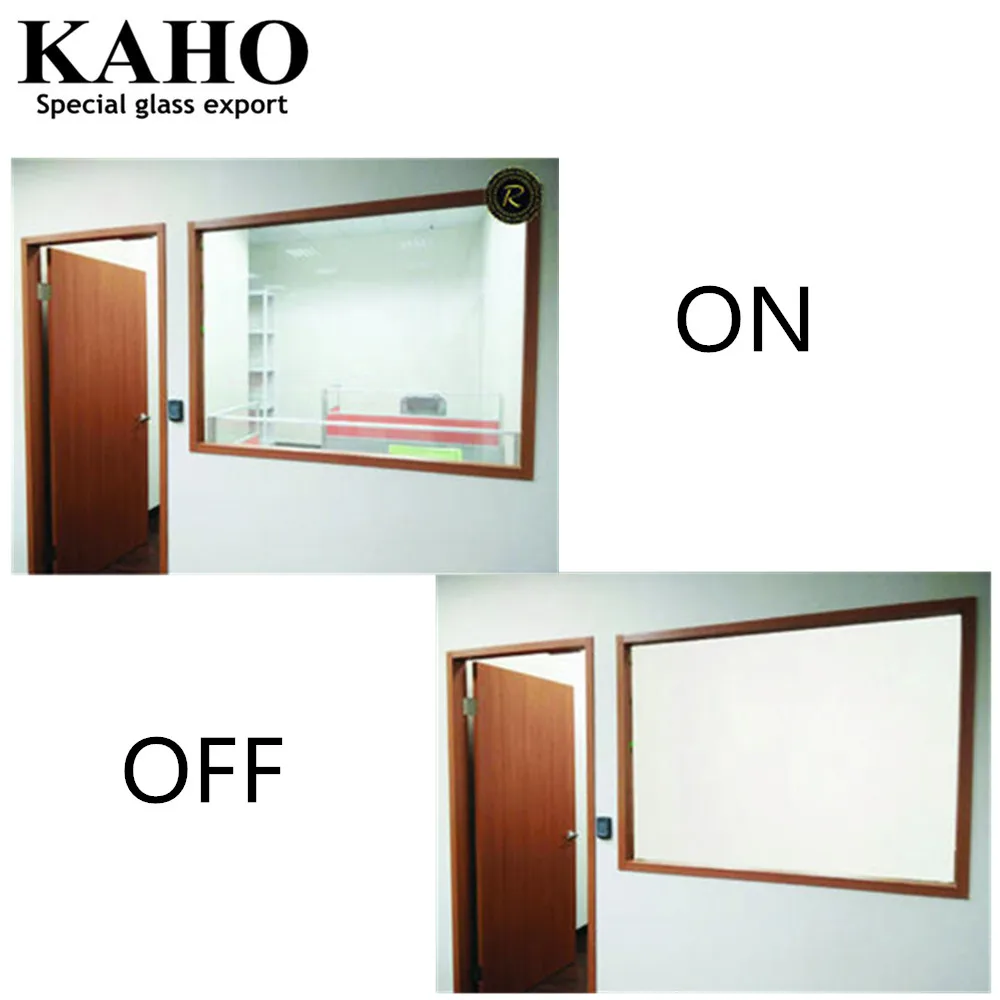

When the power is off,the liquid crystal molecules are randomly oriented that scatters incident light and the glass becomes translucent.
when electricity is applied, the liquid crystal molecules line up,the incident light passes through,and the glass looks clear.
| GLASS TYPE | (All laminated) Annealed glass or Tempered safety glass |
| GLASS COLOR | Clear,Blue,Bronze available |
| THICKNESS | 3+3mm,4+4mm,5+5mm,6+6mm,8+8mm,10+10mm;(Laminated) |
| SIZE(max) | 1800mm*3660mm in maximum |
| SHAPE | Any shape,including holes anywhere |
| TEMPERATUREELECTRICAL | Storage -20°C to 70°C (-4°F to 158°F) |
| Operation -10°C to 60°C(14°F to 140°F) | |
| ELECTRICAL | Driving voltage 65±5 volts AC |
| Current less than 20 mA/ft2(215 mA/m2) | |
| Power less than 0.5watt/ft2(5 watt/m2) | |
| SWITCH TIME | Approx. 100 millisenconds at room temperature |
| OPTICAL | Haze approx.7% |
| Transmission(visible) approx.75% | |
| View angle approx.150° | |
| Scattering effectiveness approx.1 inch | |
| Solar Heat Gain Coefficient off-state <0.10 | |
| SHGC on-state 0.40-0.60 | |
| LIFESPAN | Great than 10 years (indoors) |
| (when used,installed,and stored properly per the usage,storage | |
| and installation specifications referenced herein) |
Application
>>Main Applications:

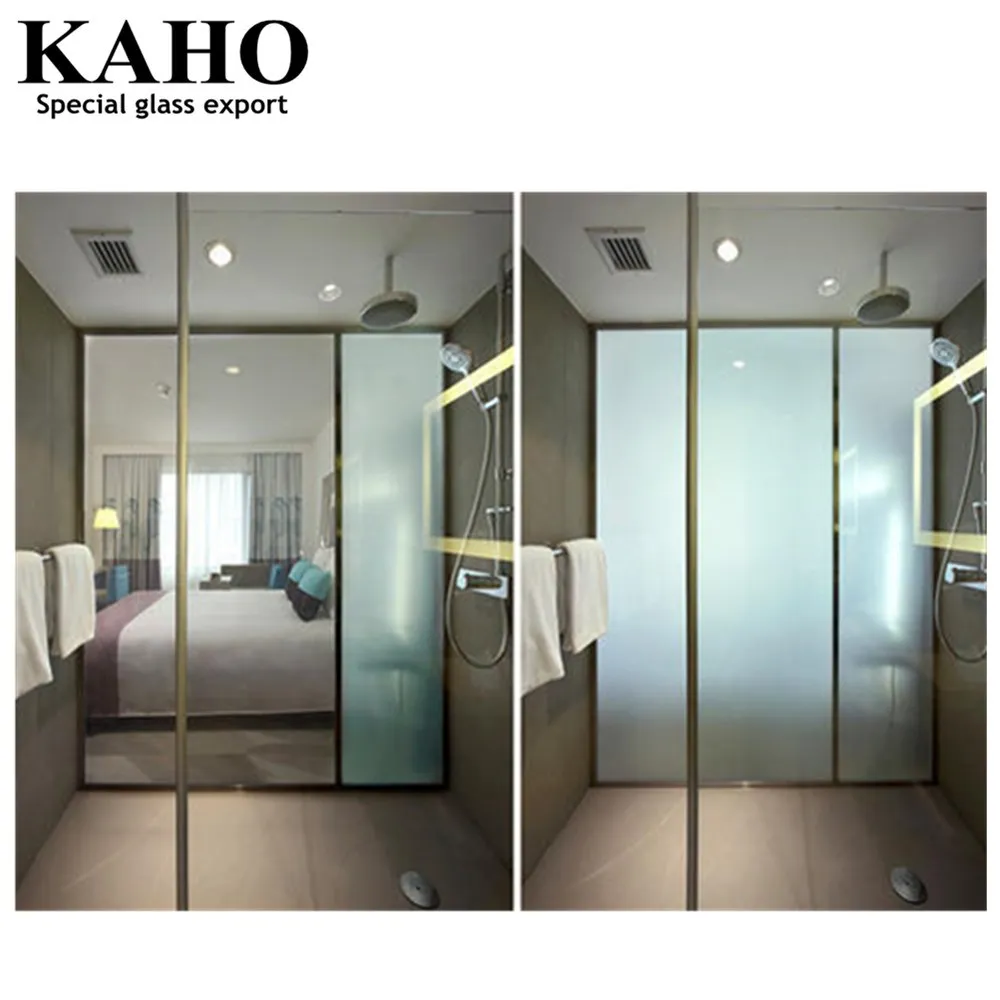

- Bathrooms/Shower enclosures
- Conference rooms
- Clinics Hospital(nurseries,ICUs,emergency,operation rooms)
- Hurricane resistant windows
- Optical shutters
- Projection displays(REAR PROJECTION ONLY)
- Residential enclosures
- Security windows
- Skylights
- Energy efficient enclosures

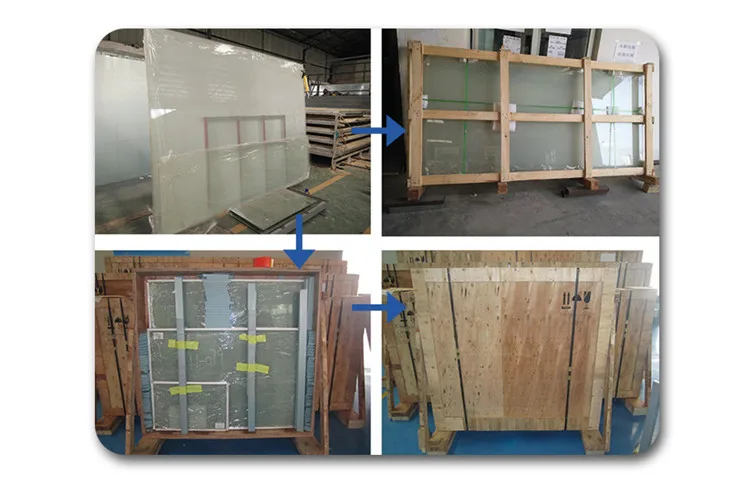

Packing&Shiping
Company Information
Our Services
FAQ
1,Can it be half and half ?
Yes, if the sizes too big, it can be divided into two pieces.
2, Does privacy glass come in different colors?
Yes, we have different colors for your reference.
3.How do I clean the Privacy Glass?
Privacy Glass should be cleaned with a soft cloth and gentle cleanser. Avoid harsh chemicals and the use of sharp instruments.
4. Can I purchase wood or vinyl replacement frames with Privacy Glass installed?
It can be installed by a glazing contractor of your choice into wood, vinyl, or aluminium framing systems.
5.Is there a warranty for your Privacy Glass Product?
Yes,our standard warranty period is 2 year.
6.How do i install Privacy Glass?
Refer to our Installation Guide.
7.Can Kaho switchable privacy glass be used as Shower screen?
The glass panel will need to be completely sealed,the edges impervious to water,and fully framed.
